Slitting and Rewinding Machine for Paper Adhesive Film Plastic Film

(16 Lượt)

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Nhà sản xuất, chế tạo • 2 năm

Giá

330,000,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

Slitting and Rewinding Machine for Paper Adhesive Film Plastic Film

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Slitting and Rewinding Machine for Paper Adhesive Film Plastic Film

Nhà cung cấp

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Thông tin nha cung cấp của bạn

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

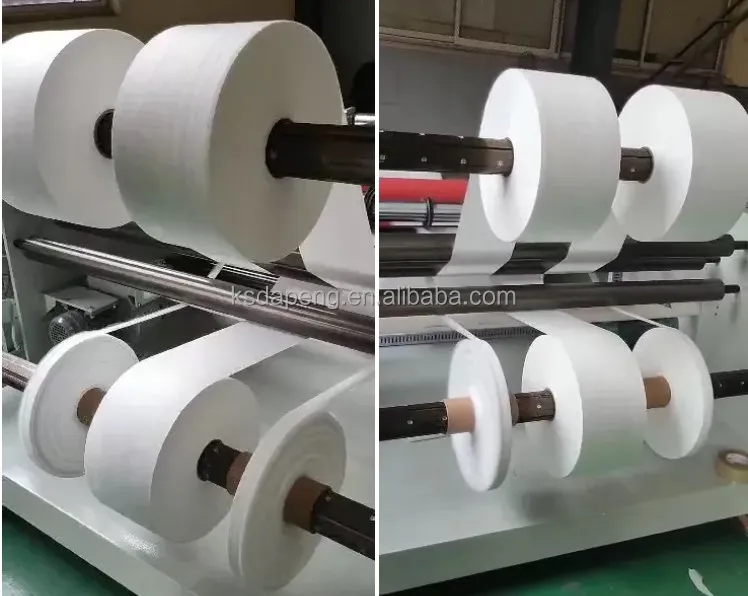

Automatic insulation paper slitting machine
Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery
slitting and rewinding machine

1. The machine is mainly used to slit stick paper, craff paper and other kinds of paper
2. Entire machine is controlled by PLC(two vector motors), man-machine interface, screen touch operation
3. Unwinding part adopts imported pneumatic brake control, the rolling diameter is automatically calculated by PLC, to achieve
constant tension control.
4. Traction control is driven by a vector variable frequency motor, to achieve constant linear velocity control, and effectively
cut off interactant tension between rewind and unwind
5. Rewinding part uses the vector frequency conversion motor, to drive magnetic powder clutch, realized by the PLC automatic
cliameter counting auto tension control.
6. Unwinding parts adopts hydraulic power feed, which can save much labour force and shorten time.
7. Auto meter presetting, EPC error correction device is positive to assure the accuracy.
8. The feature of machine is stability, secunlty, efficient., etc

Machine Name :DP-1300 Slitting Machine(Two Motor)
1. Technique Data
Machine Speed : 150m/min
Max material width : 1300mm , 1600mm, 1800mm etc
Feeding Diameter : 1000mm ( please choose )
Rewinding diameter :450mm, 500mm or 600mm or 800mm or 1000mm ( please choose )
Slitting accuracy :±0.1mm
Voltage:380V 50HZ
Main Motor Power :5.5kw (2 motor power)
Total Power: 8kw
Raw material Max hole diameter: 3”
compress air source:(0.4-0.6)Mpa(customer-owned)
Finished products Min. Width by standard slitting :25MM
Main Machine size :2400*2300*1300mm
Feeding Machine size : 1950*880*780mm
Weight : 2.2T
2, Feeding Device
Feeding Air Expansion Shaft (3”Pad Shaft) 2 Sets
magnetic powder brake 100N 1 Set
Film release Magnetic Powder Brake 50N 1 Set
Feeding Tension Control System 2 Sets
Correction System(Taiwan Gas and Liquid correction) 1 set

3, Renewal Material Laminating Part :
Upper Laminating COTS Dia.135(PU) 1 Set
Under Laminating COTS Dia.135(PU) 1 Set
Aluminum guide roller(hard Oxygen surface treatment) 1 Set
Pressure roller pneumatic type top and bottom system adjustable : 1 Set
electronic counter 1 Set
Film Release tensioning adjustable system
4. Reeling end
Receiving Flatulence axis(3″Pad shaft) 2 Sets
magnetic powder clutch 50N 2 Sets
he receiving tension control system 2 Sets
Main electrical machine (double motor) 1 Set
Main Power inverter 1 Set
Winding shaft and pneumatic up and down device(Rise,descend ,support) 1 Set
5. Operator control box 1 Set
6.Electric control panel 1 Set
7. Function Profile
frequency control of motor speed, operation more easy. Control more accurate.
Double receiving roller center take up , rewinding
Double receiving magnetic powder tension independent control, can rewinding at the same time , and also can individual use
Electronic meter counter with the function of automaticly count the meter and setting length, automatic stopping ,accuracy 0.01,
error ±0.15M
Independent fan waste discharge.
Double motor configuration,The scroll of rewinding can be positive and negative transfer .
8. Slitting part
Slitting up and down cutter 10 sets
Circle tool apron 10 sets
Slitting up and down cutter gasket:1/2/5/20/30/50 each 13 pieces,10MM 12pcs
Functional characteristics:
This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and
receiving materials. Imported magnetic powder clutch is adopted to control the tension. Imported gas sensive device is adopted to
detect the rectification of rolling, with fully automatic hydraulic rectification control. Automatic detection, rectification and
metering can be realized. It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc.
There are two selection ofr main engine, single electric motor, double electric motors.

Purpose:
It is applicable for the slitting tooling of industrial adhesive tape, cellphone tape, protective film, copper foil, aluminum
foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, electronics,
leather, clothes making, plastic, etc.

Main Technical Parameter:

data as below is for reference only , you can customize to other data if required

Model	1300 slitting machine	1600 slitting machine
Max Feeding Width ( mm )	1300	1600
Main Engineer Power ( KW )	6	6
Speed (T/M )	120	120
Size ( mm )	240020001300	240023001300
Weight (kg)	1200	1500
Rewinding diameter ( mm )	1000	1000
Winding diameter ( mm )	500	500
precision ( mm )	±0.10	±0.10
Power	380V 50HZ	380V 50HZ

DIFFERENT ANGLE OF MACHINE

BELOW to show you our standard machine different angle view

Features for

Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery
1. The max width: 650mm / 1300mm / 1600mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 120m/min
6. Under CE and ISO
7. Manufacturer experience: 20 years
8. Export experience:15years
