Drilling & Milling Machine Best Drilling Machine DMLTM-40 of ALMACO

(24 Lượt)

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Nhà sản xuất, chế tạo • 2 năm

Drilling & Milling Machine Best Drilling Machine DMLTM-40 of ALMACO

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Drilling & Milling Machine Best Drilling Machine DMLTM-40 of ALMACO

Nhà cung cấp

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Thông tin nha cung cấp của bạn

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Recommend Products

Products Description

Brief Introduction

All controls centralized on the head stock easy operation and change.Clamping for assemblies and speed change of spindle achiered by hydrandic power,cmle is sensitne owet nelile.

Characteristic

With wide range of speed and feed,with manual,power and fine feeds.The feed of machines are very easily engaged and disengagedat
any time.

Spindle parts are made by special high quality steel heat treatment to be made by first class equipments,ensuring high strength
and durabilityMain gears are machined by gear grining,the machine ensuring high precision and low noise

Standard accessories

Box shape worktable

Taper sleeve

Tool releasing wrench

Drift

Eyelet bolts

Grease gun

Reduction sleeeve

English operation manual

Specification

Model	RD5016
Max.drilling capacity (mm)	50
Distance spindle axis to column generating line (mm)	350-1600
Diameter of column (mm)	350
Spindle taper	MT5
Spindle travel (mm)	315
Spindle speeds range (r/min)	25-2000
Spindle speeds series	16
Range of Spindle feeds (mm/r)	0.04-3.2
Mpindle Spindle feeds	16
Distance spindle nose to working surface of base (mm)	320-1220
Dimension of worktable (mm)	630X500X500
Dimension of base (mm)	2400X1000X200
Overall size (mm)	2500X1060X2650
Power of Main motor (kw)	4
G.W/NW (kg)	4300/3500
Packing dimension (cm)	260X112X260

Company Profile

Our Service

Overseas after sales service outlets
TOPTECH SMAC MACHINERY LIMITED（Canada）
Address:Office and showroom, unit 5, 5510 Ambler Dr Mississauga, ON, L4W2V1, CANADA
Office:905 238 8912
Contact: Mrs Merry NA

COMPANY REPRESENTATIVE (EGYPT)
Address: Ibn Khaldon St. -Villa No.16-6th District-Obour City-Cairo-Egypt
Tel & Fax: +20244823499
Cell phone: +201223960211
Contact: Ahmed Refaat

SJR MACHINERY LIMITED（Algeria）
Adress: cité 128 logements Bater numéro 71 Sidi el DJILLALI sidi bel abbes 22000 att to Mr mezouar Mohammed
mobile number 0542 695 457 and 0770 551 807
Tel: 0542 695 457 ,0770 551 807
Email:Mezouarstar@gmail.com

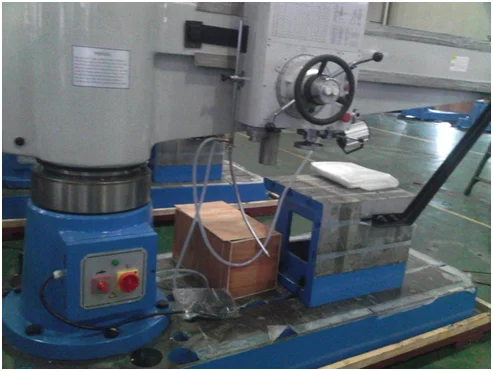

Packing & Delivery

We choose the best packaging, the most excellent
logistics services, to ensure that your goods faster and safer to reach the destination.

FAQ

Q.What are your normal lead times?
A.Our company typical lead times range from 3-4weeks after receipt of order.

Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, O/A etc.

Q.What kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.

Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.

Q.Do you have CE certification
A.Yes, we have CE certification, machine quality is one year guaranteed.

Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service".

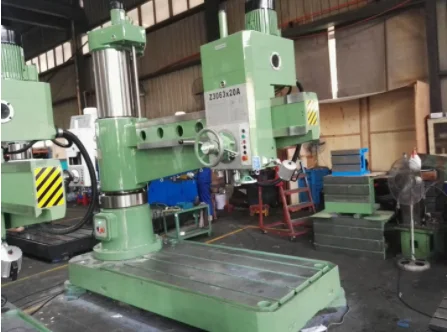

Low Maintenance Cost Power Tool RD5016 Radial Drilling Machine
