Multifunctional Automatic 1200mm Rubber Sponge Slitting Sheeting Machine with PLC Servo Drive Control

(25 Lượt)

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Nhà sản xuất, chế tạo • 2 năm

Giá

275,000,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

Multifunctional Automatic 1200mm Rubber Sponge Slitting Sheeting Machine with PLC Servo Drive Control

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Multifunctional Automatic 1200mm Rubber Sponge Slitting Sheeting Machine with PLC Servo Drive Control

Nhà cung cấp

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Thông tin nha cung cấp của bạn

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Product Description

Specification

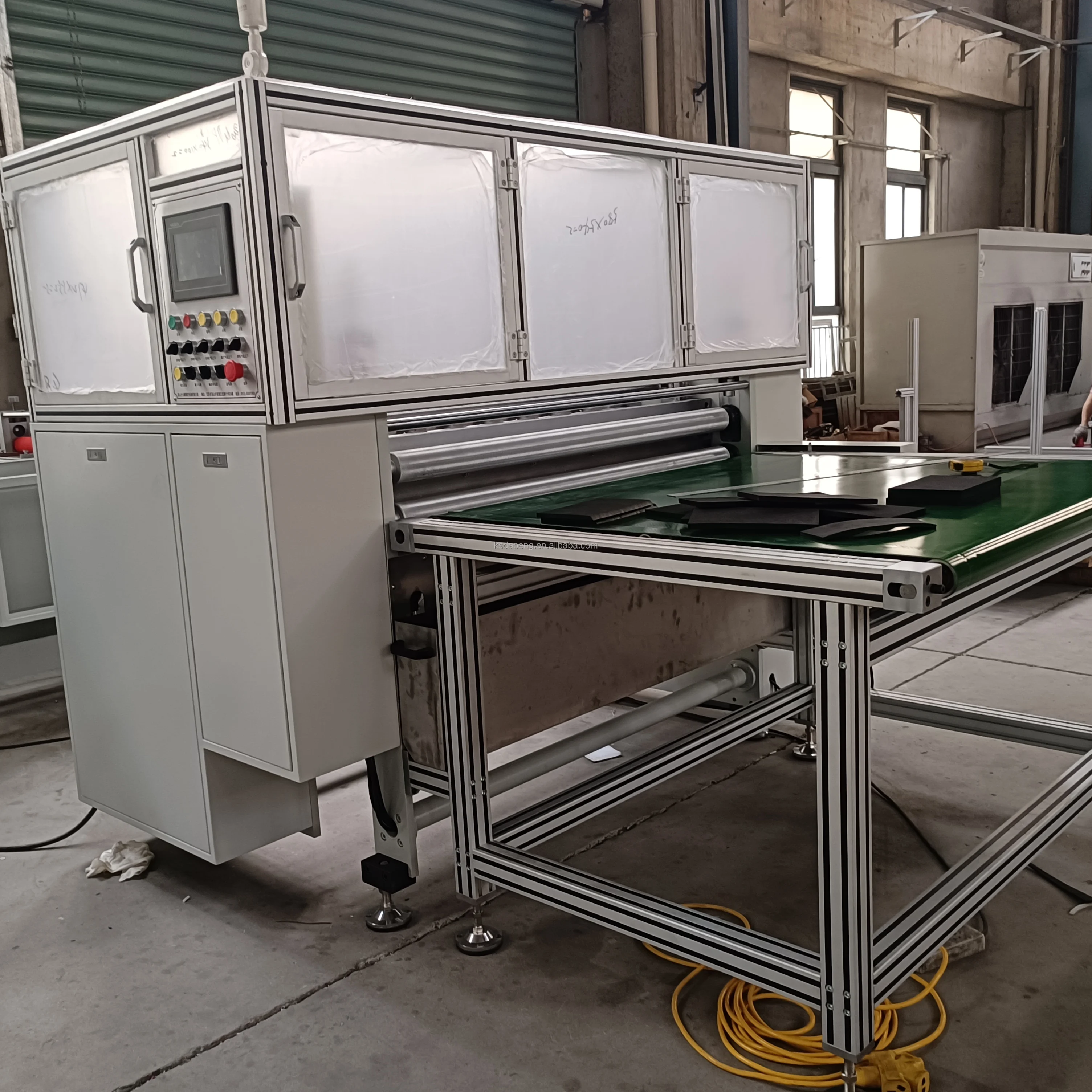

This is Automatic embossing foil 1200mm width roll paper cutting toDP-1200YFQQ sheets machine is well designed. another function
for film and foil hot embossing .
It is ideal for cutting photos, pictures ,plastic film, PVC, PET ,leather ,label plastic and papers. roll to sheet cutting machine
also can cutting aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal foil and all kinds
of material in roll form.Easy to operate, low cost and widely used.

Function characterision

This machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity, speed and finish
singleness cutting , equipped with Tension discharge screw which will be easy to load and unload.
Main functions :
Feed material and return material by pressing the button on touch screen
Preset total cutting quantity
Preset cutting length
Preset cutting speed
Preset cut quantity each time ( applied for hot cutting)
Flash cutting quantity finished
Half cut-off with multi-cut
Full cut-off with one-cut
Five different cutting length can be set
Different cutting quantity and circulation time can be set
Return to ZERO

Model	DP- 1200yfqq
Max working width	1200mm
Working cutting width	9999.9mm
Power supply	380V/50HZ,4KW
Machine dimension	230016001800mm
G.W	1850kg
Package size	213CM153CM191cm

MACHINE INNER MAIN PARTS

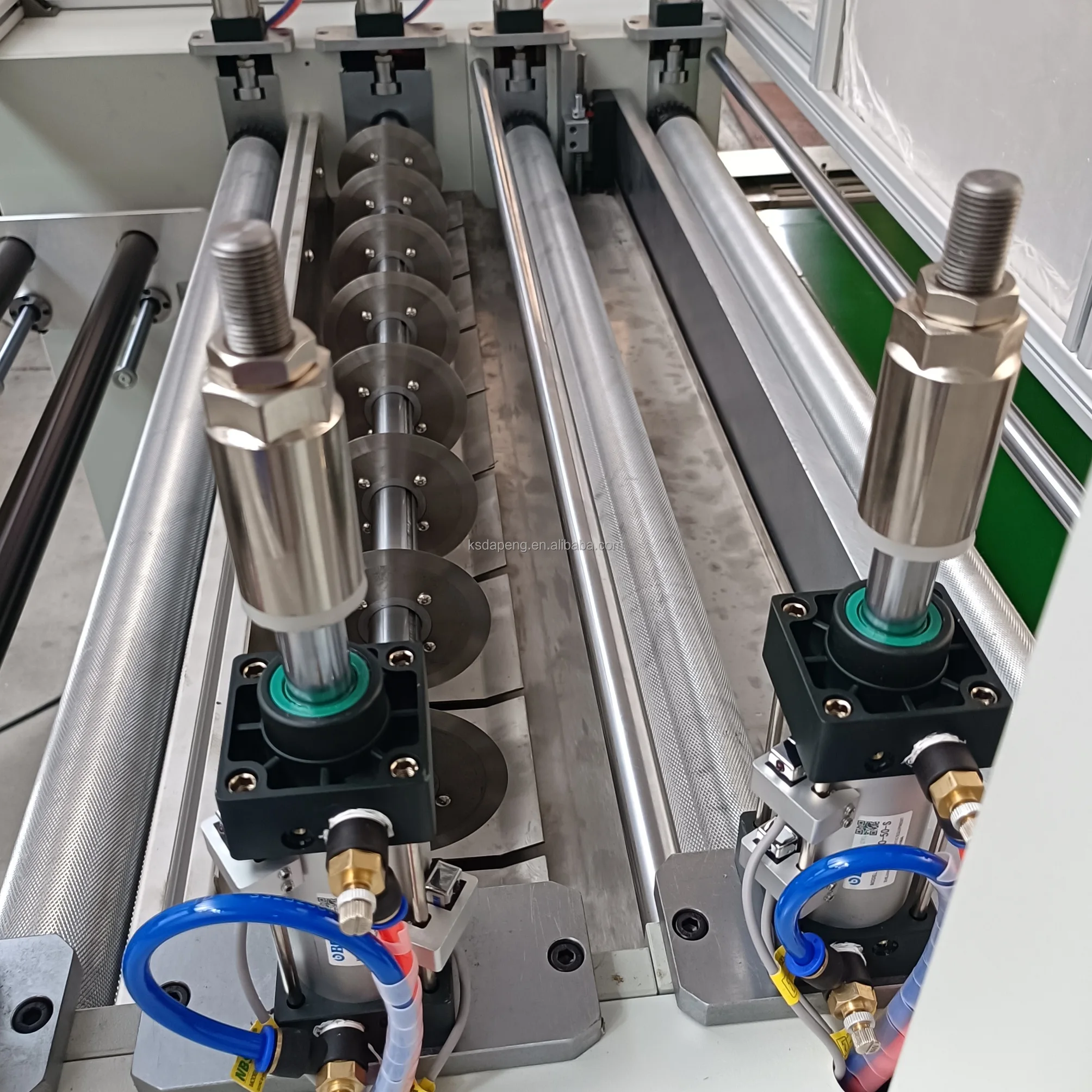

WITH LARGE DIAMETER SLITTING BLADE , HIGH QUALITY , AND SHEETING BLADE LONG TERM USE

WITH PNEUMATIC CYLINDER TO INCREASE AND DOWN and control the pressure too

Touch screen and operation panel

this is the Chinese operation panel at this machine, but we can do English and Chinese two language at the Touch panel, and touch screen also English and Chinese in , if customer require Spanish and other language , we will offer too

Packing & Delivery

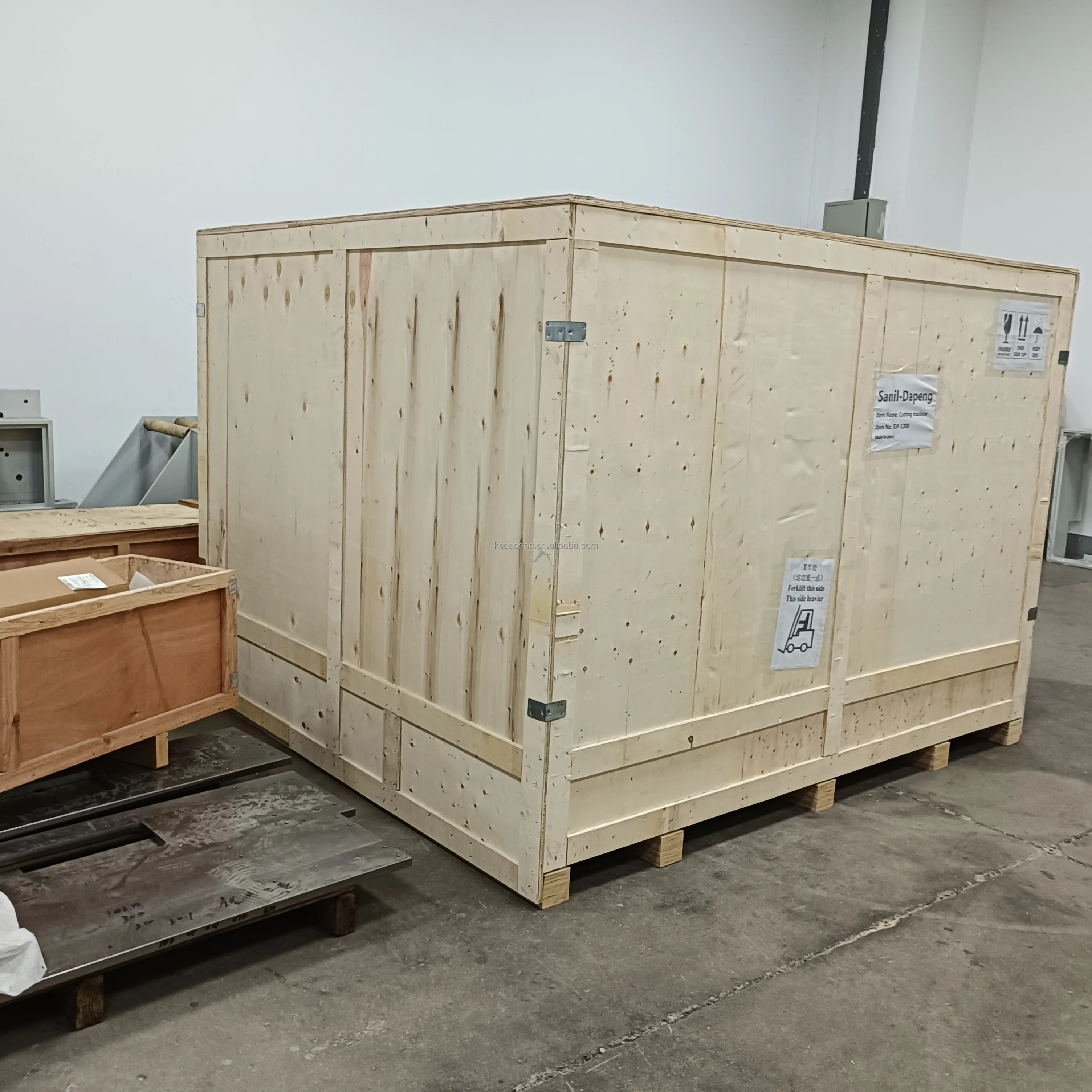

wooden case,

Because the machine is very heavy, it is always transported by ocean shipping. The ocean shipping cost depends on the destination
port and package size. Port to port.

We arrange the local shipment,which’s easy for you to control the transportation cost. If your own forwarder in China can help you
to handle the export ,we also accept the factory price(EXW.)

If you need the machine very urgently. We can also ship by air and express. We have good cooperations with them, this saves your
shipping cost and guarantee your goods safe.Please contact for the shipping cost.

**Please note: Import duties, taxes and charges are not include in the item price or shipping cost. These charges are the buyer's
responsibility. Please check with your local custom office to know the details.

Company Profile

Kunshan Dapeng Precision Machinery is professional manufacture of high precision Die Cutting Machine and high precision hydraulic die cutting machine , Slitting machine,laminating machine ,Roll to Sheet Cutting Machine, Hot and cold type sheeting machine and other machinery. Our machines are mainly used for the production of industrial tapes, electronic shielding films, protective films of PVC/PET, copper aluminum foils, foams and other relate materials. Our company has excellent production equipment and strong technical force. We constantly improve our management system and after-sales services. Our company has won a good reputation among customers. Our company adopts foreign advanced technology. Through several times of manufacturing reform and innovation, we have developed consistently. We can customize difficult models. We not only provide users with products, but also provide services and professional technology for our customers. In the fierce market competition, we always adhere to the tenet of "quality first, users first" for the purpose to provide more perfect products and more superior services. We hope to cooperate with you to create a win-win situation.

FAQ

Warranty

* One year warranty from you receive the item.
* We will provide free replacement part in warranty. (Eliminate vulnerable and artificial damage.) But any warranty shipping cost
is responsible by buyer.
* Installation labor is your responsibility. (We have detailed instrution of parts replacing.)
* For the sales service of our product, we will provide free technical support of equipment lifelong.

Feedback

* We committed to the total customer satisfaction.
* You can search our company( Kunshan Dapeng Precision Machinery Co.,Ltd ) from google. And know that we provide professional services to our
customers all over the world. You buy our products with confidence.
* If you have any quotation or questions of our products, please contact us via email or alibaba right away so that we
can have a good communication.
