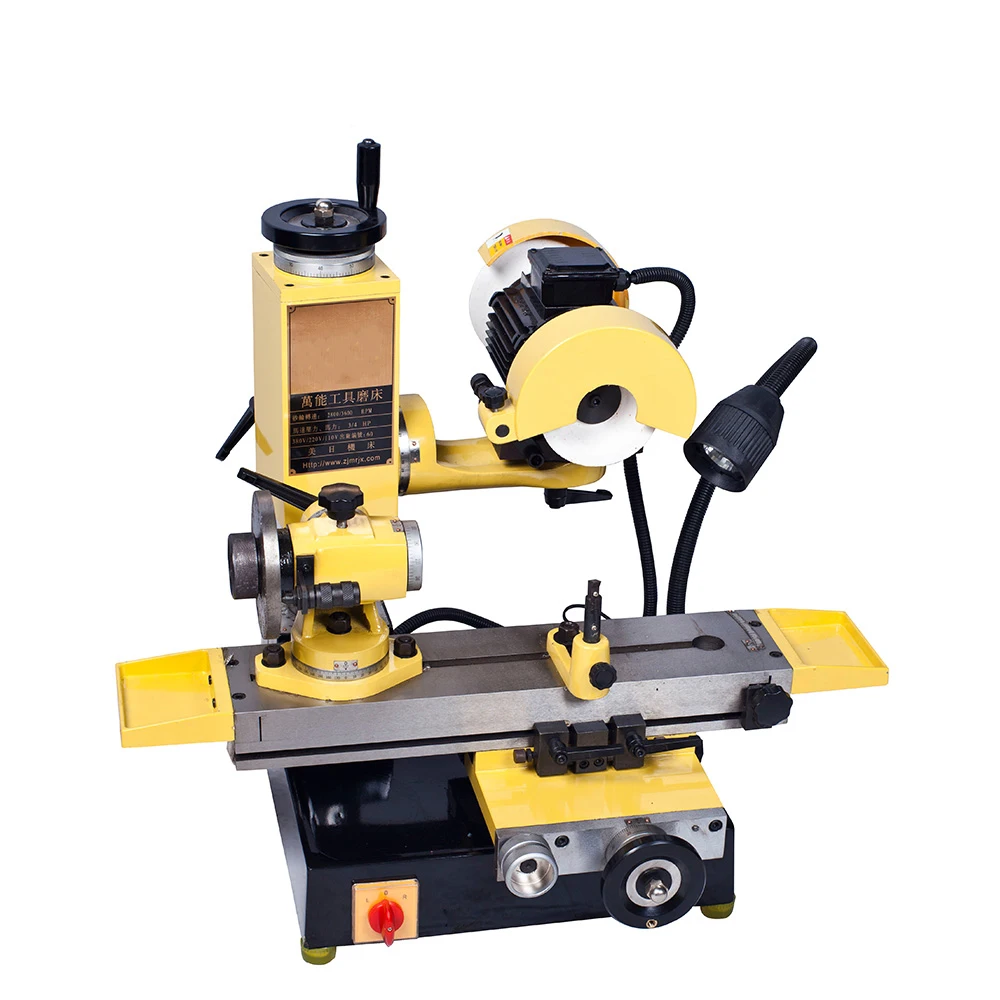

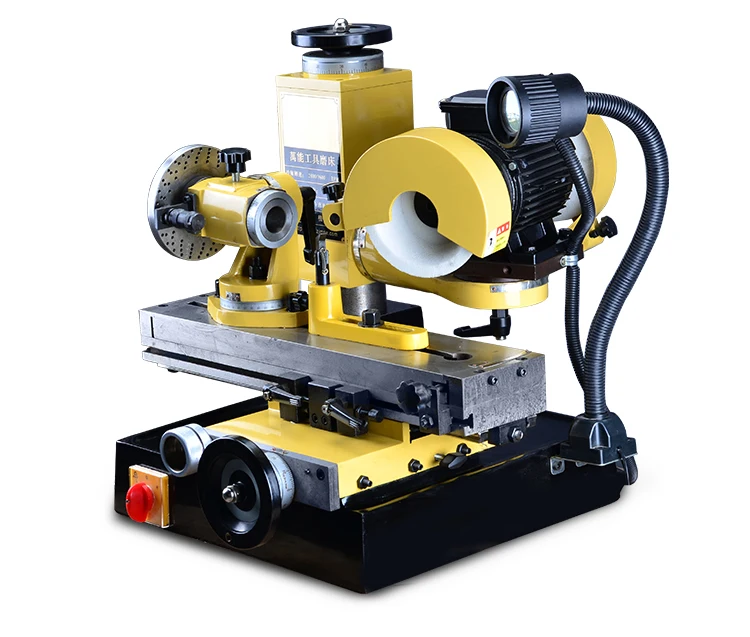

MR- 600F Portable Cutter Sharpener Drill Bit Grinding Machine

(21 Lượt)

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Nhà sản xuất, chế tạo • 2 năm

MR- 600F Portable Cutter Sharpener Drill Bit Grinding Machine

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

MR- 600F Portable Cutter Sharpener Drill Bit Grinding Machine

Nhà cung cấp

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Thông tin nha cung cấp của bạn

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Product Description

Sharpening scope: In hole, outer annulus, column, trench, taper, end mill, disc cutter, lathe tool, square shape and diamond
cutting tool, gear cutting tool and so on.

The working table uses dovetail guide rail or high precision straight line roiling guide

rails,good back and forth movement, high
stability, steady bed platform, dexterous operation.

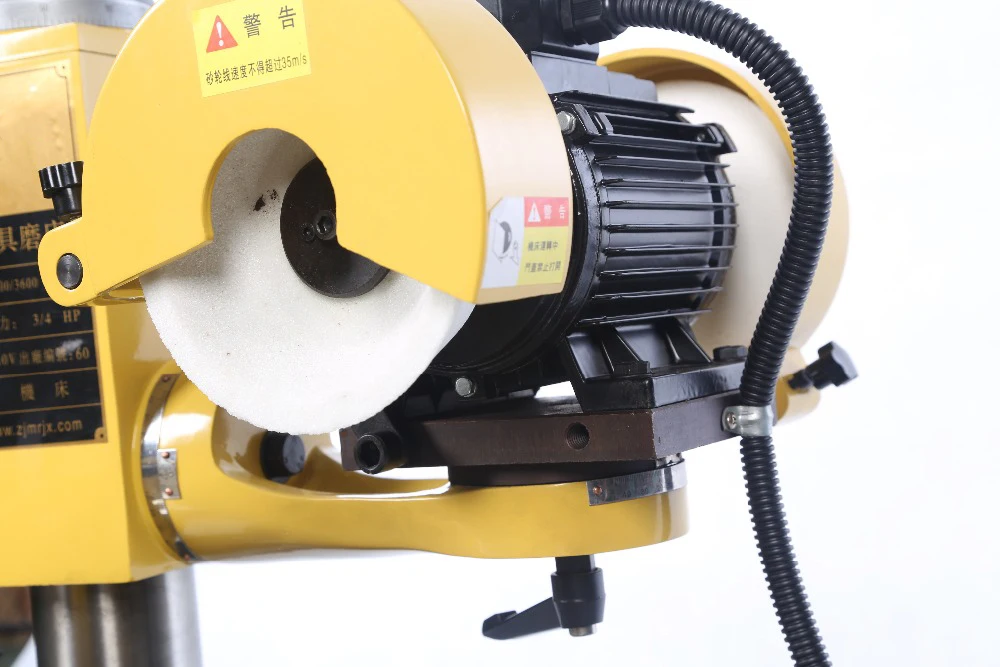

Motor can rotate 360° in the horizontal plane, the grinding wheel can be clockwise and anticlockwise rapidly. When grind different
kinds of material's cutter, you can turn the grinding wheel, which can add the safety and reduce the time of replacing and dressing the grinding wheel, adding controllability of cutter grinding.

Standard accessory can grind lathe tool, end milling cutter, face and side cutters, hobbing cutters, circular paper

Specification

Model	MR-600F
Max. Grinding diameter	250mm
About worktable diameter	300mm
About workable traveling schedule	150mm
Elevating Distance of Wheel head	150mm
Rotating Angle of Wheel head	360°
Grinding head speed	2800RPM
Horse Power and Voltage of Motor	3/4HP,380V
Power	3/4HP
lateral feeding distance	190mm
Workable area	130×520mm
Elevating Distance of Wheel head	160mm
Height of the head holder	135mm
Taper hole of the main spindle of the head holder	mo-type 4#
Grinding wheel	150×16×32mm
Dimension	6565070cm
Net weight / gross weight:	165kg/180kg
Optional Equipment	50E grind spiral milling cutter ball end mill, R type lathe tool,graver and other taper milling cutter.
		50K can grind drill bit ,screw tap, side mill,round bar and so on.
		50D can grind end mill ,side mill and so on.
		50B tablebox
		50J thimble

Recommend Products

Company Profile

Our Service

Overseas after sales service outlets
TOPTECH SMAC MACHINERY LIMITED（Canada）
Address:Office and showroom, unit 5, 5510 Ambler Dr Mississauga, ON, L4W2V1, CANADA
Office:905 238 8912
Contact: Mrs Merry NA

COMPANY REPRESENTATIVE (EGYPT)
Address: Ibn Khaldon St. -Villa No.16-6th District-Obour City-Cairo-Egypt
Tel & Fax: +20244823499
Cell phone: +201223960211
Contact: Ahmed Refaat

SJR MACHINERY LIMITED（Algeria）
Adress: cité 128 logements Bater numéro 71 Sidi el DJILLALI sidi bel abbes 22000 att to Mr mezouar Mohammed
mobile number 0542 695 457 and 0770 551 807
Tel: 0542 695 457 ,0770 551 807
Email:Mezouarstar@gmail.com

Packing & Delivery

We choose the best packaging, the most excellent
logistics services, to ensure that your goods faster and safer to reach the destination.

FAQ

Q.What are your normal lead times?
A.Our company typical lead times range from 3-4weeks after receipt of order.

Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, O/A etc.

Q.What kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.

Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.

Q.Do you have CE certification
A.Yes, we have CE certification, machine quality is one year guaranteed.

Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service".
