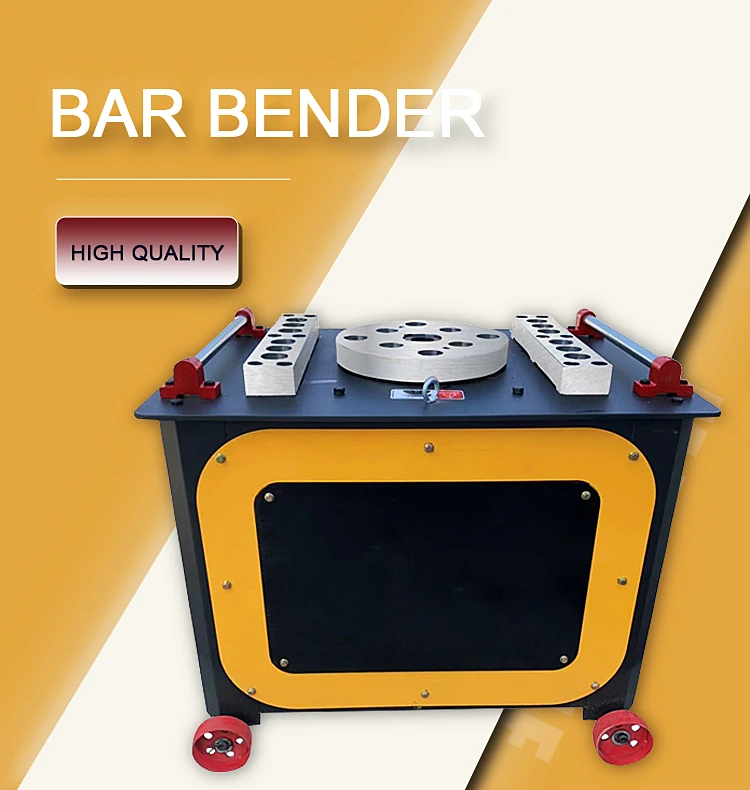

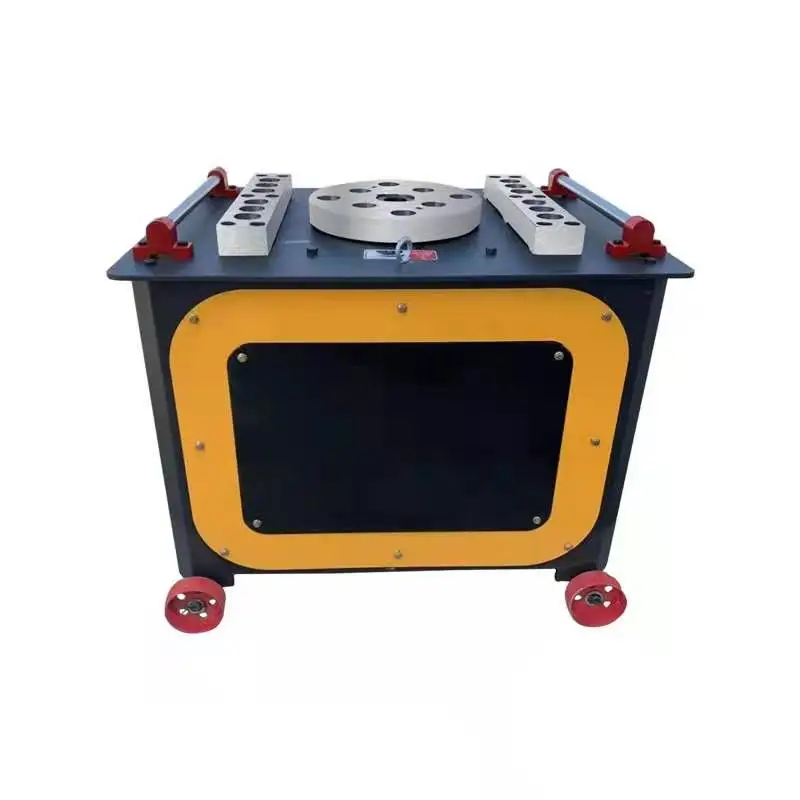

Construction Steel Metal Automatic Square Tube Bar Bender Machine

(22 Lượt)

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Nhà sản xuất, chế tạo • 2 năm

Giá

16,000,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

Construction Steel Metal Automatic Square Tube Bar Bender Machine

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Construction Steel Metal Automatic Square Tube Bar Bender Machine

Nhà cung cấp

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Thông tin nha cung cấp của bạn

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Recommend Products

Products Description

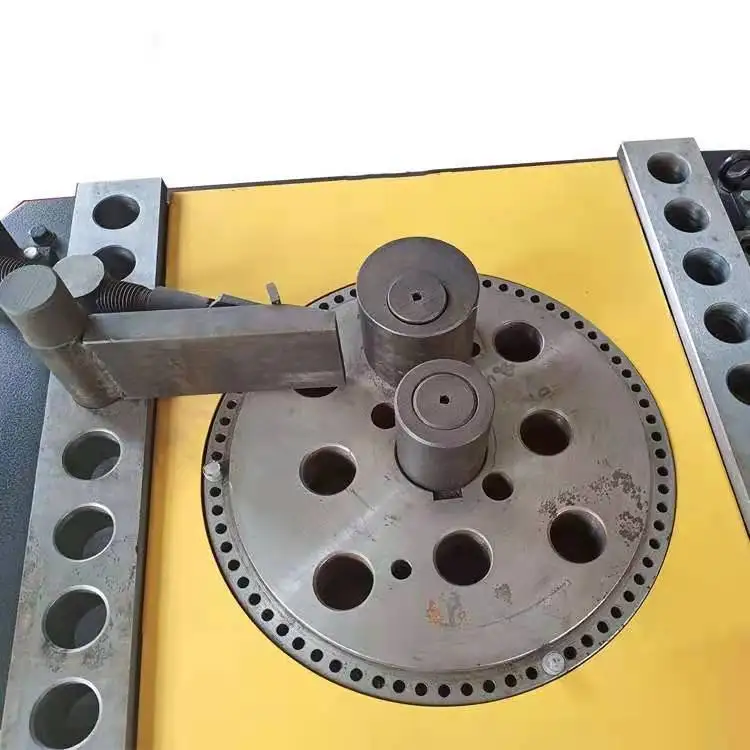

The working mechanism is a horizontal working disc rotating on the vertical axis. The steel bar is placed in the dotted line position in the figure. The supporting pin is fixed on the machine tool. The central pin and bending pin are installed on the working disc. When the disc rotates, the steel bar will be bent. In order to bend the steel bars of various diameters, there are several holes in the working plate for inserting and pressing the bending pin shaft, and the center pin shaft of different diameters can be replaced accordingly.

The steel bar bending machine belongs to the improvement of the structure of the steel bar bending machine. The utility model comprises a reducer, a large gear, a small gear and a curved disk surface, which is characterized in that: in the structure, the two-stage braking motor is directly connected with the reducer for one-stage deceleration; the small gear is meshed with the large gear for two-stage deceleration; the small gear is meshed with the large gear for two-stage deceleration; the small gear is meshed with the large gear for two-stage deceleration;

The positive and negative rotation of the motor is used to bend the steel bar in two directions. The central shaft is replaceable and easy to maintain. Intelligent control can be adopted. Foreign brands are OEM production, rarely a full set of imports. According to the survey, many foreign brands are produced by domestic manufacturers.

Specification

Model		RB-25
Voltage	V	220
Power	W	2700
Max cutting apacity	mm	25
Min cutting apacity	mm	10
Cutting speed	s	5
Size	mm	430X440X380
N.Weight	kg	87
W.Weight	kg	101

Company Profile

Exhibition

Certifications

FAQ

1. How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2. What is your payment terms ?
A: 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.

3: Where is our factory located? How can I visit there?
A : Our factory is located in No. 52 Linyin Road, Economic and Technological Development Zone, Nantong City, Jiangsu Province ,226001 China. You are warmly welcomed to visit us.

4. What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

5. Can you send the service engineer to our company ?
We have engineers stationed in Canada, Egypt, and Algeria. The after-sales service system is very perfect.
