Những điểm chính về sản phẩm
Thuộc tính cụ thể của ngành
Các thuộc tính khác
Khu vực
Thương hiệu
Mã sản phẩm
Tên sản phẩm
Roll to Sheet Hydraulic Die Cutting Machine
Nhà cung cấp
THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL
Thông tin nha cung cấp của bạn
2 yrs
Vị trí tại VN
Mô tả sản phẩm từ nhà cung cấp
Mô tả sản phẩm

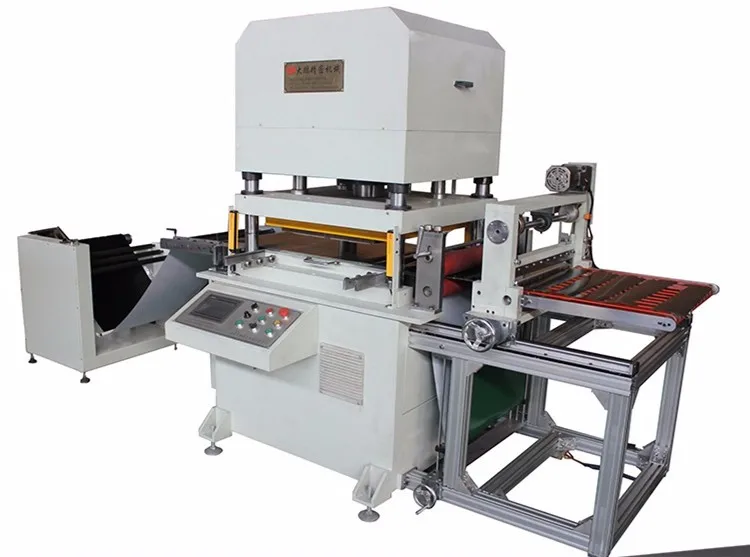

Product Description
Characteristic:
Electronic positioning,automatic adjustment, precision and accurate, and the precision and accuracy can be controlled in 0.01 to 0.03 mm, push board back and forth precision can be controlled in 0.02 to 0.05 mm.
There is shockproof board installed at under-chassis , therefore , the machine body is stable and reliable.
Applies to punch electronic materials such as aluminum foil ,PET, protective film , Mylar through cutting or kiss cutting,
all kinds of precision components of stamping forming.
PLC + man-machine automatic programming control ,oil system adopts integrated control, and there is photoelectric protection.
Configuration Data:
1. PLC 1Set Made in Japan Mitsubishi
2. Touch Screen 1Set Made in Taiwan
3. Photoelectric Safety 4Set Made in Taiwan
4. Automatic pressure regulating motor 2Set Made in Taiwan
5. Main Motor (7.5KW-4) 1Set Taiwan
6. Oil Pump 1Set Made in Taiwan Danxin
7. Solenoid Valve ,Cooler 1batch Made in Taiwan Danxin
8. Main machine Hydro-cylinder 2 set Dapeng Machinery own
9. Air cooling system 1set Made in Taiwan Danxin
10. Servo Motor 1set Made in Taiwan Delta
11. Automatic unwinding machine 1set width 450MM
12.Electronic pressure sensors 2 set Made in Beijing Hangtian
13.Unwinding roller ( with tension control ) Dapeng Machinery own
14.Waste discharge roller 1set ( include waste discharge motor)
15.Pulling roller 2 set Servo motor transmission
2. Touch Screen 1Set Made in Taiwan
3. Photoelectric Safety 4Set Made in Taiwan
4. Automatic pressure regulating motor 2Set Made in Taiwan
5. Main Motor (7.5KW-4) 1Set Taiwan
6. Oil Pump 1Set Made in Taiwan Danxin
7. Solenoid Valve ,Cooler 1batch Made in Taiwan Danxin
8. Main machine Hydro-cylinder 2 set Dapeng Machinery own
9. Air cooling system 1set Made in Taiwan Danxin
10. Servo Motor 1set Made in Taiwan Delta
11. Automatic unwinding machine 1set width 450MM
12.Electronic pressure sensors 2 set Made in Beijing Hangtian
13.Unwinding roller ( with tension control ) Dapeng Machinery own
14.Waste discharge roller 1set ( include waste discharge motor)
15.Pulling roller 2 set Servo motor transmission
Specification
ITEM NO. | Pressure | Max feeding width | Die cutting area | Main engine power |
Ton | mm | mm | HP | |
DP-30TA | 30 | 450 | 450X450 | 10 |
DP-20TA | 20 | 650 | 650X600 | 7.5 |

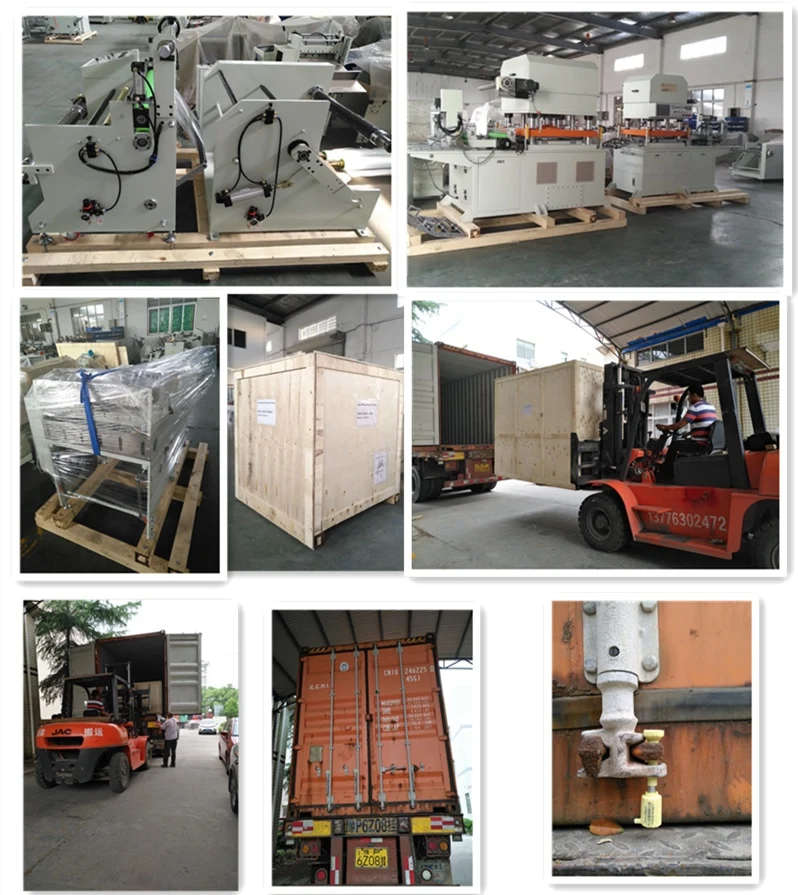

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
Q1：Are you a factory or trade company?
We are a factory.
Q2: How long is the general delivery time of the machine?
30 days.
Q3: Where is your factory?
We are at Jiangsu Kunshan, which is about 30 kilometers from Shanghai.
Q4: Can you provide after-sales service overseas?
Yes, we can.
Q5: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
We are a factory.
Q2: How long is the general delivery time of the machine?
30 days.
Q3: Where is your factory?
We are at Jiangsu Kunshan, which is about 30 kilometers from Shanghai.
Q4: Can you provide after-sales service overseas?
Yes, we can.
Q5: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
