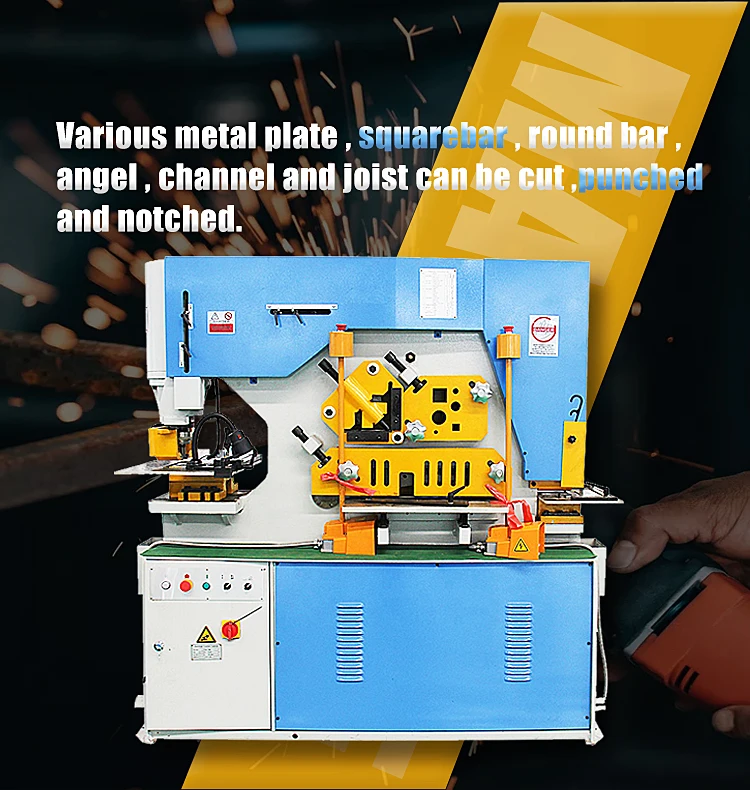

Q35Y-12 Hydraulic Metal Iron Worker Punching Machines With Cutting

(20 Lượt)

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Nhà sản xuất, chế tạo • 2 năm

Giá

85,000,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

Q35Y-12 Hydraulic Metal Iron Worker Punching Machines With Cutting

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Q35Y-12 Hydraulic Metal Iron Worker Punching Machines With Cutting

Nhà cung cấp

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Thông tin nha cung cấp của bạn

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Recommend Products

Product Description

▲The steel bar cutting machine is a tool used for shearing steel bar, there are automatic steel bar cutting machine, and
semi-automatic steel bar cutting machine. It is mainly used to cut off the fixed length of reinforcement in civil engineering and
is an essential equipment in the process of reinforcement.

▲Compared with other cutting equipment, it has the advantages of light weight, less energy consumption, reliable operation and
high efficiency, so it has been widely used in the field of mechanical processing and has played an important role in the process
of national economic construction.

▲There are generally automatic steel cutting machine, and semi-automatic steel cutting machine points. Fully automatic also known as electric cutting machine is the electrical energy through the motor into kinetic energy control knife incision, to achieve the effect of shear reinforcement. The semi-automatic is manual control of the incision, so as to shear the reinforcement operation. And more should belong to hydraulic steel bar cutting machine bar cutting machine is divided into charging and portable two categories.

Specification

Specification	Model	Unit	10601	10602	10603	10604
Specification	Model	Unit				PS55	PS75	PS110	PS140
Pressure			TOM	55	75	110	140
Max.cutting tickness			Mm16	16	20	25	30
Plate strength			n/mm2	<450	<450	<45	<45
Cutting angle			degree	7	8	8	8
Shearing size of one stroke			mm	16250 8400	20330 10480	25300 16600	30355 20600
Ram stroke			mm	80	80	80	80
Number of strokes			cpm	8	8	6	8
Throat thickness			mm	300	355	400	600
Pumching thickness			mm	16	20	25	26
Max.Puching diameter			mm	25	30	35	38
Power of main motor			Km	4	5.5	7.5	11
Over al dimensions(LWH)			Mm	16407301770	18608001900	23559602090	268010402330
Weight of machine			Kg	1600	2000	4800	6800

Company Profile

Our Service

Overseas after sales service outlets
TOPTECH SMAC MACHINERY LIMITED（Canada）
Address:Office and showroom, unit 5, 5510 Ambler Dr Mississauga, ON, L4W2V1, CANADA
Office:905 238 8912
Contact: Mrs Merry NA

COMPANY REPRESENTATIVE (EGYPT)
Address: Ibn Khaldon St. -Villa No.16-6th District-Obour City-Cairo-Egypt
Tel & Fax: +20244823499
Cell phone: +201223960211
Contact: Ahmed Refaat

SJR MACHINERY LIMITED（Algeria）
Adress: cité 128 logements Bater numéro 71 Sidi el DJILLALI sidi bel abbes 22000 att to Mr mezouar Mohammed
mobile number 0542 695 457 and 0770 551 807
Tel: 0542 695 457 ,0770 551 807
Email:Mezouarstar@gmail.com

Packing & Delivery

We choose the best packaging, the most excellent
logistics services, to ensure that your goods faster and safer to reach the destination.

FAQ

Q.What are your normal lead times?
A.Our company typical lead times range from 3-4weeks after receipt of order.

Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, O/A etc.

Q.What kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.

Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.

Q.Do you have CE certification
A.Yes, we have CE certification, machine quality is one year guaranteed.

Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service".

Hydraulic Q35Y-12 New Metal Mechanic Iron Worker Punching Machines

Giá

85,000,000 đ
