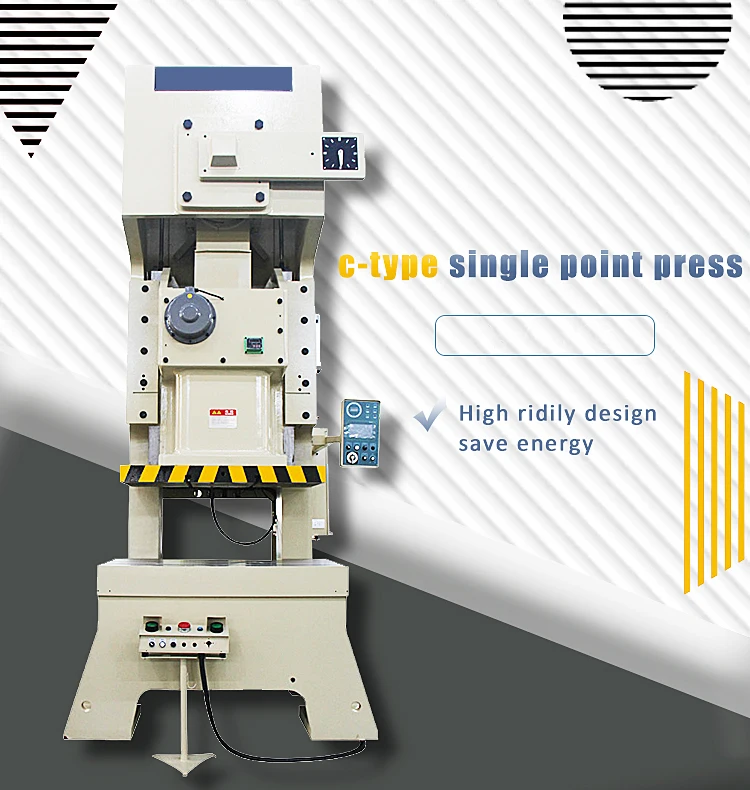

APA-200B C-type Single Point Automatic Feeder Pneumatic Power Press

(20 Lượt)

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Nhà sản xuất, chế tạo • 2 năm

Giá

240,725,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

APA-200B C-type Single Point Automatic Feeder Pneumatic Power Press

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

APA-200B C-type Single Point Automatic Feeder Pneumatic Power Press

Nhà cung cấp

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Thông tin nha cung cấp của bạn

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Recommend Products

Products Description

Brief Introduction

pneumatic clutch heavy duty power press machine , high precision , low noise , use PLC +Touch screen controller , machine with miss feeder function , easy connect with feeder and other accessories .

Characteristic

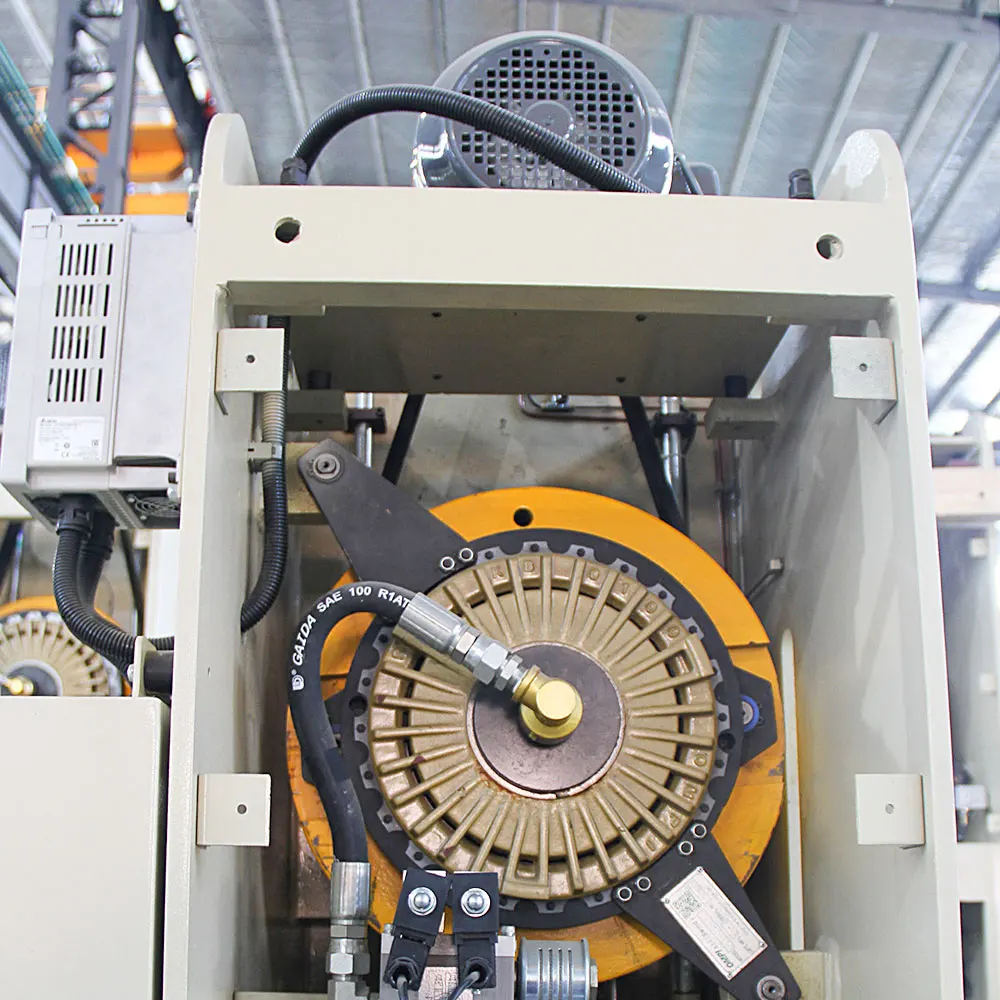

OMPI clutch , ( MADE IN ITALY ) , running

safety and very lower noise

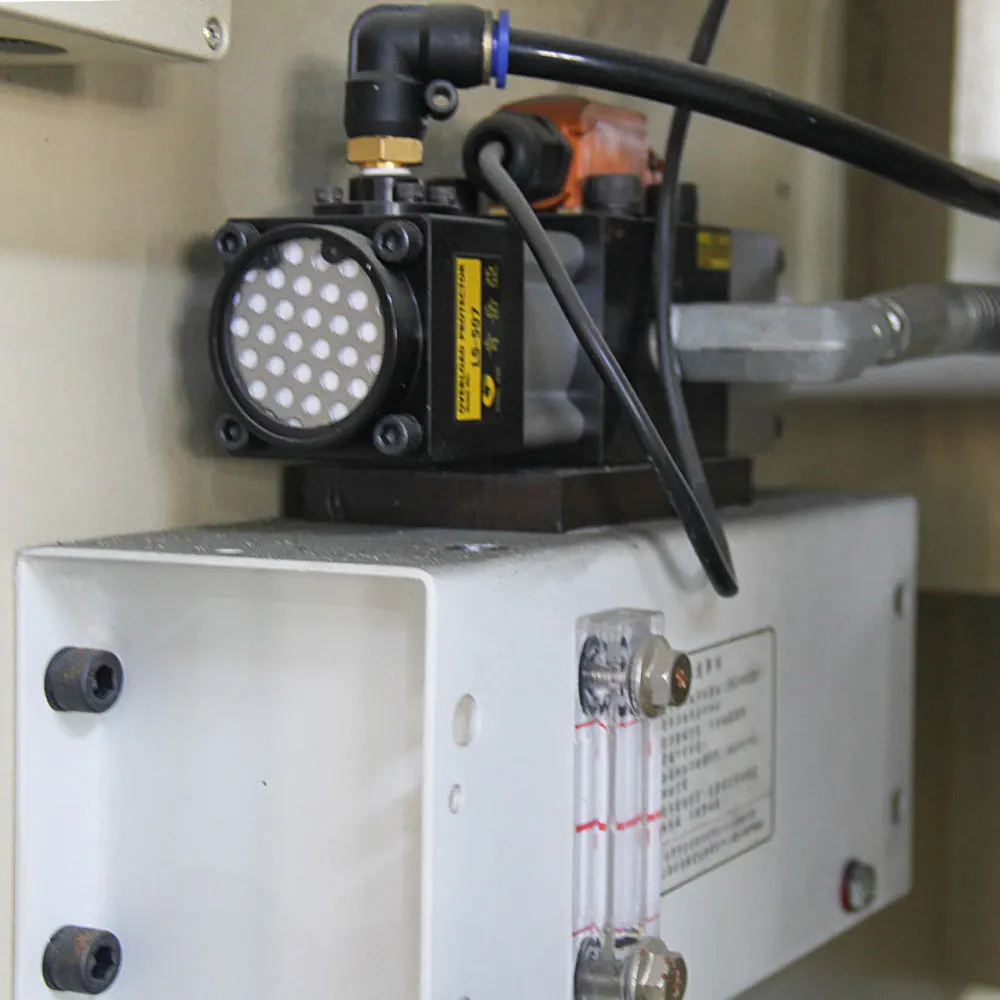

overload protection , when machine overload working , will auto stop to protection the crank

CE standard electrical parts

Specification

Item			APA-200B
Model		V	H
Capacity	Ton	200
Rated tonnage point	mm	6	3
Speed changing	s.p.m	20-50	40-70
Stable speed	s.p.m	35
Stroke	mm	200	90
Die height	mm	460	510
Slide adjustment	mm	100
Slide area	mm	85055090
Bolster area	mm	1350820140
Shank hole	mm	dia65
Main motor	kw	18*4
Slide adjust device	HP	Electrical driving
Air pressure	kg/cm2	6
Presses precision		GB(JIS)1CLASS
Presses dimension	mm	274016203690
Presses weight	Ton	19
Die cushion capacity	Ton	10
Stroke	mm	80
Die cushion effective area	mm2	650*420

Item	Brief Description
Machine Body	Basic Parts	Steel plate welded structure, through vibration aging treatment, the overall heat ageing annealing treatment. (Double aging treatment)
Bolster	basic parts	Made from Casting HT200,through annealing treatment
Crank	Basic Parts	Made from Forging, through flaw detection ,surface quenching, nitriding processing
Fly Wheel	Basic Parts	Casting HT200,Through Annealing Treatment
Worm	Basic Parts	Zinc-based alloys
Worm Gear	Basic Parts	Made from 45# steel
Connecting Rod	Basic Parts	Made from Ductile iron, cast iron, and throughnormalizing treatment
Ball Head and Screw	Basic Parts	Made From 45# steel, surface by Nitriding treatment
Balance Cylinder	Parts	Cylinder Body Inside Through Honing Processing

Company Profile

Exhibition

Certifications

FAQ

1. How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2. What is your payment terms ?
A: 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.

3: Where is our factory located? How can I visit there?
A : Our factory is located in No. 52 Linyin Road, Economic and Technological Development Zone, Nantong City, Jiangsu Province ,226001 China. You are warmly welcomed to visit us.

4. What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

5. Can you send the service engineer to our company ?
We have engineers stationed in Canada, Egypt, and Algeria. The after-sales service system is very perfect.
