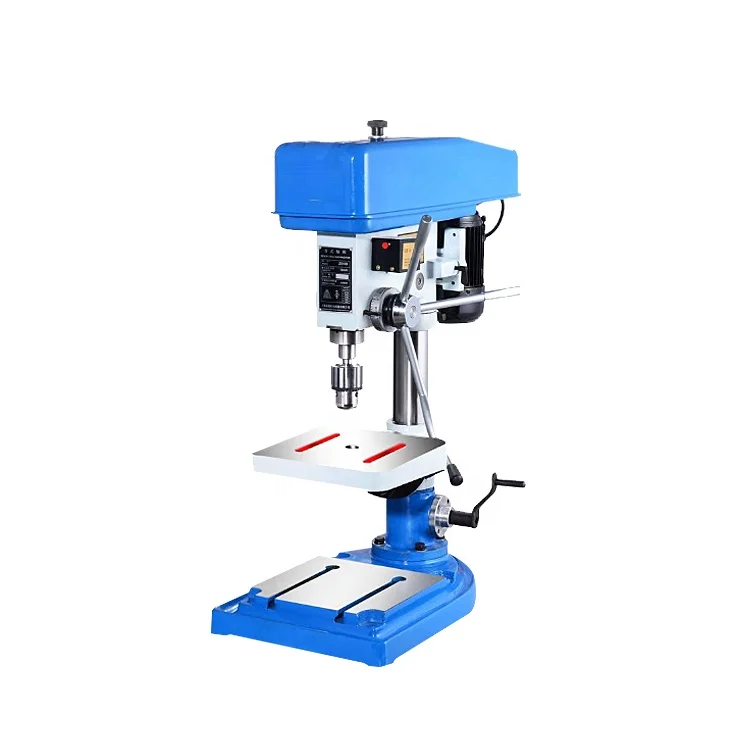

ALMACO BDQ5116 Online Support Mini Taladro Pedestal Floor Drill Machine With Stand

(21 Lượt)

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Nhà sản xuất, chế tạo • 2 năm

ALMACO BDQ5116 Online Support Mini Taladro Pedestal Floor Drill Machine With Stand

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

ALMACO BDQ5116 Online Support Mini Taladro Pedestal Floor Drill Machine With Stand

Nhà cung cấp

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Thông tin nha cung cấp của bạn

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Recommend Products

Products Description

Brief Introduction

1.Precisely machined working table
2.Millionfold proven quality
3.Fully equipped machine,the user can immediately start to work productively
4.Smooth running and powerful quality aluminium electrical motor
5.V-belt cover with safety switch

Characteristic

1. Keyed safety switch prevents accidental starting
2.16-speed settings to accommodate various materials and thicknesses
3.290mm cast iron worktable, height adjustable
4. Rack and Pinion table elevation makes adjusting the table height easy and accurate
Scaled steel fence helps align, guide and brace work pieces, stop block for repetitive drilling jobs

Advantages

CE "TUV" GS ICA Certificate German Approval
Switch Speed variable function
Sronger Motor Power 2400W
Equip safety clutch,overload protection switch

Specification

	15144	15145	15146	15147
Model	BDQ5116	BDQ5125	BD5125	BDQ5125
Motor Power	550W	750W	1100W	750W
Chuck	16mm	20mm	20mm	20mm
Spindle Travel	85mm	85mm	120mm	85mm
Spindle Taper	MT2	MT3	MT3	MT3
Speed Change	16	12	12	12
Speed 50/60Hz	170-3080/210-3700 r/min	270-2800/310-3300 r/min	150-2880/180-3400 r/min	270-2800/310-3300 r/min
Swing	324mm	360mm	425mm	360mm
Working Table	F290mm	290x290mm	350x350mm	290x290mm
Base	460x280mm	460x380mm	470x360mm	460x380mm
Column	F72mm	F80mm	F92mm	F80mm
Total Height	1580mm	1600mm	1710mm	1600mm
Weight	57/53kg	84/80kg	125/120kg	84/80kg
Packing Dimentions	1120x460x280mm	1150x500x300mm	1430x660x320mm	1150x500x300mm
Loading Qnt’ y20” CTNR	200pcs	170pcs	90pcs	170pcs

Company Profile

Our Service

Overseas after sales service outlets
TOPTECH SMAC MACHINERY LIMITED（Canada）
Address:Office and showroom, unit 5, 5510 Ambler Dr Mississauga, ON, L4W2V1, CANADA
Office:905 238 8912
Contact: Mrs Merry NA

COMPANY REPRESENTATIVE (EGYPT)
Address: Ibn Khaldon St. -Villa No.16-6th District-Obour City-Cairo-Egypt
Tel & Fax: +20244823499
Cell phone: +201223960211
Contact: Ahmed Refaat

SJR MACHINERY LIMITED（Algeria）
Adress: cité 128 logements Bater numéro 71 Sidi el DJILLALI sidi bel abbes 22000 att to Mr mezouar Mohammed
mobile number 0542 695 457 and 0770 551 807
Tel: 0542 695 457 ,0770 551 807
Email:Mezouarstar@gmail.com

Packing & Delivery

We choose the best packaging, the most excellent
logistics services, to ensure that your goods faster and safer to reach the destination.

FAQ

Q.What are your normal lead times?
A.Our company typical lead times range from 3-4weeks after receipt of order.

Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, O/A etc.

Q.What kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.

Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.

Q.Do you have CE certification
A.Yes, we have CE certification, machine quality is one year guaranteed.

Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service".

ALMACO BDQ5116 Mini Easy Operate Floor Drill Machine With Stand
