Product Description

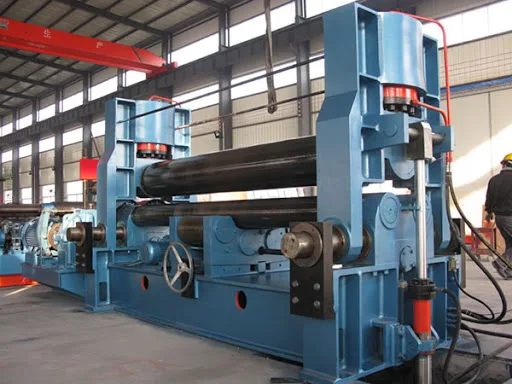

The Main Structure：

This equipment should be composed of main structure, hydraulic system , electricity control system and cone device.
The main structure is composed of upper roller , down rollers and level motion device support rolls device , tuning device ,
balance device, lubricate device , left and right work frame and bottom plate.

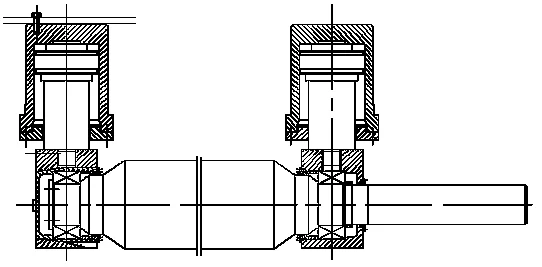

The upper roller

upper rolls device composed of main cylinder, upper bearing pedestal, upper rolls, double self-aligning bearing .two cylinders

provide the pressure for upper roll bending , main cylinder working pressure is 20 Mpa ,max pressure of upper roll multiply 0.8
times to compensate for pre-bending. Upper roll two ends fit with double self-aligning bearing to reduce the friction and motor
power. The material of upper roll is 42CrMo , heat treatment is HB220-280.

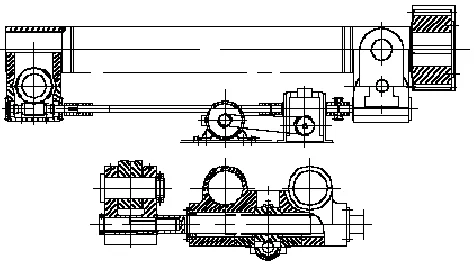

Down roll and level motion device.
The material of down roll is alloy steel; heat treatment is HB220-280. it composed of down of roll, down roll bearing pedestal,
down roll input gear, down roll, glide bearing. Down bearing adopt SF-2 oil glide bearing.
Level motion motor supply the power, through the strap drive to CWU worm wheel and pole speed reducer. Upper roll level motion
drove by worm wheel and pole to finish bending in dissymmetry form.

Specification

Project	Units	Technical Data
Specifications		RPB-20*3000
Upper roller adding pressure	T	160
Max width of roll board	mm	3000
The length of working rolls	mm	3100
Max thickness of plate pre-bending	mm	16 (σs≤245 Mpa)
Min diameter can be rolled	mm	700
Up roll diameter	mm	Φ375
Down roll diameter	mm	Φ200
Distance between two down rolls	mm	330
Yield limit	Mpa	245
Drive speed	m/min	about 4.0
Main motor	kw	18.5
Hydraulic motor	kw	7.5
Shift motor	kw	2.2

Company Profile

Our Service

Overseas after sales service outlets
TOPTECH SMAC MACHINERY LIMITED（Canada）
Address:Office and showroom, unit 5, 5510 Ambler Dr Mississauga, ON, L4W2V1, CANADA
Office:905 238 8912
Contact: Mrs Merry NA

COMPANY REPRESENTATIVE (EGYPT)
Address: Ibn Khaldon St. -Villa No.16-6th District-Obour City-Cairo-Egypt
Tel & Fax: +20244823499
Cell phone: +201223960211
Contact: Ahmed Refaat

SJR MACHINERY LIMITED（Algeria）
Adress: cité 128 logements Bater numéro 71 Sidi el DJILLALI sidi bel abbes 22000 att to Mr mezouar Mohammed
mobile number 0542 695 457 and 0770 551 807
Tel: 0542 695 457 ,0770 551 807
Email:Mezouarstar@gmail.com

Packing & Delivery

We choose the best packaging, the most excellent
logistics services, to ensure that your goods faster and safer to reach the destination.

FAQ

Q.What are your normal lead times?
A.Our company typical lead times range from 3-4weeks after receipt of order.

Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, O/A etc.

Q.What kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.

Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.

Q.Do you have CE certification
A.Yes, we have CE certification, machine quality is one year guaranteed.

Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service".
