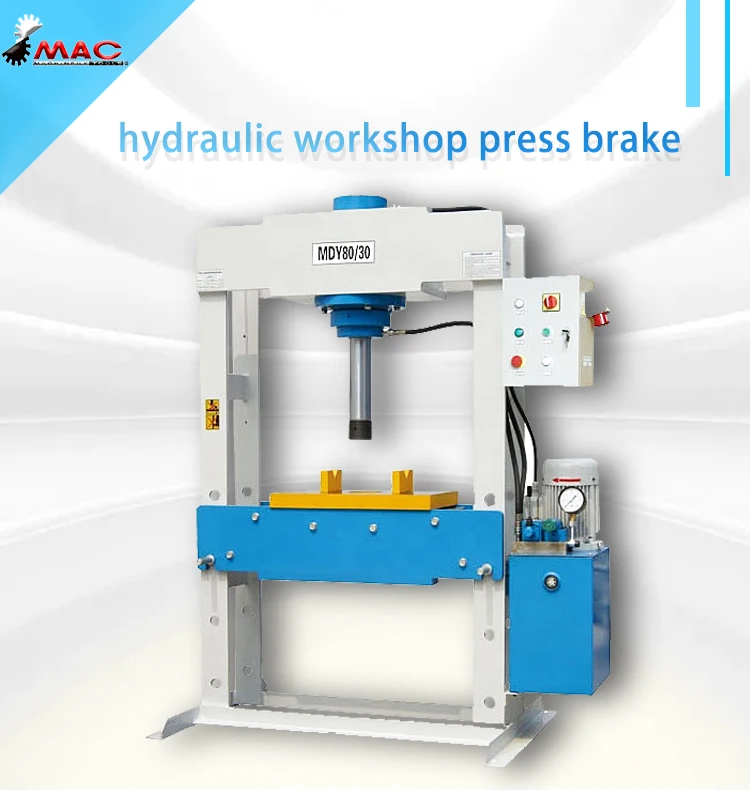

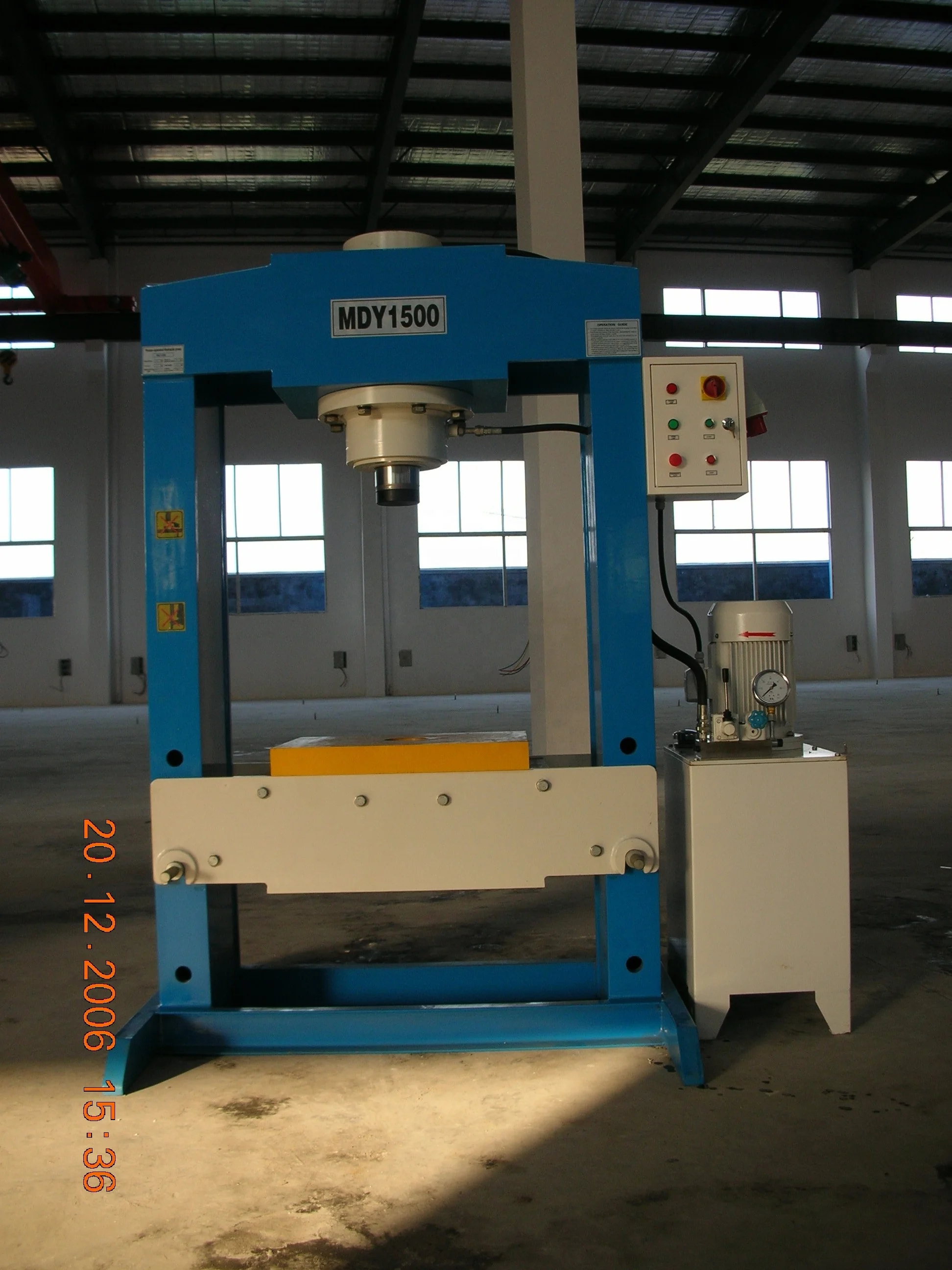

High Accuracy Industrial Electric E HP-100/150/200/250T Hydraulic Press Machine Repaire Workshop

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

High Accuracy Industrial Electric E HP-100/150/200/250T Hydraulic Press Machine Repaire Workshop

Nhà cung cấp

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Thông tin nha cung cấp của bạn

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Product Description

Main structure
Hydraulic press is a kind of machine which use the hydraulic oil as working medium, hydraulic pump as power source, reply on the pump force to make hydraulic oil enter into cylinder/piston through hydraulic pipeline. Then there are several groups of cooperating sealing element in the oil cylinder/piston. Different position of the seal is different, but all have the effect of sealing, that the hydraulic oil cannot be compromised. Finally through one-way valve to make hydraulic oil circulate in the oil tank, make oil cylinder/piston do looping work to accomplish mechanical movement as productivity.

Hydraulic press is a kind of machine which uses liquid as working medium and is made according to Pascal principle to transfer energy to realize various processes.

The hydraulic press is generally composed of the machine (main engine), power system and hydraulic control system.

Specification

	Nominal pressure(KN)	Working pressure of system	Motor	Table adjustment(mm)	Weight(kg)
MDY1000	1000	30	7.5	300*2	1380
MDY1500	1500	30	7.5	300*2	2010
MDY2000	2000	30	7.5	300*2	2480
MDY3000	3000	30	7.5	300*2	3350
MDY300	300	30	7.5	300*2	405
MDY500	500	30	7.5	300*2	550
MDY630	630	30	7.5	300*2	850
MDY800	800	30	7.5	300*2	1020

	A	B	C	D	E	F	G
MDY1000	1435	1200	2264	1060	1100	350	400
MDY1500	1502	1250	2295	1100	1050	350	530
MDY2000	1635	1300	2315	1200	995	350	550
MDY3000	1680	1350	2535	1200	995	350	660
MDY300	1310	700	1885	700	1040	250	320
MDY500	1440	800	1965	800	1075	250	350
MDY630	1570	900	2050	900	1015	300	385
MDY800	1680	1100	2070	1000	1005	300	395
