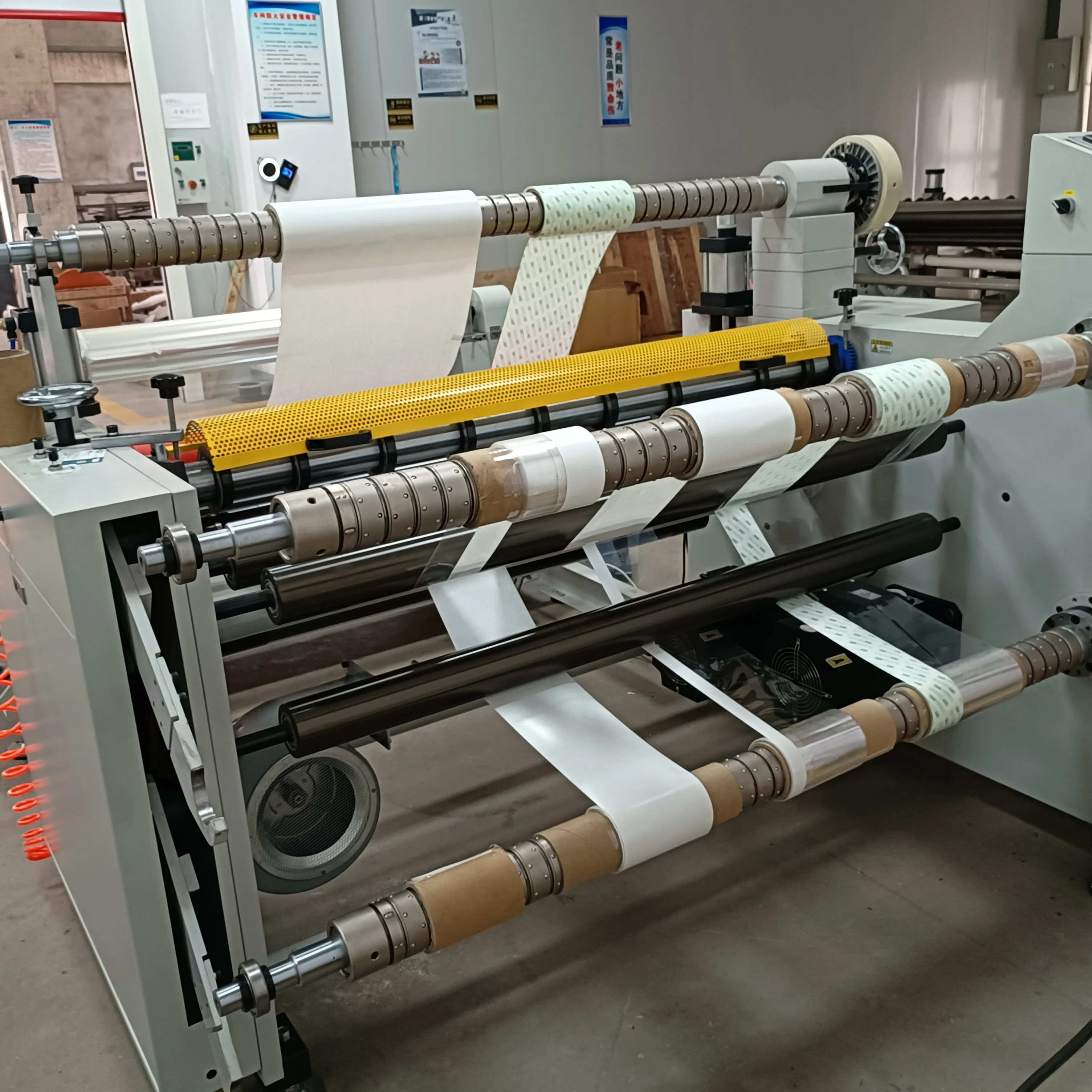

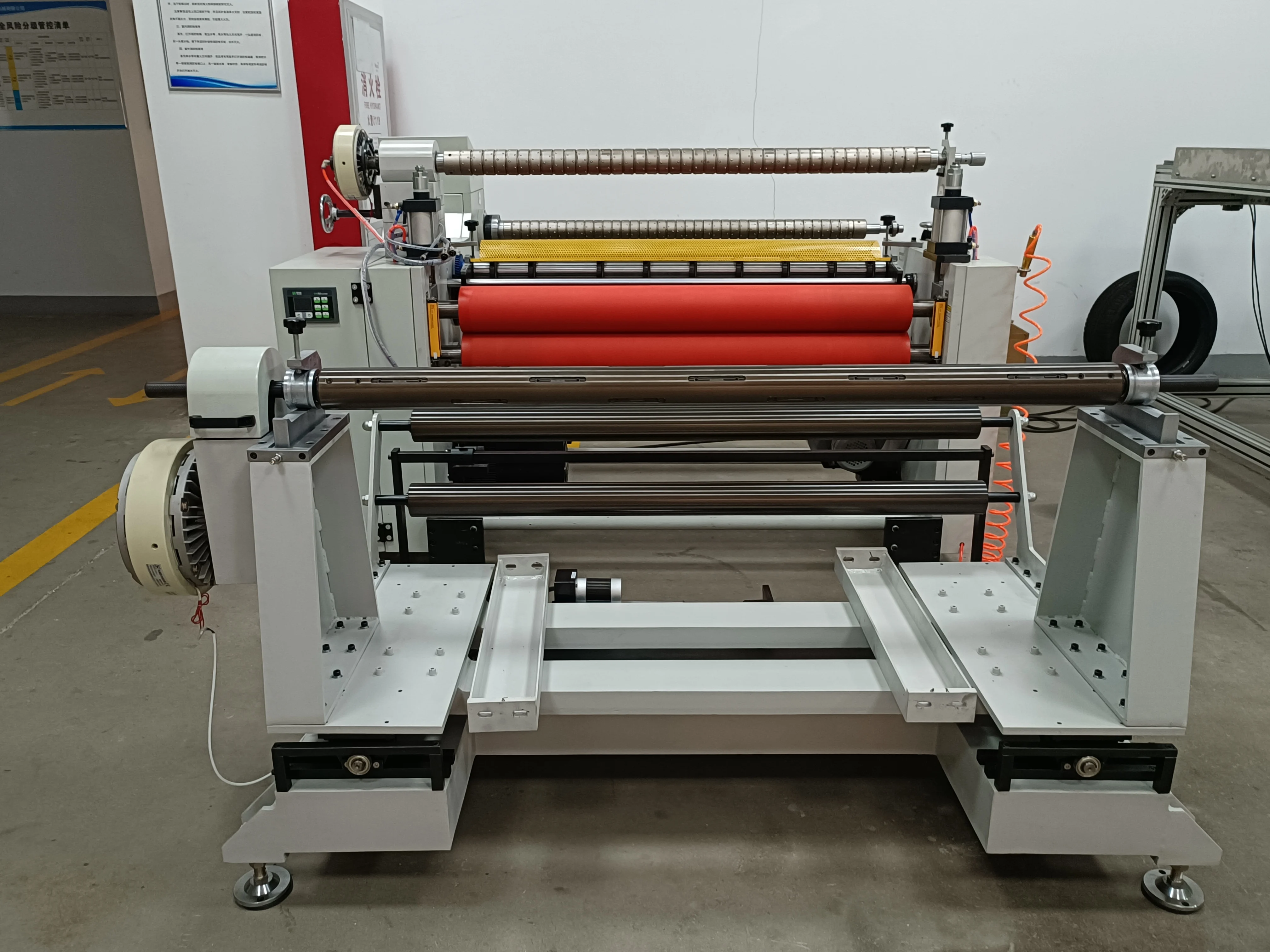

High Speed Self-adhesive Trademarks PVC Protective Film Slitting Machine OP PE Thermal Tape Sticker Labels Roll Slitter Rewinder
Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery

Functional characteristics:
This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and
receiving materials. Imported magnetic powder clutch is adopted to control the tension. Imported gas sensive device is adopted to
detect the rectification of rolling, with fully automatic hydraulic rectification control. Automatic detection, rectification and
metering can be realized. It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc.
There are two selection ofr main engine, single electric motor, double electric motors.

Purpose:
It is applicable for the slitting tooling of industrial adhesive tape, cellphone tape, protective film, copper foil, aluminum
foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, electronics,
leather, clothes making, plastic, etc.

Main Technical Parameter:

data as below is for reference only , you can customize to other data if required

Model	1300 slitting machine	1600 slitting machine
Max Feeding Width ( mm )	1300	1600
Main Engineer Power ( KW )	6	6
Speed (T/M )	120	120
Size ( mm )	240020001300	240023001300
Weight (kg)	1200	1500
Rewinding diameter ( mm )	800	800
Winding diameter ( mm )	450	450
precision ( mm )	±0.10	±0.10
Power	380V 50HZ	380V 50HZ

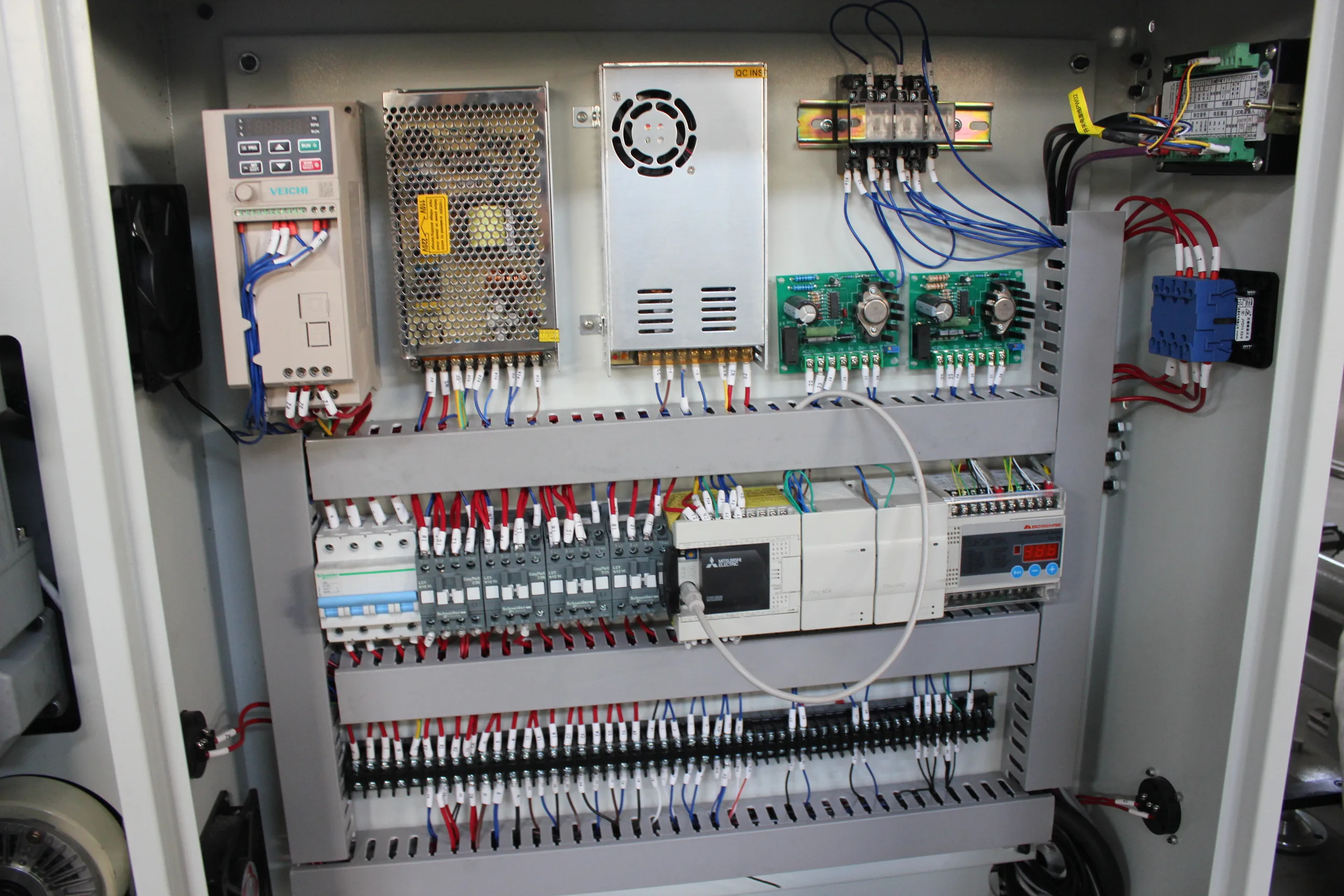

electric box of slitting machine

the slitting machine can choose PLC control

the PLC we use is Mitsubishi brand

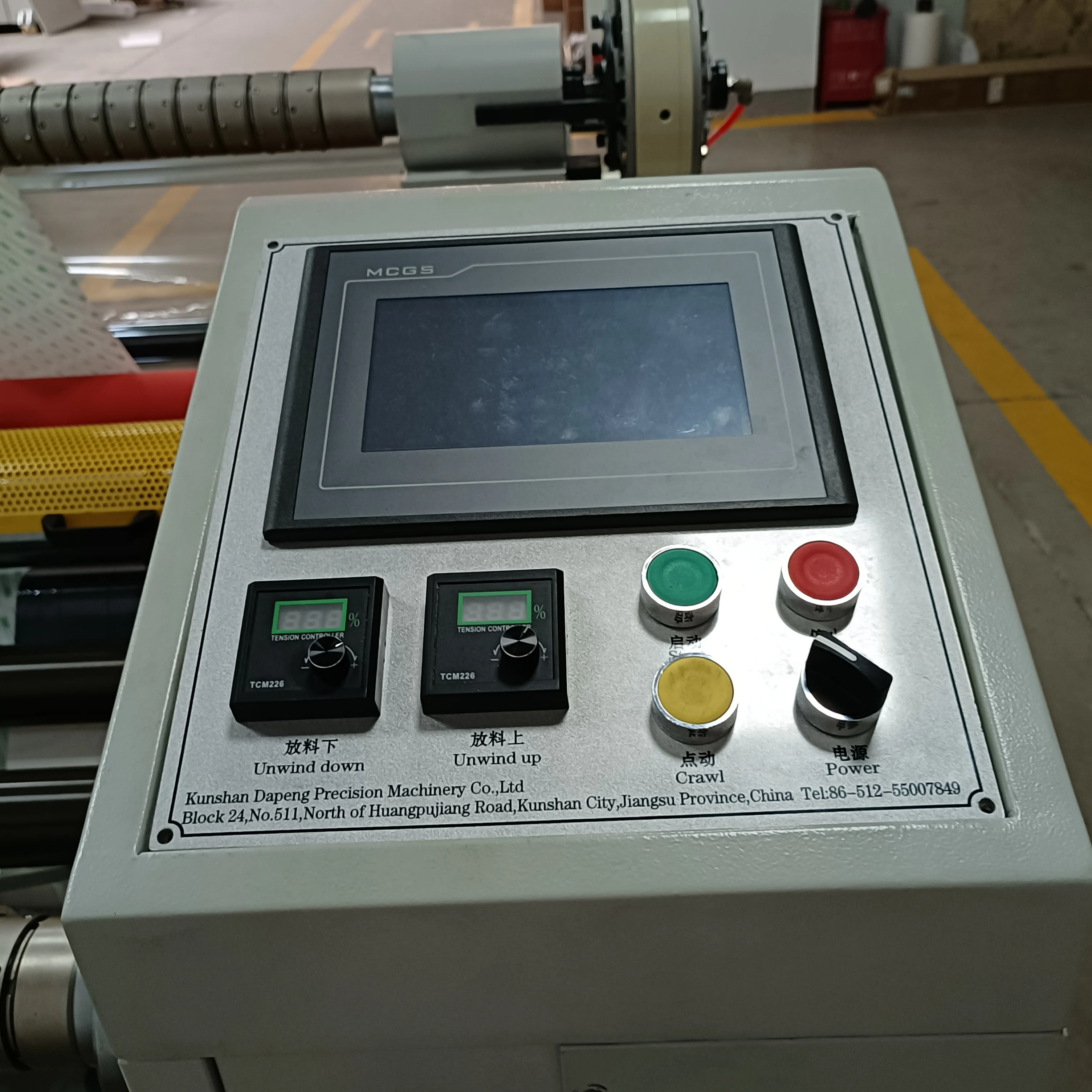

with tension control board

with frequency control

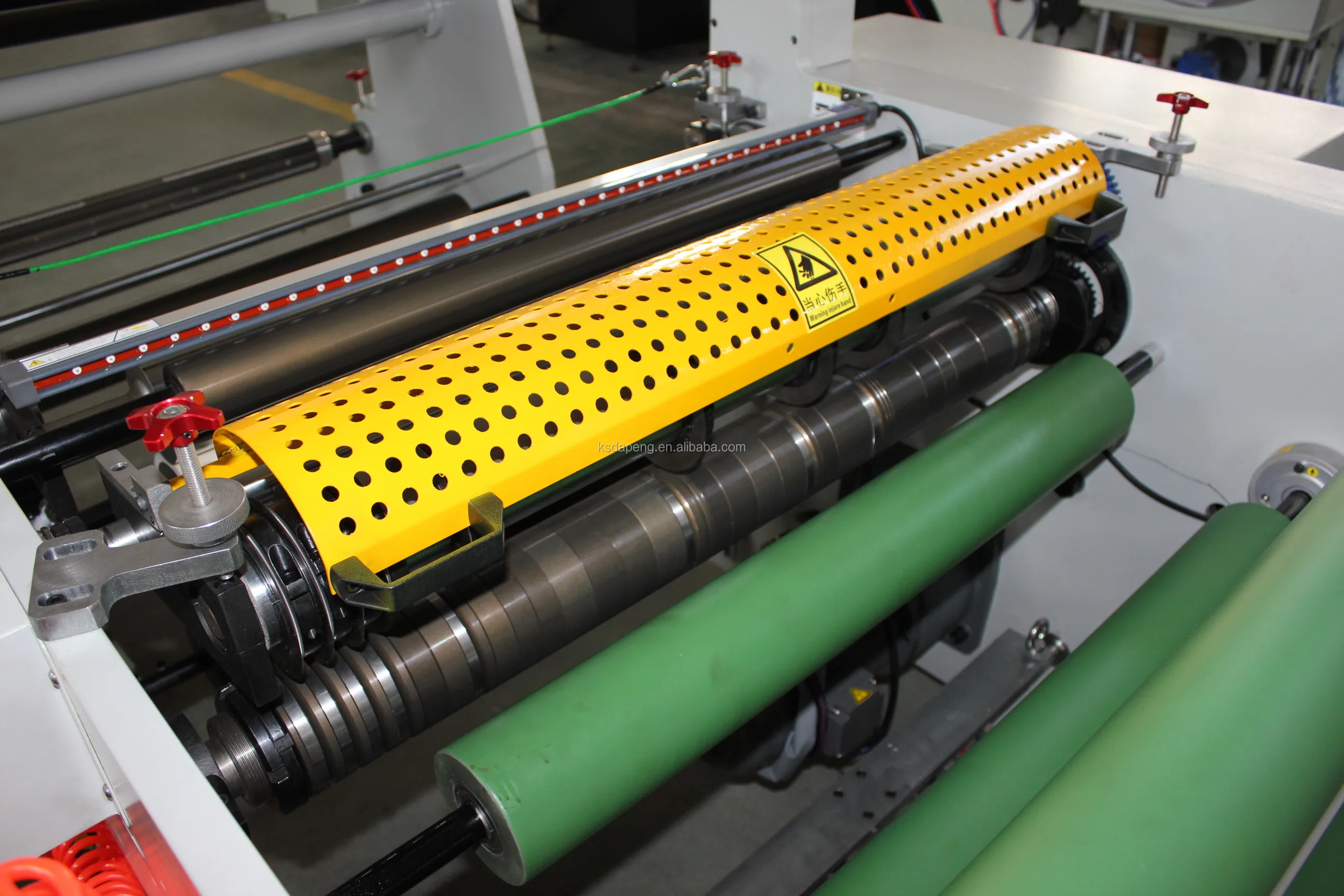

cutting blade part have protective cover

to keep operation safety , when you setted well the cutting blade , please cover the protective cover

Charatertistics and Functions

1.This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and
receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.

3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification
control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain

Purpose for Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery :

1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil,
aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Features for

Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery
1. The max width: 650mm / 1300mm / 1600mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. Manufacturer experience: 12 years
8. Export experience:10years
