Plastic Film Laminating Slitting Machine

(15 Lượt)

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Nhà sản xuất, chế tạo • 2 năm

Giá

157,500,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

Plastic Film Laminating Slitting Machine

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Plastic Film Laminating Slitting Machine

Nhà cung cấp

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Thông tin nha cung cấp của bạn

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Automatic insulation paper slitting machine
Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery

Features:

This machine employs photoelectric track and rectification system, and the magnetic powder clutch is adopted to control the
feeding and receiving tension. Main machine adopts frequency conversion speed regulation. The movement of the rubber covered
roller is controlled by the cylinder. Sticking and slitting be done at one time , sticking or slitting can be done separately.
Accurate slitting, fast speed, easy to operate and maintenance .

Purpose:

1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil,
aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.

Main Technical Parameter:

data as below is for reference only , you can customize to other data if required

Model	DP-650FQ
Max Feeding Width	650mm
Main Engineer Power	2.2kw
Speed	80m/min
Size	2400x1700x1300mm
Weight	1000kg
Rewinding Diameter	600mm
Winding Diameter	450mm
Precision	±0.1mm
Power	220V 50HZ

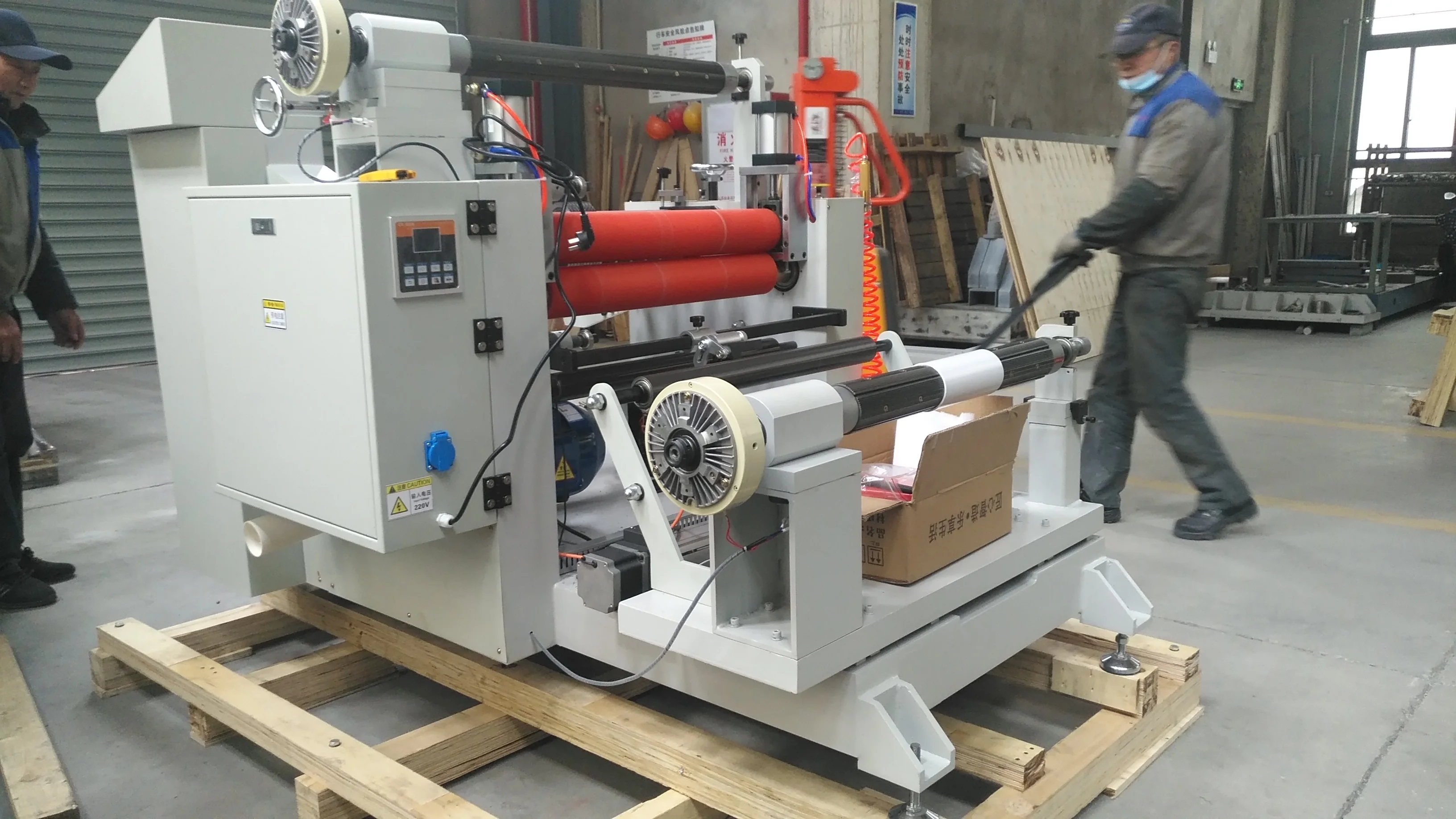

DIFFERENT ANGLE OF MACHINE

BELOW to show you our standard machine different angle view

Charatertistics and Functions

1.This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and
receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.

3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification
control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain

Purpose for Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery :

1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil,
aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Features for

Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery
1. The max width: 650mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. Manufacturer experience: 12 years
8. Export experience:10years

Export Package:Wooden Case
Export Markets:Global

Additional Info.
Trademark:DAPENG
Packing:Wooden Case
Standard:650mm
Origin:Kunshan, China
HS Code:84411000

Product Description
DP-650FQ Automatic Multi-function Laminating and Slitting Machine PU Foam/ EVA Foam Slitting Rewinding Machine

Features:

1. The max width: 650mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. Manufacturer experience: 30years
8. Export experience: 10years

Charatertistics and Functions:

1. This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and
receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension. 3. Imported gas sensitive device is adopted to detect the
rectification of rolling, with fully automatic hydraulic rectification control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain

Purpose:

1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil,
aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.

After-service:

1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines.

Model 650FQ PU Foam/ EVA Foam Slitting Rewinding Machine

Max Feeding Width 650mm

please inquiry to fill in like below question :

slitting machine ,650FQ PU Foam/ EVA Foam Slitting Rewinding Machine we can customize for you

kindly fill in this sheet and inquiry us , thank you !

Materials to be slitting :
Max Feeding Width
Speed Required
material size Size
Material Weight
Rewinding Diameter
Winding Diameter
PrecisionRequired
Voltage required
