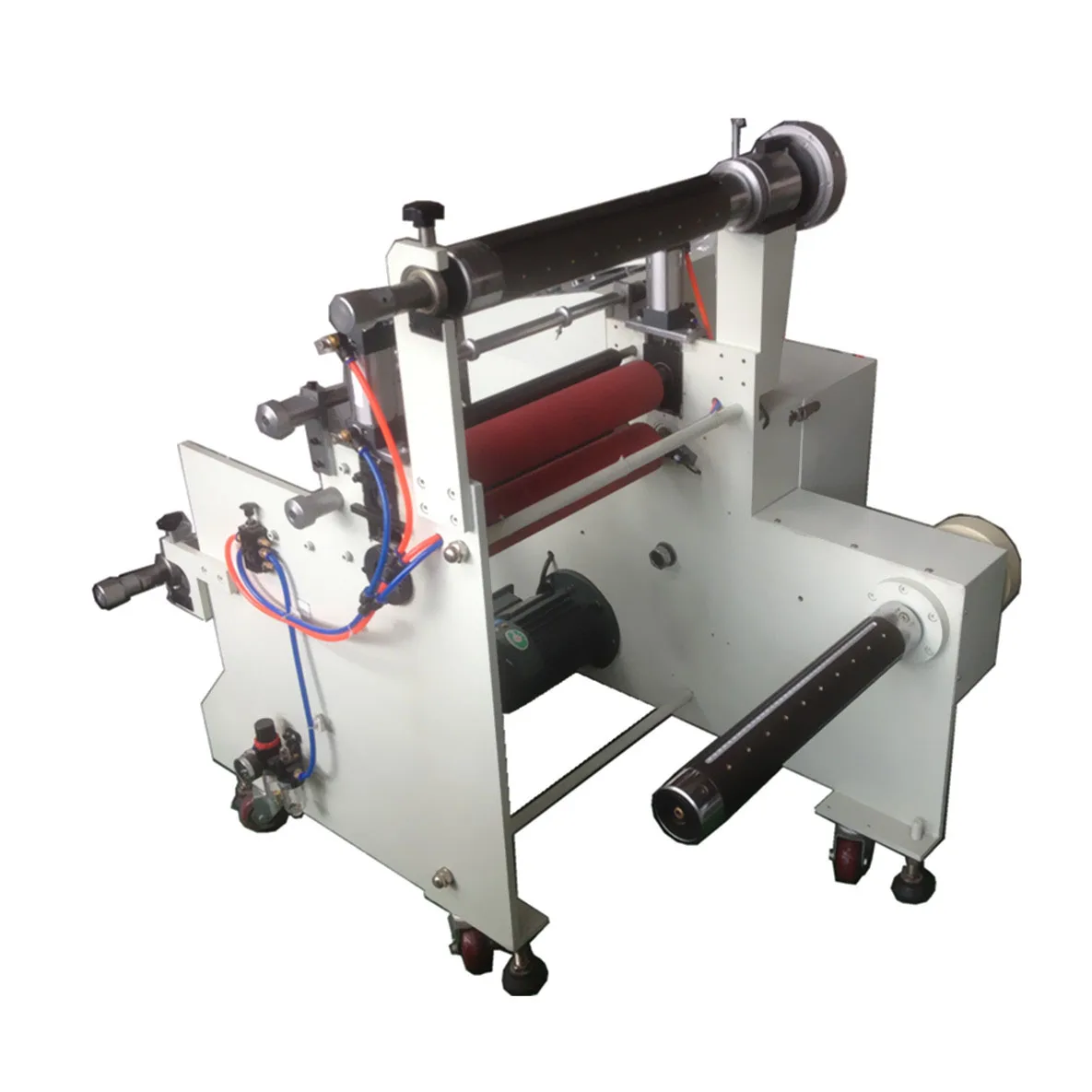

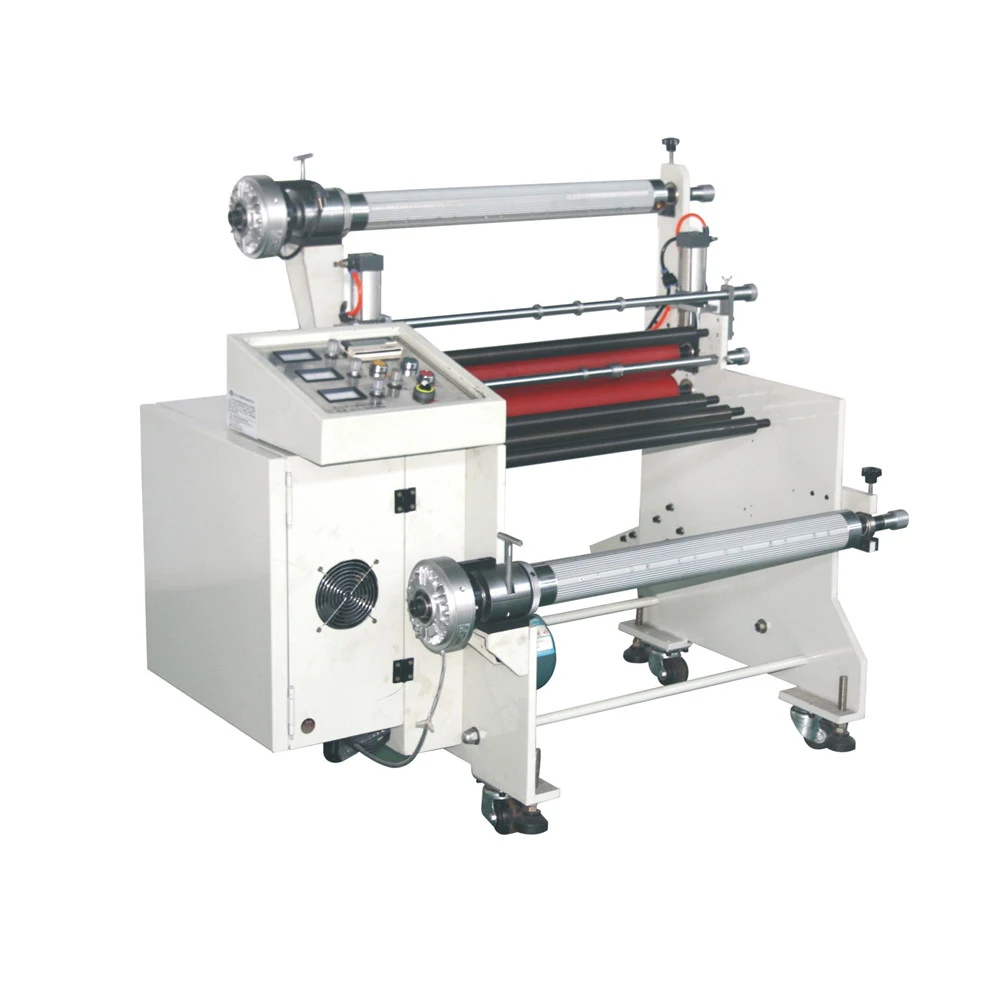

Plastic film PET PE EVA PVC double side adhesive laminating machine

Application:

This machine is used for laminating industrial tape,electronic material,protective film,copper foil,aluminum foil,OPP,PP,PE,PVC,PET PE,EVA,paper,cloth.etc.

Functional Characteristics:

1,3" inflatable shaft to unwind and rewind,1 set laminating roller.

2.Magnetic powder brake control the unwind tension and clutch control rewind tension.

3.Frequency conversion is used for speed regulation of the main motor.

4.The cylinder control the rubber roller up and down,more convenient for the adjustment of pressure.

5.Automatic meter counting,stable laminating,fast,high precision,low wastage,and easy operation.

6.Optional:1.Photoelectric tracking system to keep the unwind material in line.2.Slitting function.3.Hot laminating function.4.can make as your requirements.

Specification:

Model DP-420 DP-650
Max feeding width 420mm 650mm
Unwinding diameter 400mm 400mm
Rewinding diameter 450mm 450mm
Shaft diameter 3inch 3inch
Precision ±0.3mm ±0.3mm
Total power 1.5kw 2.2kw

Configuration:

Unwinding shaft : 3 inch inflatable shaft 2 pcs

Rewinding shaft : 3 inchinflatableshaft 1 pcs

Magnetic brakes : 2 set

Magnetic clutch : 1 set

Laminating motor: 1set

Laminating roller : 2 (PU material)

Air cylinder : 2 pcs
