Mylar Film Roll Adhesive Label Die Cutting Machine

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Mylar Film Roll Adhesive Label Die Cutting Machine

Nhà cung cấp

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Thông tin nha cung cấp của bạn

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Product Description

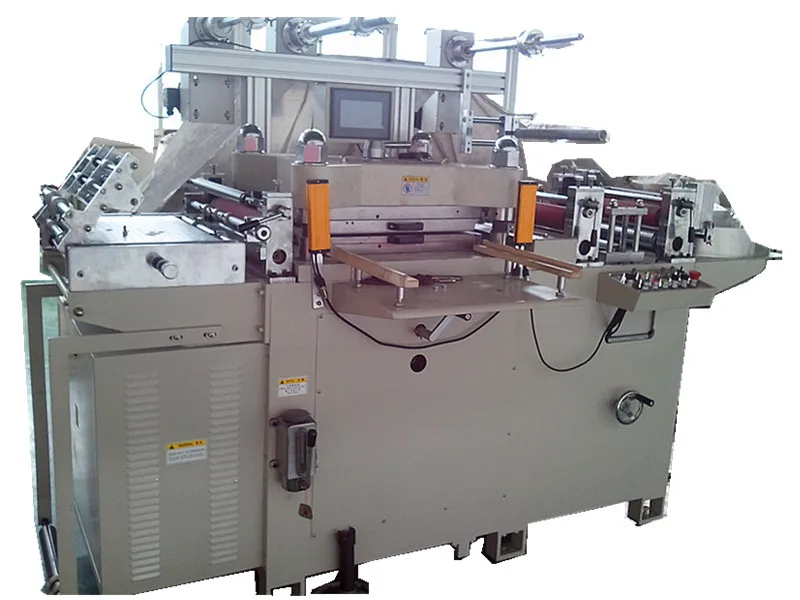

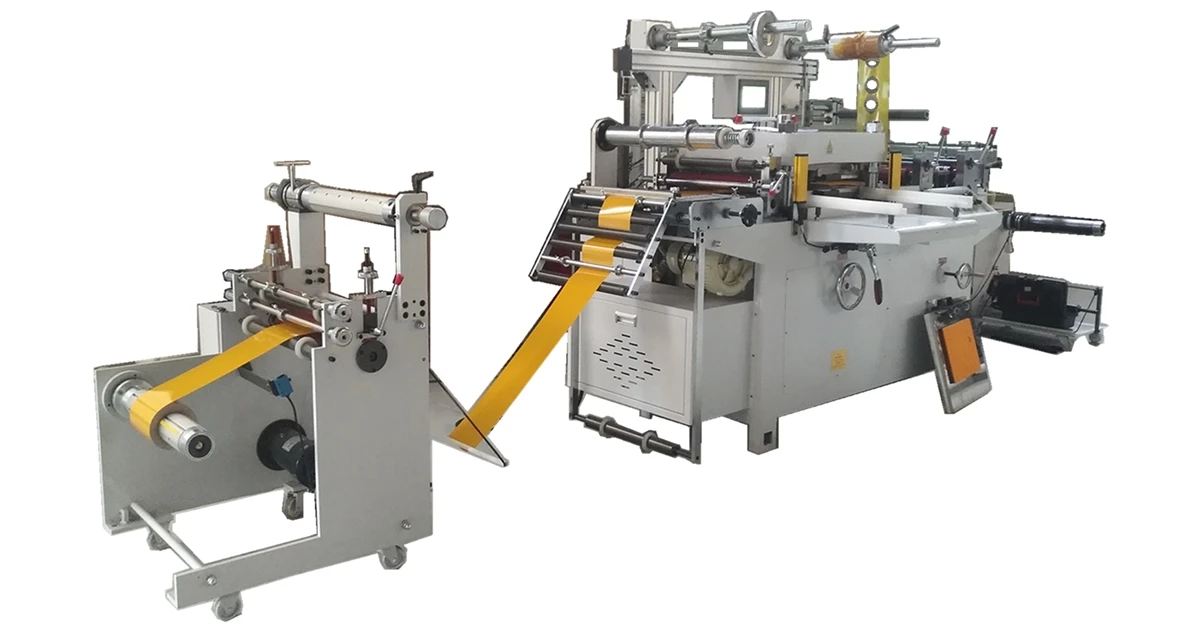

Mylar film roll adhesive label die cutting machine

Feature:
This is a kind of flat-bed die cutting machine with high precision, whose material-going is controlled by servo motor. The three
photoelectric eyes do the web guiding job. Die cutting, laminating , waste rewinding an sheeter ( or rewinding) can be finished in
one process. The machine is applicable to die cut adhesive paper label, Dacron film label and laser anti-false label. It is an
ideal auxiliary for flexo printer, silk-screen printer, rotogravure printer and so on.
The machine enjoys multi-layer sticking ,partial sticking, feeding- filming-die cutting- waste draining slitting-rolling, all of
them are completed by the computer control by one turn.

Characteristics:
1. The machine enjoys multi-layer sticking, partial sticking, feeding- filming-die cutting- waste drainingslitting-rolling
2. All of them are completed by the computer control by one turn.

Optional Configurations:
1. Hot stamping 2. Punching 3. Laminating 4. Adding conveyor belt 5. Full-cut for die cutting

Scope Applicable:
1. Sticky production: Diversified electronic, electrical appliance, special mobile phone rubber cushion, silicon rubber cushion,
magic tape, electric conductive tape, powerful double side adhesive, SUNEAST 3M, Sony special binding products.
2. Dustproof materials: Cosmetic cotton, camera cotton, high density sponge, filtering sponge, dust net and non-woven fabric
3. Shock absorbing products: EVA tape, rubber cushion, PORON cushion, 3M, inflammable retardant EVA, high foam
4. Insulation, EMI: Fireproof paper, aluminum foil, copper foil, PVC, PET, brown paper, sponge sheath, pearl cotton sheath
5.Heat insulation material: Silicon sheet, transparent mica, fiber cloth, heat insulation cotton (fabric)

Model	DP-320BII	DP-420BII
Cutting speed	20-200 (t/m)	20-200 (t/m)
Max unwinding diamete	450mm	450mm
Max web width	320mm	420mm
Max mould cutting area	320x300mm	420x420mm
Orientation accuracy	±0.10mm	±0.10mm
Motor power	3kw	4kw
Power voltage	220v±10%	380v±10%
Machine weight	2200kg	2800kg
Measurement	2600x950x1400mm	2600x1050x1800mm

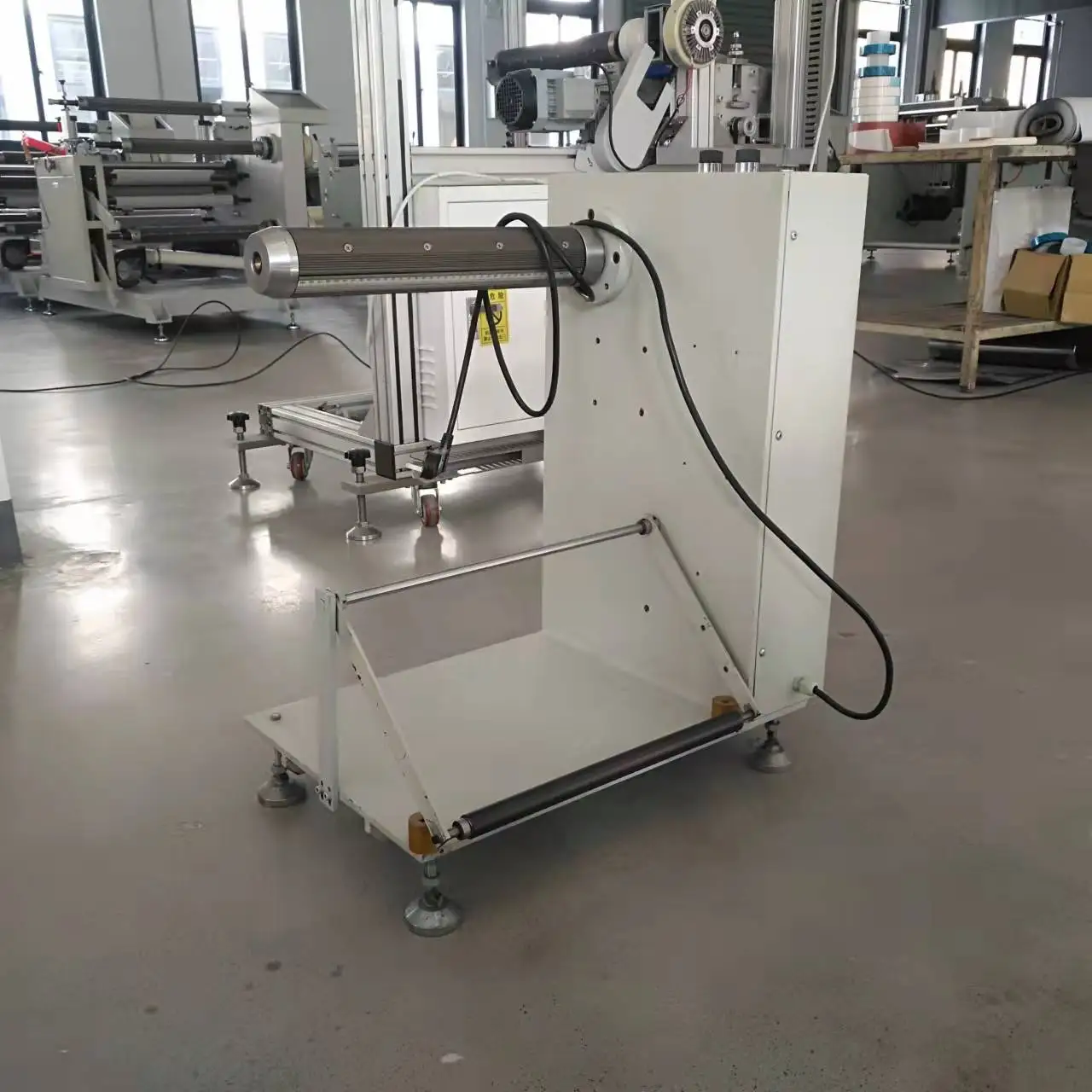

1 , unwinding part

A. Aluminum dancing roller B. unwinding air-shaft

C. unwind pulling material motor 300W

2, laminating part ( unwinding function )

1. filming device ( optional function )

A. Filming unwinding roller two pcs B, laminating roller

C dancing roller

2. multi-layer filming device ( unwind rewind function ) ( optional function )

A. filming unwinding roller B. filming rewinding roller

C. filming rewinding motor D. Aluminum guiding roller

E, laminating roller F, No material stop eye

6. die cutting part

A.Die cutting seat assembly (can move left and right – paper unwind direction)

B. Main motor 2.2KW

C.automatic supply oiling system ( copper tube connect wire, semi sealing type , Lubricating oil recycling )

D.Buffer spring

E. Down cutting plate seat height adjustment ( 2 Inclined plate)

F. Up cutting plate seat Obliquely turn up system ( more easy to change the cutting dies)

7. Pulling material part

A.pulling material roller+ steel roller

B.pulling material servo motor 2.2kw(Zhejiang Dongling)

C.Timing belt

8. Waste scrap part

A. guiding roller B. waste scrap rewind roller

C. Buffer Disposal Device - Optional function

(For some thick adhesive material difficult to scrap material )

9. sheeting blade part

A.Aluminum guiding roller B. Cutter clutch assembly

C. up cutting blade (inserting steel) D. down cutting blade (inserting steel)

10. Rewinding part

A. Aluminum guiding roller B. rewinding cushioning device

C. Rewinding pulling material rubber roller+ steel roller

D. rewinding motor 800W ( when sheeting can stop)

Machine main technical data
A. max die cutting speed 30-170 cuts/minute B. die cutting area 320300mm(width length ) C. unwind roll max diameter 500mm D. max paper roll diameter 320 mm E. left to right position precision : ±0.50mm F. Step Accuracy : ±0.10mm G. Total power : about 6.0kw H. Power Voltage: 3P 380V 50HZ I. Machine Net weight about 2500kg J. machine size(length width height ): 2700*1450X1650mm
