Hydraulic Press Die Cutting Machine for Sheet Material Rubber Foam Sheet Die Cutting

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Hydraulic Press Die Cutting Machine for Sheet Material Rubber Foam Sheet Die Cutting

Nhà cung cấp

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Thông tin nha cung cấp của bạn

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Products Description

ITEM NO.	Capacity	table-board underneath size	Press base size	Table height	HOSE Power	spacing max
TON	mm	mm	mm	HP	mm	mm
DP650P	40	650*600mm	650*600	800	11	100
max range	accuracy	Machine size	Packing size	CBM	weight	Gross weight
100mm	± 0.03mm	1420X1620X1900mm	150X165X237cm	5.87 M3	4.5 ton	4.6Ton

FUNCTIONAL CHARACTERSTICS
with lower bloster can be automatically push in and out , which more safe operation and precise position
Electronic positioning, precision and accurate,
and the precision and accuracy can be controlled in 0.01 to 0.03 mm,
push board back and forth precision can be controlled in 0.02 to 0.05 mm
There is shockproof board installed at under-chassis , therefore ,
the machine body is stable and reliable
Applies to punch electronic materials such as aluminum foil ,PET, protective film
and EVA, cardboard , jigsaw puzzle and other toys etc material die cutting
PLC + man-machine automatic programming control ,oil system adopts integrated control,
and there is photoelectric protection

Configuration Detail

l PLC 1 Set Mitsubishi

l Touch Screen 1 Set Shanghai EV

l Safety Photoelectric 1 Set Taiwan

l Automatic Depth Adjustment Motor 1 Set Taiwan

l Main Motor （ 7.5KW-4） 1 Set QL Taiwan

l Oil Pump 1 Set Danxin Taiwan

l Magnetic Valve 1 Group Danxin Taiwan

l Main engine Oil Cylinder 1 Set Self-production

l Feeding Oil System Cylinder 1 Set Self-production

l Air Cooling System 1 Set Self-production

l Oil Seal 1 Set Japan

l Feed Plate Slippery Course 2 Bar HIWINSH

l Pneumatic die clamping.

Application

Applies to punch electronic materials such as aluminum foil ,PET, protective film
and EVA, cardboard , jigsaw puzzle and other toys etc material die cutting or kiss cutting in all shapes.

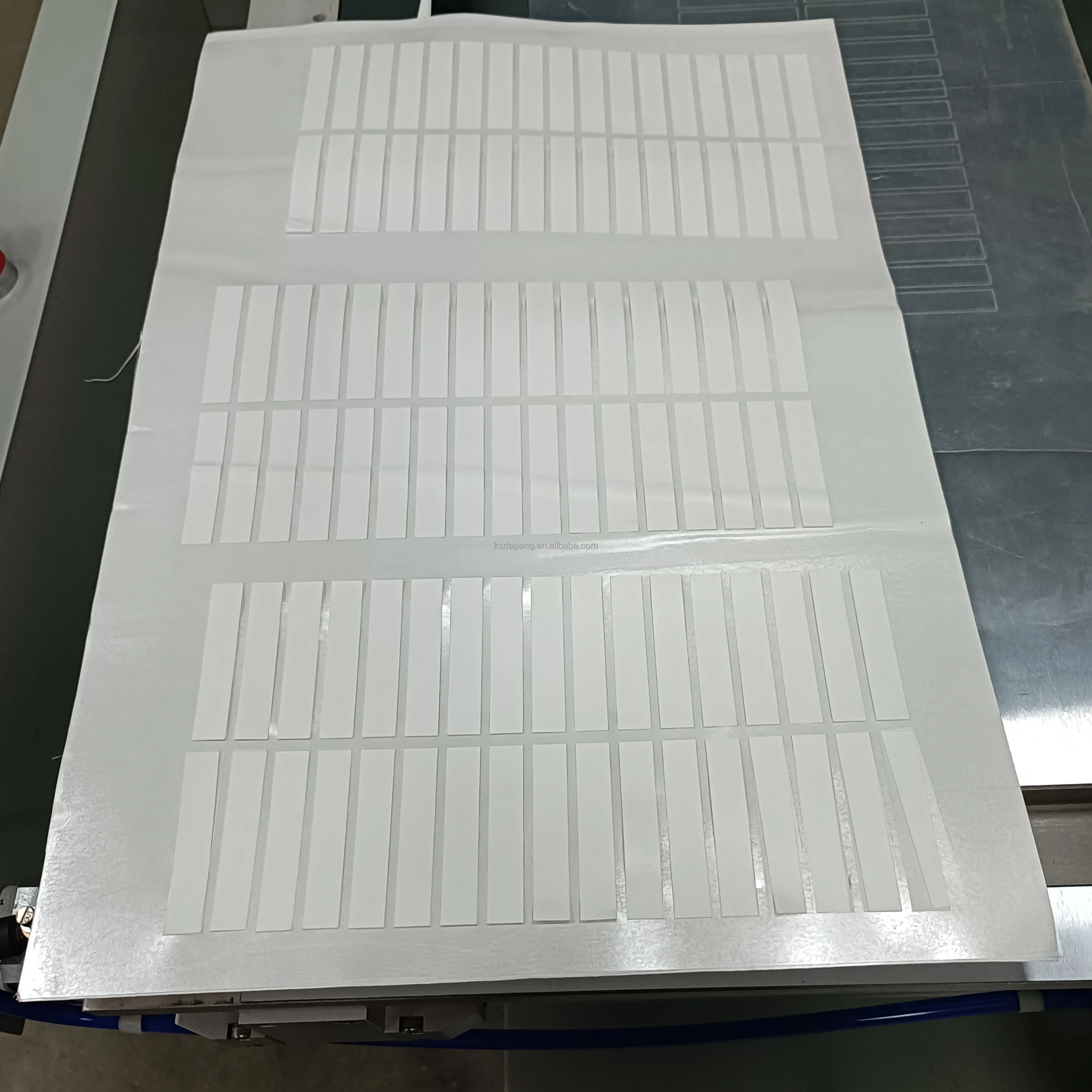

foam EVA sponge kiss cutting

Installation Instructions

Caution when use machine :

1. Please use the correct voltage, input
voltage should be within the error range of plus or minus 10V and ensure machinery is properly grounded to prevent leakage caused by mechanical damage.

2, on the machine to make any adjustments, be sure to turn off the power and unplug to maintain security, do not let the child and
non-operating personnel close to avoid danger.

3, the computer box with an air gun to clean when blowing dust, do not have water, gas spray, if have, you please drying air
compressor, turn on the water treatment

4, where the weather is cold, inside the machine may therefore have frozen yellow oil , at room temperature and added lubricating
oil at lubricating position.

5, the machine is placed away from the wall behind the position of about 1M, left and right sides of the space must be left
maintenance.

6, the need to regularly check for chassis lubrication system normal operation

7, the device used to replace the hydraulic oil once a month, later replaced once a year

8, two-handed operation provides a serious warning when the factory machine operator, while working carefully hand into the die
cutting area

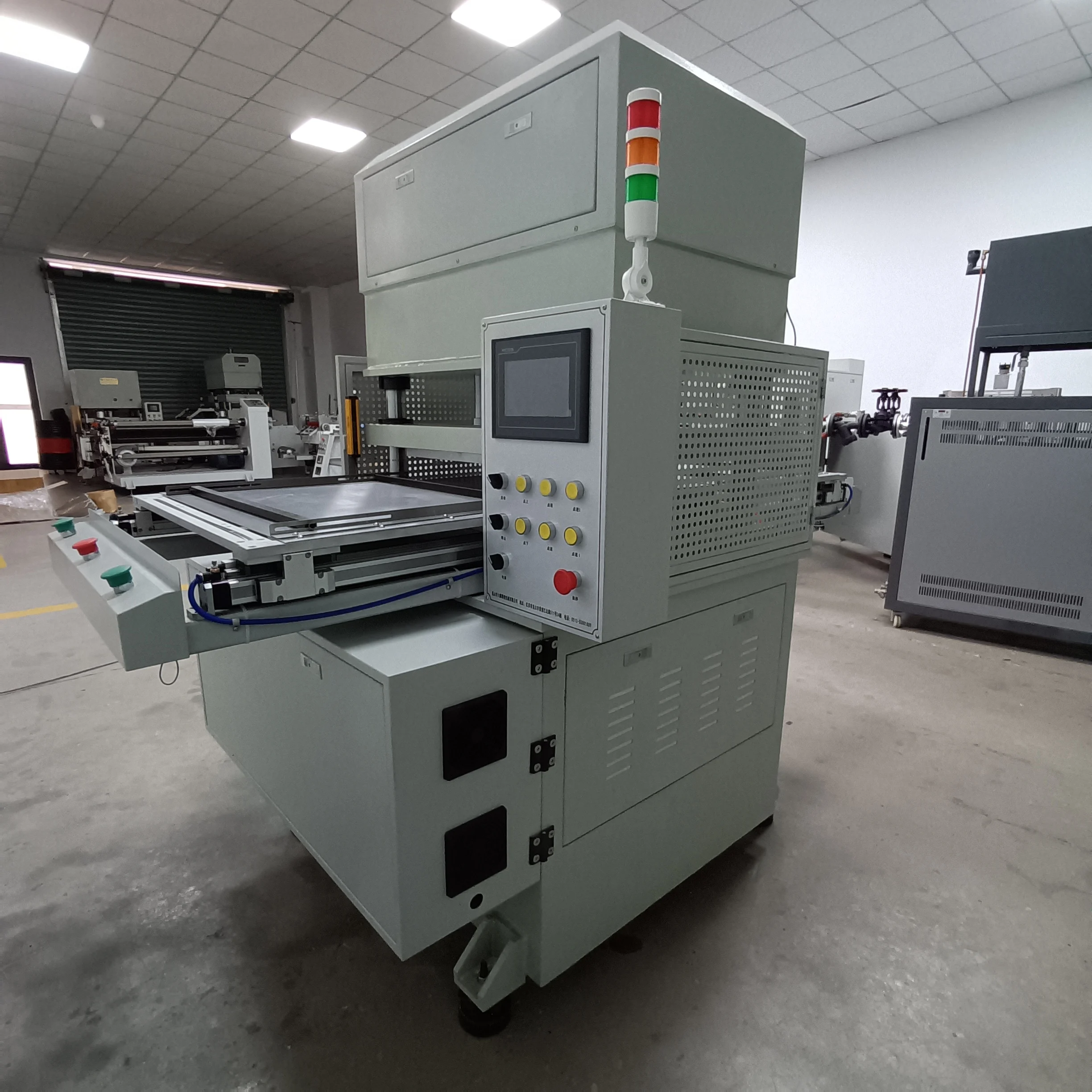

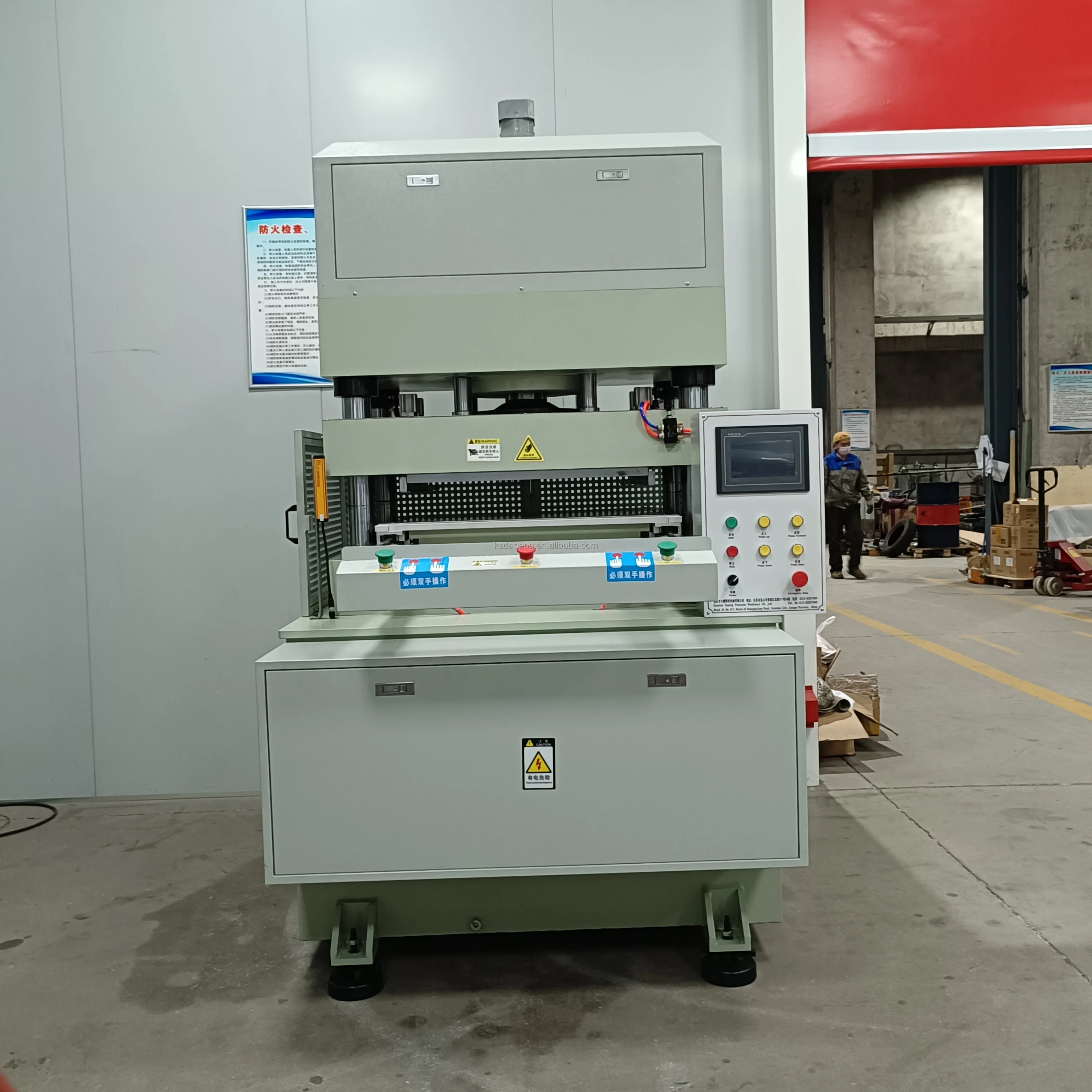

Details Images
