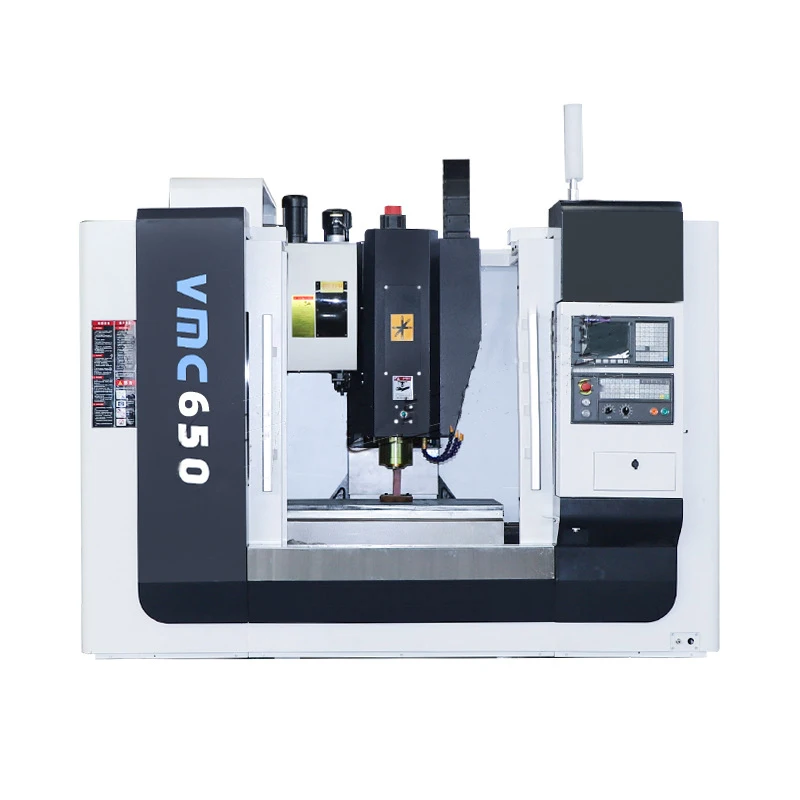

High Speed VMC650 CNC 3 Axis Milling Machine Machining Center Automatic Vertical Cnc Milling Machine for Metal

(18 Lượt)

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Nhà sản xuất, chế tạo • 2 năm

Giá

140,000,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

High Speed VMC650 CNC 3 Axis Milling Machine Machining Center Automatic Vertical Cnc Milling Machine for Metal

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

High Speed VMC650 CNC 3 Axis Milling Machine Machining Center Automatic Vertical Cnc Milling Machine for Metal

Nhà cung cấp

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Thông tin nha cung cấp của bạn

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Recommend Products

Product Description

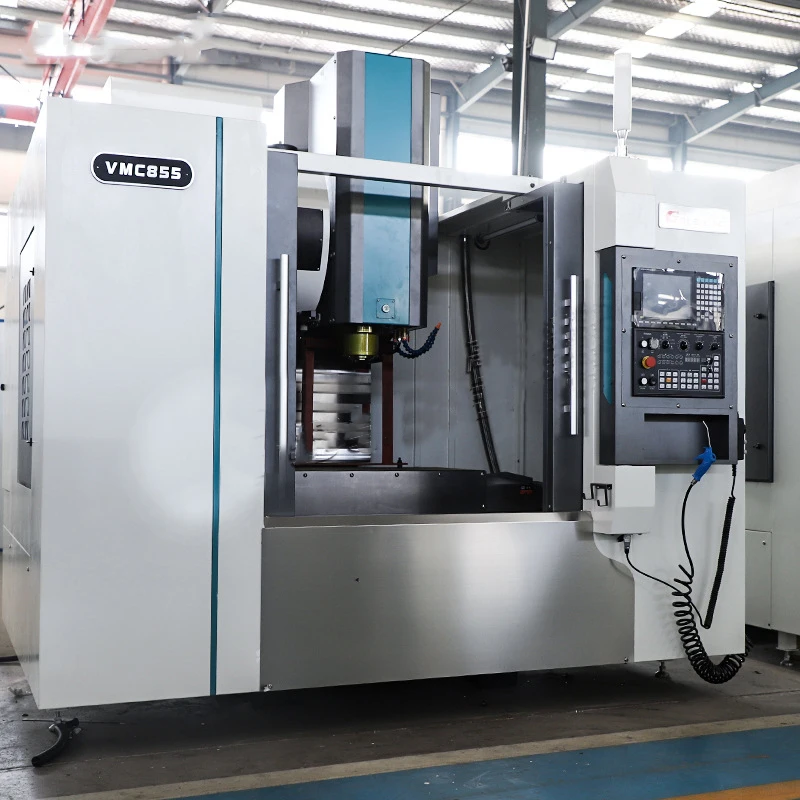

CNC Vertical Machine Center

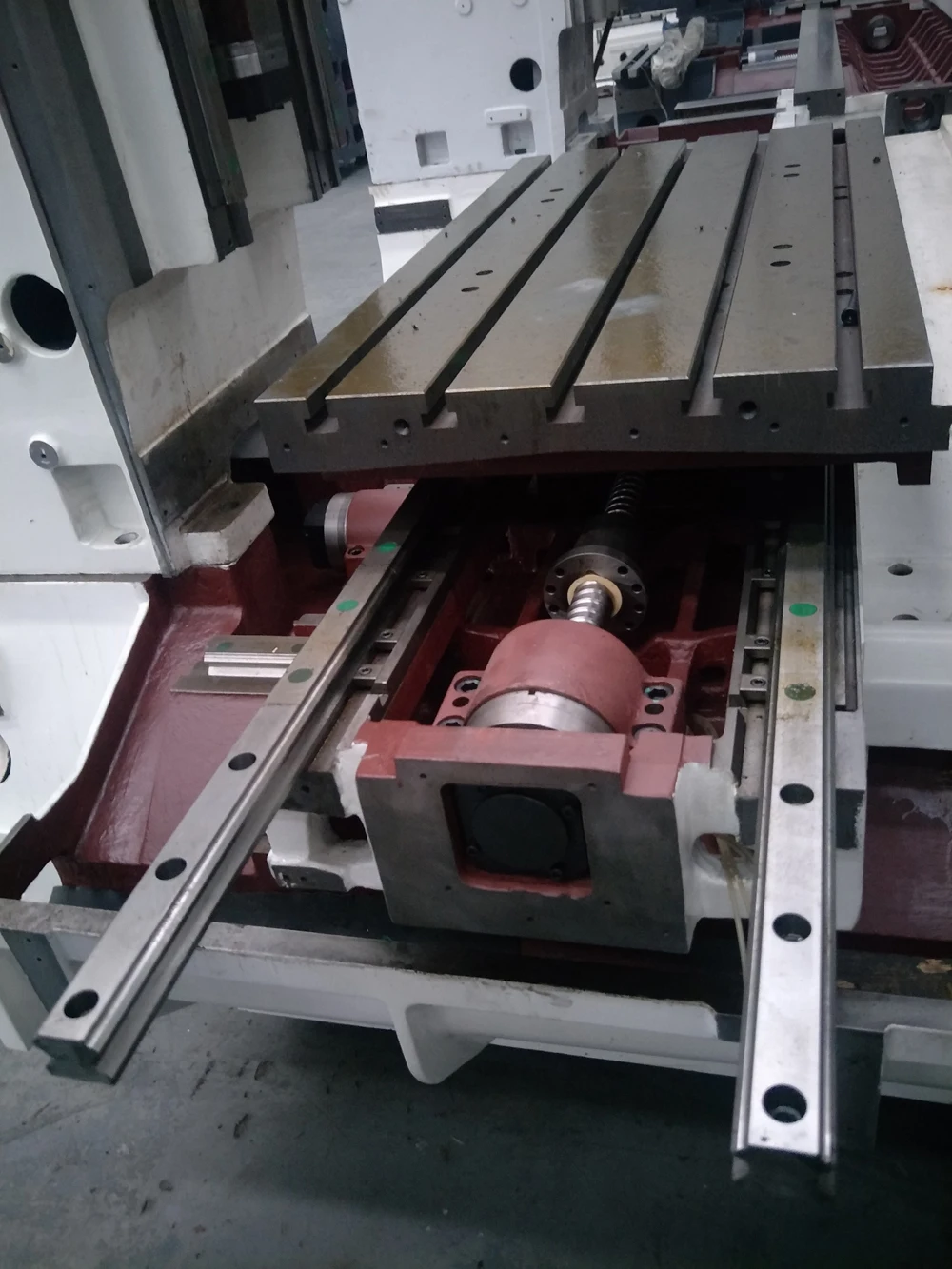

The bed, table, saddle, column, headstock and other main parts are made of high-strength inoculated cast iron material. The molding is resin sand process, and the stress is eliminated by twice aging treatment. These large parts are optimized by 3D Design Software Solidworks, which improves the rigidity and stability of the large parts and the whole machine, and effectively suppresses the deformation and vibration of the machine tool caused by cutting force.

The surface shape of milling machine is generally composed of straight line, arc or other curves. Ordinary milling machine operator according to the requirements of the drawing. By changing the relative position between the cutter and the workpiece, and then matching with the selected milling cutter speed, the cutter can cut the workpiece, and then various workpieces of different shapes can be processed.

CNC machine tool processing is to divide the movement coordinates of the tool and the workpiece into the minimum unit, that is, the minimum displacement. According to the requirements of the workpiece program, the CNC system makes each coordinate move several minimum displacements, so as to realize the relative movement between the cutter and the workpiece, so as to complete the machining of the parts.

Specification

Items	VMC600
CAPACITY
X axis travel	600mm
Y axis travel	400mm
Z axis travel	560mm
GUIDE WAY
X guide way span	30mm/ball/2pcs
Y guide way span	30mm/ball/2pcs
Z guide way span	35mm/roller/2pcs
BALL SCREW
X ball screw	32x16mm
Y ball screw	32x16mm
Z ball screw	32x16mm
Ball screw class	C3
DRIVING MOTOR
X motor	1.8kW/11Nm
Y motor	1.8kW/11Nm
Z motor	1.8kW/11Nm
MOTION
X axis rapid travel	48m/min
Y axis rapid travel	48m/min
Z axis rapid travel	36m/min
Positioning accuracy X/Y/Z	0.006mm
Repeatability X/Y/Z	0.004mm
WORK TABLE
Table length	700mm
Table width	420mm
Table Max. loading weight	300kg
T slot	18mm
MAIN SPINDLE
Spindle nose to table	170-730mm
Spindle center to Z axis	480mm
Spindle type	BT40
Spindle speed	10000rpm
Spindle power	7.5/11kW
Spindle torque	35.8Nm
ATC
Number of tools	20T
Tool shank	BT40
Tools change time	2s
GENERAL
Foot print(LxWxH)(with conveyor)	3380×2100×2400mm
Machine weight	3900kg
