Products Description

CNC lathe is one of the widely used CNC machine tools. It is mainly used for cutting the inner and outer cylindrical surfaces of shaft parts or disc parts, the inner and outer conical surfaces of arbitrary cone angles, the complex internal and external surfaces of revolution, the cylinder, the conical thread and so on

Numerical control machine tool is in accordance with the pre programmed processing program, automatically processing the parts to be processed.

According to the instruction code and program format of CNC machine tool, the machining process route, process parameters, tool motion path, displacement, cutting parameters and auxiliary functions of parts are compiled into a machining program sheet

Specification

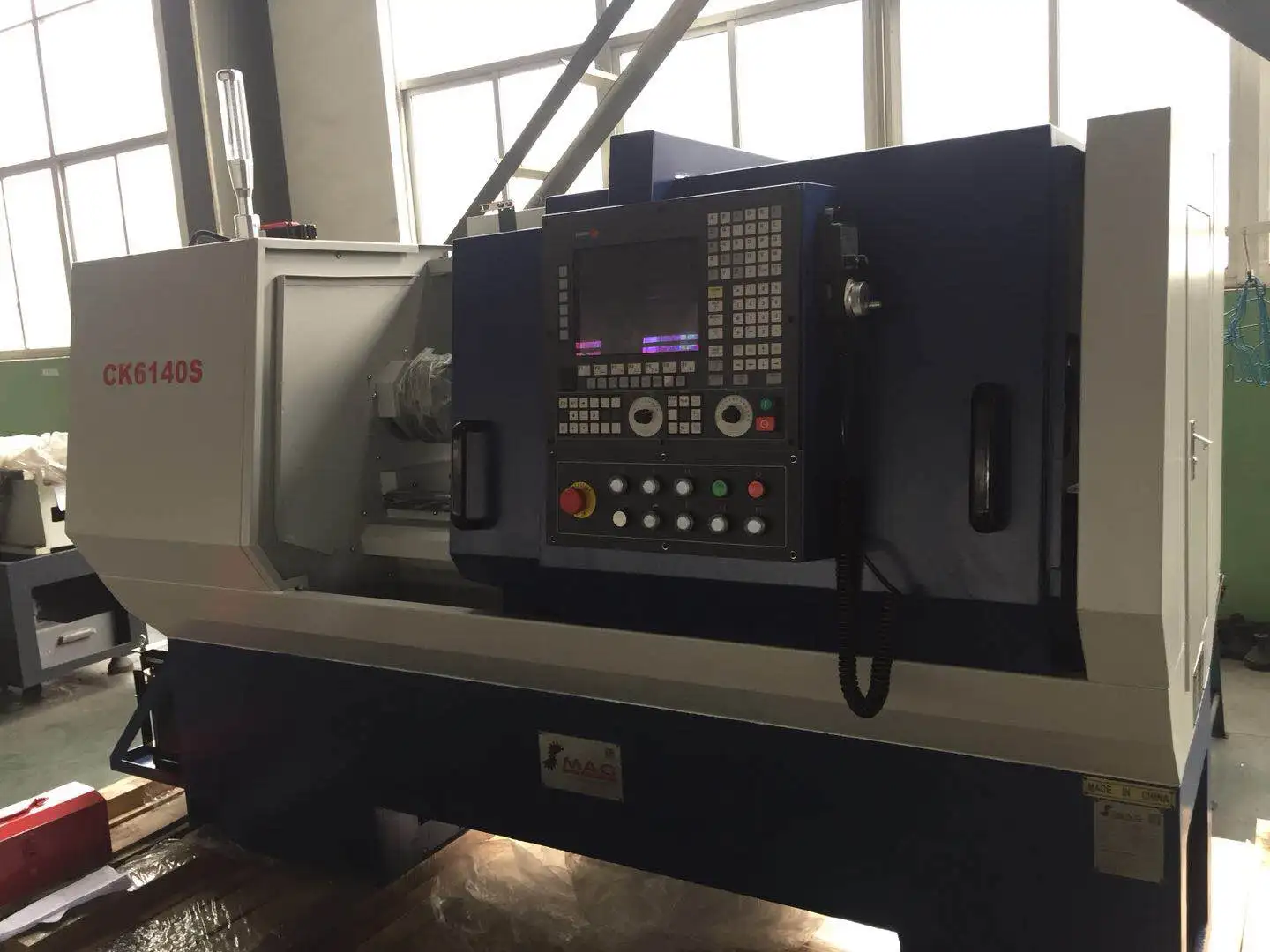

MODELS	CK6140S
CAPACITY
Max.swing over bed	Ф400mm
Max.swing over carriage	Ф225mm
Max. length of workpiece	1000mm
Max.turning length	950mm
6-way turret max turning length	840mm
6-way turret max turning diameter	Ф300mm
TRAVEL
Max.cross travel(X)	235mm
Max.longitudinal travel(Z)	490/740/990mm
FEED
Rapid feed for axis X	8m/min
Rapid feed for axis Z	10m/min
SPINDLE
Spindle nose	C6
Spindle bore	Ф52mm
Taper bore of spindle	M.T.NO. 6
Steps of spindle speed (manual)	Variable
Range of spindle speed	200~2800rpm
TOOL POST
Tool post stations	6 stations
Tool cross section	20×20mm
TAILSTOCK
External diameter of tailstock sleeve	Ф60mm
Taper bore of tailstock sleeve	M.T.NO.4
Max.traverl of tailstock sleeve	120mm
OTHERS
Min. input	0.001mm
Main motor power	3.7kw (optional: 5.5kw)
Coolant pump power	75w
Overall dimensions(L×W×H)	2370×1200×1415mm
Net weight	2000kg
