Products Description

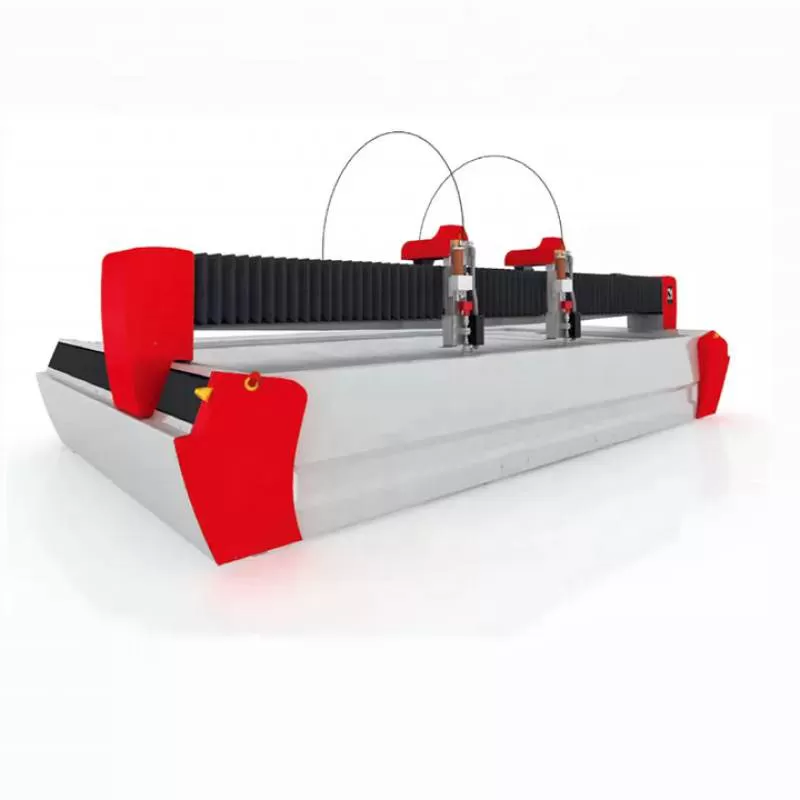

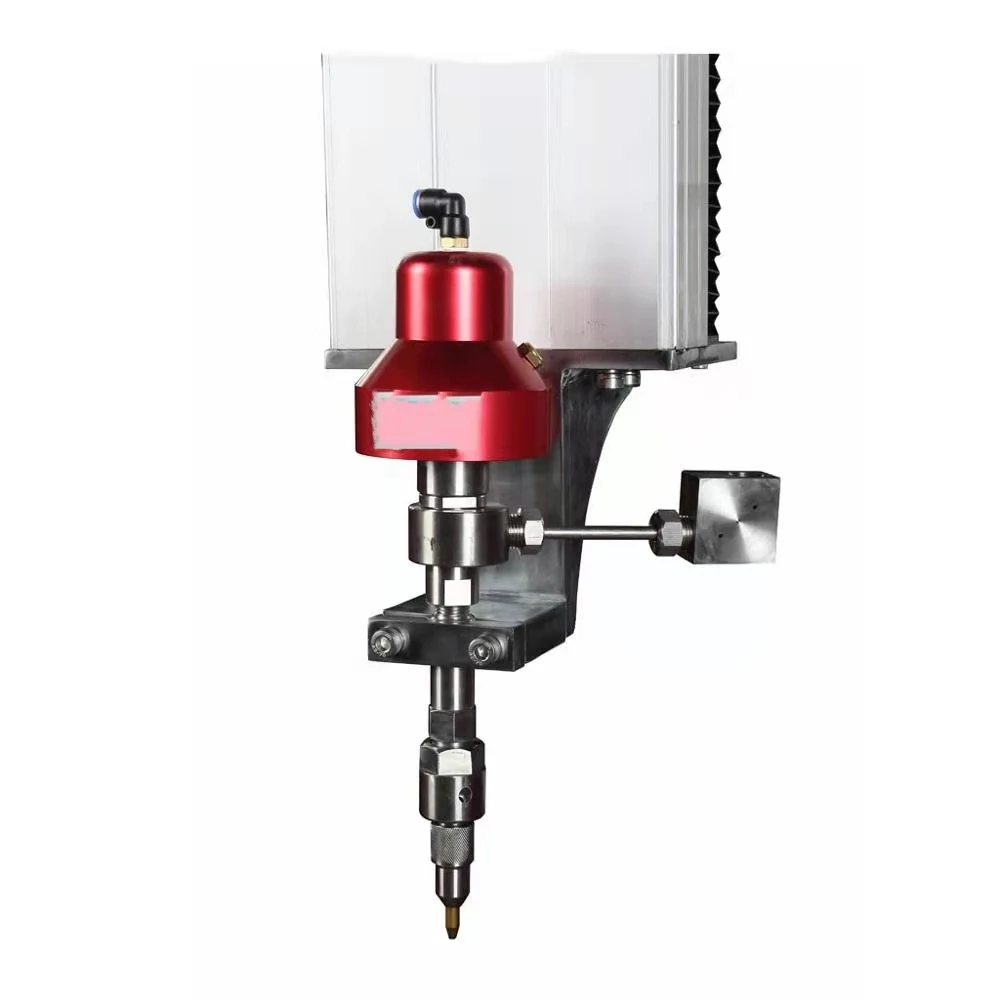

Water jet cutting, ultra-high pressure water jet cutting machine is the ordinary water through an ultra-high pressure presser, the water pressure to 4000bar, and then through the channel diameter of 0.3mm water nozzle to produce a water jet about 3 times the speed of sound, under the control of the computer can easily cut any graphics of soft materials, such as paper, sponge, fiber, etc., if adding sand to increase its cutting force, then several times It can cut any material

1. There is no thermal deformation during cutting, which avoids the physical and chemical changes of materials;

2. It is widely used in cutting all kinds of materials and has the reputation of "universal cutting machine"; 3. The incision is smooth and smooth without burr, so it is not necessary to reprocess; 4. Controlled by numerical control system, high cutting accuracy;

1. No cutting direction limitation, can complete all kinds of abnormal processing; 2. The lateral force produced by the water cutter on the workpiece is very small, which can reduce the setting time and save the cost of using the fixture; 3. The water jet machining will not produce thermal deformation, and no secondary processing is needed, which can save time and manufacturing cost; 4. Water jet cutting has the advantages of fast cutting speed, high efficiency and low processing cost.

Specification

X Axis Cutting Stroke	3m
Y Axis Cutting Stroke	1.8m
Z axis Stroke	180mm
CNC Control	SEMYX
CAM Software	Included
Cutting Speed	0-15m/min
Free Speed	20m/min
Acceleration	1m/s2
Accuracy	0.08mm
Drivers	AC Servo Motors
Motion for X Axis	Ball Screw
Motion for Y Axis	Ball Screw
Motion Part Protection	Bellow
Pump	50HP
Pump pressure	4000Bar
Z -axis	1
Water Treatment System	optional
Abrasive Tank Capacity	50 L
Abrasive Feeder	Automatic
Abrasive Removal	optional
Layout	See the layout
