hydraulic type automatic sponge cutting machine

Video link view in youtube :

https://youtu.be/L7XRezlLK-Y hydraulic through die cutting

https://youtu.be/FBgb4uypwn0 gasket die cutting machine

https://youtu.be/WGzsM48bmdU 900mm hydraulic die cutting machine
http://youtu.be/XOiQWX0AubE Roll to sheet die cutting machine for automobile industrial

https://youtu.be/oaS9MkdhUeY PET material through cut die cutting

https://youtu.be/x5U3UqMjJgc multi-layer laminating -- die cutting --- waste rewinding --- sheeting --- rewinding

http://youtu.be/W0TNeBHKWA0?list=UUKzn2_YUjZc_nkjjFRC07NQ double station wine label impressing and die cutting

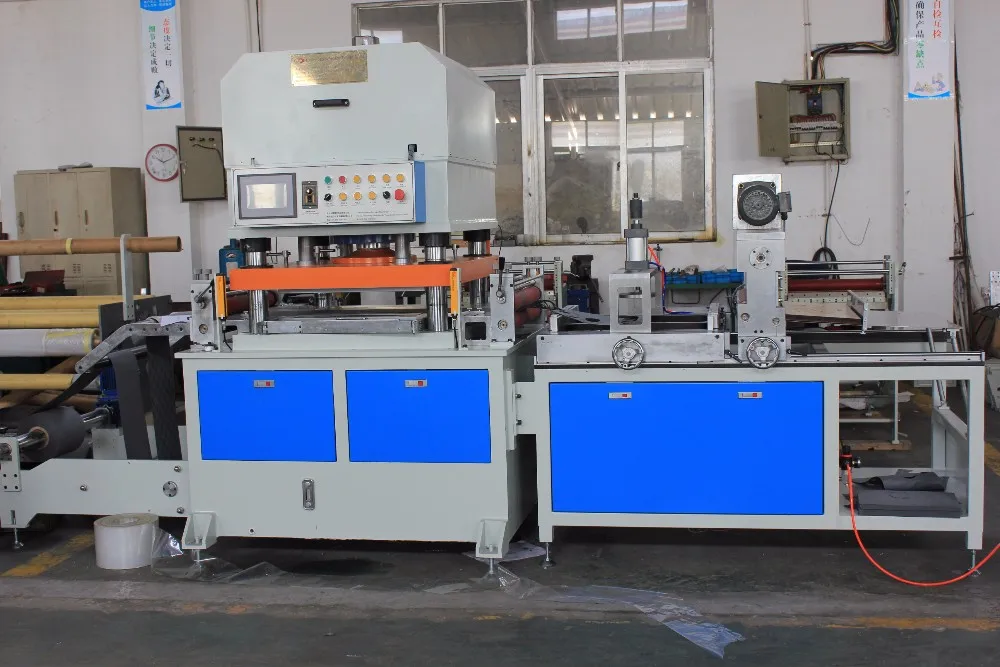

High precision automatic sponge flatbed cutting machine

Standard functions
* material feeding
* kisscutting/total cuttingat register
* scrap rewinding
*knock-out of the totally cut parts
*rewinding on one roll
*cut the material in set (guillotine).

40 Ton automatic kiss cut die cutting machine
Technial Data
ITEM NO.	Pressure	Max feeding width	Die cutting area	Main engine power	Voltage	cutting speed
	Ton	mm	mm	HP	V	times/minute
DP-40 TA	40	700	700X700	5.5	3 phase AC380V 50HZ	40
work table height	max open distance	max traveling distance	precision	packing size	weight	cutting type
mm	mm	mm	mm	cm	KG	work with mould to achieve kiss cut die cut
800	100	100	0.03			work with mould to achieve kiss cut die cut
function :	Used for die cutting genuine leather,microfiber , PE/ PVC/PP etc plastic film , paper , foam, EVA sponge , non woven etc kiss cutting
Shipping term: FOB Shanghai
Payment term : 30% TT advanced , 70% paid off before shipment
Desc.
WITH UP PUNCHING PLATE have clamping tool that install the cutting mould easily The oil pressure system uses advanced, durable special circuit and electric control system of high stability, up to Super level of effectiveness. Electronic positioning, precision and control in 0.02mm, inferred from round precision control at 0. 05mm. Machine feet install the SHIM, body solid and reliable. Longer tool life, processing objects can be broken and half broken, cut smooth without edges. PLC man-machine automatic program control oil system with integrated control, opto-electronic protection.

Details description of machine :
I , unwinding part ---------------max width 700mm
1, 3 inch air-shaft , AC Motor , frequency control
2, unwinding effective width : 700mm ,
3, with laminating function and scrap rewinding function before main die cutting part
4, Servo motor control the 2 pulling roller ,
pulling roller is rubber material and hardness must at 75--80 degree , opening height is adjustable at least 24mm

II , Main Machine ------------ Die cutting area 700*700mm
1, Four shaft hydraulic machine
2, max cutting force : 40 Ton
3, shock proof
4, with light for the die cutting part so that easy installing mould and watch the die cutting part
5, plane die cutting area 700mm length , 700mm width
6, Safety Light Curtains at four corner .

III, electronic PLC control
1, LCD touch screen , computer control base
2, with password for data protection
3, can save the datas that setted
4, low maintainance
5, all the parts are under CE safety standard , electronic parts have CE mark
6, all the cutting / unwinding length and number are can set in the touch screen
7, cutting depth precision control at 0.025mm
8, stroke is controlled in 50--101.6mm

IV ,die cutting mould installing
with clamp tool and locking tool so that can put mould in directly and then locked , change mould in few time

V, mould plate package
1,with up and down cutting boards
2, stainless steel material mould plate , polished , easy control the cutting depth , can cutting both kiss cut and through cut
3, one piece PET or PVC sample for mould protective
4, Raiser ( tool to put conveyor belt ) for through die cutting . Conveyor belt part at main machine only.

VI, scrap/ waste Rewinding
1, three inch airshaft rewinding width AC motor control
2, max rewinding diameter is 609mm,
3, bearing weight at 22KGS
4, effective width 700mm
5, with dancer for the tension control

VII , knock down part for the holes ( optional parts )
1, the punching area at least 700mmX700mm
2, Pneumatic control , and stroke at least 2 inch
3, Safety Light Curtains at four corner
4, not include the punching mould

VIII , Rewinder ( optional parts )
1, with max roll diameter 609mm
2, Rewinding shaft is 3 inch airshaft
3, AC motor , speed can increase or descrease , with switch if forward/ reverse
4, effective width is 700mm ,
5, max bearing weight is 136KGS
6, Electromagnetic clutch tension control

NINE , CUTTER
1, effective width 700mm,
2, motor control the cutter operation
3 , can move forward / backword to suit for the unwinding length per time

TEN , slitter ( optional parts )
1, 2 shaver type slitter installed on the knock down part table before sheeting and rewinding
