Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

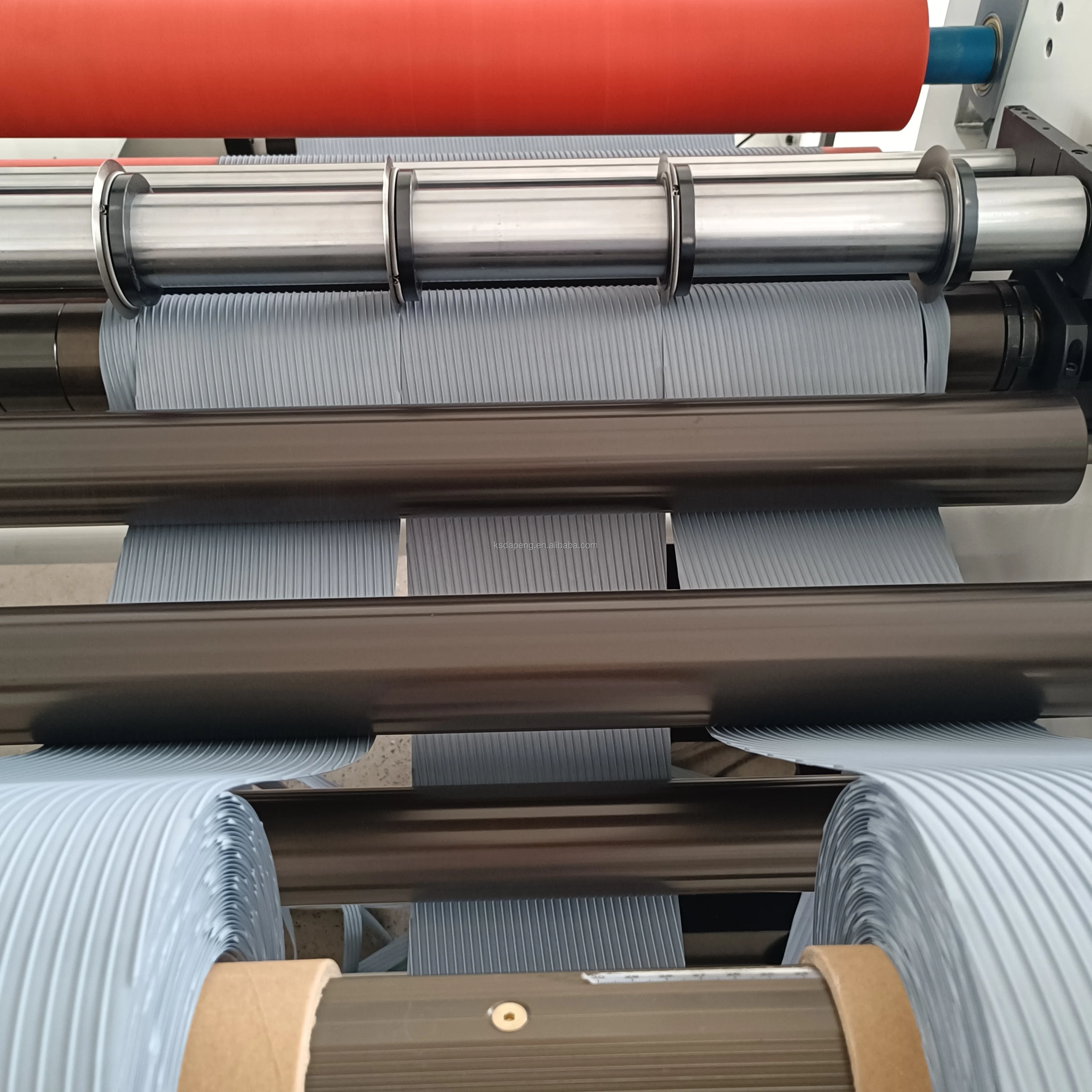

slitting and rewinding machine

1. The machine is mainly used to slit stick paper, craff paper and other kinds of paper
2. Entire machine is controlled by PLC(two vector motors), man-machine interface, screen touch operation
3. Unwinding part adopts imported pneumatic brake control, the rolling diameter is automatically calculated by PLC, to achieve constant tension control.
4. Traction control is driven by a vector variable frequency motor, to achieve constant linear velocity control, and effectively cut off interactant tension between rewind and unwind
5. Rewinding part uses the vector frequency conversion motor, to drive magnetic powder clutch, realized by the PLC automatic cliameter counting auto tension control.
6. Unwinding parts adopts hydraulic power feed, which can save much labour force and shorten time.
7. Auto meter presetting, EPC error correction device is positive to assure the accuracy.
8. The feature of machine is stability, secunlty, efficient., etc

Machine Name :DP-1300 Slitting Machine(Two Motor)

1. Technique Data

Machine Speed : 110m/min

Max material diameter : 1300mm

Feeding OD Diameter : 600 mm or 800mm or 1000mm ( please choose )

Rewinding OD diameter : 450mm/600mm or 1000 mm etc can be customized

Slitting accuracy :±0.1mm

Voltage:380V 50HZ

Main Motor Power :5.5kw (2 motor power)

Total Power: 8kw

Raw material Max hole diameter: 3”

compress air source:(0.4-0.6)Mpa(customer-owned)

Finished products Min. Width by standard slitting :25MM

Main Machine size :2400*2300*1300mm

Feeding Machine size : 1950*880*780mm

Weight : 2.2T

2, Feeding Device

Feeding Air Expansion Shaft (3”Pad Shaft) 2 Sets

magnetic powder brake 100N 1 Set

Film release Magnetic Powder Brake 50N 1 Set

Feeding Tension Control System 2 Sets

Correction System(Taiwan Gas and Liquid correction) 1 set

3, Renewal Material Laminating Part :

Upper Laminating COTS Dia.135(PU) 1 Set

Under Laminating COTS Dia.135(PU) 1 Set

Aluminum guide roller(hard Oxygen surface treatment) 1 Set

Pressure roller pneumatic type top and bottom system adjustable : 1 Set

electronic counter 1 Set

Film Release tensioning adjustable system

4. Reeling end

Receiving Flatulence axis(3″Pad shaft) 2 Sets

magnetic powder clutch 50N 2 Sets

he receiving tension control system 2 Sets

Main electrical machine (double motor) 1 Set

Main Power inverter 1 Set

Winding shaft and pneumatic up and down device(Rise,descend ,support) 1 Set

5. Operator control box 1 Set

6.Electric control panel 1 Set

7. Function Profile

frequency control of motor speed, operation more easy. Control more accurate.

Double receiving roller center take up , rewinding

Double receiving magnetic powder tension independent control, can rewinding at the same time , and also can individual use

Electronic meter counter with the function of automaticly count the meter and setting length, automatic stopping ,accuracy 0.01, error ±0.15M

Independent fan waste discharge.

Double motor configuration,The scroll of rewinding can be positive and negative transfer .

8. Slitting part

Slitting up and down cutter 10 sets

Circle tool apron 10 sets

Slitting up and down cutter gasket:1/2/5/20/30/50 each 13 pieces,10MM 12pcs
