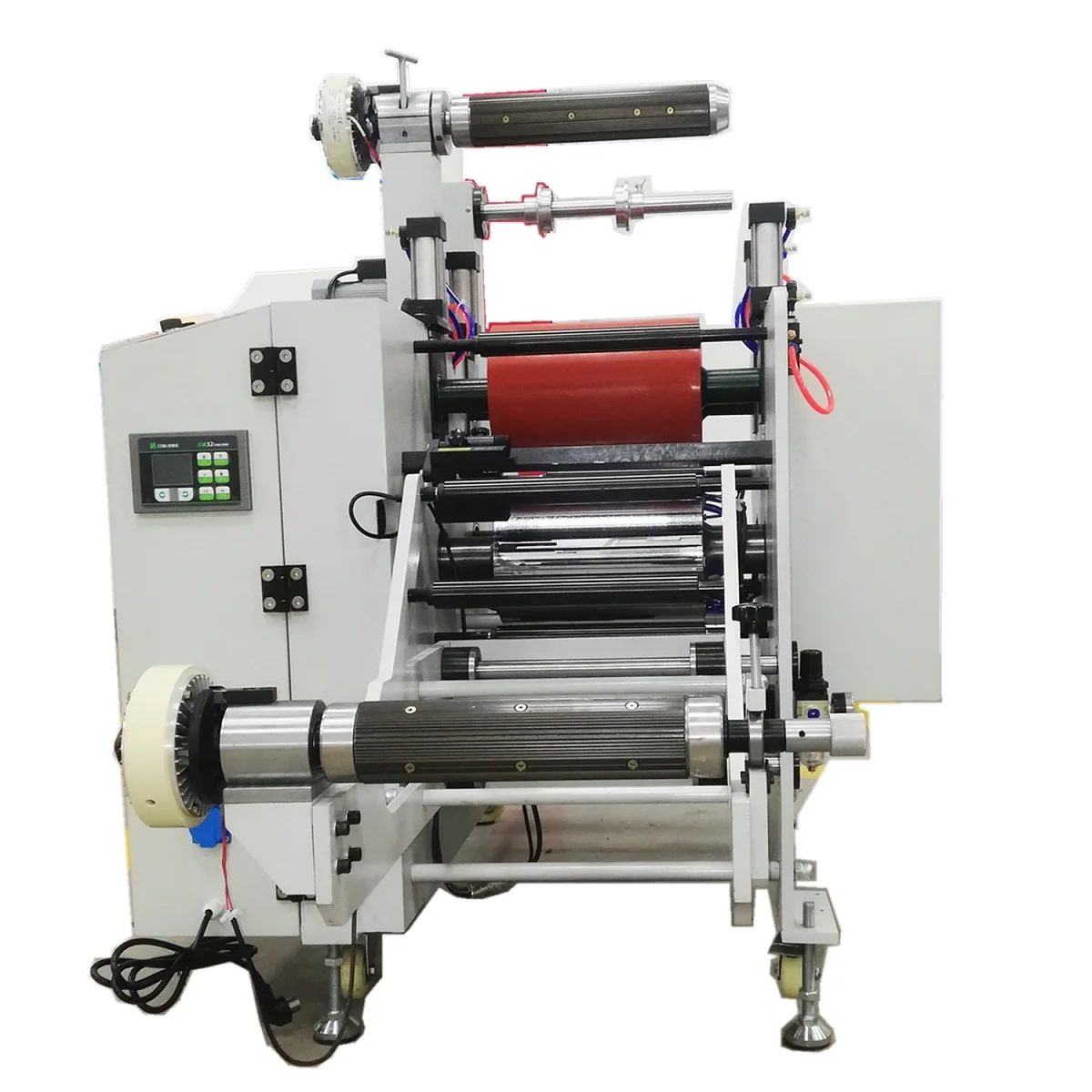

Automatic Laminating Machine with Auto Unwinding Rewinding for Narrow Fabric Scroll

(19 Lượt)

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Nhà sản xuất, chế tạo • 2 năm

Giá

75,000,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

Automatic Laminating Machine with Auto Unwinding Rewinding for Narrow Fabric Scroll

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Automatic Laminating Machine with Auto Unwinding Rewinding for Narrow Fabric Scroll

Nhà cung cấp

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Thông tin nha cung cấp của bạn

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Product Description

Specification

Features:

1.The working width up to 320mm/420mm.
2.Laminating thickness up to 5mm.
3.the laminating positioning precision can reach 0.1mm.(can laminating many strips at one time).
4.Unwinding and rewinding with 3 inch pneumatic compressed shaft .
5.With movable feet design, it can be moved and used conveniently.
6.The laminating tension is totally controlled by magnetic power ,it make sure the flatness of the laminating material.
7.Automatic stop sensor for unwinding and rewinding.
8.Each parts independently speed control,tension control,easy to operate.
9.Each pair laminating rollers can be adjusted separately to get right pressure and space.
10.Multiple sets of waste discharge shaft.

Application:

This machine is suitable for peeling and laminating kinds of protective film, released film, paper and adhesive tapes.
It's specialized for the optical films and coated film industry.
Such as the OCA film, ITO film, PET film, diffusion film,reflecting film, hard coated film, AB gule etc.

* Optional device for this machine:

1.Integrated discharge device(jumbo roll loading device). Save working space.

2. Shaftless loading device. Compact structure ,easy operation.

3. Rewinding differential shaft. Make better rewinding.

4. Heating system for laminating. According to different type materials requirement.

5. Slitting device. Do both slitting and laminating in same unit.

6. Seperate rewinder for waste.Reduce material pollution.

item	value
Applicable Industries	Printing Shops, automatic laminating machine
Showroom Location	automatic laminating machine
Condition	New
Type	Laminating Machine
Computerized	Yes
Place of Origin	China
	Jiangsu
Brand Name	Dapeng
Voltage	220V
Dimension(LWH)	137012601270mm
Weight	500kg
Warranty	1 Year
Production Capacity	60 m/min
Key Selling Points	Easy to Operate
Max. workable width	420mm
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Marketing Type	Ordinary Product
Warranty of core components	1 Year
Core Components	Motor, PLC
PLC Brand	MITSUBISHI, Siemens
PAPER ROLL MAX WIDTH	420/650MM
Max feeding paper roll diameter	500mm
laminating speed	60m/min
laminating precise	±0.3mm
