Automatic 400mm Mechanical Metal Vertical Band Saw Machine for Wood Cutting

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Automatic 400mm Mechanical Metal Vertical Band Saw Machine for Wood Cutting

Nhà cung cấp

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Thông tin nha cung cấp của bạn

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Recommend Products

Products Description

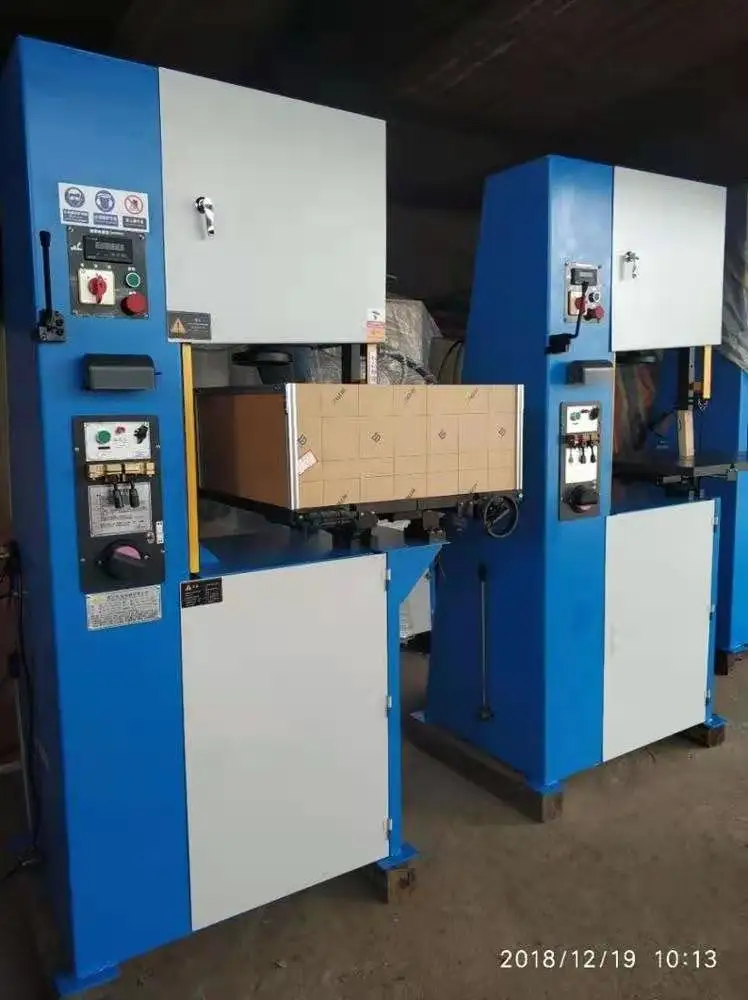

It is a sawing machine that uses a ring-shaped endless band saw blade as the sawing tool and makes one-way continuous linear motion around two sawing wheels to cut wood. It is mainly composed of bed, saw wheel, upper saw wheel lifting and pitching device, band saw blade tensioning device, saw blade guiding device, worktable, guiding plate, etc. The bed is made of cast iron or steel plate by welding.

The tension device of saw blade is divided into spring and thallium (weight hammer), and spring device is used in this machine. The base tension shall be determined by the width, thickness, speed, etc. of the saw blade. Usually, the finger is used to press the saw blade to determine whether the tension is proper according to the left and right bending degree of the saw blade. In general, when the blade is pressed by hand, the bending degree of the saw blade is between 3.2 and 6.4 mm.

The saw blade shall be clamped in the middle of the saw clip, and the bottom of the saw tooth shall be in a straight line with the outer edge of the saw clip. The saw blade shall not be clamped too tightly, but shall be able to slide in the middle of the saw clip. There shall be a gap on both sides, and the gap on each side is about 0.04 ~ 0.08mm. The back of the saw blade is about 0.8mm away from the pulley. If the saw blade contacts the pulley when it is idling, it means that the saw blade is at the back, or the pulley is at the front, or the tension of the saw blade disappears. The upper saw wheel or pulley should be adjusted, or the saw blade should be removed for inspection, rolling and finishing.

Specification

Type	GD4535
Cutting Capacity (mm)	Lenght:400mm
	Throat:450mm
	Throat:450mm
	Height:350mm
	Height:350mm
Cutting Speed(mm)	22/50/70(m/min)
Blade Size(mm)	1.1x34x4000
Main Motor Output(kw)	3
Size Of Outward(LxWxH)	1500x1400x2200
Machine Gross Weight(kg)	1000

Company Profile

Exhibition

Certifications

FAQ

1. How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2. What is your payment terms ?
A: 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.

3: Where is our factory located? How can I visit there?
A : Our factory is located in No. 52 Linyin Road, Economic and Technological Development Zone, Nantong City, Jiangsu Province ,226001 China. You are warmly welcomed to visit us.

4. What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

5. Can you send the service engineer to our company ?
We have engineers stationed in Canada, Egypt, and Algeria. The after-sales service system is very perfect.
