Adhesive Tape Aluminum Foil Liner Auto Feeding Flatbed Barcode Label Die Cutting Machine

(14 Lượt)

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Nhà sản xuất, chế tạo • 2 năm

Giá

227,775,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

Adhesive Tape Aluminum Foil Liner Auto Feeding Flatbed Barcode Label Die Cutting Machine

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Adhesive Tape Aluminum Foil Liner Auto Feeding Flatbed Barcode Label Die Cutting Machine

Nhà cung cấp

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Thông tin nha cung cấp của bạn

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Product Description

Specification

item	value
Applicable Industries	Manufacturing Plant, Flatbed Barcode Label die cutting machine
Showroom Location	None
Condition	New
Type	Die-cutting Machine
Computerized	Yes
Place of Origin	Other Country
Brand Name	DP
Voltage	380V
Dimension(LWH)	2700X1700X1650mm
Weight	1.2kg
Warranty	3 years
Production Capacity	100 m/min
Key Selling Points	High-accuracy
Max. workable width	320mm
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Marketing Type	Ordinary Product
Warranty of core components	1 Year
Core Components	Pressure vessel, Motor, Bearing, PLC
PLC Brand	Schneider, MITSUBISHI
Certification	CE
Machine name	barcode label die cutting machine
Application	barcode label die cutting machine
Die cutting area	320300,420400,450*400
Cutting speed	30-170 T/M
Position accuracy(mm)	0.1mm
Max feeding width(mm)	320mm, 410mm
Optional Parts	hot stamping, laminating

Product Description

First , Machine main technical data
A. max die cutting speed 200 cuts/minute B. die cutting area 320300mm(width length ) C. unwind roll max diameter 500mm D. max paper roll diameter 320 mm E. left to right position precision : ±0.050mm F. Step Accuracy : ±0.10mm G. Total power : about 6.0kw H. Power Voltage: 1P 220V 50HZ I. Machine Net weight about 1650kg J. machine size(length width height ): 270010501400mm( Removable 160010501400mm)

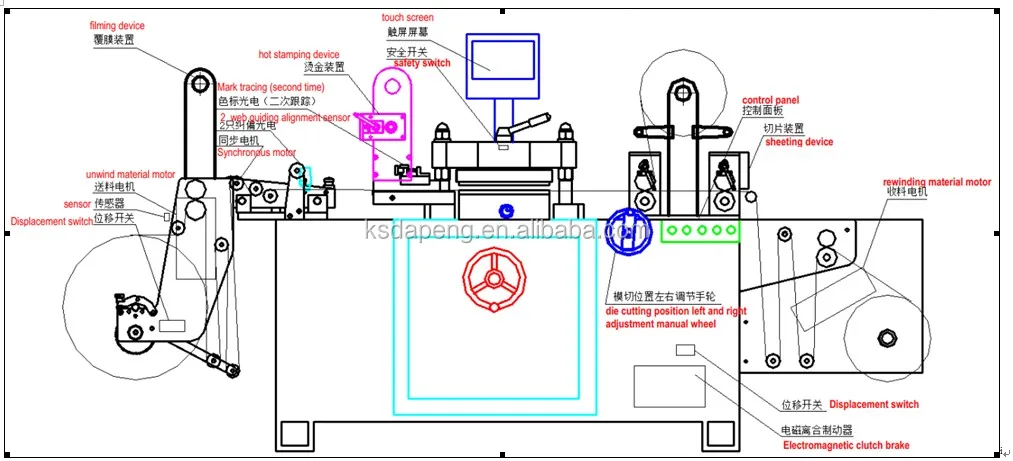

MACHINE STRUCTURE

the machine has been extremely reliable , quiet and easy to use

Second , machine configuration

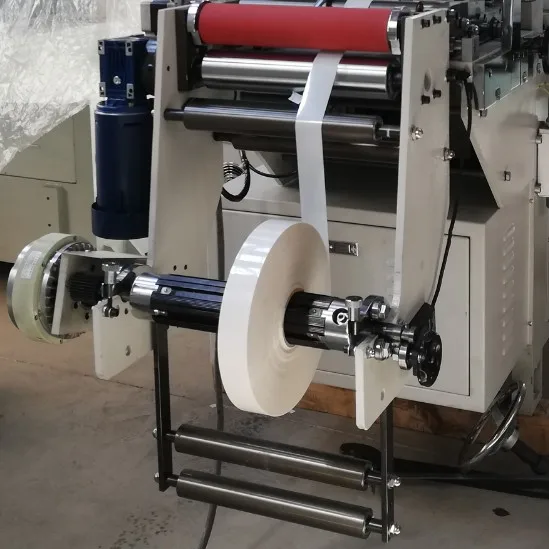

1 , unwinding part

A. Aluminum guiding roller B. unwinding air-shaft

C. unwind pulling material roller + steel roller D. unwind pulling material motor300W

E. unwind damping device F. Electric Eye ( paperless automatic stop)

Laminating Optional

barcode sticker machine

2, laminating part ( optional function )

1. filming device ( unwinding function )

A. Filming unwinding roller

2. filming device ( unwind rewind function )

A. filming unwinding roller B. filming rewinding roller

C. filming rewinding motor D. Aluminum guiding roller

3. Rectification system
A.Aluminum guiding roller B. rectification motor 70W
C. Rectification electric eye

4. printed mark tracing part

A. Paper platform B. Electric eye holder
C. Color tracking electric eye

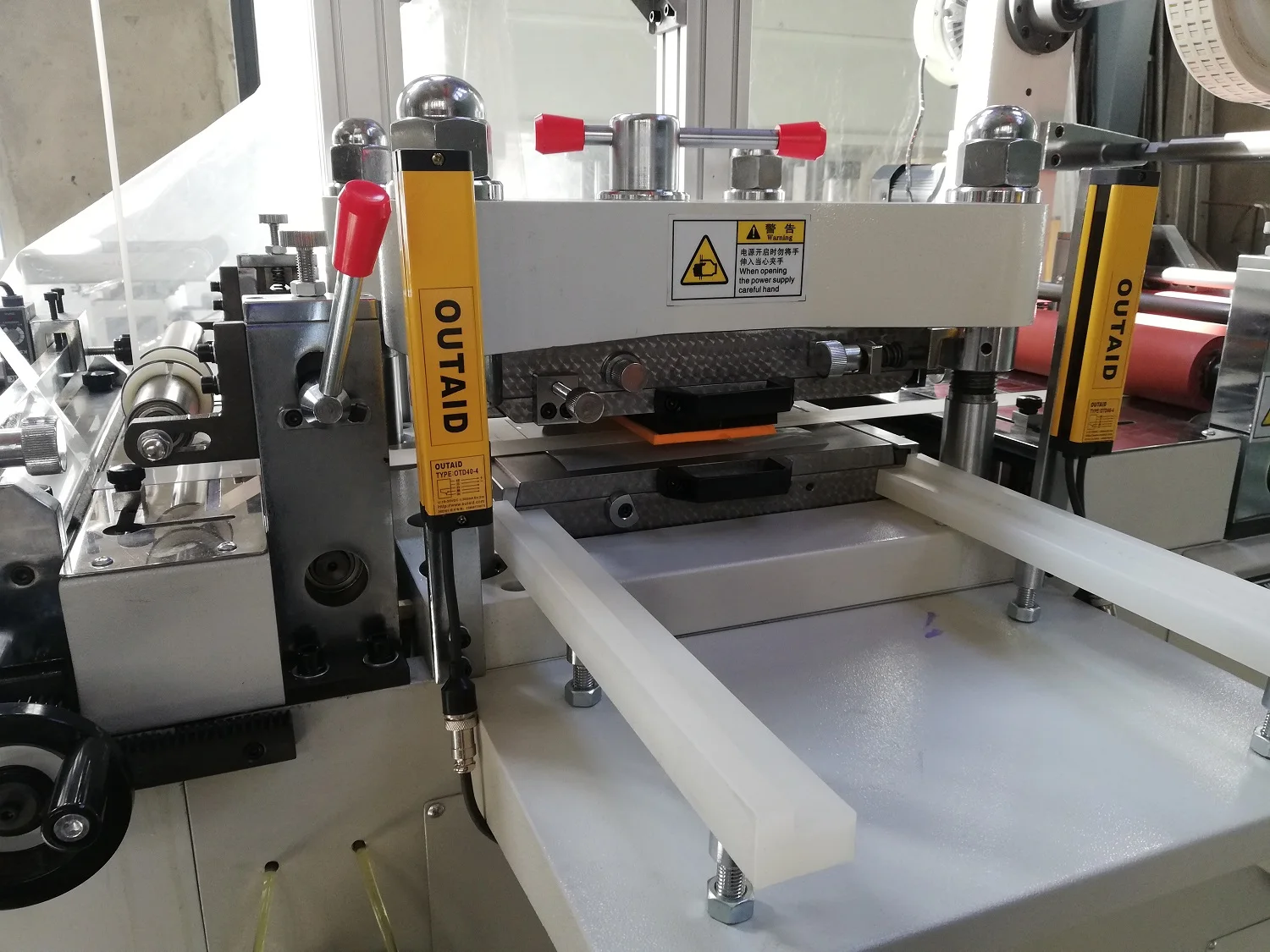

6. die cutting part

A.Die cutting seat assembly (can move left and right – paper unwind direction)

B. Main motor 2.2KW

C.automatic supply oiling system ( copper tube connect wire, semi sealing type , Lubricating oil recycling )

D.Buffer spring

E. Down cutting plate seat height adjustment ( 2 Inclined plate)

F. Up cutting plate seat Obliquely turn up system ( more easy to change the cutting dies)

7. Waste scrap part

A. guiding roller B. waste scrap rewind roller

C. Buffer Disposal Device - Optional function

(For some thick adhesive material difficult to scrap material )

8. Pulling material part

A.pulling material roller+ steel roller

B.pulling material servo motor 2.2kw(Zhejiang Dongling)

C.Timing belt

9. sheeting blade part

A.Aluminum guiding roller B. Cutter clutch assembly

C. up cutting blade (inserting steel) D. down cutting blade (inserting steel)

10. Rewinding part

A. Aluminum guiding roller B. rewinding cushioning device

C. Rewinding pulling material rubber roller+or steel roller

D. rewinding motor 800W ( when sheeting can stop)

11. Hot foil stamping part ( optional part )

1. Stepper motor stamping device

A. Hot stamping unwind roller

B. Aluminum guiding roller

C. hot stamping pulling material roller

D. hot stamping pulling material motor ( stepper motor )

2. Servo motor hot stamping device

A. Hot stamping unwind roller

B. Aluminum guiding roller

C. hot stamping pulling material roller

D. hot stamping pulling material motor ( servo motor 0.75KW Zhejiang Dongling)

12. electric control part

A.PLC (Mitsubishi )

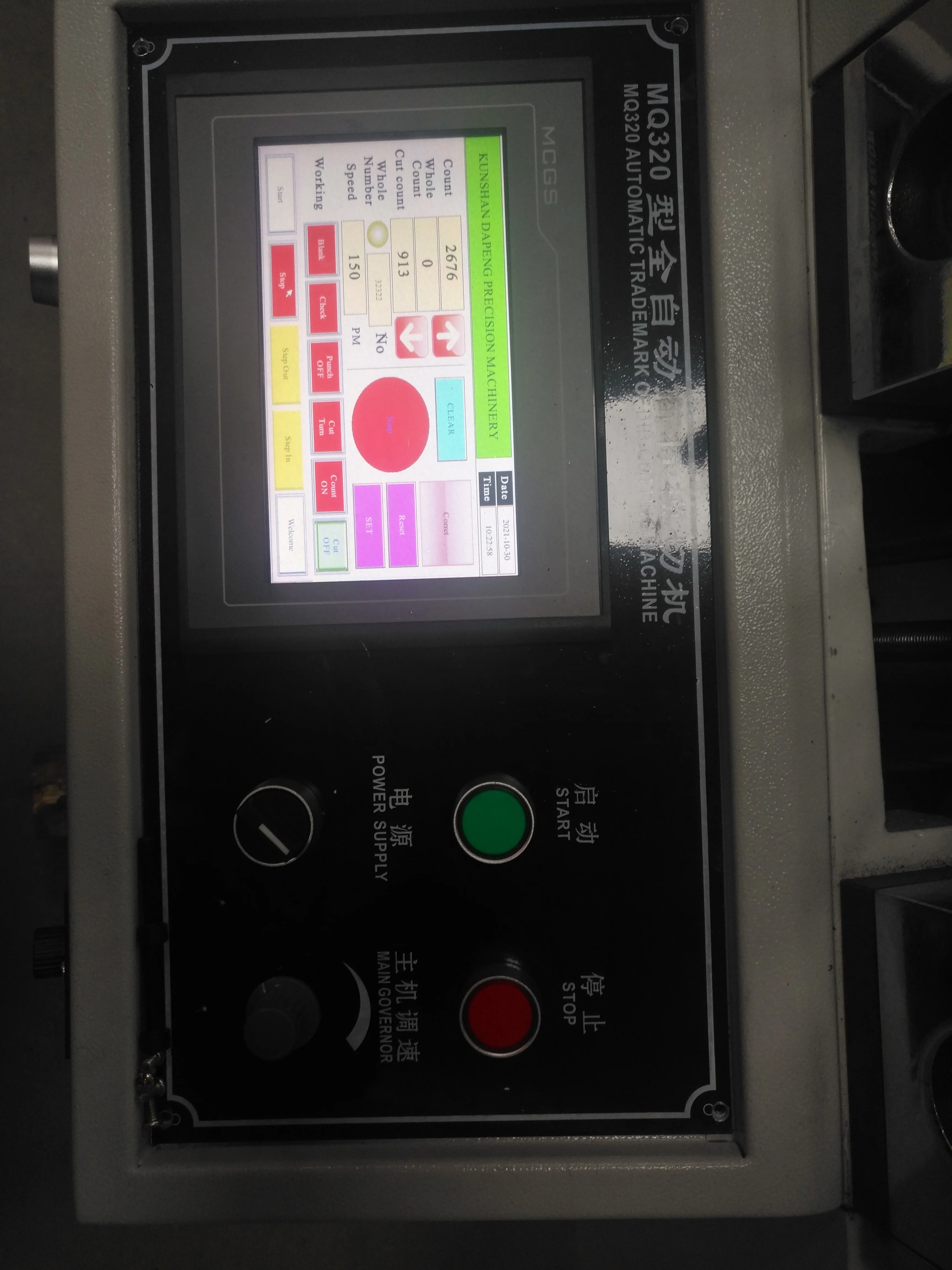

B.Touch screen ( MCGS)

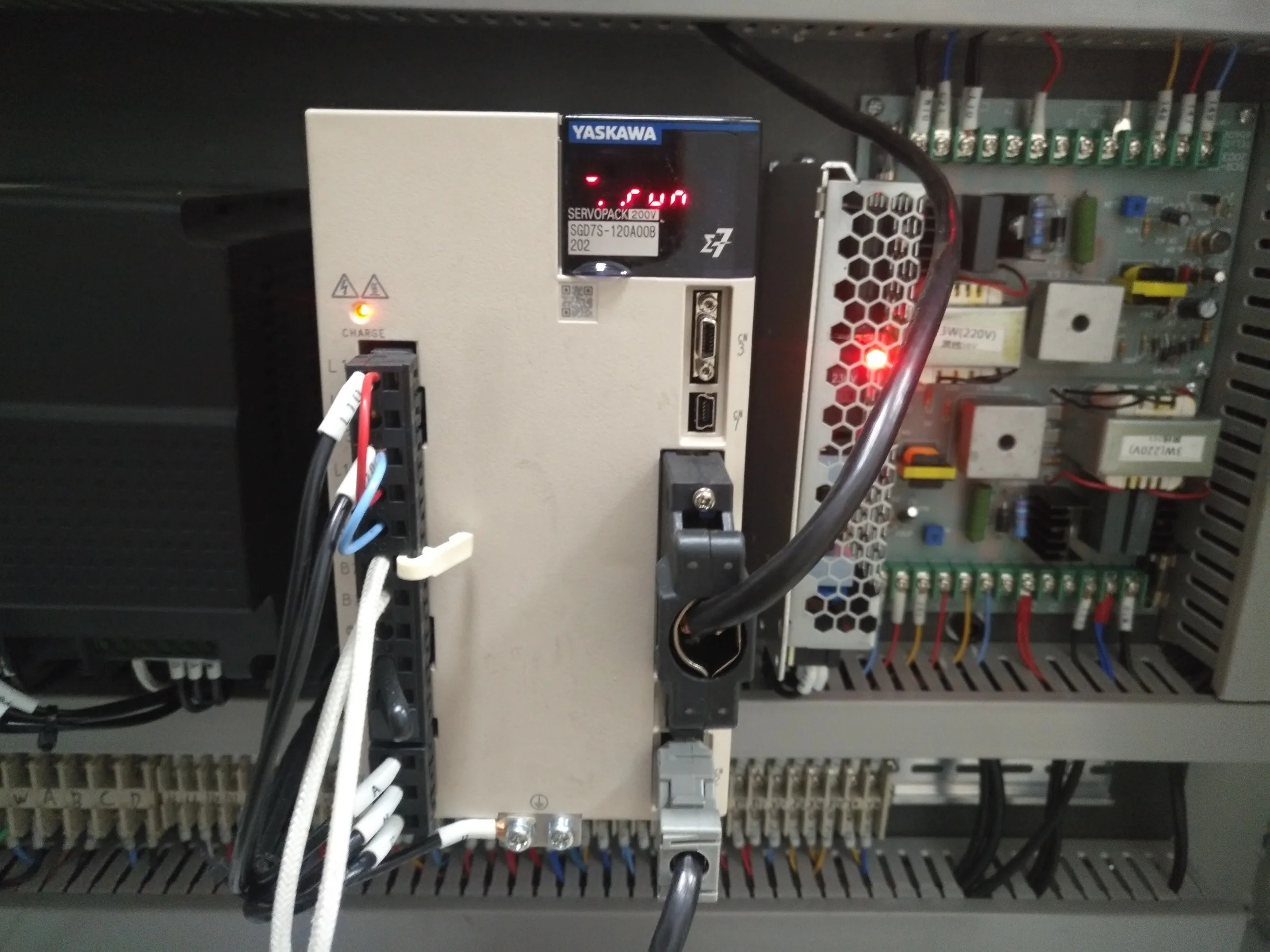

C. Servo motor driver (YASKAVA)

D. Frequency speed converter ( sHIHLIN)

E. Power switch 220-2-110( Taiwan )

13. metal sheet , safety cover etc

14. others

A. Tools B. Operation manual

Our Advantages

Description:

This machine is applicable to die cut through platenwith high precision,while the computer controls the slices and conveyor.The sides of trademarks and longitudinal route are tracked through three photoelectric eyes to position,while the die cutting,discarded delivery or auto trademark labeling can be finished in the processing of one web.

The machineis applicable to die cut paper self adhesive trademark, Dacron film trademark and laser anti-false trademark.It is an ideal complete set of flexo printing machine,continuous thread printing machine,gravure printing machine and die compress machine for anti-false trademarks.

Optional configuration:

1. Hot stamping unit

2. Punching unit

3. Lamination unit

Advanced technology:

HIGH SPEED UP TO 300 CUTS PER MINUTE

1.Bigdiecuttingsize:420*400mm or 320X300mm

2.fouraxislinakge,stablerunning

3.machineisequippedwithautocirculationoilpump,transmissionpartcanaddoilautomaticallyafter machine starting
