650 Splicing Machine 220v/380v Paper Processing Machinery Slitting Rewinding Machine

(21 Lượt)

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Nhà sản xuất, chế tạo • 2 năm

650 Splicing Machine 220v/380v Paper Processing Machinery Slitting Rewinding Machine

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

650 Splicing Machine 220v/380v Paper Processing Machinery Slitting Rewinding Machine

Nhà cung cấp

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Thông tin nha cung cấp của bạn

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

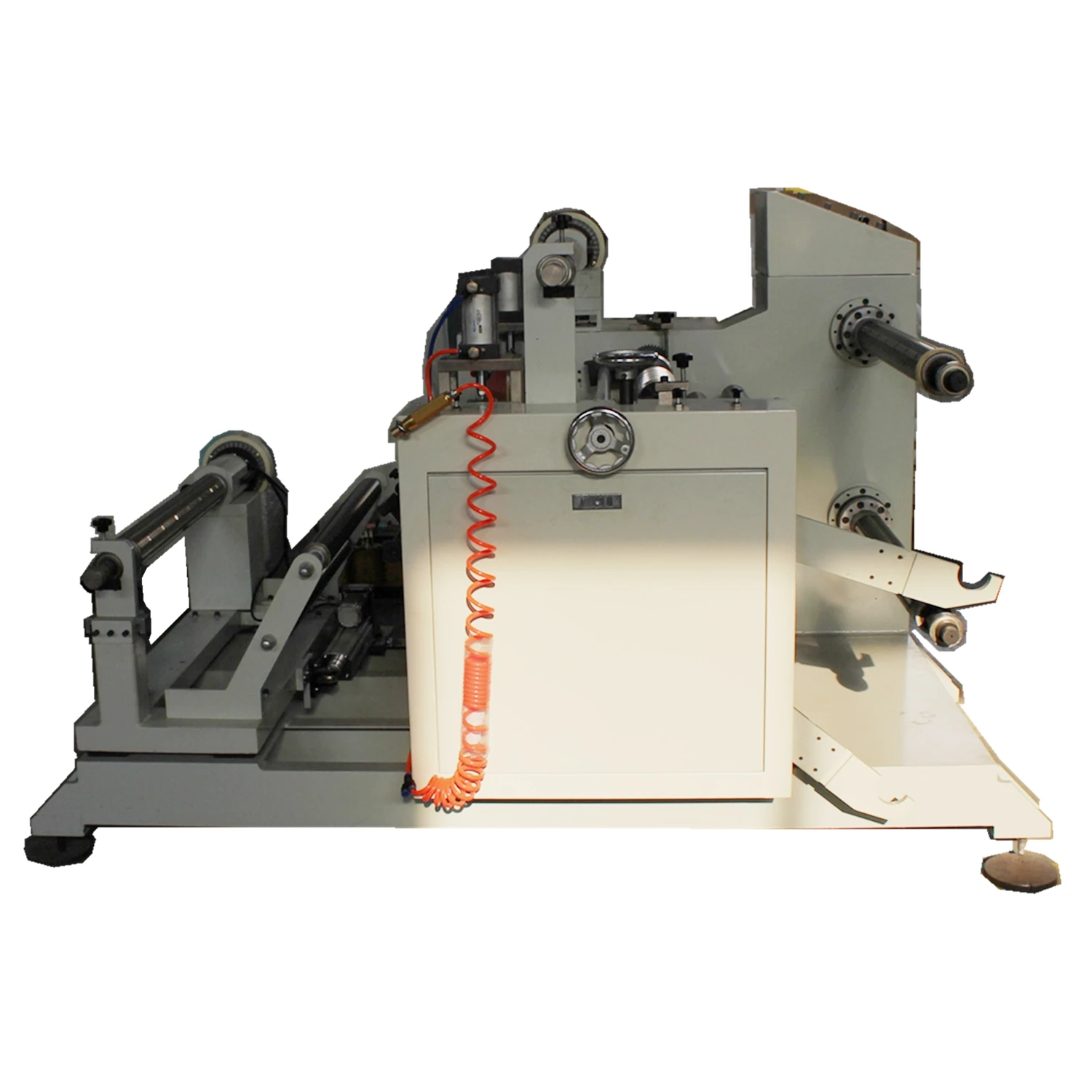

Automatic insulation paper slitting machine
Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery

Features:

This machine employs photoelectric track and rectification system, and the magnetic powder clutch is adopted to control the
feeding and receiving tension. Main machine adopts frequency conversion speed regulation. The movement of the rubber covered
roller is controlled by the cylinder. Sticking and slitting be done at one time , sticking or slitting can be done separately.
Accurate slitting, fast speed, easy to operate and maintenance .

Purpose:

1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil,
aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.

Main Technical Parameter:

data as below is for reference only , you can customize to other data if required

Model	DP-650FQ
Max Feeding Width	650mm
Main Engineer Power	2.2kw
Speed	80m/min
Size	2400x1700x1300mm
Weight	1000kg
Rewinding Diameter	600mm
Winding Diameter	450mm
Precision	±0.1mm
Power	220V 50HZ

waste rewinding motor part

this item can add the rewinding and unwinding air-shaft , add motor on it can running forward and reverse

Touch screen optional

when you need constant tension control ,

we can use PLC and Touch Screen to control the operation if required

Anti-sticking guiding roller optional

when you want to slitting some with Low viscosity adhesive rubber tape / paper tape etc , can choose use this kind guiding roller

electric box of slitting machine

the slitting machine can choose PLC control

the PLC we use is Mitsubishi brand

with tension control board

with frequency control

cutting blade part have protective cover

to keep operation safety , when you setted well the cutting blade , please cover the protective cover

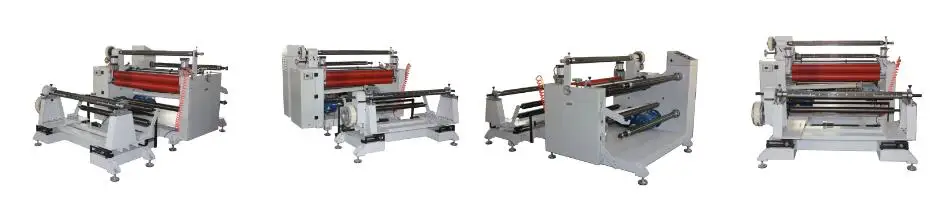

DIFFERENT ANGLE OF MACHINE

BELOW to show you our standard machine different angle view

Charatertistics and Functions

1.This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and
receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.

3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification
control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain

Purpose for Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery :

1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil,
aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Features for

Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery
1. The max width: 650mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. Manufacturer experience: 12 years
8. Export experience:10years
