1600 Hot and Cold Laminating Machine for Film and Tape Roll

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

1600 Hot and Cold Laminating Machine for Film and Tape Roll

Nhà cung cấp

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

Thông tin nha cung cấp của bạn

THIẾT BỊ CƠ KHÍ LUOHE GOLDEN SHELL

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Product Description

SPECIFICATIONS FOR carbon film heating film laminating machine
Model	DP-1000RTH
laminating speed	1- 20m/min
Max. unwinding diameter	450mm
Max. web width	1000mm
Max. REWINDING DIAMETER	600MM OR CUSTOMIZED
Precision	±0.10mm
Power	11kw
Voltage	380v±10%
Machine weight	4000kg

unwinding part

this is unwinding part , with rectification function , 3 inch air-shaft , bearing at least 300KG each roll no pproblem

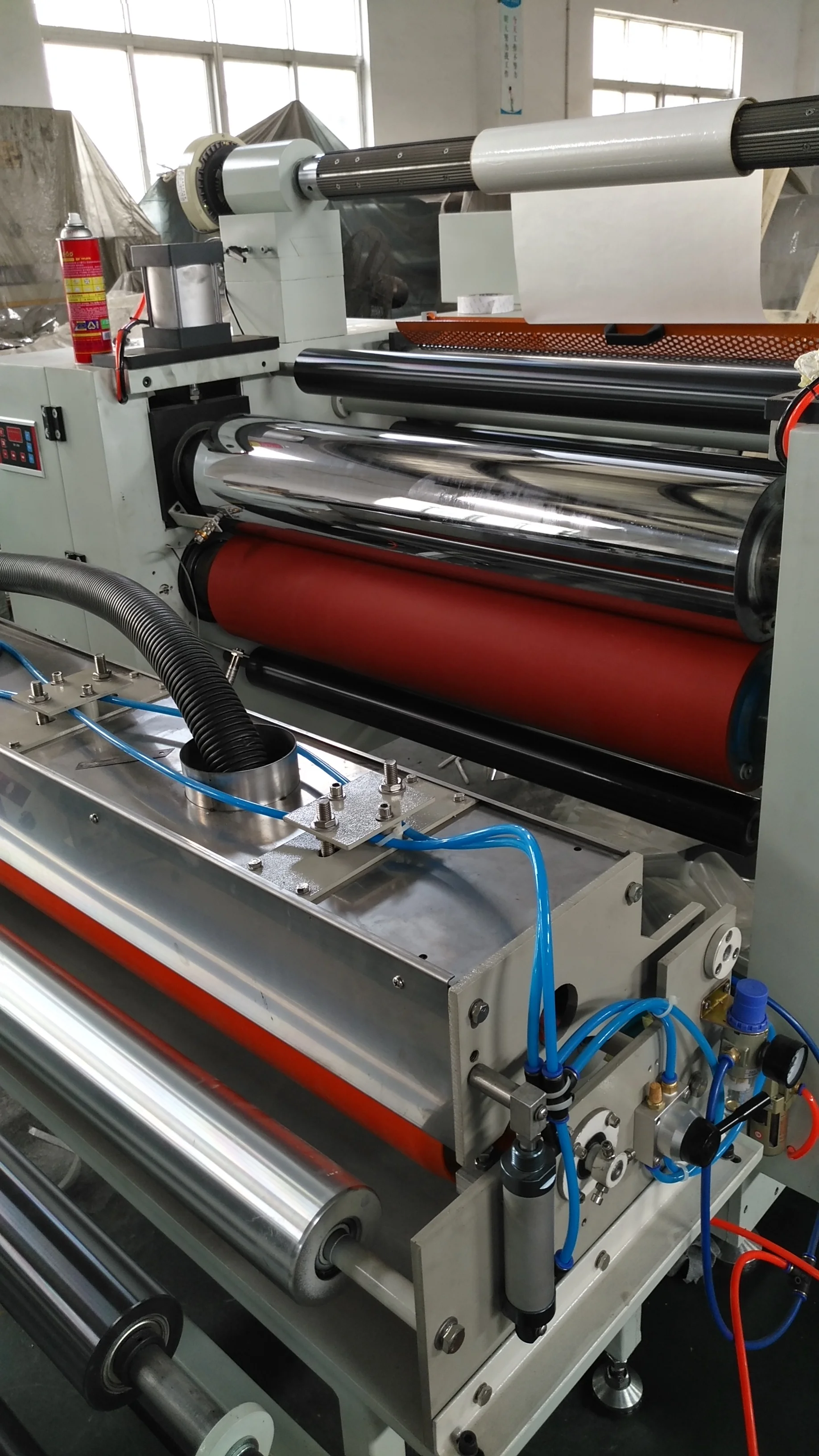

hot heating roller

hot heating roller now are use theMold temperature controller to control the heating degree , let the carbon film , heating film , copper strip can laminating more stick and smooth， and not stratch material

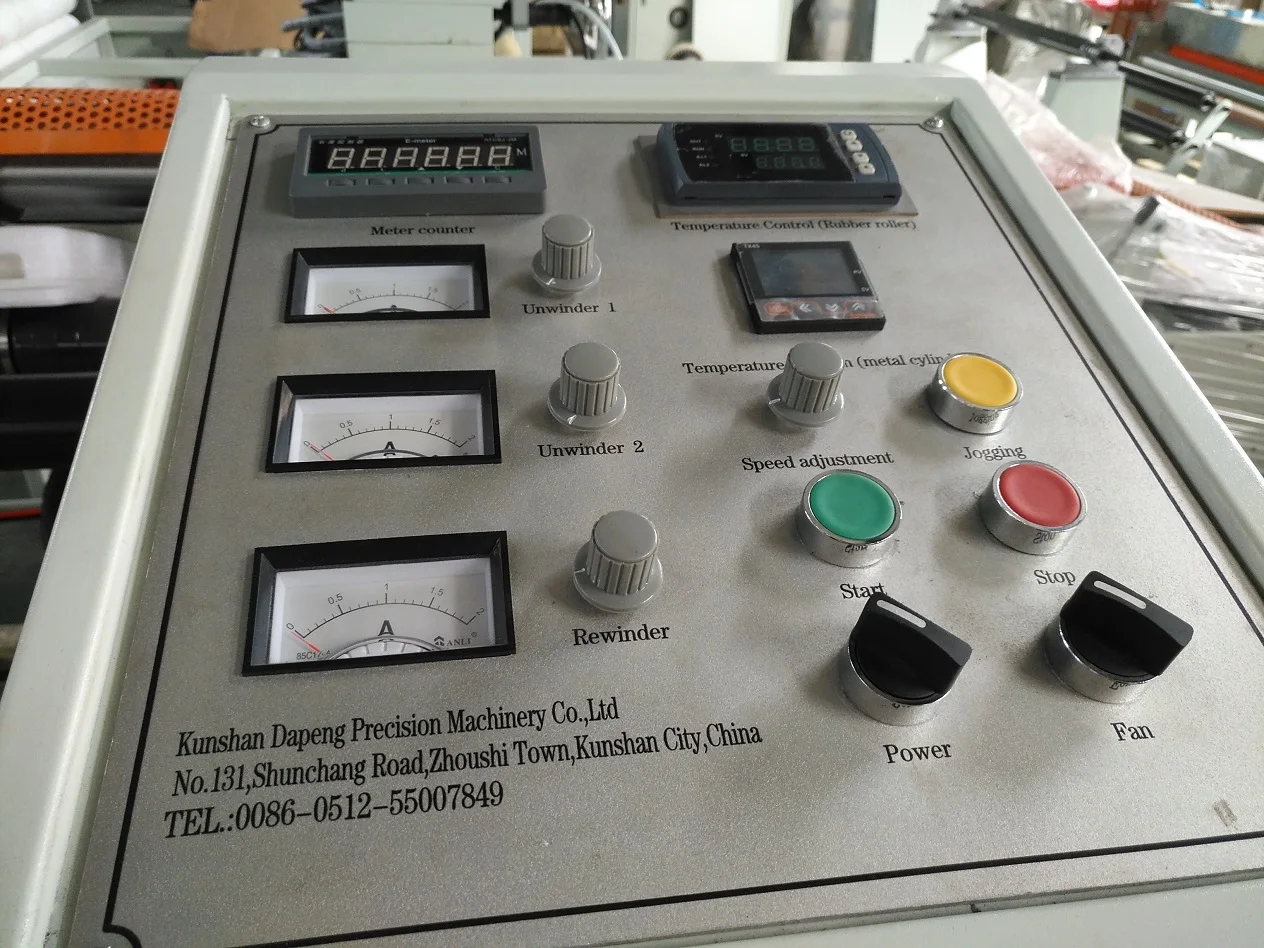

operation control board

all part can be controlled at here , degree , tension , meter control , speed control etc , all are use English and let your operator use good

RECTIFICATION SYSTEM

ULTRASONIC CONTROL

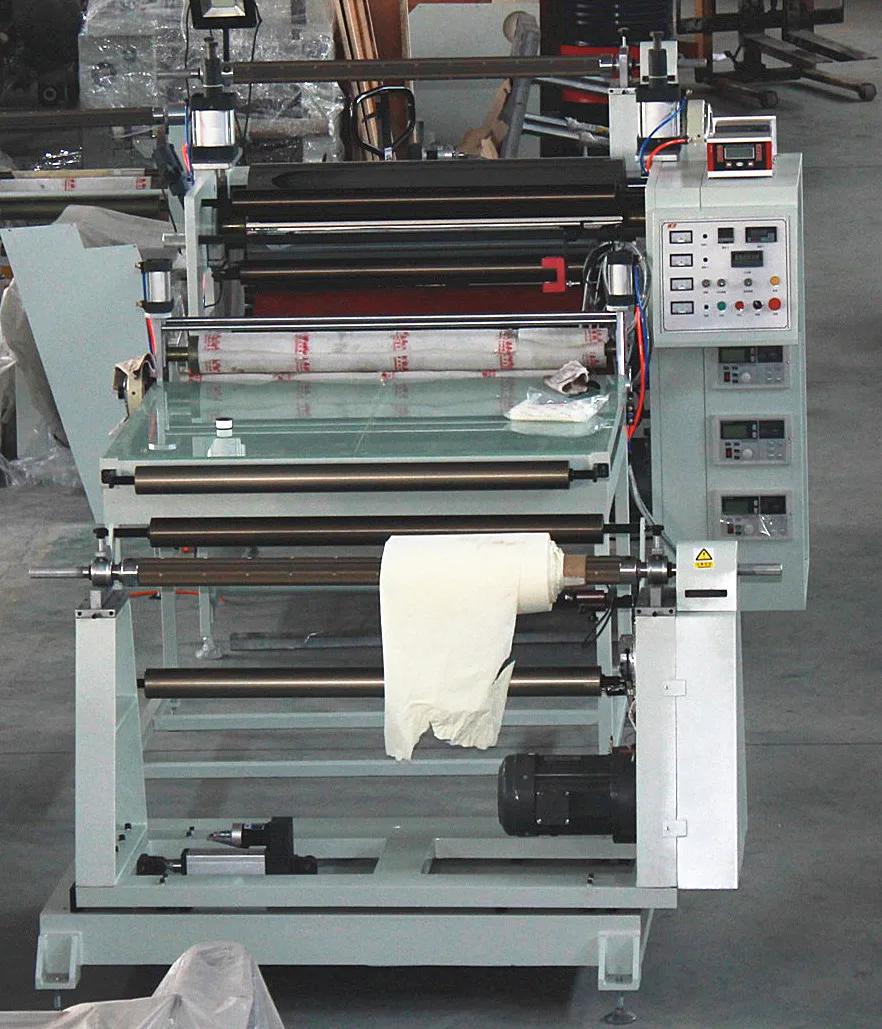

INSPECTION PART AND REWINDING PART

after laminating , the carbon film, heating film , and the copper strip laminating together , there is lamp to inspection and drying , then rewinding

the rewinding part also with Ultrasonic edge guide

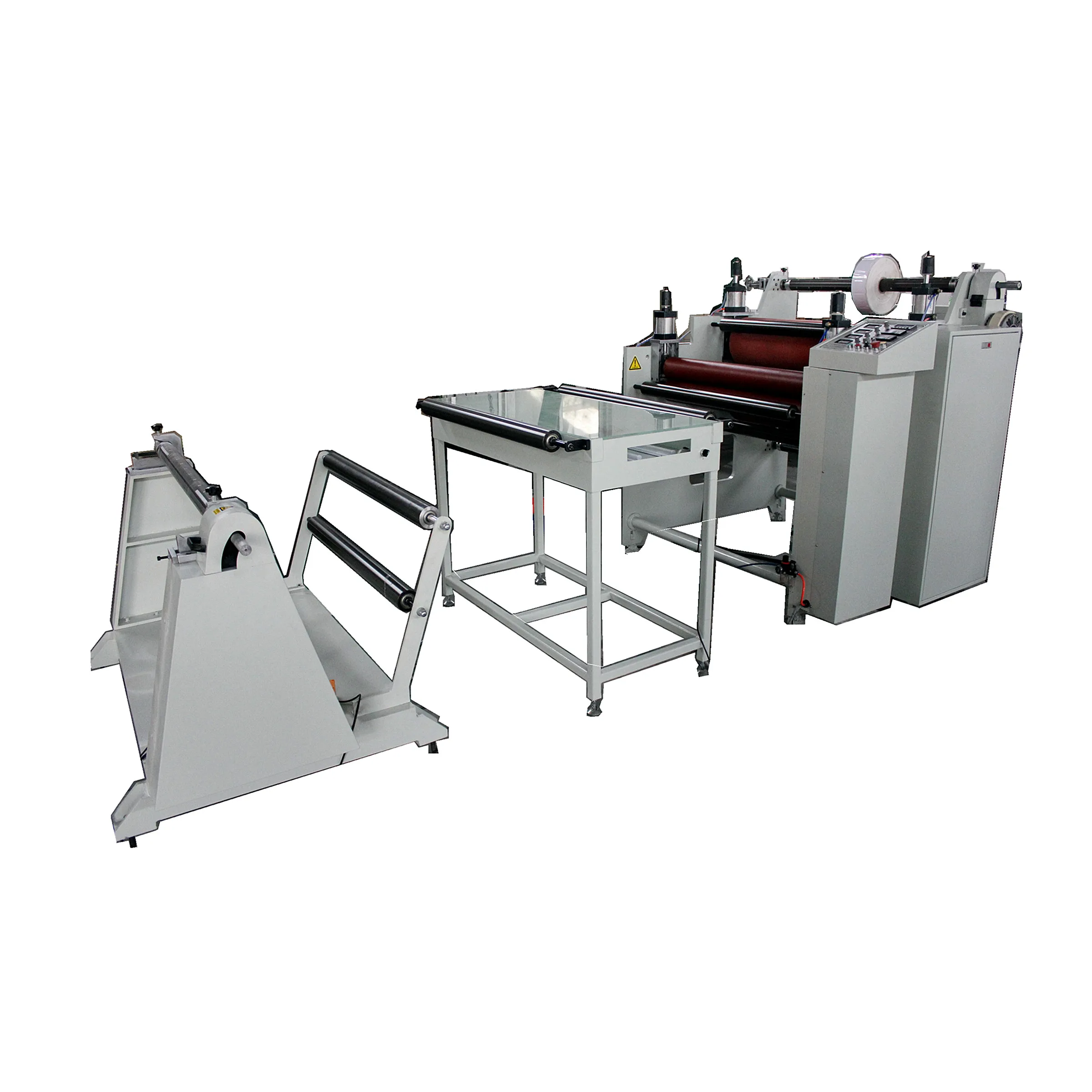

BELOW IS THE LAMINATING MACHINE WHOLE PICTURE ,

MAIN MACHINE LAMINATING , WITH SHAFT OF UNWINDING FILM, COPPER STRIP , CARBON FILM, HEATING FILM ETC

AFTER LAMINATING , GOING THROUGH THE GLASS TABLE , THIS TABLE WITH LIGHT THAT CAN SEE THE AFTER LAMINATING PART CLEARLY

AND AT LAST REWINDING TO A ROLL

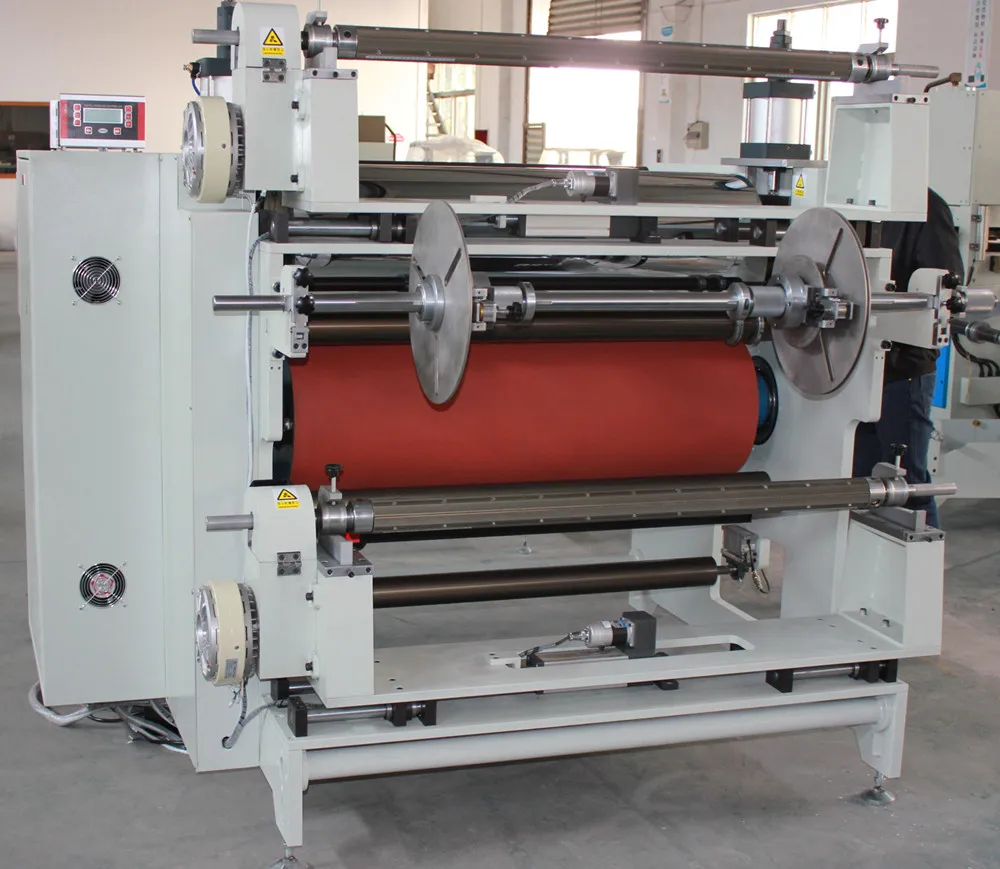

below is main machine part , unwinding carbon film , heating film and the copper strip

this heating film laminating machine, carbon film laminating machine , copper stip laminating machine

you can see these unwinding part are with web gide control \

and the heating roller are jumbo diameter , this one with 300mm diameter

all the guiding roller are use smooth surface and no stratch material

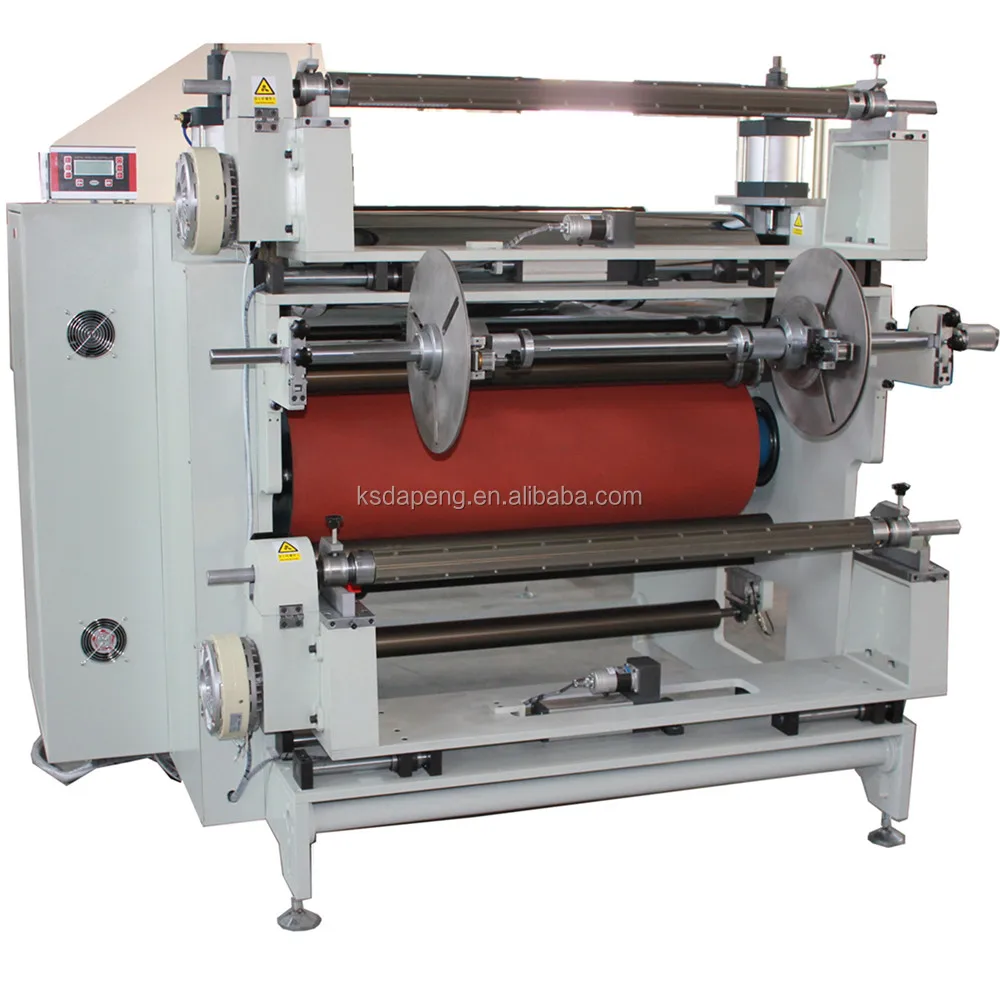

1600 Hot and Cold Laminating Machine for Film and Tape Roll

Functional characteristics:

Two layer laminating machine suitable for material with base glue,two station laminating function,the first station is heating
laminating,the second station is cold laminating,it is applicable for laminating PVC, PE, PP,tape etc.

Model	DP-1600
Max feeding width	1600mm
Main engineer power	2.2KW
Total power	3KW
Speed	30m/min
Unwinding diameter	800mm
Upper unwinding diameter	500mm
Rewinding diameter	800mm
Power	220V 50HZ

Why Choose Us

After Sales Service

After sale service for high efficient adhesive tag label flat bed die cutting machine is as follow :

1. Free sample testing and video for your reference

2. Prompt delivery within 24 hours

3. One year warranty ,whole life technical support

4. Free training in our factory available before delivering machines

5. Engineers available to service machinery overseas

6. Technical support: Professional engineers team to help you design a drawing of machine to get highest profit with lowest cost and offer you technical support any time.

7. Other demanded spare part or equipment support: Plenty of cooperated professional supplier for spare parts or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.

8.Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation .
