Waste Sorting Line Equipment Manual Municipal Solid Waste Sorting Machines Manual Garbage Sorting Table
Product Description

Waste Sorting Line Equipment Manual Municipal Solid Waste Sorting Machines Manual Garbage Sorting Table
GUOXIN garbage recycling machines is very necessary for those who want to invest in garbage sorting and recycling. For different types of garbage(such as household waste,construction waste, demolition waste,landfill waste,etc.), we have corresponding
equipment to sorting them,Finally, the garbage that cannot be separated by the machine can be sorted by our manual garbage sorting table,So our waste sorting plant sorting rate can reach more than 90%.
equipment to sorting them,Finally, the garbage that cannot be separated by the machine can be sorted by our manual garbage sorting table,So our waste sorting plant sorting rate can reach more than 90%.

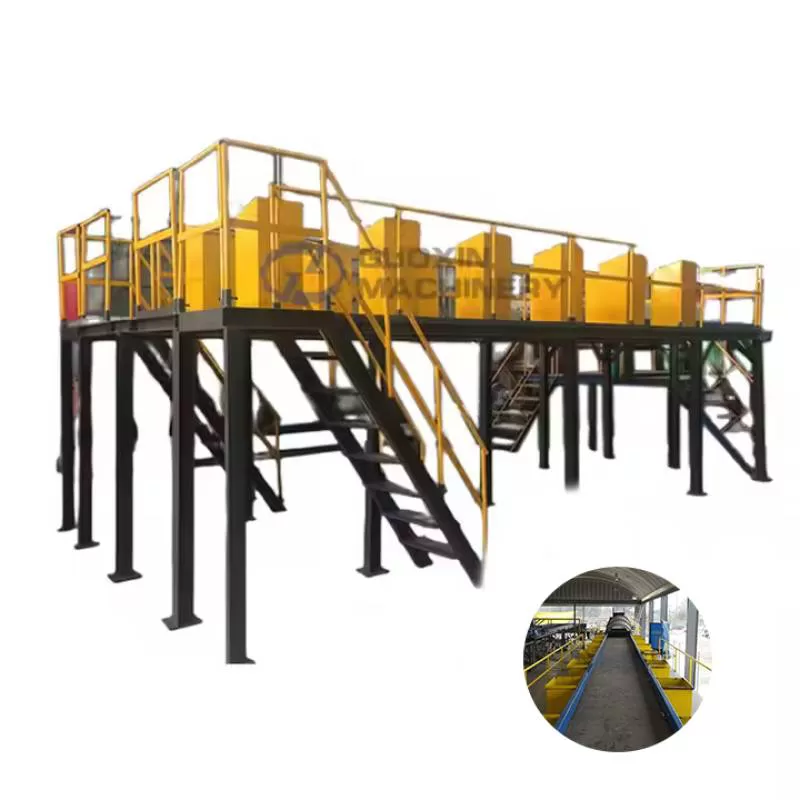

Manual sorting platform is mainly used in the garbage disposal line can not rely on mechanical sorting parts,mainly used in the drum screen before sorting out large interference and the drum screen after the material and air separation of the resource utilization of goods sorting position.
Structure

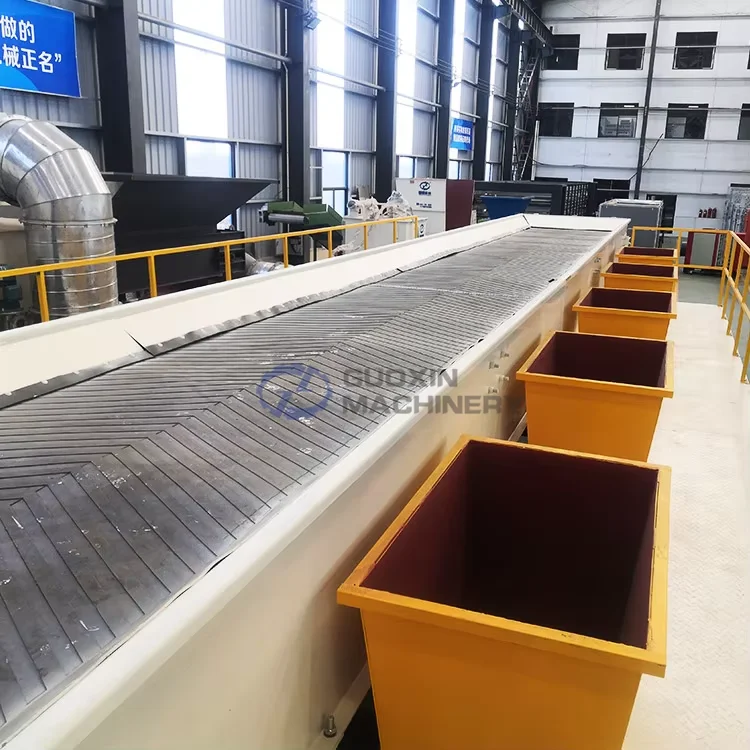

1.Sorting belt conveyor
There is a horizontal material transmission belt conveyor in the center of the sorting room, which is convenient for manual sorting: the width of the conveyor can be designed according to the processing capacity and the average height of the operator.
2.Sorting room receiving layer
It is the bottom floor of the sorting room, which can be equipped with receiving garbage containers or other receiving devices.
Structural feature

According to the actual situation, the sorting person stand at both side of the belt conveyor, the distance between the back of the sorting personnel and the wall has a walking corridor; The manual can be divided into a variety of materials into the funnel,through the funnel into the bottom of the double-layer sorting room, the bottom can be set up to receive the material bin, then fall down the material into the bin. Then through the appropriate removal vehicles such as hook arm garbage truck or forklift truck to remove.
Advantage

1. High sorting rate.
Guoxin garbage recycling machines adopt a special design which greatly improves the efficiency. The sorting rate is so high that can reach 90%. Therefore, it is highly appreciated by foreign customers.
2. Superior parts.
2. Superior parts.
Due to the serious attitude of the Guoxin garbage recycling machines, we are dedicated to doing our best. The parts we adopt all have excellent quality. For example, stainless steel has an anti-corrosive function. The frame adopts international steel welding,which has a compact structure.
3. Automation.
3. Automation.
The msw waste sorting line is mostly automatic. Only Garbage sorting table needs few people to manual separate the waste that can't be sorted by machines, which saves large labor costs and reduces the rate of mistakes.
4. Environmental method.
4. Environmental method.
All-electric machinery is covered with an anti-noise outer cover. Therefore, the noise can be controlled to less than 80db.
5.Safety design.
5.Safety design.
We all know the health of humans is crucial. When we design this msw waste sorting line for sale, we give pride of place to the health of workers.
Other Equipment

Application


Urban or Household waste: organic, inorganic, waste paper, plastic bags, fabrics, plastics, glass, metals, etc.
Construction waste: muck, waste concrete, waste masonry and rubble, brick and tile fragments, waste mortar slurry, asphalt blocks,waste plastics, waste metal, waste bamboo and wood, industrial waste.these sorted waste can be recycled after reprocessing.
Construction waste: muck, waste concrete, waste masonry and rubble, brick and tile fragments, waste mortar slurry, asphalt blocks,waste plastics, waste metal, waste bamboo and wood, industrial waste.these sorted waste can be recycled after reprocessing.
Factory&Customers visit


Product Form
Recyclable Waste Resource Utilization Sorting Table Manual Municipal Solid Waste Sorting Machines Waste Sorting Platform | ||||||
Model | GX-100 | GX-200 | GX-300 | |||
Raw materials | Municipal solid waste, household waste, industrial waste, landfill waste and urban waste | |||||
Capacity | 100T/DAY | 200-300T/DAY | 400-500T/DAY | |||
Garbage sorting table | 10 position manual garbage sorting table | 10 position manual garbage sorting table | 10 position manual garbage sorting table | |||
Power | 149KW | 224KW | 279KW | |||
Area | 2400㎡ | 2800㎡ | 3000㎡ | |||
Working time | 10 hours | 10 hours | 10 hours | |||
Manual garbage sorting table can be customized,such as 4 position; 6 position; 8 position; 10 position and so on. |
Packing&Delivery


Company Profile

Guoxin as a leading waste sorting plant manufacturer, we design and supply a full range of sorting equipments to mitigate waste problems across the globe. Our products, including waste sorting machine,waste conveyor,waste trommel screen,waste air separator,waste incinerator,waste shredder machine and waste baler,etc. they are widely applied and highly recommended all over the world.
Our service

pre-sale
We provide our customers with detailed technical quotations, sign sales contracts, etc.
On sale
We provide customers with detailed layouts, free factory design, installation instructions, and technical support.
after-sales
We arrange for engineers to install machines and train workers for our customers.
1.We have a 24-hour team to solve after-sales problems.
2. We provide long-term spare parts for each customer.
3. We always update each customer with new technologies.
We provide our customers with detailed technical quotations, sign sales contracts, etc.
On sale
We provide customers with detailed layouts, free factory design, installation instructions, and technical support.
after-sales
We arrange for engineers to install machines and train workers for our customers.
1.We have a 24-hour team to solve after-sales problems.
2. We provide long-term spare parts for each customer.
3. We always update each customer with new technologies.
Certificate

FAQ
1.Are you a trading company or a factory?
We are factory direct sales, product quality and after-sales service can be guarantee.
2.What is the Quality of your Construction waste sorting machine demolition waste recycling plant?
Our waste sorting equipment passed CE certification,exported to lots countries around the world,You can rest assured with the quality absolutely.
3.What is the Installation of Construction waste sorting machine demolition waste recycling plant?
We have several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians' round way air tickets, food and lodging, most importantly to guarantee the technician's safety.
2.What is the Quality of your Construction waste sorting machine demolition waste recycling plant?
Our waste sorting equipment passed CE certification,exported to lots countries around the world,You can rest assured with the quality absolutely.
3.What is the Installation of Construction waste sorting machine demolition waste recycling plant?
We have several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians' round way air tickets, food and lodging, most importantly to guarantee the technician's safety.
Welcome to send inquiries and leave your requirement message.
