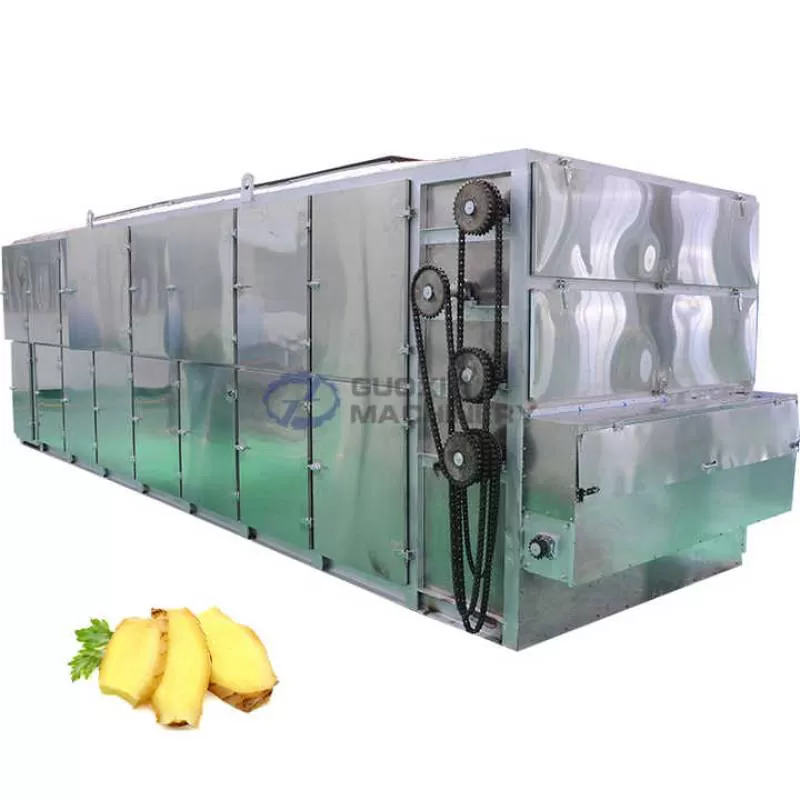

Intelligent Control Mesh Belt Dryer Energy-Saving and Efficient Ginger Drying Machine Ginger Dehydrator Vegetables Dryer Machine

Product Description

As a professional Mesh belt drying machine manufacturer, Guoxin Machinery has provided comprehensive drying solution and complete set of food drying equipment to global clients over the last 20 years.

* Our Mesh belt drying machine are customizable

Intelligent Control Mesh Belt Dryer Energy-Saving and Efficient Ginger Drying Machine Ginger Dehydrator Vegetables Dryer Machine
1.Heat Exchange Furnace
2.Induced Draft Fan
3.Feeding Conveyor
4.Distribute Device
5.Dryer Body
6.Discharge Device
7.Electricicy Control Panel

The Mesh belt drying machine utilize the hot air produced by the heat furnace as the drying medium.
Through the hot air distribution unit, the hot air is transported to the mesh belt.
The hot air volume, mesh belt running speed, temperature and humidity can be adjusted by the electric control system, to ensure the continuous and automatic operation.
The Efficient Mesh Belt Drying Machine not only according to heat to dry, but also according to strong air, the air volume can reach 40000 cube meters per hour.

Model	GX-8	GX-9	GX-10	GX-12
Layer	4 layers,5 layers, 6layers
Material thickness	10-70mm
Drying temperature	40-120°C
Moisture reduce	75% to 8%(Customized)
Drying time	0.5-5hours
Moisture reduce	75% to 8%(Customized)
Main machine motor	1.5kw	1.5kw	2.2kw	3kw
Hot air draft fan	15kw	15kw	22kw	22kw
Discharing conveyor	B500(0.12kw)	B500(0.12kw)	B500(0.12kw)	B500(0.12kw)
The above parameters are for reference, we can according to customer required provide best solution.

Advantages of Efficient Mesh Belt Leaves Drying Machine Olive Leaf Dryer Energy Saving Herbal Dehydration machine
1.Adopt multilayered structure, large area of drying, it can continuously produce in large quantities.
2.Heat exchange furnace adopt new fireproofing and highly quality steel, although the strict calculation of construction completion, easy construction and operation, easy maintenance.
3.The air blow to the material is pure, will not pollute the materials.
4.Bidiretional oven door, in order to facilitate inspection, dismantling parts, easy to open and clean.

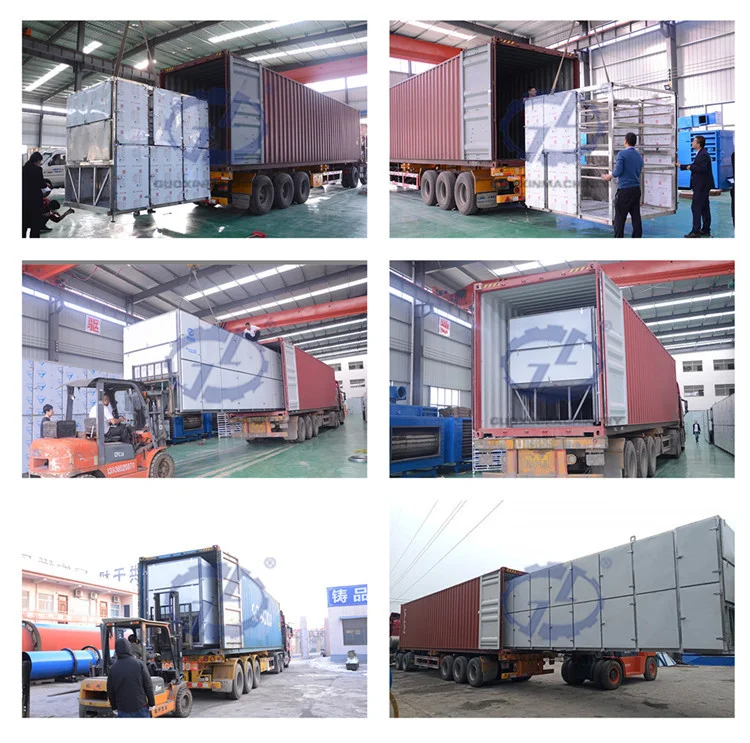

Customer Case
