Product Description

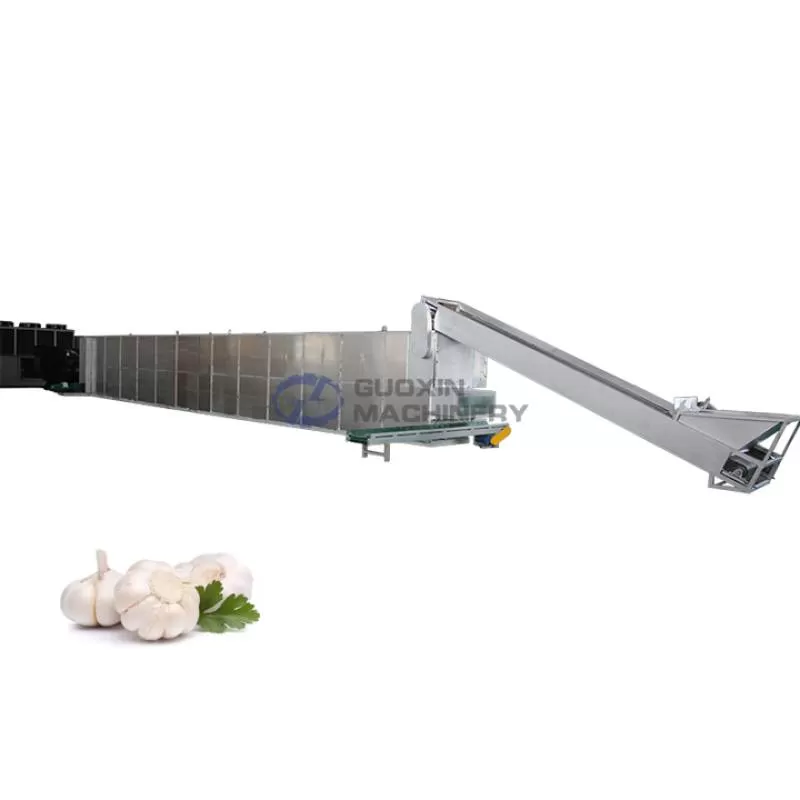

New Design Vegetable Lettuce Cabbage Mesh Belt Drying Equipment Garlic Slice Pepper Drying Machine.

As a professional Mesh Belt Dryer manufacturer, Guoxin Machinery has provided comprehensive drying solution and complete set of food drying equipment to global clients over the last 20 years. * Our Multi-layer Mesh Belt Dryer are customizable

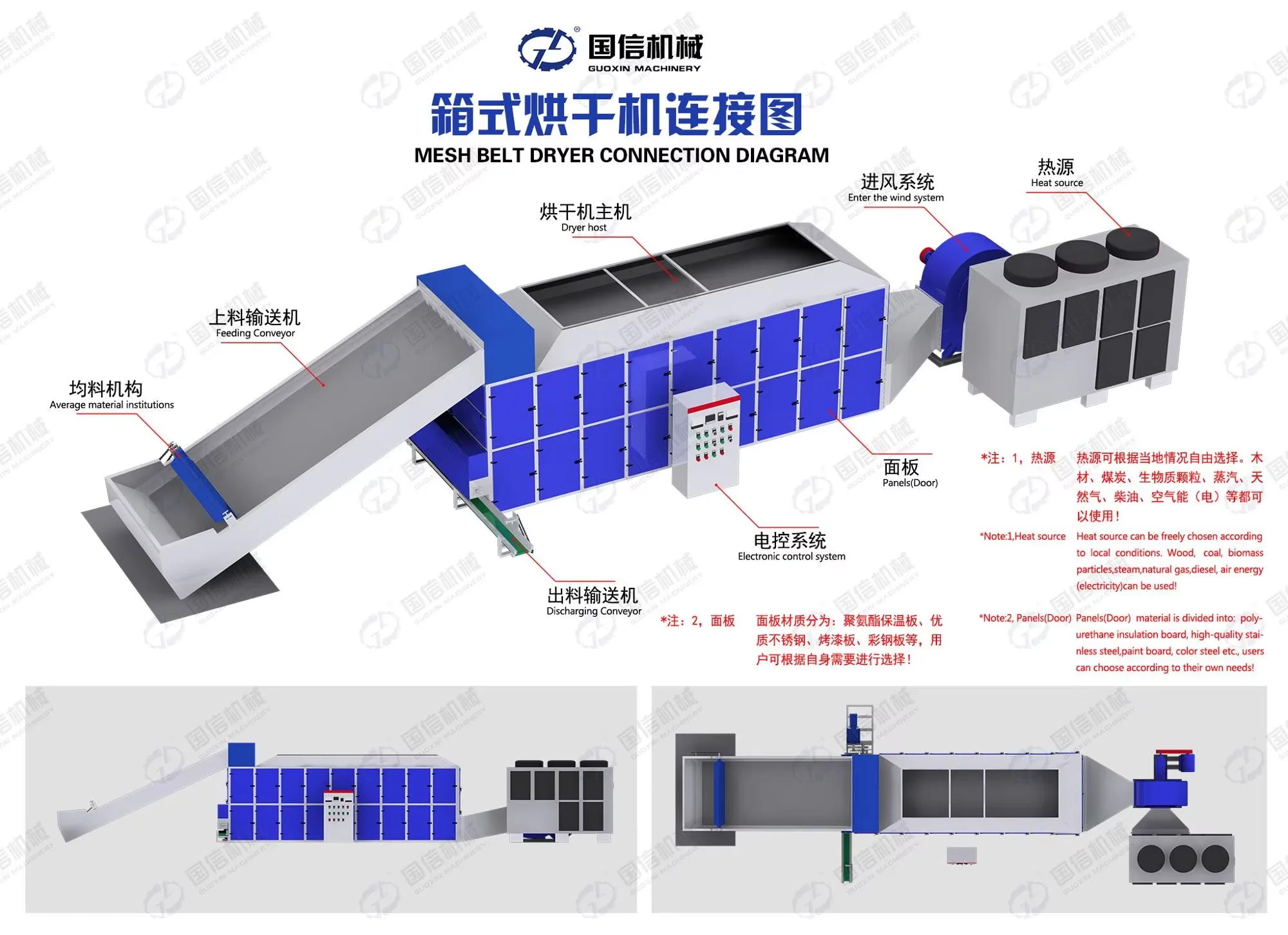

Structure of New Design Vegetable Lettuce Cabbage Mesh Belt Drying Equipment Garlic Slice Pepper Drying Machine.

1.Heat Exchange Furnace
2.Induced Draft Fan
3.Feeding Conveyor
4.Distribute Device
5.Dryer Body
6.Discharge Device
7.Electricicy Control Panel

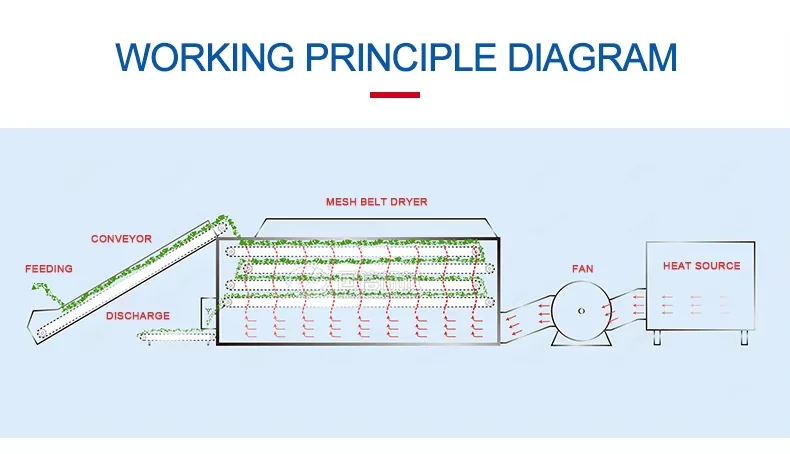

Working Principle of New Design Vegetable Lettuce Cabbage Mesh Belt Drying Equipment Garlic Slice Pepper Drying Machine.

The Mesh Belt Dryer utilize the hot air produced by the heat furnace as the drying medium.Through the hot air distribution unit, the hot air is transported to the mesh belt.The hot air volume, mesh belt running speed, temperature and humidity can be adjusted by the electric control system, to ensure the continuous and automatic operation.The Mesh Belt Dryer not only according to heat to dry, but also according to strong air, the air volume can reach 40000 cube meters per hour.

Model	GX-8	GX-9	GX-10	GX-12
Layer	4 layers,5 layers, 6layers
Material thickness	10-70mm
Drying temperature	40-120°C
Moisture reduce	75% to 8%(Customized)
Drying time	0.5-5hours
Moisture reduce	75% to 8%(Customized)
Main machine motor	1.5kw	1.5kw	2.2kw	3kw
Hot air draft fan	15kw	15kw	22kw	22kw
Discharing conveyor	B500(0.12kw)	B500(0.12kw)	B500(0.12kw)	B500(0.12kw)
The above parameters are for reference, we can according to customer required provide best solution.

Advantages of New Design Vegetable Lettuce Cabbage Mesh Belt Drying Equipment Garlic Slice Pepper Drying Machine.

1.Adopt multilayered structure, large area of drying, it can continuously produce in large quantities.
2.Heat exchange furnace adopt new fireproofing and highly quality steel, although the strict calculation of construction
completion, easy construction and operation, easy maintenance.
3.The air blow to the material is pure, will not pollute the materials.
4.Bidiretional oven door, in order to facilitate inspection, dismantling parts, easy to open and clean.

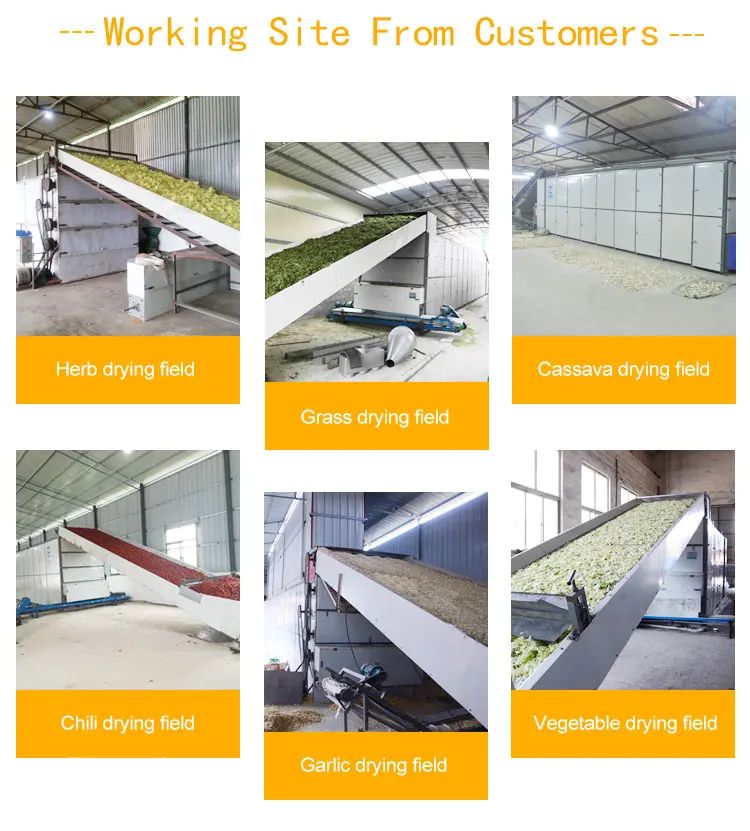

Customer Photos
