50T/D Small Trommel Waste Screen for Solid Garbage Separation House Garbage Recycling Machine Waste Sorting Recycling Plant

(6 Lượt)

Công ty TNHH sản xuất máy móc Henan New Guoxin

Nhà sản xuất, chế tạo

1 yrs

Giá

420,000,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

50T/D Small Trommel Waste Screen for Solid Garbage Separation House Garbage Recycling Machine Waste Sorting Recycling Plant

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

50T/D Small Trommel Waste Screen for Solid Garbage Separation House Garbage Recycling Machine Waste Sorting Recycling Plant

Nhà cung cấp

Công ty TNHH sản xuất máy móc Henan New Guoxin

Thông tin nha cung cấp của bạn

Công ty TNHH sản xuất máy móc Henan New Guoxin

1 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Products Description

GUOXIN solid waste sorting machine is the latest solid waste sorting equipments that using multiple sorting means to separate organic matter, plastics, metal, bricks and stones and other substances out from garbage to the maximum, to improve the reusing and recycling of waste.At the same time,the separated waste materials can be further re-processed into useful resources.So, the main purpose of the automatic waste sorter is reduction processing and turning waste into treasure.

How does the Trommel screen machine sorting waste? The trommel screen machine is installed at an Angle, the motor drives the drum device to rotate around its axis. When the waste materials enters the drum, the waste rolls along the current. Waste smaller than the sieve hole is sorted out at the bottom outlet, while solid waste larger than the sieve hole continues to roll on the screen surface and is sorted out at the end outlet.

Features:

1. Large disposal waste capacity, non-blocking holes, accurate particle size sorting. 2. Fully sealed structure, no dust, no pollution, good production and working environment. 3. Simple structure, easy maintenance.

Product Paramenters

Model	GX-1500	GX-1800	GX-2000
Raw materials	Municipal solid waste, household waste, industrial waste, landfill waste and urban waste,construction waste,demolition waste
Capacity	50T/DAY	100T/DAY	200T/DAY
Power	8KW	11KW	15KW
Weight(t)	4	5	7
Size(mm)	1500Φ*6000	1800Φ*6000	2000Φ*6000
The diameter, length, and hole size of the Trommel screen machine can all be customized according to the waste garbage materials.

50T/D Small Trommel Waste Screen For Solid Garbage Separation house garbage recycling machine Waste Sorting Recycling Plant

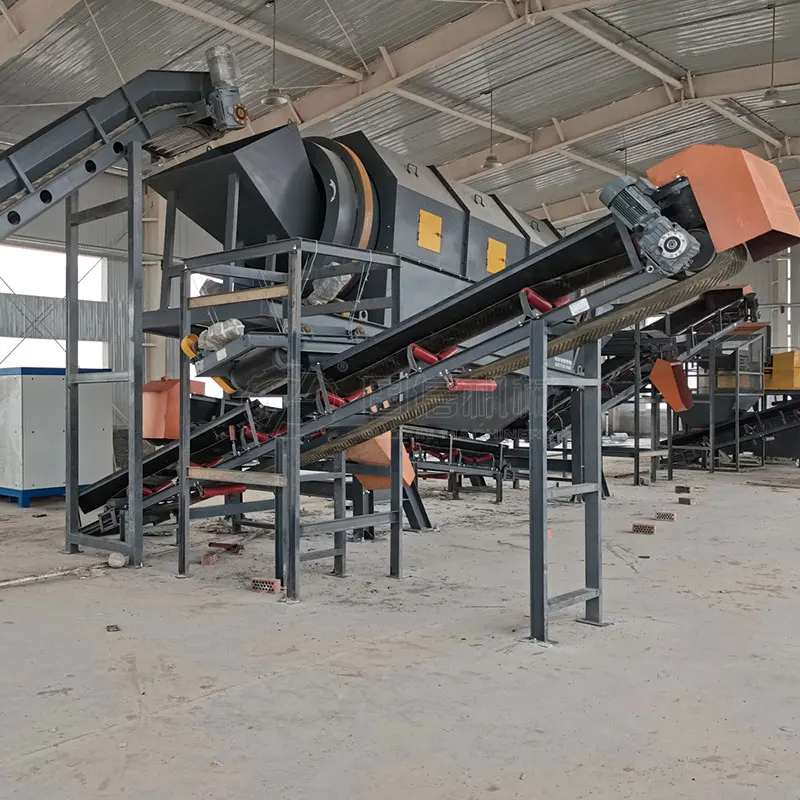

Trommel screen machine works in waste sorting recycling plant

1. The forklift transports the waste to the feeding platform, and the hopper will take away the waste. 2. The waste/garbage will be evenly distributed by the feeder, and then be evenly sent to the next process by the belt conveyor. 3. The waste will be send to trommel screen machine and sorted into two-part. one is that the diameter is large than 50mm (the plug hole size is designed 50-200mm according to the reality of waste). These wastes are mainly classified into bottles, plastic, shoe sole, clothes and so on. another one is less than 50mm undersized waste such as small stone and soil. At the same time, the waste metal will be picked out by a strong magnetic separation machine. 4. The remaining waste through the manual sorting platform.Workers will pick out that can be directly recycled waste.

5. The plastic will be packed by a baler machine; the stone and soil will be directly sent to outside for landfill or be crushed to make bricks; we can pick out the useful material from the waste, then recycle them.

Trommel Waste Screen For Solid Garbage Separation house garbage recycling machine Waste Sorting Recycling Plant

Main Machines of Waste Sorting Plant

GUOXIN Trommel Waste Screen For Solid Garbage Separation house garbage recycling machine Waste Sorting Recycling Plant Advantage: 1. High sorting rate. Guoxin solid waste sorting plant adopts a special design which greatly improves the efficiency. The sorting rate is so high that can reach 90%. Therefore, it is highly appreciated by foreign customers. 2. Superior parts. Due to the serious attitude of the Guoxin waste sorting plant, we are dedicated to doing our best. The parts we adopt all have excellent quality. For example, stainless steel has an anti-corrosive function. The frame adopts international steel welding, which has a compact structure. 3. Automation. The waste recycling plant are fully automatic. Therefore, the whole operation process just needs few people to manage, which saves large labor costs and reduces the rate of mistakes. 4. Environmental method. All-electric machinery is covered with an anti-noise outer cover. Therefore, the noise can be controlled to less than 80db. 5. Safety design. We all know the health of humans is crucial. When we design this waste sorting plant for sale, we give pride of place to the health of workers.

Packing&Shipping

1.For domestic customers,professional truck transportation to reach their destination directly.

2.For foreign customers,municipal solid waste sorting machines will be loaded in container to transportation and shipping.

Why Choose Us

Guoxin as a leading waste sorting plant manufacturer, we design and supply a full range of sorting equipments to mitigate waste problems across the globe. Our products, including waste sorting machine,waste conveyor,waste trommel screen,magnetic metal separator,waste air separator,waste incinerator,waste shredder machine and waste baler,etc. they are widely applied and highly recommended all over the world.

Our Services

Pre-sale we given client the details technician offer, sign the sales contract etc. In-sales we supply the details layout,design factories for our customers free of charge, installation instruction, technician support for the clients. After sales we arrange engineer to install the machinery and training the workers for client. 1.We have 24 hours team to solve the after sales problem. 2.We supply long term spare parts for every customer. 3.We always up date the new technology to every customer.

FAQ

1.Are you a trading company or a factory?

We are factory direct sales, product quality and after-sales service can be guarantee.

2.What is the Quality of your Trommel Waste Screen For Solid Garbage Separation house garbage recycling machine Waste Sorting Recycling Plant?
Our waste sorting machines passed CE certification,exported to lots countries around the world,You can rest assured with the quality absolutely.

3.What is the Installation of Trommel Waste Screen For Solid Garbage Separation house garbage recycling machine Waste Sorting Recycling Plant?
We have several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians' round way air tickets, food and lodging, most importantly to guarantee the technician's safety.

Welcome to send inquiries and leave your requirement message.
