Industrial Large Capacity Vegetable Fruit Drying Machine Radish Onion Dryer Cassava Drying and Packing Production Line

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Industrial Large Capacity Vegetable Fruit Drying Machine Radish Onion Dryer Cassava Drying and Packing Production Line

Nhà cung cấp

Công ty TNHH sản xuất máy móc Henan New Guoxin

Thông tin nha cung cấp của bạn

Công ty TNHH sản xuất máy móc Henan New Guoxin

1 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Product Description

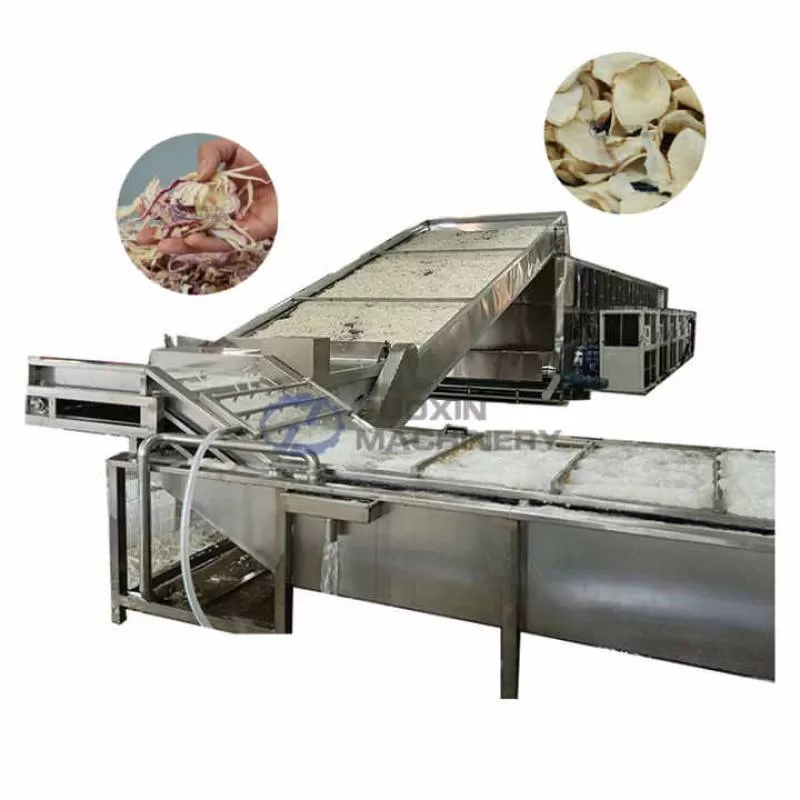

Industrial large capacity vegetable fruit drying machine radish onion dryer cassava drying and packing production line

As a professional fruit vegetable drying machine manufacturer, Guoxin Machinery has provided comprehensive drying solution and complete set of food drying equipment to global clients over the last 20 years.

* Our mesh belt dryer vegetable fruit drying machine are customizable

The heat source can be steam,gas,coal,wood,oil,electric,etc.

Structure of Industrial large capacity vegetable fruit drying machine radish onion dryer cassava drying machine
1.Heat Exchange Furnace
2.Induced Draft Fan
3.Feeding Conveyor
4.Distribute Device
5.Dryer Body
6.Discharge Device
7.Electricicy Control Panel

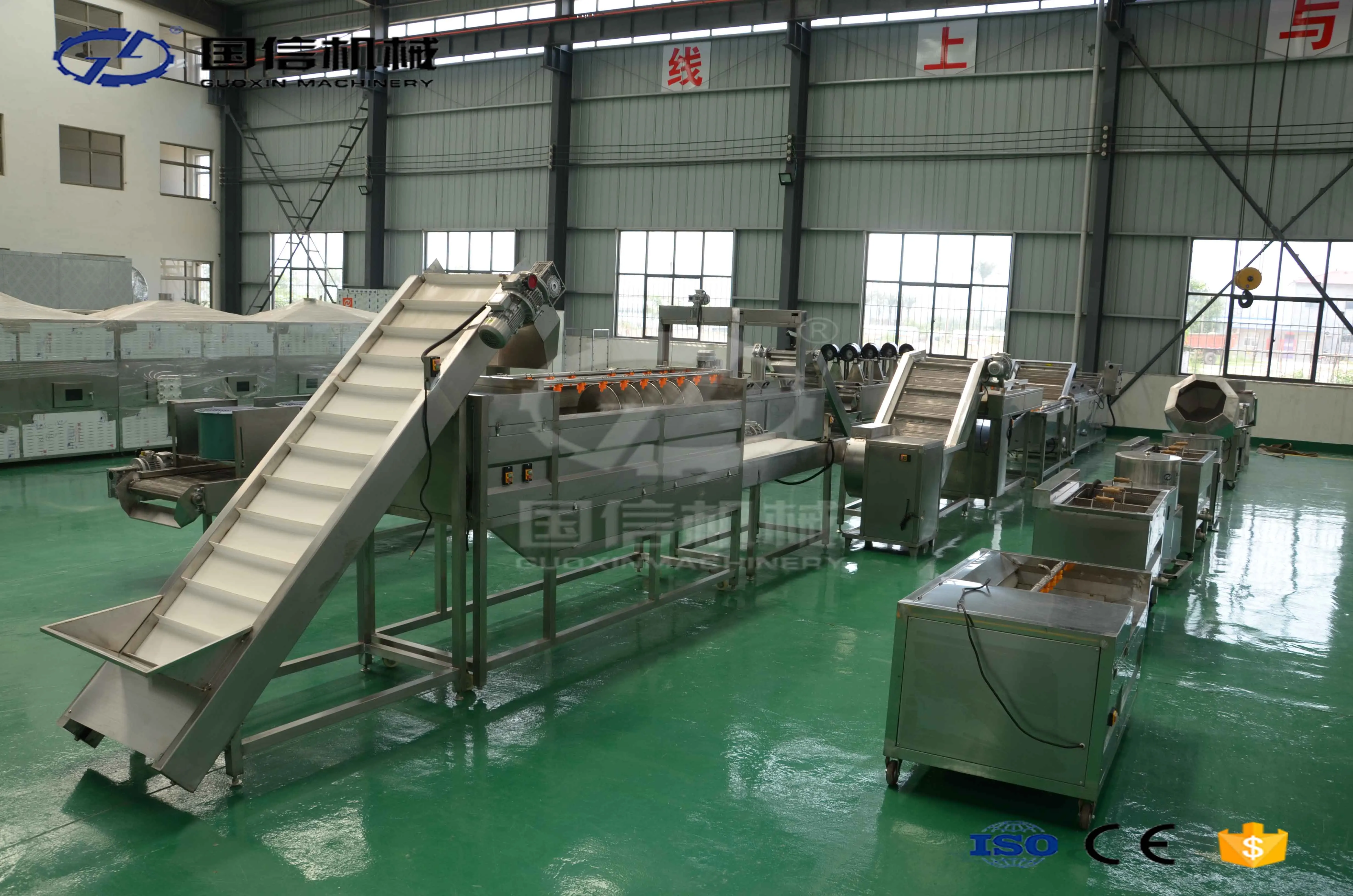

According to customer needs,we can design cassava chips drying full plant.

There is a series of vegetable washing machine, slicer, dryer,packing machine can choose.

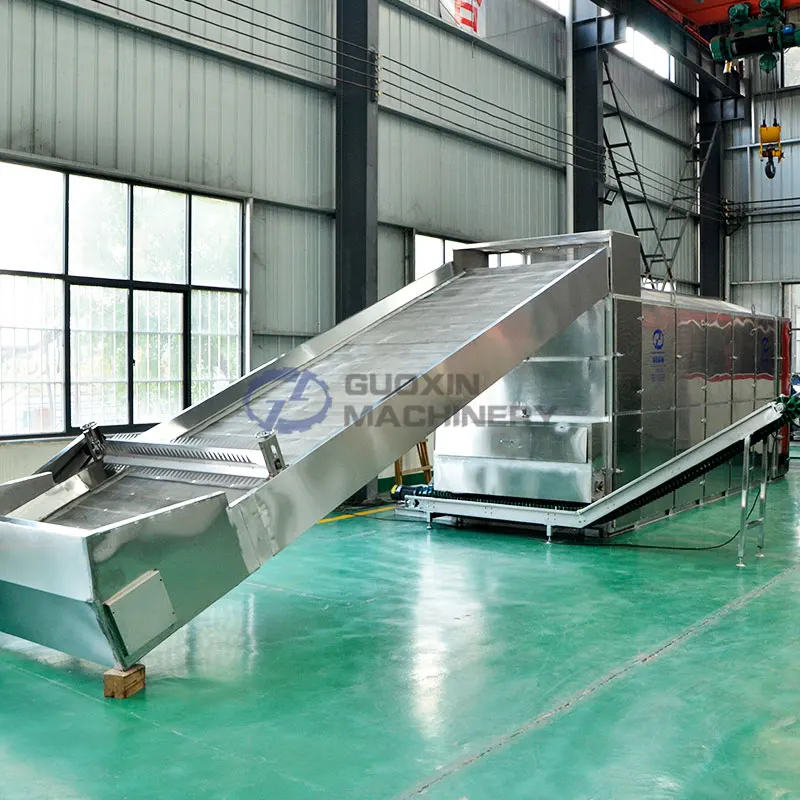

Working Principle of Industrial large capacity vegetable fruit drying machine
The mesh belt dryer utilize the hot air produced by the heat furnace as the drying medium.Through the hot air distribution unit, the hot air is transported to the mesh belt.The hot air volume, mesh belt running speed, temperature and humidity can be adjusted by the electric control system, to ensure the continuous and automatic operation.
The mesh belt dryer not only according to heat to dry, but also according to strong air, the air volume can reach 40000 cube meters per hour.

Model	GX-8	GX-9	GX-10	GX-12
Layer	4 layers,5 layers, 6layers
Material thickness	10-70mm
Drying temperature	40-120°C
Moisture reduce	75% to 8%(Customized)
Drying time	0.5-5hours
Moisture reduce	75% to 8%(Customized)
Main machine motor	1.5kw	1.5kw	2.2kw	3kw
Hot air draft fan	15kw	15kw	22kw	22kw
Discharing conveyor	B500(0.12kw)	B500(0.12kw)	B500(0.12kw)	B500(0.12kw)
The above parameters are for reference, we can according to customer required provide best solution.

Advantages of Industrial large capacity vegetable fruit drying machine
1.Adopt multilayered structure, large area of drying, it can continuously produce in large quantities.
2.Heat exchange furnace adopt new fireproofing and highly quality steel, although the strict calculation of construction completion, easy construction and operation, easy maintenance.
3.The air blow to the material is pure, will not pollute the materials.
4.Bidiretional oven door, in order to facilitate inspection, dismantling parts, easy to open and clean.

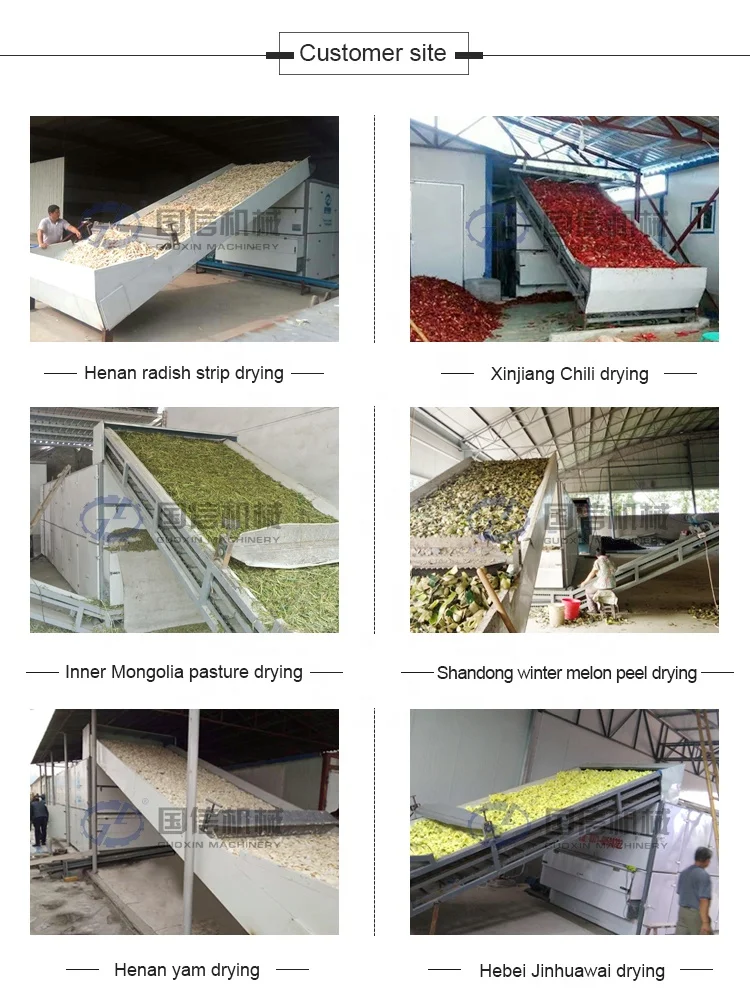

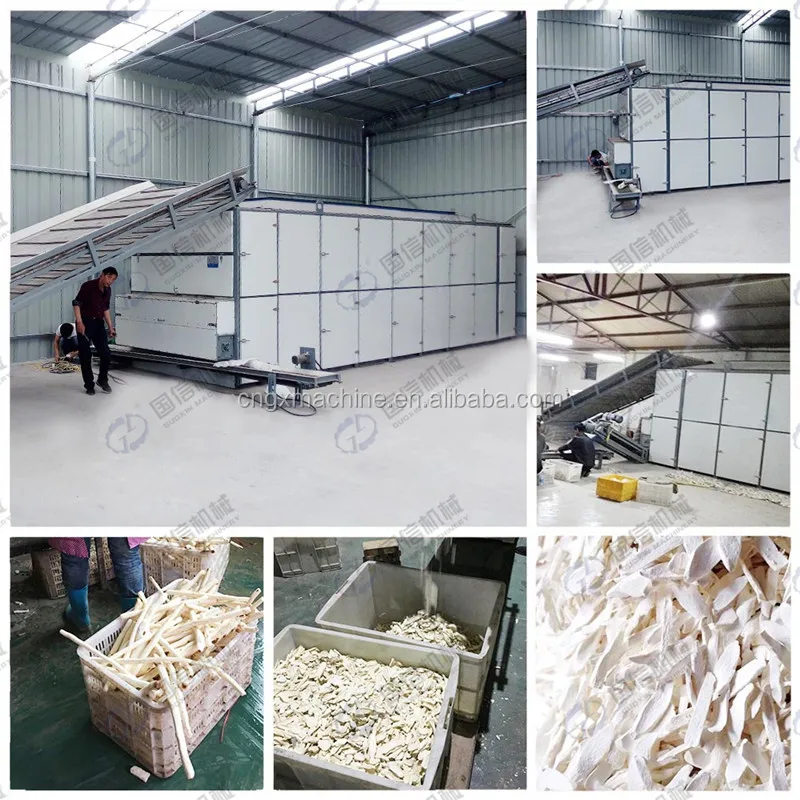

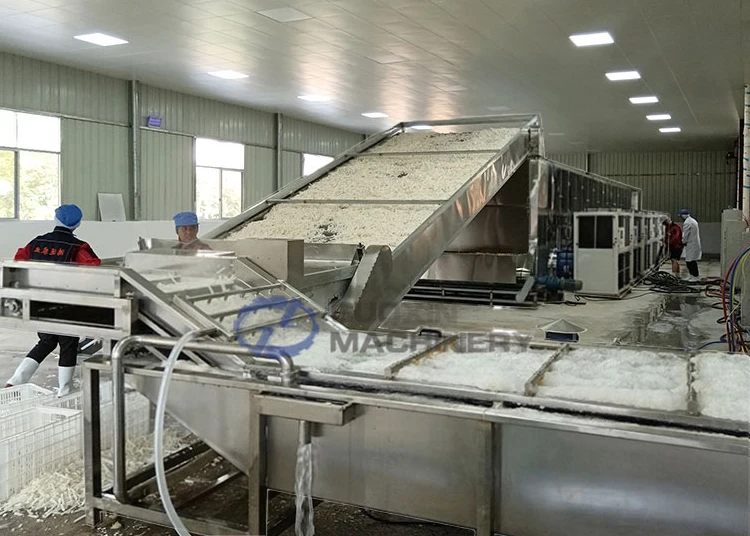

Customer Case
