Axis High Pressure Iron Oxide Powder Briquetting Equipment Alum Powder Briquetting Machine Lignite Raw Coal Briquetting Machine

Product Description

Guoxin charcoal ball forming machinery can press various powdered materials into oval shape. Widely used in coal industry, metallurgy industry, chemical industry etc.

The charcoal ball forming machinery making briquettes in oval shape, egg shape, pillow shape, square shape for BBQ, cooking fuel, industrial boiler, heating or other fuel.

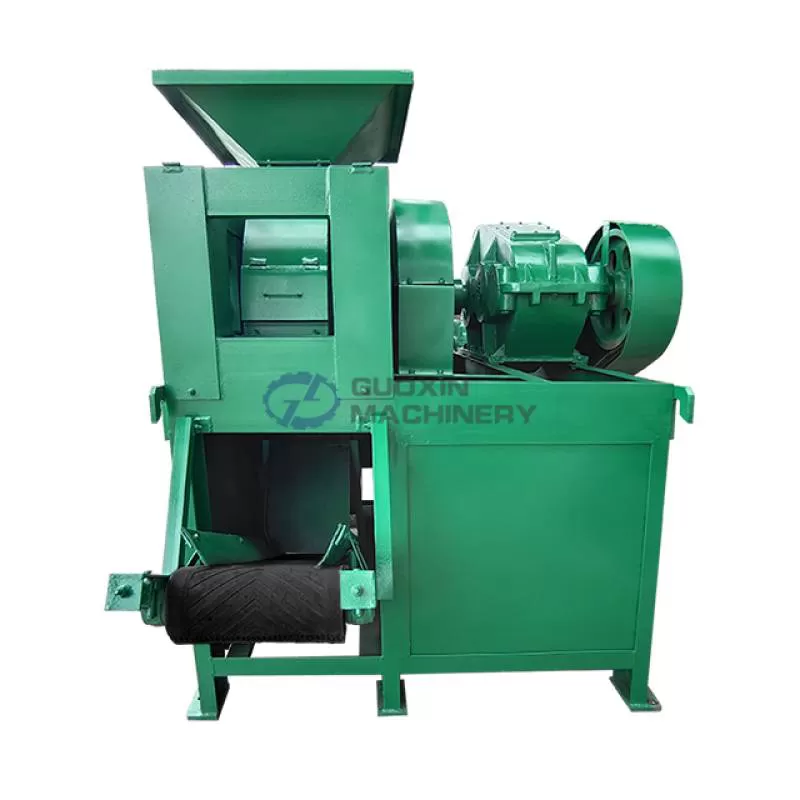

Hydraulic Ball press machine

According to customer different raw materials, we provide different models ball press machine, such as roller ball press machine, strong ball press machine, hydraulic ball press machine, etc.

Working principle of ball shape charcoal powder ball briquette making machine

Charcoal ball making machine extruding material through two roller squeeze. The pressure on the material from small to large, and reaches maximum at the center of the rollers, so forming the briquettes, then the pressure rapidly decreases, the ball briquettes smooth output.

Roller type ball press machine molds.

Ball press machine molds adopt alloy steel material, Wear resistant, pressure resistant, high temperature resistant. Greatly improving the service life.

Size of the briquettes always do 35-60mm.

Wide range application materials of ball shape charcoal powder ball briquette making machine

The charcoal ball forming machinery can press crushing mixing materials such as coal powder, coke powder, charcoal powder, iron ore powder, mineral powder, aluminum powder, refractory material, etc. Especially widely used in coal charcoal industry.

Product Parameters

Model	Roller Diameter(mm)	Capacity(t/h)	Power(KW)	Reducer
GX-290	290	2T/H	5.5-7.5	350
GX-360	360	3T/H	7.5-11	350
GX-450	450	5T/H	18.5-22	400
GX-550	550	10T/H	22-30	500
GX-650	650	15T/H	30-45	650
GX-850	850	20-25T/H	90	850
GX-1000	1000	30T/H	110	1000

Production Line

We provide the whole automatic briquette producing line, such as crusher, Chain plate feeder, conveyor, etc. we also can do charcoal making machine. turn agricultural waste and forestry waste into charcoal. then through ball press machine or other briquette machine to make fuel briquettes.

Customer Photos

Packing & Delivery

Packing: We will wrap the machine with film to avoid damp and scattered during transportation, and thicken the export wooden box to surround the machine to protect the machine from impact and friction. The size depends on the machine We can provide multiple channels of transportation.
Delivery: We guarantee that the freight forwarders we use have more than 5 years of cooperation history, provide you with fast timeliness and economic prices, and ensure the safety and integrity of your machines.

Company Profile

As a professional manufacturer of charcoal ball briquetting machine, GUOXIN have research and development a complete set of charcoal making machine carbonization furnace, charcoal briquette machine, charcoal press machine and a series of related products. Each set of charcoal machine is mature and successful. Choose us and believe in us.

FAQ

1. What is your Business Model? Trading company or factory?

We are a 25 years factory, all our machinery are manufactured by ourselves, factory direct sales, product quality and after-sales service can be guarantee.

2. What is the Installation of your ball shape charcoal powder ball briquette making machine ?

One machine usually no need to install, We have operation explanation video. The whole charcoal production line we provide installation service, Guoxin company has several experienced technicians with passports ready to go for installation.

3.what can you buy from us?
Wood Charcoal Making Machine, Coal Briquette Machine, Shisha Briquette Press Machine, Hydraulic Shisha Briquette Press Machine, Coconut Charcoal Briquette Machine

4. What should I provide to get the suitable quotation?

①What is your raw material?

②What is the capacity per hour you required?

③What is the final product use?

If you are interested in our products, please contact us.
