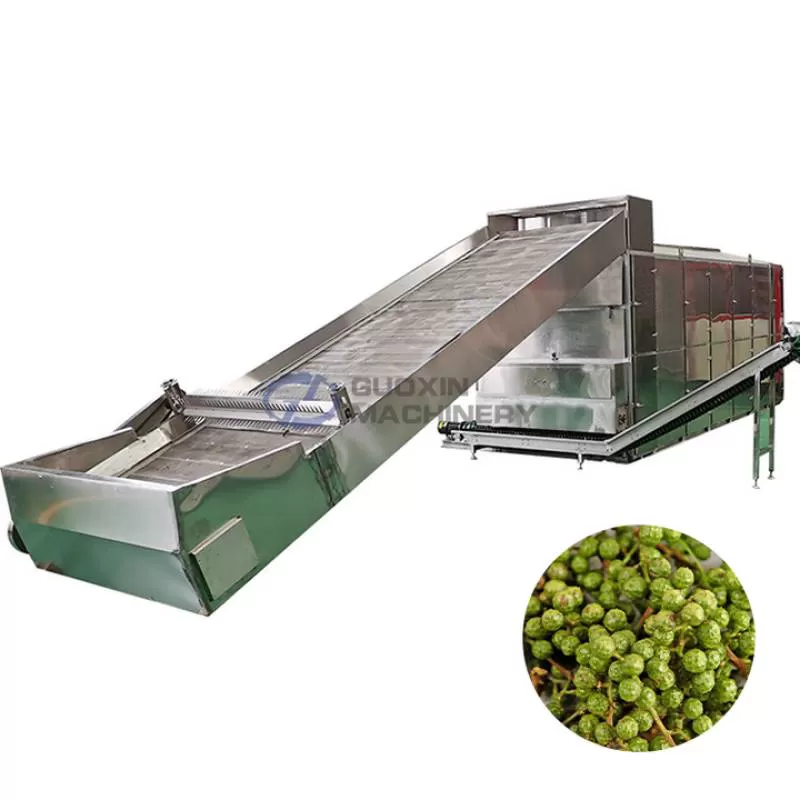

Large-capacity Mobile Mesh Belt Drying Device Food Spices Dryer Vine Pepper Drying And Dehumidify Equipment

Product Description

Our mesh belt drying equipment spread the materials evenly on the steel mesh belt to ensure appropriate material thickness and spacing so that hot air can penetrate evenly ,drag the mesh belt by the transmission device so that the material can be fully in contact with the hot air during the drying process. The hot air flows through the material and takes away the moisture in the material.

Our Large-capacity Mobile Mesh Belt Drying Device Food Spices Dryer Vine Pepper Drying And Dehumidify Equipment are customized.

The dryer heat source can be steam,gas,coal,wood,oil,electric,etc.

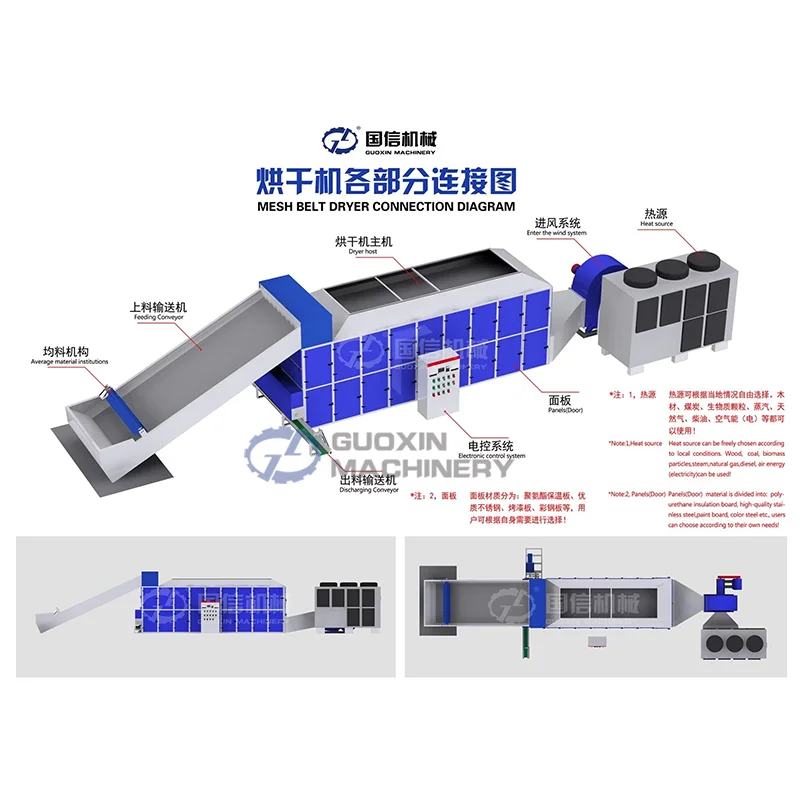

Structure

Structure of Large-capacity Mobile Mesh Belt Drying Device Food Spices Dryer Vine Pepper Drying And Dehumidify Equipment

1.Heat Exchange Furnace
2.Induced Draft Fan
3.Feeding Conveyor
4.Distribute Device
5.Dryer Body
6.Discharge Device
7.Electricity Control Panel

Other details

Scope of application

Mesh belt dryer suitable for material continuous drying,drying fast,high efficiency evaporation,and good drying effect are advantages.Widely use for medicine,fruits and vegetables,sea food,agriculture product,animal feed,etc.

We have heat pump dryer,mesh belt dryer,freeze dryer, microwave dryer and a series of related fruit vegetable processing equipment, such as vegetable washing machine,peeling machine,cutter, etc.according to your materials to design reasonable plant for you.

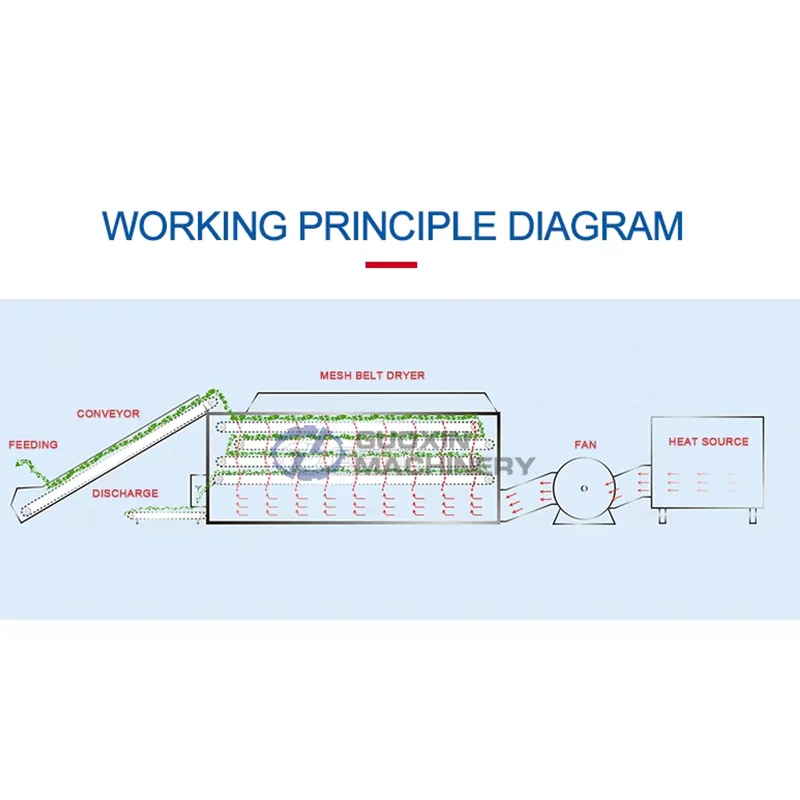

Working Principle

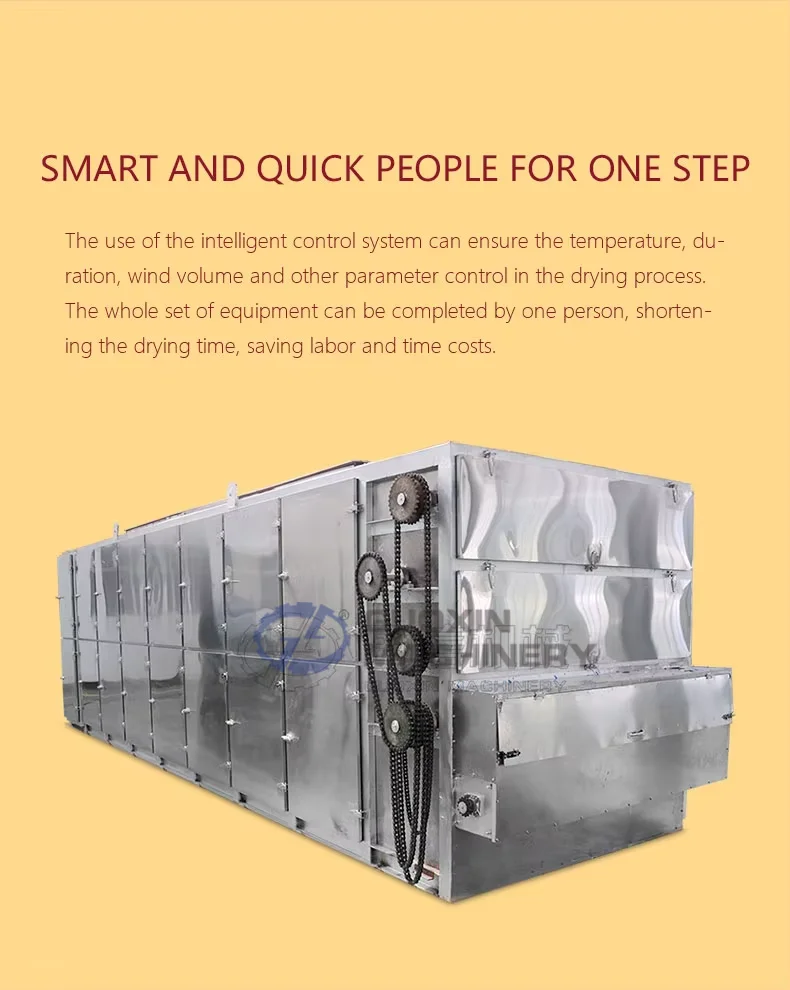

The continuous mesh dryer utilize the hot air produced by the heat furnace as the drying medium.Through the hot air distribution unit, the hot air is transported to the mesh belt.The hot air volume, mesh belt running speed, temperature and humidity can be adjusted by the electric control system, to ensure the continuous and automatic operation.

The continuous mesh dryer not only according to heat to dry, but also according to strong air, the air volume can reach 40000 cube meters per hour.

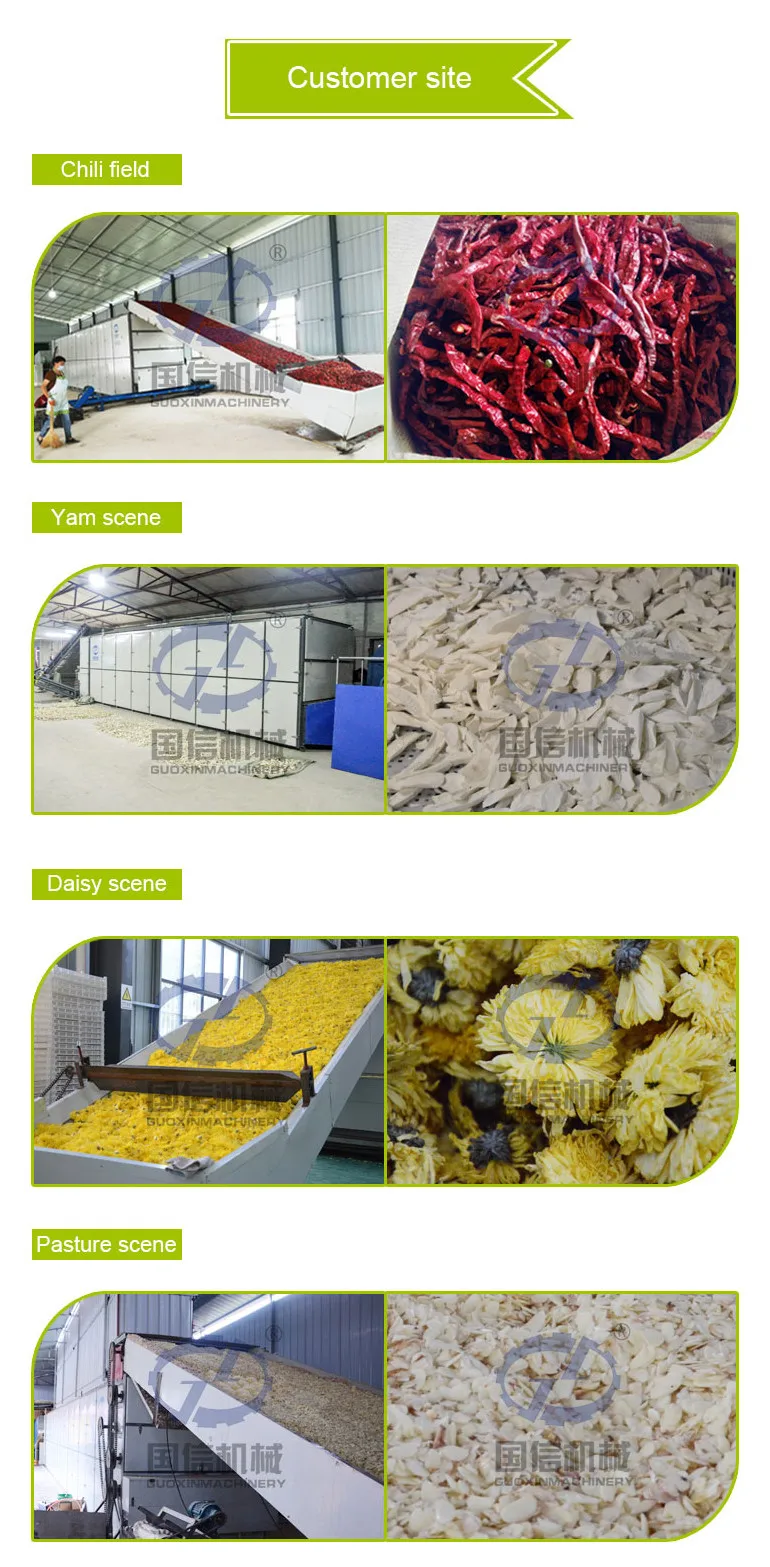

Customer site

Advantages

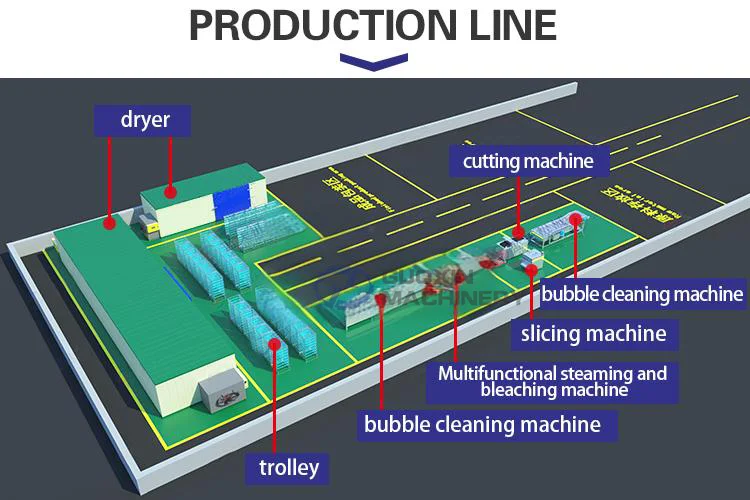

Guoxin as a leading vegetable fruit dryer machine manufacturer, we have a full range of washing slicing processing drying equipment can design and supply the whole drying packing production line.

1.Adopt multilayered structure, large area of drying, it can continuously produce in large quantities.
2.Heat exchange furnace adopt new fireproofing and highly quality steel, although the strict calculation of construction
completion, easy construction and operation, easy maintenance.
3.The air blow to the material is pure, will not pollute the materials.

Form

Model	GX-8	GX-9	GX-10	GX-12
Layer	4 layers,5 layers, 6layers
Material thickness	10-70mm
Drying temperature	40-120°C
Moisture reduce	75% to 8%(Customized)
Drying time	0.5-5hours
Moisture reduce	75% to 8%(Customized)
Main machine motor	1.5kw	1.5kw	2.2kw	3kw
Hot air draft fan	15kw	15kw	22kw	22kw
Discharing conveyor	B500(0.12kw)	B500(0.12kw)	B500(0.12kw)	B500(0.12kw)
The above parameters are for reference, we can according to customer required provide best solution.

CERTIFICATE

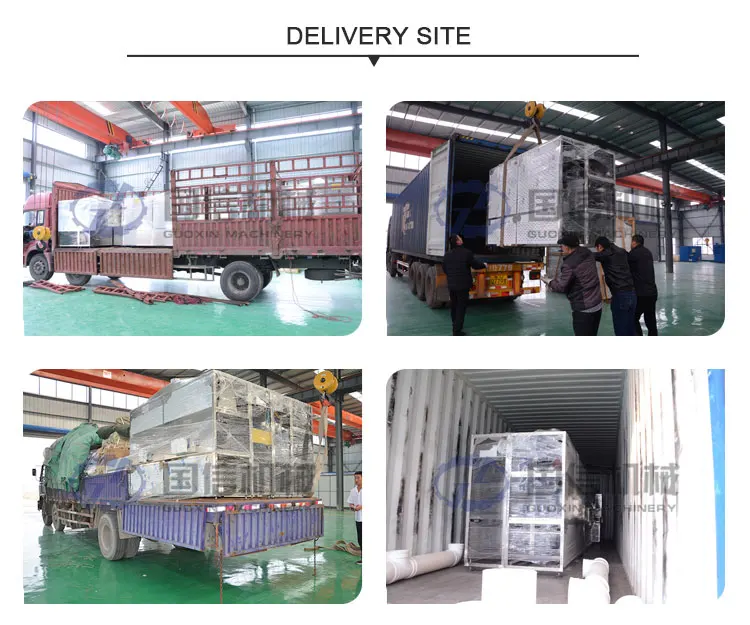

Packing&Delivery

Our Company

Our service about drying machine

1.Provide the most suitable solution according to customer's capacity and raw material.

2.Free design factory drawings help customer to make workshop layout.

3.Arrange engineer go to your factory help you install and test the machine,teach worker operate the machine and tell them drying technology.

FAQ

1.Ask: What is the voltage of your machine? Answer:The voltage can be customized. 2.Ask: Can Igetabestprice? Answer:Qualityistheheatofonecompany.Wecannotpromisethelowestprice,butwe promisethebestqualityandmostreasonableprice.Ontheotherhand,biggerorderyouplaced, cheaperpriceyouwill get. 3.Ask: Howcanwearrangetheshipping? Answer:Wecooperatedwithsomereliableshippingcompaniesforseveralyears,wecanbe responsiblefortheshippingtoyourcountry.Ifyouhaveshippingforwardersinchina,wecanalsocooperatewiththem. 4.Ask: Can we visit your company? Answer:We are inGongyiCity, Henan Province, and near from Xinzheng International Airport. Warmly welcome you visit us.
