Intelligent Temperature Control Dryer Industrial Grade Multi-layer Crawler Drying System Hemp Mesh Belt Drying Machine

(11 Lượt)

Công ty TNHH sản xuất máy móc Henan New Guoxin

Nhà sản xuất, chế tạo • 2 năm

Giá

500,000,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

Intelligent Temperature Control Dryer Industrial Grade Multi-layer Crawler Drying System Hemp Mesh Belt Drying Machine

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Intelligent Temperature Control Dryer Industrial Grade Multi-layer Crawler Drying System Hemp Mesh Belt Drying Machine

Nhà cung cấp

Công ty TNHH sản xuất máy móc Henan New Guoxin

Thông tin nha cung cấp của bạn

Công ty TNHH sản xuất máy móc Henan New Guoxin

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Intelligent Temperature Control Dryer Industrial Grade Multi-layer Crawler Drying System Hemp Mesh Belt Drying Machine

Product Description

The mesh belt dryer is an efficient and energy-saving continuous drying equipment. Its core structure is composed of high temperature resistant stainless steel mesh belt, heating system, circulating fan and intelligent temperature control system. The mesh belt adopts high-strength stamping mesh design, which has excellent air permeability and can carry materials evenly and avoid blockage. Multi-layer independent temperature control area realizes layer drying, accurately controls moisture content, and ensures stable product quality. Compared with traditional drying equipment, its advantages are as follows: high hot air recycling rate, reduced energy consumption by 20% -30%; high degree of automation, supporting 24-hour continuous operation, greatly improving production efficiency; modular design flexible to adapt to different materials (such as food, medicinal materials,chemical raw materials), by adjusting the speed and temperature parameters of the mesh belt to complete the customized drying process. In addition, the equipment has good sealing performance and can be equipped with an optional dust removal device, which meets environmental protection requirements and is widely used in food processing, agricultural dehydration and industrial manufacturing.

Structure

Application

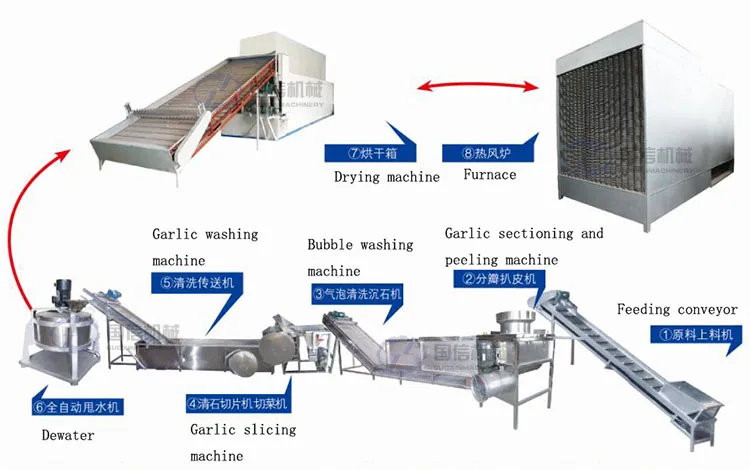

Product Line

The raw materials are evenly sliced after pre-treatment, unqualified fragments are removed, and they are sent to the dryer through the conveyor belt. During the uniform operation of the mesh belt, the hot air circulation system penetrates the material to achieve dehydration, and the temperature and air speed are dynamically adjusted to ensure uniform drying. The drying process is equipped with a vibration device to prevent adhesion, and the moisture content is monitored in real time to automatically adjust the duration. The finished product is sorted and packaged after cooling, and passes foreign body detection and quality screening,and finally completes dry storage. The whole process of automatic control ensures high efficiency and low consumption, and strict control of all links to avoid pollution and loss.

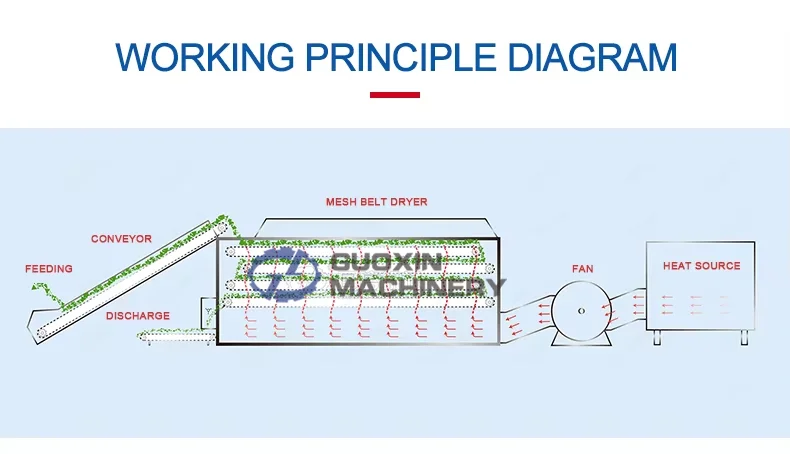

Working Principle

Our mesh belt drying equipment spread the materials evenly on the steel mesh belt to ensure appropriate material thickness and spacing so that hot air can penetrate evenly ,drag the mesh belt by the transmission device so that the material can be fully in contact with the hot air during the drying process. The hot air flows through the material and takes away the moisture in the material.

The hot air volume, mesh belt running speed, temperature and humidity can be adjusted by the electric control system, to ensure the continuous and automatic operation.

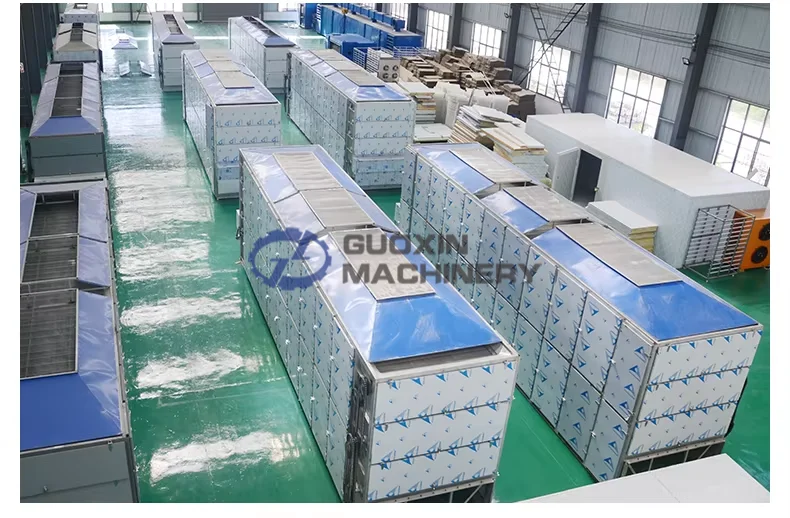

Factory&Customer Site

Form

Model	GX-8	GX-9	GX-10	GX-12
Layer	4 layers,5 layers, 6layers
Material thickness	10-70mm
Drying temperature	40-120°C
Moisture reduce	75% to 8%(Customized)
Drying time	0.5-5hours
Moisture reduce	75% to 8%(Customized)
Main machine motor	1.5kw	1.5kw	2.2kw	3kw
Hot air draft fan	15kw	15kw	22kw	22kw
Discharing conveyor	B500(0.12kw)	B500(0.12kw)	B500(0.12kw)	B500(0.12kw)
The above parameters are for reference, we can according to customer required provide best solution.

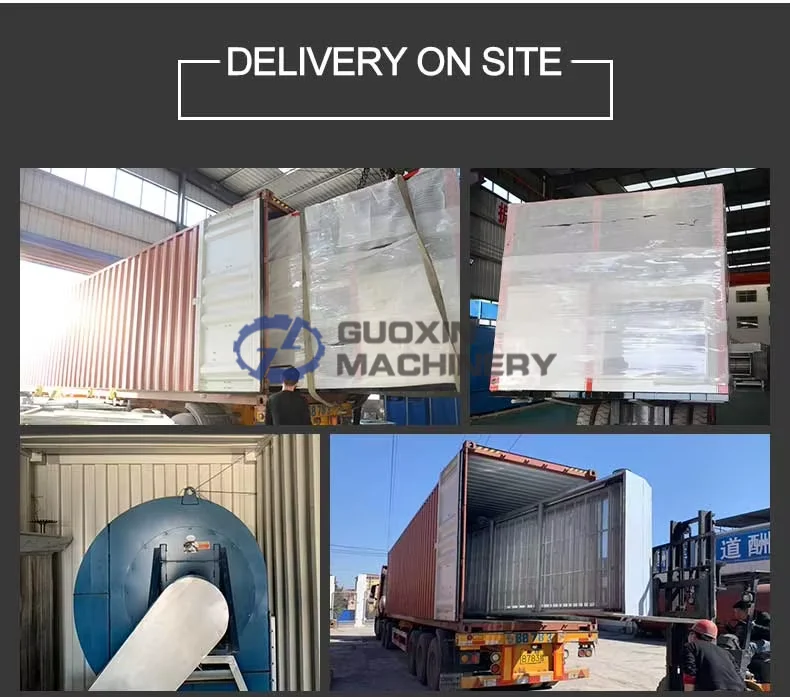

Packing&Delivery

Our Company

Guoxin as a leading vegetable fruit dryer machine manufacturer, we have a full range of washing slicing processing drying equipment can design and supply the whole drying packing production line.
1.Adopt multilayered structure, large area of drying, it can continuously produce in large quantities.
2.Heat exchange furnace adopt new fireproofing and highly quality steel, although the strict calculation of construction completion, easy construction and operation, easy maintenance.
3.The air blow to the material is pure, will not pollute the materials.

Our service

1.Provide the most suitable solution according to customer's capacity and raw material.

2.Free design factory drawings help customer to make workshop layout.

3.Arrange engineer go to your factory help you install and test the machine,teach worker operate the machine and tell them drying technology.

Certificate

FAQ

1.Ask: What is the voltage of your machine? Answer:The voltage can be customized. 2.Ask: Can Igetabestprice? Answer:Qualityistheheatofonecompany.Wecannotpromisethelowestprice,butwe promisethebestqualityandmostreasonableprice.Ontheotherhand,biggerorderyouplaced, cheaperpriceyouwill get. 3.Ask: Howcanwearrangetheshipping? Answer:Wecooperatedwithsomereliableshippingcompaniesforseveralyears,wecanbe responsiblefortheshippingtoyourcountry.Ifyouhaveshippingforwardersinchina,wecanalsocooperatewiththem. 4.Ask: Can we visit your company? Answer:We are inGongyiCity, Henan Province, and near from Xinzheng International Airport. Warmly welcome you visit us.
