Hot Sale 4 AXIS Multi HEAD Rotary 3D CNC Router Machine

(10 Lượt)

Công ty TNHH Khoa học và Công nghệ Laser Thành Liễu Foster

Nhà sản xuất, chế tạo • 2 năm

Giá

250,000,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

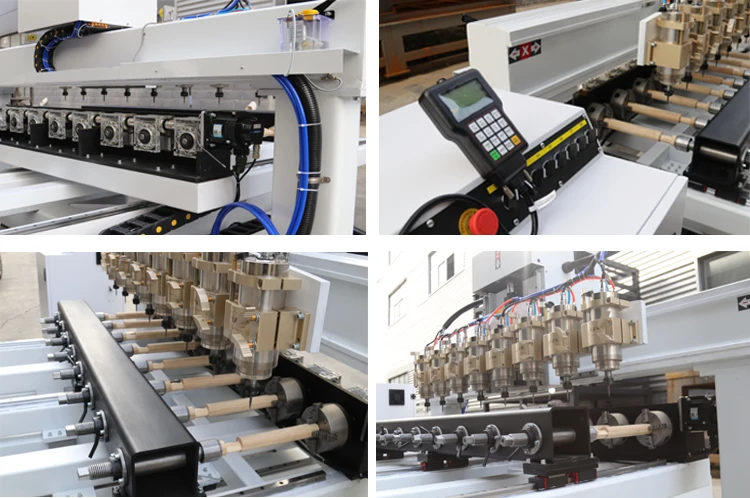

Hot Sale 4 AXIS Multi HEAD Rotary 3D CNC Router Machine

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Hot Sale 4 AXIS Multi HEAD Rotary 3D CNC Router Machine

Nhà cung cấp

Công ty TNHH Khoa học và Công nghệ Laser Thành Liễu Foster

Thông tin nha cung cấp của bạn

Công ty TNHH Khoa học và Công nghệ Laser Thành Liễu Foster

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Hot Sale 4 AXIS Multi HEAD Rotary 3D CNC Router Machine

Machine model	SM8R-12 cnc router 8 spindle 4axis
Rotary chuck type	Diameter 200mm, Length 1200mm (chunk or thorn type option, more spindle optional)
Working length	1200mm
Machine move type	Table move
Spindle power	3kw water cooling spindle (0-24000RPM)
Control system	DSP
Driver motor	Servo motors
Transmission	X axis - gear rack, Y & Z axis - ballscrew
Guide rail	Square linear rails
Max travel speed	20000mm/min
Working precision	0.05mm
Repeatability precision	0.01mm
Working voltage	AC380V +/-10%, 3phase, 50/60Hz (220V optional)
Command code	HPGL, G CODE
Machine / Packing size	2.142.41.7m / 2.282.641.89m
Net / Grocess weight	1500kg/1800kg

Technical support online

Technical training at customer's factory

Feedback from customers

Stepmores service

1. Recommend suitable machine according to your working and demands

2. Update the order status during production

3. 36 months warranty for whole machine, 12 months warranty for core parts

4. English manual and operation videos

5. Technical support by email, phone, Whatsapp, Skype etc

6. Engineer available for service overseas

Certifications

Q1: Are you a factory or trading company?
A: We are a manufacturer founded in 2011. Our new factory is located in Qihe County, Dezhou City, Shandong Province.
Q2: What's your payment terms? Delivery and MOQ?
A: Payment terms: we accept T/T, Western Union, Paypal, Alibaba Trade Assurance, etc. 30%~50% deposit, balance before delivery from our factory.
Lead time: 7~10 days
Delivery terms: EXW, FCA, FOB, CFR, CIF, DDU, etc.
Q3: What’s your warranty?
A: We provide 36 months warranty for whole machine, 12 months for core parts.
Q4: If I don't know how to use the machine, can you teach me?
A: 1) There is a U disk send together with the machine including machine manual and operation videosl. If you have furtherquestion:
2) Online technical support (Email, Skype, Wechat, Phone and so on)
3) Remote control software to set for you
4) Demo Video to follow
Q5: This is my first time buy machine from China, how should I buy machine from you?
A: Choose suitable machine through talking with us → Pay to us → Production and test of machine → Shipping to you
