5 Axis Carving Machine Wood Sculpture 5 Axis Cnc Router EPS Foam Carving Cnc 5 Axis Routers 360 Degree Cnc Router

(4 Lượt)

Công ty TNHH Khoa học và Công nghệ Laser Thành Liễu Foster

Nhà sản xuất, chế tạo

1 yrs

Giá

247,250,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

5 Axis Carving Machine Wood Sculpture 5 Axis Cnc Router EPS Foam Carving Cnc 5 Axis Routers 360 Degree Cnc Router

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

5 Axis Carving Machine Wood Sculpture 5 Axis Cnc Router EPS Foam Carving Cnc 5 Axis Routers 360 Degree Cnc Router

Nhà cung cấp

Công ty TNHH Khoa học và Công nghệ Laser Thành Liễu Foster

Thông tin nha cung cấp của bạn

Công ty TNHH Khoa học và Công nghệ Laser Thành Liễu Foster

1 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Product Description

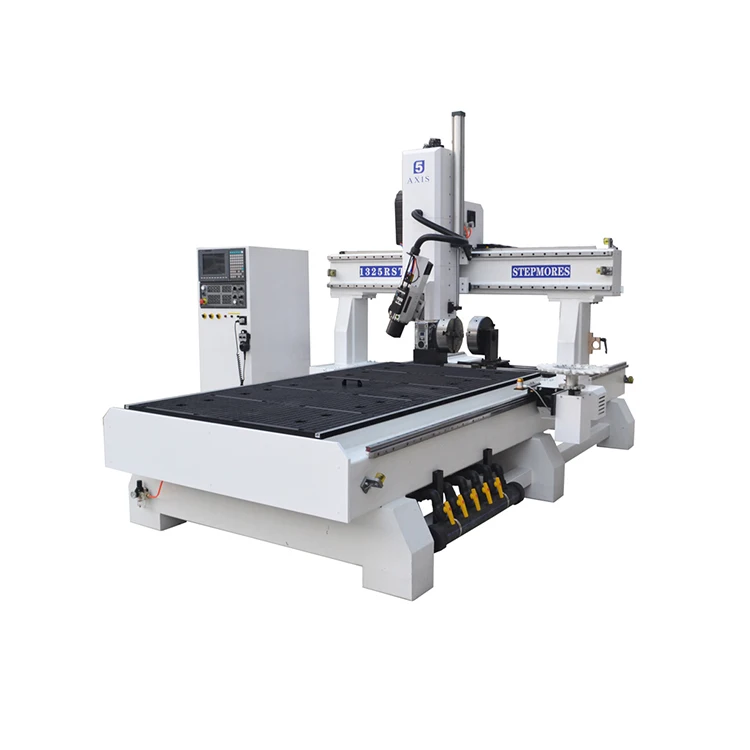

Machine model	1325 5 axis atc cnc router
X Y Z axis travel distance	1300x2500x500 mm
Feeding height	500mm
Spindle	9kw air cooling (0-24000rpm)
Rotary spindle range	180 degree
5th axis option	Rotary table
5th axis option		Rotary device
Control system	Syntec with RTCP
Drive type	Yaskawa servo motor
Working table type	Vacuum absorption table with pump
Dust collector	double bags with auto up-down dust boot
Working precision	0.05mm
Working voltage	AC380V +/-10%, 50/60Hz (220V for optional)
Command code	HPGL, G code
Machine / package size	42.052.07m / 4.152.282.25m
Net / gross weight	1800KGS/2000KGS

Product Details

Rotary spindle

9kw atc spindle can rotate 180 degree, suitable for side drilling cutting. Spindle speed can be 24000rpm.

Air cylinder of Z axis

Air cylinder of Z axis can help reduce the load of Z axis motor to make machine work more smoothly and precisely.

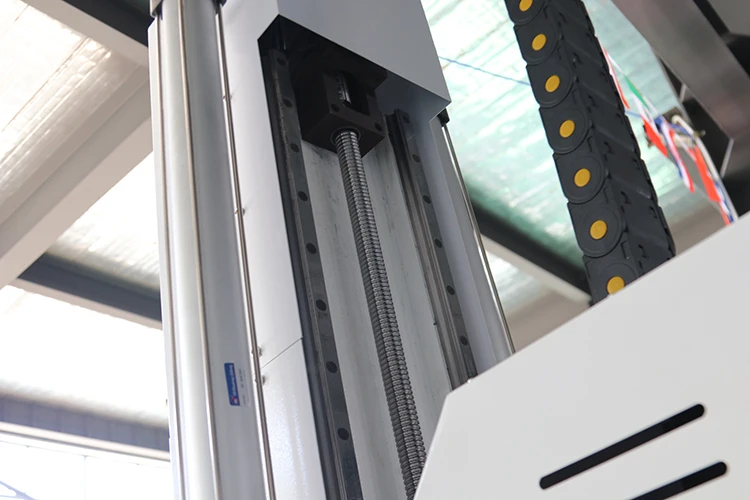

Z axis ball screw

Z axis ballscrew with iron casting end support to reduce the endplay of long ballscrew, ensure the precision of axis when spindle
rotate.

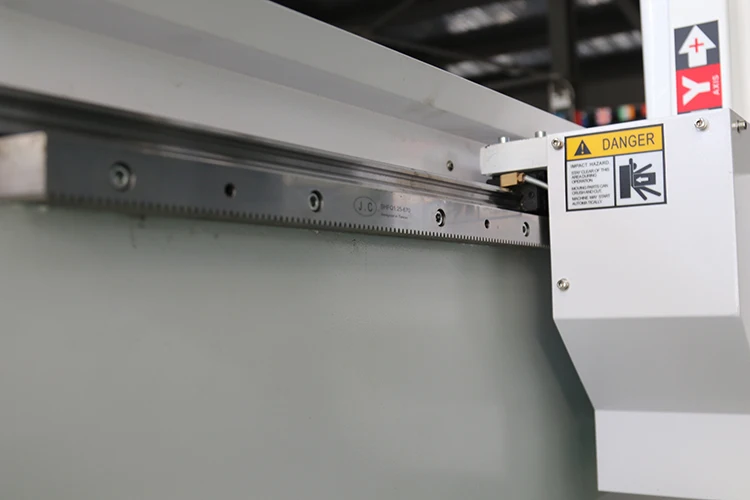

Helical tooth gear rack

Helical gear rack is featured as much lower noise and more steady meshing.

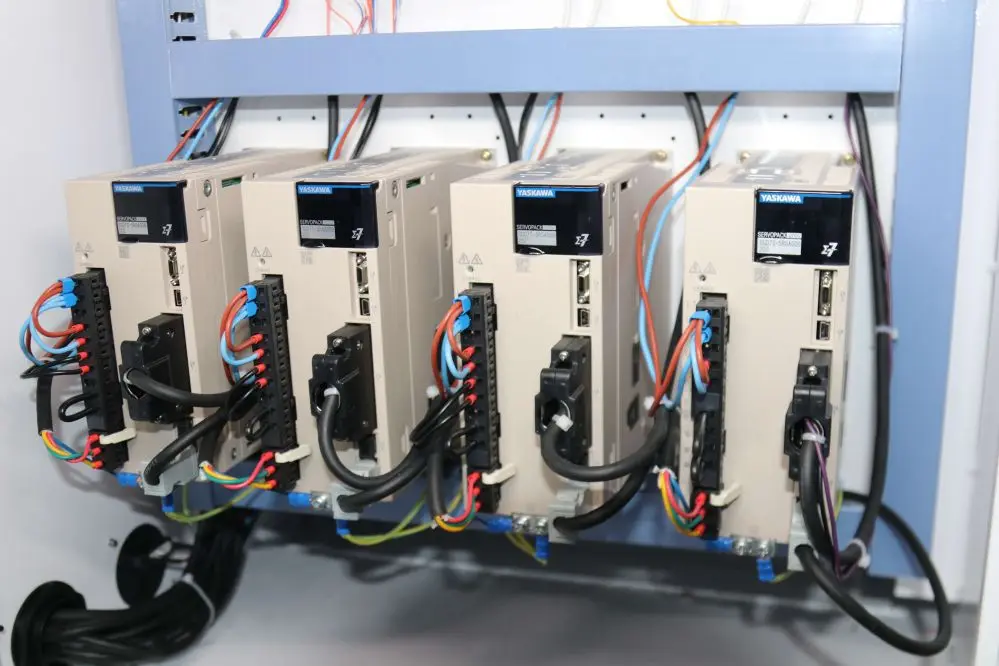

Servo motor driver

Yaksawa servo motor driver with Shimpo reducers

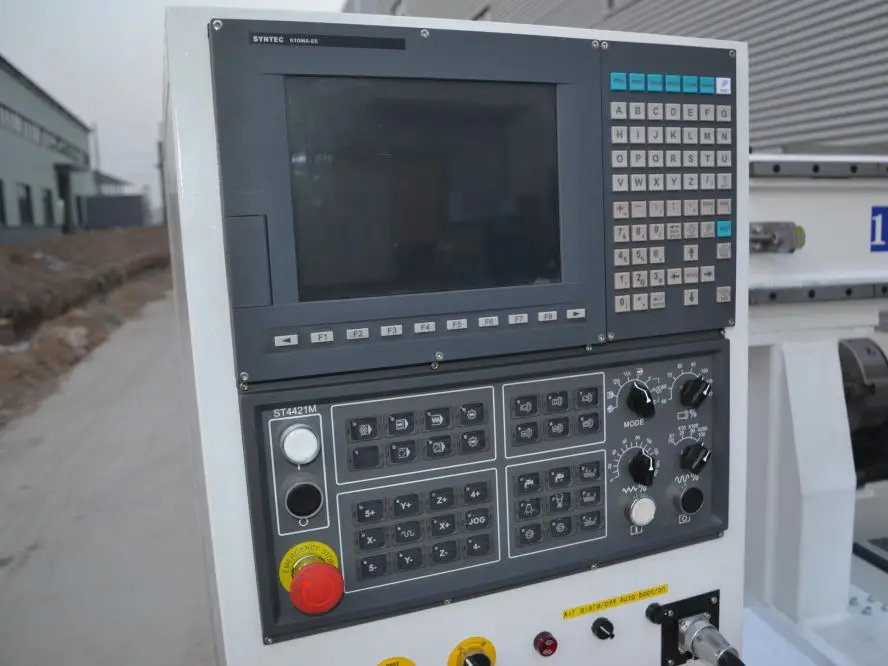

Syntec controller

Syntec 610MA controller from Taiwan, with RTCP function.

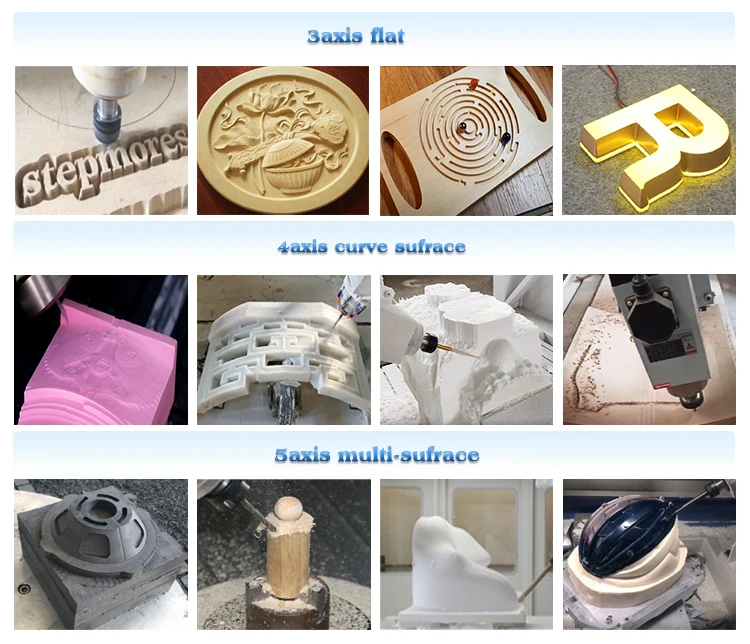

Samples

Procession of Production

Service&Feedback

Technical support online

Technical Training at customer's factory

Feedback from Customers

Stepmores Service

1. Recommend suitable machine according to your working and demands
2. Update the order status during production
3. 36 months warranty for whole machine, 12 months warranty for core parts
4. English manual and operation videos
5. Technical support by email, phone, Whatsapp / Skype, etc.
6. Engineer available to provide service overseas.

Packing & Delivery

Company Profile

Jinan chentuo industry and trade co., Ltd was established in 2011. We are well known for our superior quality and service in the
field of engineering and manufacturing of CNC equipment that includes atc cnc router, wood cnc router, 4axis cnc router, 5axis cnc
router, cnc laser machine, cnc plasma cutting machine, which have passed CE certificate.
Our company has sold machines to a lot of countries such as US, EU, Argentina, Morocco, UK, Australia, Russia, Romania,
France,Estonia, and so on.

FAQ

Q1: Are you a factory or trading company?
A: We are a manufacturer founded in 2011. Our new factory is located in Qihe County, Dezhou City, Shandong Province.
Q2: What's your payment terms? Delivery and MOQ?
A: Payment terms: we accept T/T, Western Union, Paypal, Alibaba Trade Assurance, etc. 30%~50% deposit, balance before delivery
from our factory.
Lead time: 7~10 days
Delivery terms: EXW, FCA, FOB, CFR, CIF, DDU, etc.
MOQ: 1set
Q3: What’s your warranty?
A: We provide 36 months warranty for whole machine, 12 months for core parts.
Q4: If I don't know how to use the machine, can you teach me?
A: 1) There is a U disk send together with the machine including machine manual and operation videosl. If you have further
question:
2) Online technical support (Email, Skype, Wechat, Phone and so on)
3) Remote control software to set for you
4) Demo Video to follow
