Nesting Cnc Machine Loading Nesting Drilling Cutting Milling and Unloading
Nhà cung cấp
Công ty TNHH Khoa học và Công nghệ Laser Thành Liễu Foster
Thông tin nha cung cấp của bạn
1 yrs
Vị trí tại VN
Mô tả sản phẩm từ nhà cung cấp
Mô tả sản phẩm
Product Description

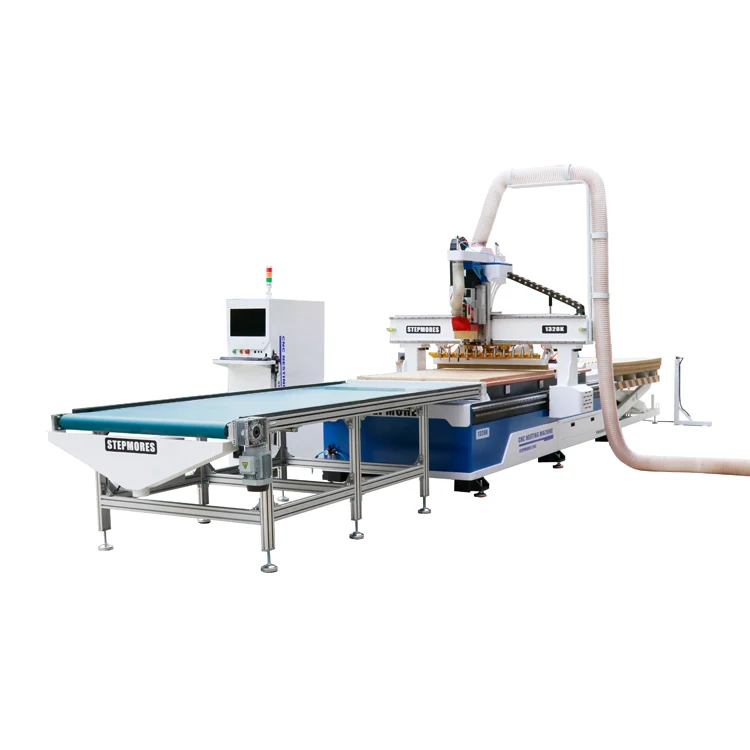

5x10 Nesting CNC Machine for Wooden Furniture 1530
Specification
Model | 1530K-ATC |
XYZ axis travel | 1500x3000x300mm |
Feeding height | 100mm |
ATC tool type | 12 PCS linear type( under gantry） |
Spindle power | 9KW ATC air cooling spindle |
Rail type | linear rails XYZ |
Control system | Syntech controller 60CB |
Drive type | Sntech servo motor (Absolute value ) + Shimpo reducer |
Transmit | X Y Oblique gear rack / Z ball-screw |
Table type | Vacuum absorption with T slot clamping with vacuum pump |
Max travel speed | 60000mm/min |
Working precision | 0.05mm |
power | AC380V±10% /50~60Hz |
Compatible Software | Type3/Artcam/UG/Pro-E/Mastercam/Ucancam etc |
command code | HPGL, G code |
Machine size | 4050*2260*2980mm(Height including dust tube support) |
Upload unit size | 3370*1510*810mm |
Download unit size | 2400*1200*700mm |
packing size | 3.57*2.28*1.86m |
Net/Gross weight | 2400kg/2600kg |

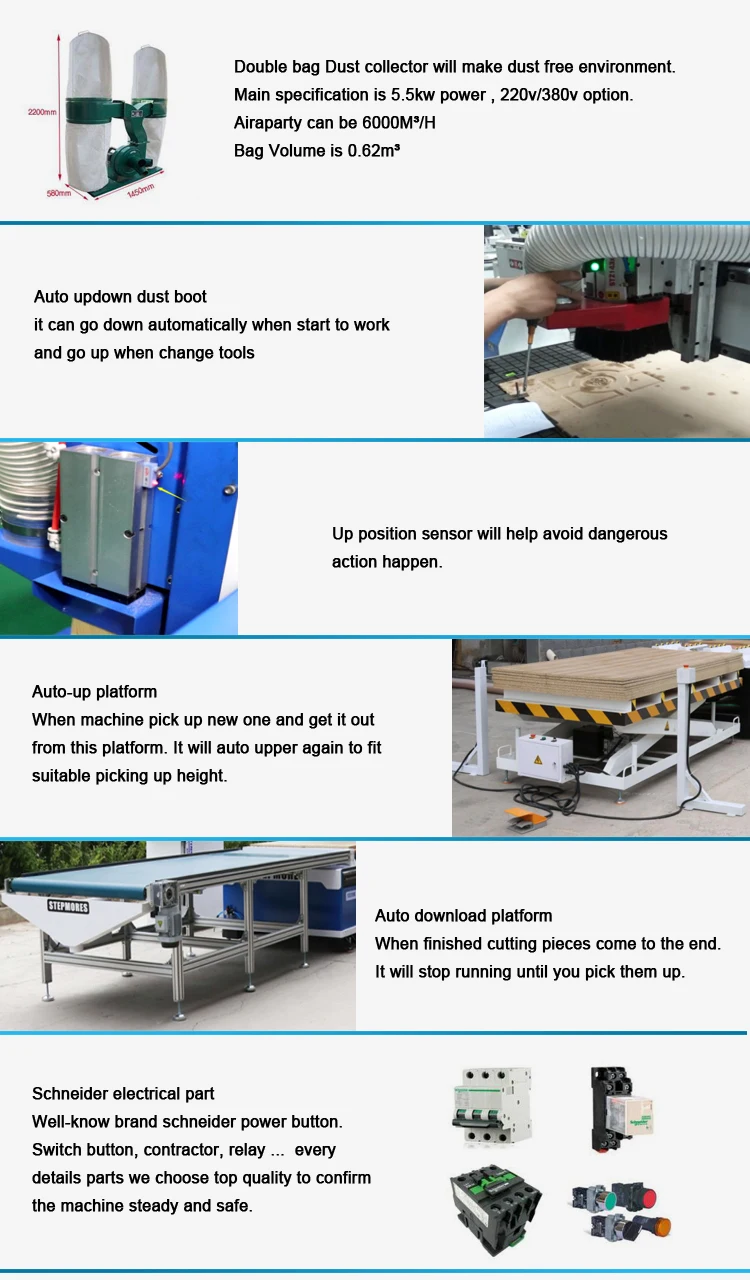

Machine Details
Samples
Procession of Production
Service&Feedback
Technical support online
Feedback from Customers
Stepmores Service
1. recommend suitable machine according to your working and demands
2. update the order status during production
3. 36 months warranty for whole machine, 12 months warranty for core parts
4. English manual and operation videos
5. Technical support by email, phone, Whatsapp / Skype, etc.
6. Engineer available to provide service overseas.
2. update the order status during production
3. 36 months warranty for whole machine, 12 months warranty for core parts
4. English manual and operation videos
5. Technical support by email, phone, Whatsapp / Skype, etc.
6. Engineer available to provide service overseas.
Packing & Delivery
Company Profile
FAQ
Q1: Are you a factory or trading company?
A: We are a manufacturer founded in 2011. Our new factory is located in Qihe County, Dezhou City, Shandong Province.
Q2: What's your payment terms? Delivery and MOQ?
A: Payment terms: we accept T/T, Western Union, Paypal, Alibaba Trade Assurance, etc. 30%~50% deposit, balance before delivery
from our factory.
Lead time: 7~10 days
Delivery terms: EXW, FCA, FOB, CFR, CIF, DDU, etc.
MOQ: 1set
Q3: What’s your warranty?
A: We provide 36 months warranty for whole machine, 12 months for core parts.
Q4: If I don't know how to use the machine, can you teach me?
A: 1) There is a U disk send together with the machine including machine manual and operation videosl. If you have further
question:
2) Online technical support (Email, Skype, Wechat, Phone and so on)
3) Remote control software to set for you
4) Demo Video to follow
A: We are a manufacturer founded in 2011. Our new factory is located in Qihe County, Dezhou City, Shandong Province.
Q2: What's your payment terms? Delivery and MOQ?
A: Payment terms: we accept T/T, Western Union, Paypal, Alibaba Trade Assurance, etc. 30%~50% deposit, balance before delivery
from our factory.
Lead time: 7~10 days
Delivery terms: EXW, FCA, FOB, CFR, CIF, DDU, etc.
MOQ: 1set
Q3: What’s your warranty?
A: We provide 36 months warranty for whole machine, 12 months for core parts.
Q4: If I don't know how to use the machine, can you teach me?
A: 1) There is a U disk send together with the machine including machine manual and operation videosl. If you have further
question:
2) Online technical support (Email, Skype, Wechat, Phone and so on)
3) Remote control software to set for you
4) Demo Video to follow
