Wood Cnc Router Cutting Machine Mdf Acrylic Pvc Plastic PE Solid Plywood Aluminium

(7 Lượt)

Công ty TNHH Khoa học và Công nghệ Laser Thành Liễu Foster

Nhà sản xuất, chế tạo

1 yrs

Giá

162,500,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

Wood Cnc Router Cutting Machine Mdf Acrylic Pvc Plastic PE Solid Plywood Aluminium

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Wood Cnc Router Cutting Machine Mdf Acrylic Pvc Plastic PE Solid Plywood Aluminium

Nhà cung cấp

Công ty TNHH Khoa học và Công nghệ Laser Thành Liễu Foster

Thông tin nha cung cấp của bạn

Công ty TNHH Khoa học và Công nghệ Laser Thành Liễu Foster

1 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Product Description

Specification

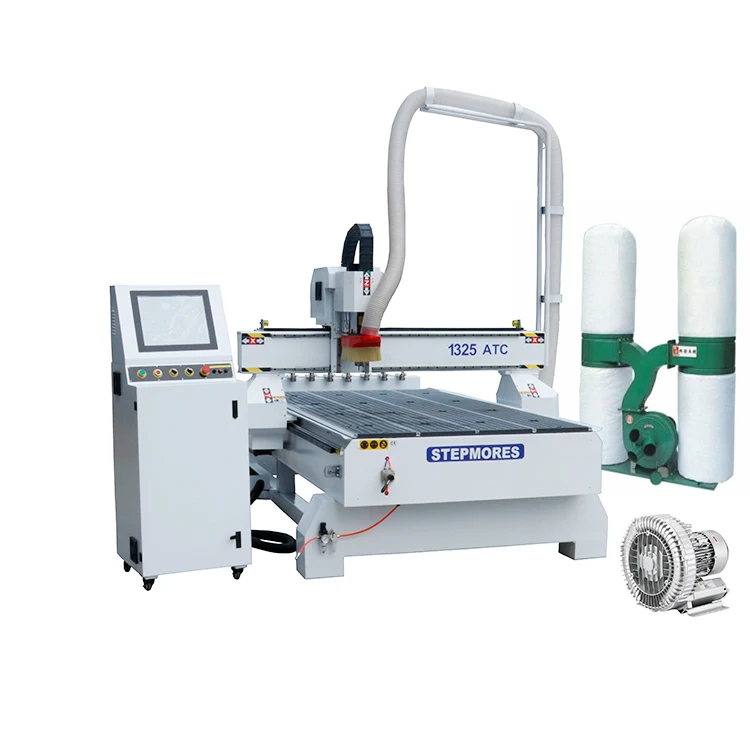

Machine model	1325atc cnc router
Working area	1300*2500mm
Feeding height	200mm
Spindle	9kw air cooled atc spindle
ATC tool type	8pcs linear type, on back side of machine
Control system	NK105CS / DSP / Syntec
Drive motor	Leadshine servo motor
Working table	Vacuum absorption table with vacuum pump
Guide rail	Taiwan square linear guide rails
Transmission	X & Y axis - gear rack, Z axis - TBI ball screw
Dust collector	Double bag dust collector with auto up-down dust boot
Lubrication	included
Working precision	0.05mm
Repeatability precision	0.01mm
Working voltage	AC380V, 50/60Hz (AC220V for optional)
Command code	G code, HPGL
Compatible software	Type 3/ Artcam/ UG/ Pro-E/ Mastercam/ Ucancam etc.
Machine / Packing size	3.052.21.62m/ 3.162.281.86m
Net / Gross weight	1400kg / 1500kg
Warranty	3 years

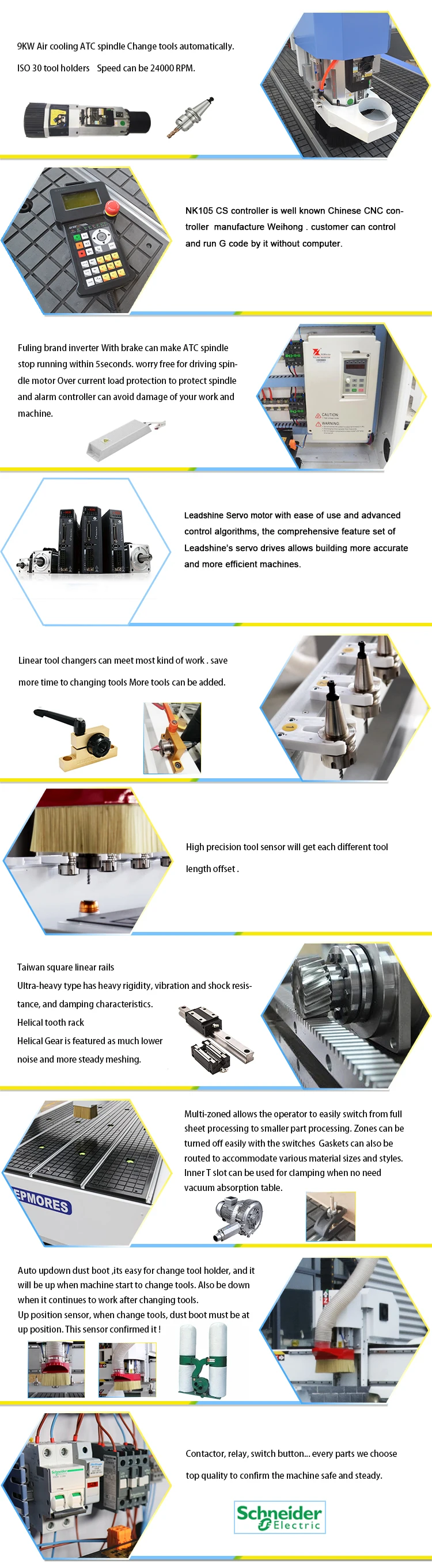

Machine Details

Samples

Procession of Production

Service&Feedback

Technical support online

Technical Training at customer's factory

Feedback from Customers

Stepmores Service

1. recommend suitable machine according to your working and demands
2. update the order status during production
3. 36 months warranty for whole machine, 12 months warranty for core parts
4. English manual and operation videos
5. Technical support by email, phone, Whatsapp / Skype, etc.
6. Engineer available to provide service overseas.

Packing & Delivery

Company Profile

Jinan chentuo industry and trade co., Ltd was established in 2011. We are well known for our superior quality and service in the
field of engineering and manufacturing of CNC equipment that includes atc cnc router, wood cnc router, 4axis cnc router, 5axis cnc
router, cnc laser machine, cnc plasma cutting machine, which have passed CE certificate.
Our company has sold machines to a lot of countries such as US, EU, Argentina, Morocco, UK, Australia, Russia, Romania,
France,Estonia, and so on.

FAQ

Q1: Are you a factory or trading company?
A: We are a manufacturer founded in 2011. Our new factory is located in Qihe County, Dezhou City, Shandong Province.
Q2: What's your payment terms? Delivery and MOQ?
A: Payment terms: we accept T/T, Western Union, Paypal, Alibaba Trade Assurance, etc. 30%~50% deposit, balance before delivery
from our factory.
Lead time: 7~10 days
Delivery terms: EXW, FCA, FOB, CFR, CIF, DDU, etc.
MOQ: 1set
Q3: What’s your warranty?
A: We provide 36 months warranty for whole machine, 12 months for core parts.
Q4: If I don't know how to use the machine, can you teach me?
A: 1) There is a U disk send together with the machine including machine manual and operation videosl. If you have further
question:
2) Online technical support (Email, Skype, Wechat, Phone and so on)
3) Remote control software to set for you
4) Demo Video to follow
