ATC 1325 1530 Cnc Wood Acrylic Cutting Machine Cnc Machine Router Cnc 4 Axis for Wood

(12 Lượt)

Công ty TNHH Khoa học và Công nghệ Laser Thành Liễu Foster

Nhà sản xuất, chế tạo • 2 năm

Giá

112,500,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

ATC 1325 1530 Cnc Wood Acrylic Cutting Machine Cnc Machine Router Cnc 4 Axis for Wood

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

ATC 1325 1530 Cnc Wood Acrylic Cutting Machine Cnc Machine Router Cnc 4 Axis for Wood

Nhà cung cấp

Công ty TNHH Khoa học và Công nghệ Laser Thành Liễu Foster

Thông tin nha cung cấp của bạn

Công ty TNHH Khoa học và Công nghệ Laser Thành Liễu Foster

2 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

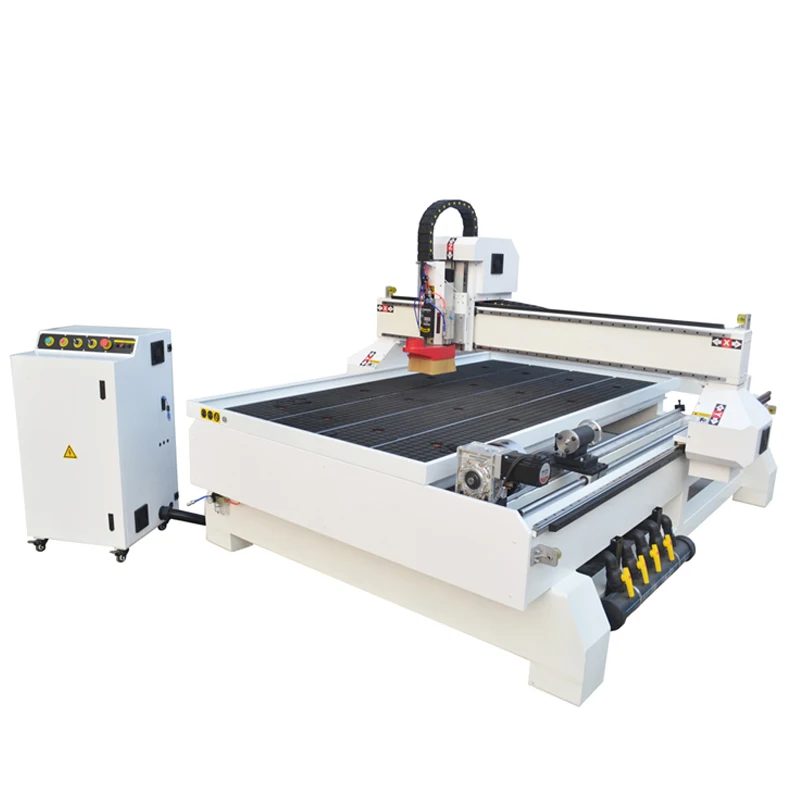

China 3d ATC 1325 1530 cnc 4 axis cnc router wood acrylic cutting machine cnc router machine

Machine model	1325 atc cnc router
Working area	1300*2500mm
Feeding height	200mm
Spindle	9kw air cooled atc spindle (0-24000RPM)
ATC tool type	8pcs linear type on back side of machine
Control system	Mach3 with wireless handle
Driver motor	Easy seovo (hybrid) motor driver
Transmission	X & Y axis - gear rack, Z axis - TBI ballscrew
Table type	Vacuum absorption table with vacuum pump
Dust collector	Double bag dust collector with auto up-down dust boot
Rotary diameter	120mm (fixed on machine table side)
Guide rails	Taiwan square linear guide rails
Lubrication	Included
Working precision	0.05mm
Repeatability precision	0.01mm
Working voltage	AC380V, 50/60HZ (AC 220V for optional)
Command code	HPGL, G CODE
Compatibale software	Type3/ Artcam/ UG/ Pro-E/ Mastercam/
Machine / Packing size	3.552.21.62m / 3.662.281.86m
Net / Grocess weight	1300kg/1500kg
Warranty	3 years

Feedback from customer

Stepmores service

1. Recommend suitable machine according to your working and demands

2. Update the order status during production

3. 36 months warranty for whole machine, 12 months warranty for core parts

4. English manual and operation videos

5. Technical support by email, phone, Whatsapp, Skype etc

6. Engineer available for service overseas

Certifications

Q1: Are you a factory or trading company?
A: We are a manufacturer founded in 2011. Our new factory is located in Qihe County, Dezhou City, Shandong Province.
Q2: What's your payment terms? Delivery and MOQ?
A: Payment terms: we accept T/T, Western Union, Paypal, Alibaba Trade Assurance, etc. 30%~50% deposit, balance before delivery from our factory.
Lead time: 7~10 days
Delivery terms: EXW, FCA, FOB, CFR, CIF, DDU, etc.
Q3: What’s your warranty?
A: We provide 36 months warranty for whole machine, 12 months for core parts.
Q4: If I don't know how to use the machine, can you teach me?
A: 1) There is a U disk send together with the machine including machine manual and operation videos. If you have further
question:
2) Online technical support (Email, Skype, Wechat, Phone and so on)
3) Remote control software to set for you
4) Demo Video to follow
Q5: This is my first time buy machine from China, how should I buy machine from you?
A:Choose suitable machine through talking with us → Pay to us→ Production and test of machine → Shipping to you
