Wc67k-200T3200 Brake Bending Press Metal Machine Sheet

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Wc67k-200T3200 Brake Bending Press Metal Machine Sheet

Nhà cung cấp

Công ty TNHH Máy công cụ CNC Jinqiu Nam Kinh

Thông tin nha cung cấp của bạn

Công ty TNHH Máy công cụ CNC Jinqiu Nam Kinh

1 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Products Description

CNC CONTROL SYSTEM

CNC BACKGAUGE

Electro-hydraulic CNC Press Brake					KCN-30032	KCN-30040	KCN-30060
Capacity			kN	4000	4000	4000
Max. Bending Length			mm	4000	5000	6000
Between Columns			mm	3100	4000	5000
Max. Shut Height			mm	580	580	580
Slide Stroke			mm	320	320	320
Throat Depth			mm	40	400	400
Down Speed			mm/min	100	100	100
Pressing Speed			mm/min	8	8	8
Return Speed			mm/min	85	85	85
Main Motor Power			kW	30	30	30
X axis stroke			mm	600	600	600
X axis speed			mm/s	250	250	250
R axis stroke			mm	200	200	200
R axis speed			mm/s	60	60	60
Outline Size	L	mm	4500	5500	6500
	W	mm	2400	2600	2650
	H	mm	4000	4150	4300
Weight			kg	25000	29000	35000

Details Images

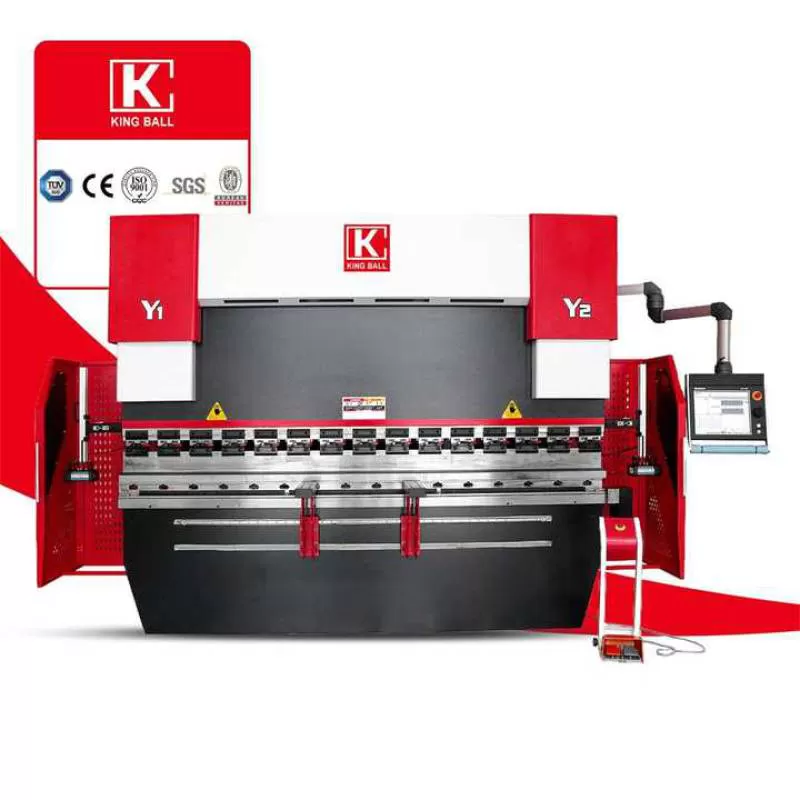

KCN Series Electro-hydraulic Synchronous CNC Press Brake

Main functions and features

● Overall welded and processed structure.

● Save electricity, Compared with the traditional transmission device, the electricity consumption is 50%.

● Within one stroke, bending pressure can be controlled at random point, repeatability precision±0.01, parallelism 0.02,high working effective, can improve 30%.

●The noise is reduced and the machine is quieter.

● Save oil, Hydraulic fluid use is very small, only for the traditional 50 %

●Lower worktable has crowning device to anti deflection & upper tool has wedge compensation device.

●Delem CNC control system, grating ruler, Rexroth hydraulics, servo motors and other accessories of famous brand are installed for perfect machine performance.

●Ram stroke(Y1, Y2),backgauge (X,R,Z) are controlled by CNC controller while ball screw and linear guide rail installed for high repeatability precision.

●Imported ball screw and linear guide are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.

Main motor Deltaservo motor

SVP control technology,energy saving rate over 50%, avoid hydraulic oil fast heating
up,reduce hydraulic errors.

Laser safety protection

●DSP Laser safety device protects the press brake operator from the danger of crushing between the moving and fixed part of the
machine.
● DSP Laser safety device is mounted on the moving part of the machine, and the protection zone moves with the part. When an
obstacle is detected, such as an operators fingers, detection is immediate and the machine can be stopped.

Bending follower

●Sheet supporting plate can follow the workpiece during the bending. The following degree and speed are controlled by CNC
controller. Bending-help device can move along linear guide left and right
●The height can be adjusted up and down manually, also the de-
vice can move front and rear to match the die opening manually.
●Two choices for supporting table: Brush and stainless tube. The bending-help device can be controlled to work simultaneously or independently

Automatic Lase bending angle measurement system

●Angle measurement ●Spring-back measurement ●Very high accuracy

●Works contactless

Wila Hydraulic Clamping and Crowning

●Extremely fast press brake tooling changes ●Extremely accurate clamping, positioning and alignment ●Individual clamping pins for each tool segment for superior clamping force ●Vertical and horizontal tool loading and unloading for maximum speed and safety ●Professional finish, including a slide rule for ease of tool positioning

WILA Crowning systems fully compensate for the deflection in press brakes. This results in a consistent bending angle across the entire length of the machine

Safety light curtain

China brand SDKELI safety light curtain, installed on the back of the machine, if someone enters the machine, the machine is powered off.

The guideway use the brass, wear-resisting,long service life.

Double sliding front support arm installed on the linear guide, movable easy.

Pedal switch with emergency stop, safe operation, the base with rollers easy to move.

Pre-sales services:

1. inquiry and consulting support

2. sample testing support

3. visit our factory

After-sales services:

1. 2 years warranty period

2. training how to install and use the brake press machine

3. engineers available to service machinery
overseas

Contact Ways

Mr.jonny qiao

Customer Manager

E-mail:jonny@jinqiu.cc

Phone :(+86) 17312260325 (WhatsApp)

Wechat:qpc1114

FAQ

1.Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis/Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For samples, the lead time is about 7 days.

For mass production, the lead time is 20-30 days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products.

If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to
accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.Or irrevocable LC at sight.
4.What is the product warranty?
We warranty our materials and workmanship.

Our commitment is to your satisfaction with our products. In warranty or not, it is the
culture of our company to address and resolve all customer issues to everyone’s satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging.

We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items.

Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way.

By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of
amount, weight and way. Please contact us for further information.
