CNC Bending Machine Sheet Metal Mini Electric Press Brake Bending Machines for Sale
Các đề xuất khác cho doanh nghiệp của bạn
Những điểm chính về sản phẩm
Thuộc tính cụ thể của ngành
Các thuộc tính khác
Khu vực
Thương hiệu
Mã sản phẩm
Tên sản phẩm
CNC Bending Machine Sheet Metal Mini Electric Press Brake Bending Machines for Sale
Nhà cung cấp
Công ty TNHH Máy công cụ CNC Jinqiu Nam Kinh
Mô tả sản phẩm từ nhà cung cấp
Mô tả sản phẩm

CNC CONTROL SYSTEM

Screen | 10.1" TFT Colour LCD display | 15" TFT Colour LCD display | 17" TFT Colour LCD display | 17" TFT Colour LCD display |
Resoluntion | 1024 x 600 pixels, 32 bit colour | 1024 x 768 pixels, 32 bit colour | 1280 x 1024 pixels, 16 bit colour | 1280 x 1024 pixels, 32 bit colour |
Maximum axes | Up to 4 +1 axes () | Up to 4 +1 axes | Up to 8 +1 axes | Up to 8 +1 axes |
Program method | numerical + 2D graphical(optional) | numerical + 2D graphical | numerical + 2D modular | numerical + 3D modular |
Touch sensor | Full touch screen control (PCT-touch) | Full touch screen control (PCT-touch) | Full touch screen control (IR-touch) | Full touch screen control (IR-touch) |
Storage capacity | 1 GB | 1 GB | 1 GB | 2 GB |
Product and tools memory | 256MB | 256MB | 256MB | 256MB |
Networking | / | Optional | Standard Windows® networking | Standard Windows® networking |
Bend sequence calculation | / | Standrad | Standrad | Standrad |
Offline software | Profile-53TL | Profile-58TL | Profile-TL | Profile-T3D |
Tandem capability | Optional | Optional | Optional | Optional |
Language | BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU, IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR | BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU, IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR | BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU, IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR | BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU, IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR |
Numerical control operation interface


Control Axes Back Guage Display (X,R,Z axes)

Parameters of pure electric press brake
Full Servo CNC Press Brake | 3012 | 4016 | 6020 | 8025 | 10032 | ||||
Capacity | kN | 300 | 400 | 600 | 800 | 1000 | |||
Max. Bending Length | mm | 1250 | 1600 | 2000 | 2500 | 3200 | |||
Between Columns | mm | 800 | 1200 | 1600 | 2100 | 2600 | |||
Max. Shut Height | mm | 480 | 480 | 480 | 480 | 480 | |||
Slide Stroke | mm | 200 | 200 | 200 | 200 | 200 | |||
Throat Depth | mm | 250 | 250 | 350 | 350 | 400 | |||
Down Speed | mm/min | 200 | 200 | 200 | 200 | 200 | |||
Pressing Speed | mm/min | 0-30 | 0-30 | 0-30 | 0-30 | 0-30 | |||
Return Speed | mm/min | 200 | 200 | 200 | 200 | 200 | |||
Main Motor Power | kW | 18 | 7.5*2 | 18*2 | 28*2 | 41*2 | |||
X axis stroke | mm | 500 | 500 | 500 | 500 | 500 | |||
X axis speed | mm/s | 300 | 300 | 300 | 300 | 300 | |||
R axis stroke | mm | 200 | 200 | 200 | 200 | 200 | |||
R axis speed | mm/s | 60 | 60 | 60 | 60 | 60 | |||
Outline Size | L | mm | 1700 | 2500 | 2500 | 3000 | 4500 | ||
W | mm | 1450 | 1750 | 1750 | 1750 | 1920 | |||
H | mm | 2400 | 2500 | 2600 | 2600 | 2700 | |||
Weight | kg | 3000 | 4500 | 5500 | 7200 | 10500 |

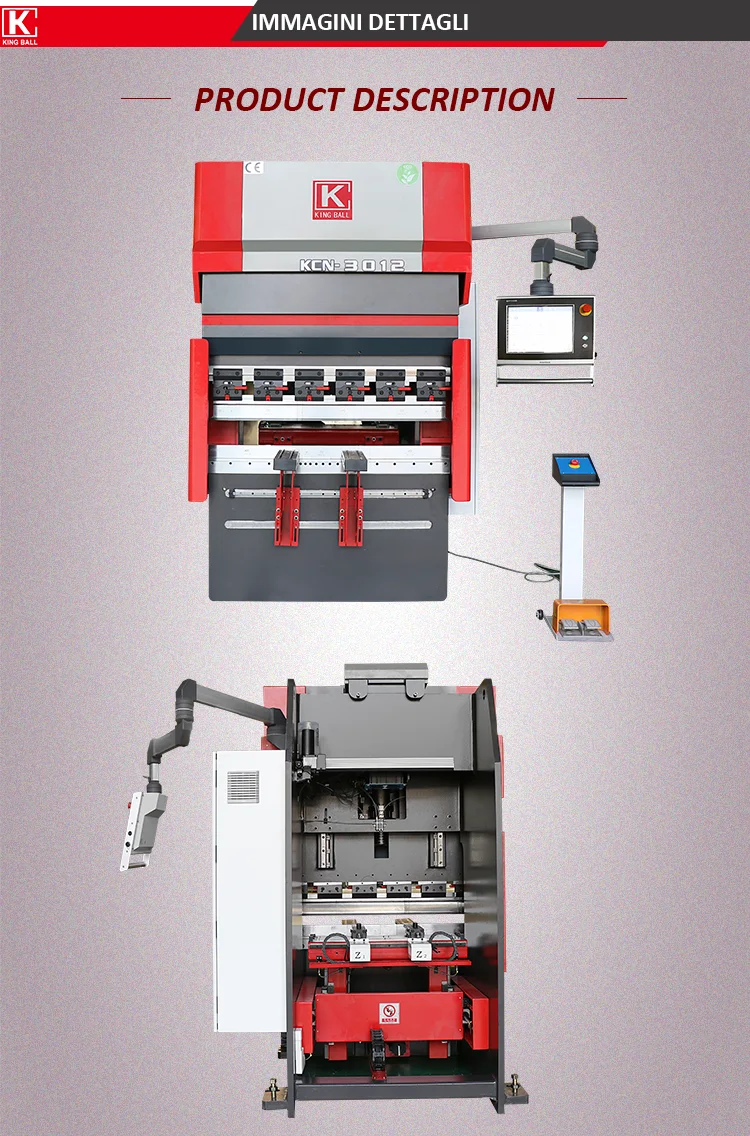

Details Images
Main Ball screw
Compared with the mainstream of electro-hydraulic servo press brake, motor power consumption depends on the load, to save more energy and create more economic benefits.


Main motor
Servo motor through the sychronous thoothed belt, ball screw transmission to realize the up and down movement of the machine beam, precisely controlled by the servo system, bring you higher speed and precision work.

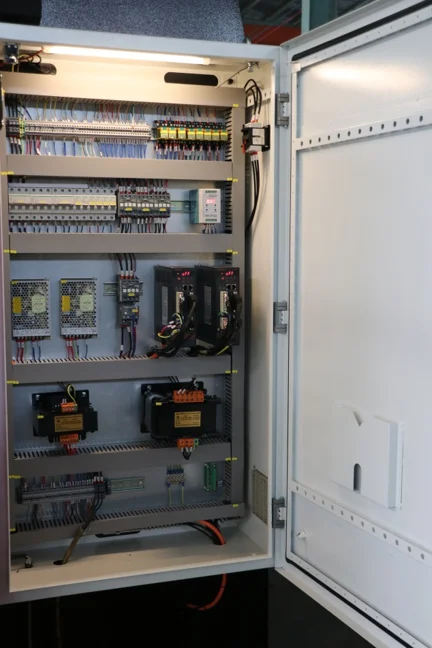

Electrical components---Schneider--- France brand
All electrical components imported from France
-Neat wiring,Stable and durable performance,ensuring
long service life

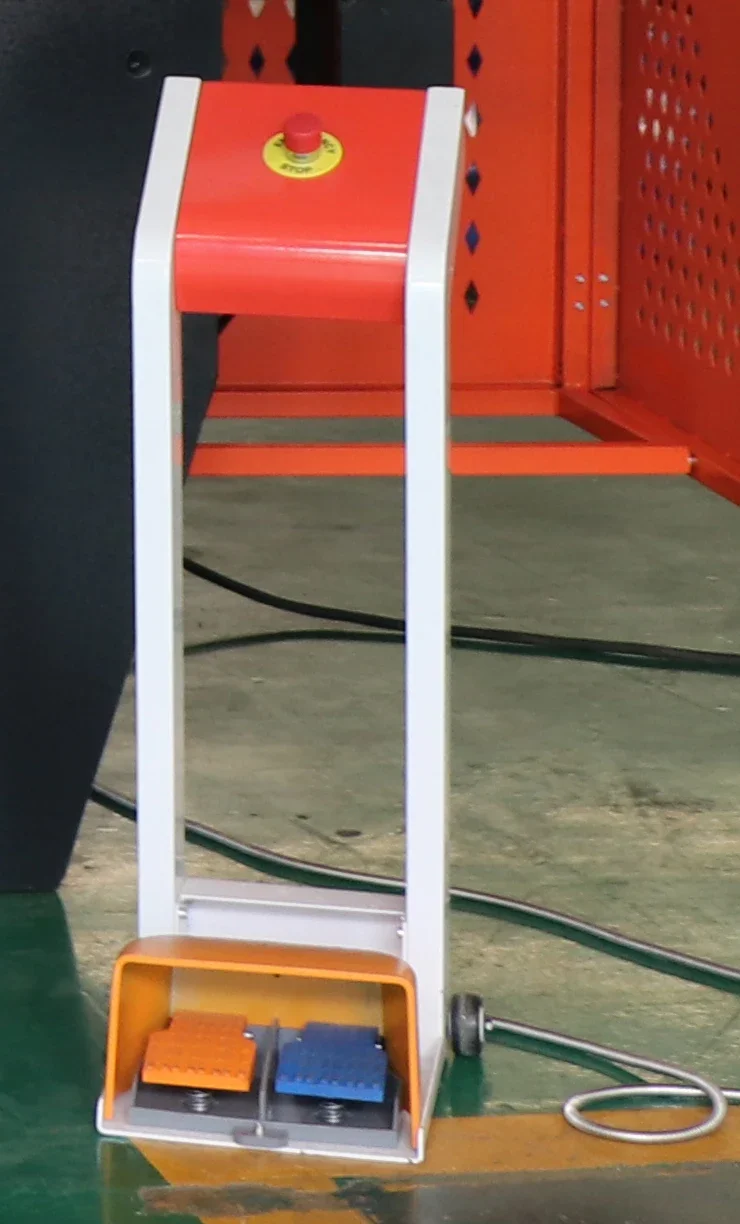

Pedal switch with emergency stop, safe operation, the base with rollers easy to move.
