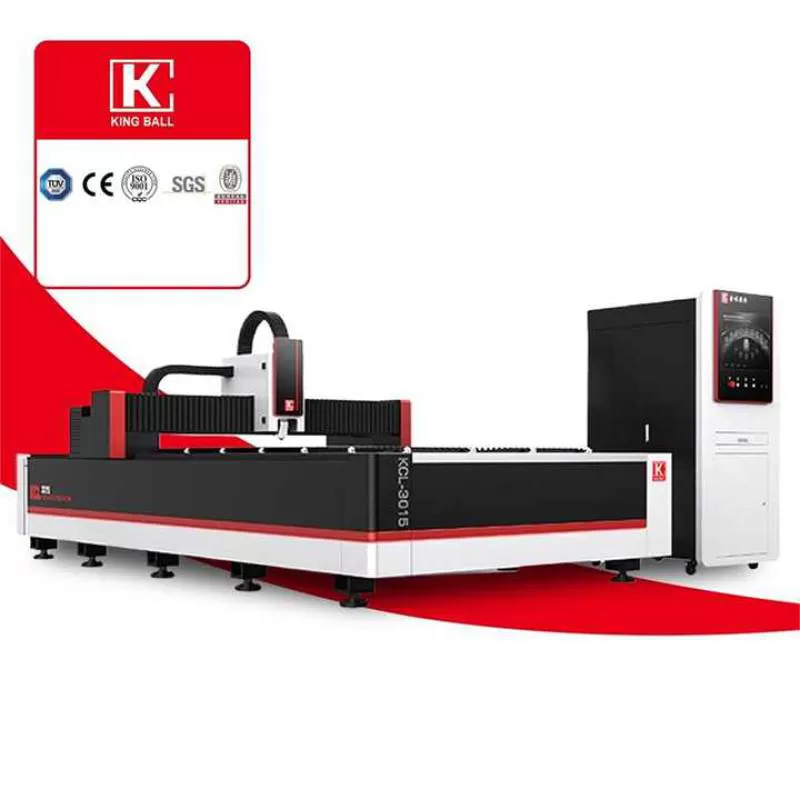

6000W Laser Tube Cutter for Stainless Steel 1500*3000mm Cnc Metal Sheet and Tube Fiber Laser Cutter 3000w

(4 Lượt)

Công ty TNHH Máy công cụ CNC Jinqiu Nam Kinh

Nhà sản xuất, chế tạo

1 yrs

Giá

122,500,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

6000W Laser Tube Cutter for Stainless Steel 1500*3000mm Cnc Metal Sheet and Tube Fiber Laser Cutter 3000w

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

6000W Laser Tube Cutter for Stainless Steel 1500*3000mm Cnc Metal Sheet and Tube Fiber Laser Cutter 3000w

Nhà cung cấp

Công ty TNHH Máy công cụ CNC Jinqiu Nam Kinh

Thông tin nha cung cấp của bạn

Công ty TNHH Máy công cụ CNC Jinqiu Nam Kinh

1 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Products Description

Performance.

Professional mechanical design, novel appearance modeling and a number of patented technologies, with high degree of refinement, fast speed, small cutting seam, smooth section, simple operation and low energy consumption, are suitable for mass continuous processing and highlight the cutting competitive advantage.

Details Images

Model

KCL-3015

KCL-4015

KCL-4020

KCL-6020

KCL-6025

KCL-8025

KCL-10025

KCL-12025

Cutting Range (mm)

3000*1500

4000*1500

4000*2000

6000*2000

6000*2500

8000*2500

10000*2500

12000*2500

Laser Power (w)

1000W&1500W&2000W&3000W&4000W&6000W&8000W&12000W

Maximum idle speed

160 m/min

Maximum cutting speed

35-80 m/min

Positioning Accuracy

0.03 mm

Reposition Accuracy

0.02 mm

Model	KCL-3015	KCL-4015	KCL-4020	KCL-6020	KCL-6025	KCL-8025
Cutting Range (mm)	3000*1500	4000*1500	4000*2000	6000*2000	6000*2500	8000*2500
Laser Power (w)	1000W&1500W&2000W&3000W&6000W&8000W&12000W
Maximum idle speed(m/min)	160 m/min
Maximum cutting speed(m/min)	35-80 m/min
Positioning Accuracy (mm)	0.03 mm
Reposition Accuracy (mm)	0.02 mm

Core Thechnology

MAX & Raycus & IPG Brand Laser Source

Higher Electro-optic conversion efficiency Superior reliability & modularity Easy maintenance and low down time Anti high reflection function

Laser Cutting head

3 pieces of protection lens, highly effective protection of collimating focus lens. 2-way optical water cooling, effectively
extending the continuous working time.
Various brands of laser head are available

CYPCUT

Easy to use
Vanous file editing functions
Supporl remole oontrol
Real-time alarm and protection

Steel Plate Welding

steel frames undergo annealing at over 600⁰ to relieve stress. They are built to last years of heavy use without distortion. Auto
changing pallet system allows over 1800kg loading weight.A heavier frame means less vibration and better accuracy. the machine
frames are reinforced to minimize twists and deformation while the robust frame of the machine is joined to the chassis by steel
bars.

Aluminum beam

The beam body adopts the overall aluminum casting method, annealing eliminates internal stress and processes, The process is
casting →annealing stress → rough machining → vibration aging → semifinishing → vibration aging →finish machining, the machine is machined after tempering, the strength, rigidity and stability of the beam are guaranteed, the precision of the beam can be
maintained for a long time. Mainly for the high speed cutting of high power laser cutting machine provides an effective guarantee.

Servo Motor-Japan FUJI

High accuracy high-speed performance High adaptability & stability Timeliness, short dynamic response time of motor Comfort, less fever and noise

Electric cabinet

Separate electric cabinet with air conditioning

Dust Extraction System(Optional）

Cutting capacity

Cutting Samples

Pre-sales services:

1. inquiry and consulting support

2. sample testing support

3. visit our factory

After-sales services:

1. 2 years warranty period

2. training how to install and use the brake press machine

3. engineers available to service machinery
overseas

FAQ

1.Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis/Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For samples, the lead time is about 7 days.

For mass production, the lead time is 20-30 days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products.

If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to
accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.Or irrevocable LC at sight.
4.What is the product warranty?
We warranty our materials and workmanship.

Our commitment is to your satisfaction with our products. In warranty or not, it is the
culture of our company to address and resolve all customer issues to everyone’s satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging.

We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items.

Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way.

By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of
amount, weight and way. Please contact us for further information.
