High Precision Small Laser Cutter Raytools Metal Sheet Fiber Laser Cutting Machine Cheap Price

Các đề xuất khác cho doanh nghiệp của bạn

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực
Thương hiệu
Mã sản phẩm
Tên sản phẩm
High Precision Small Laser Cutter Raytools Metal Sheet Fiber Laser Cutting Machine Cheap Price
Nhà cung cấp
Công ty TNHH Khoa học và Công nghệ Laser Liêu Thành Foster

Thông tin nha cung cấp của bạn

Thời gian đáp ứng
≤2h
Tỷ lệ giao hàng đúng hẹn
95%

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

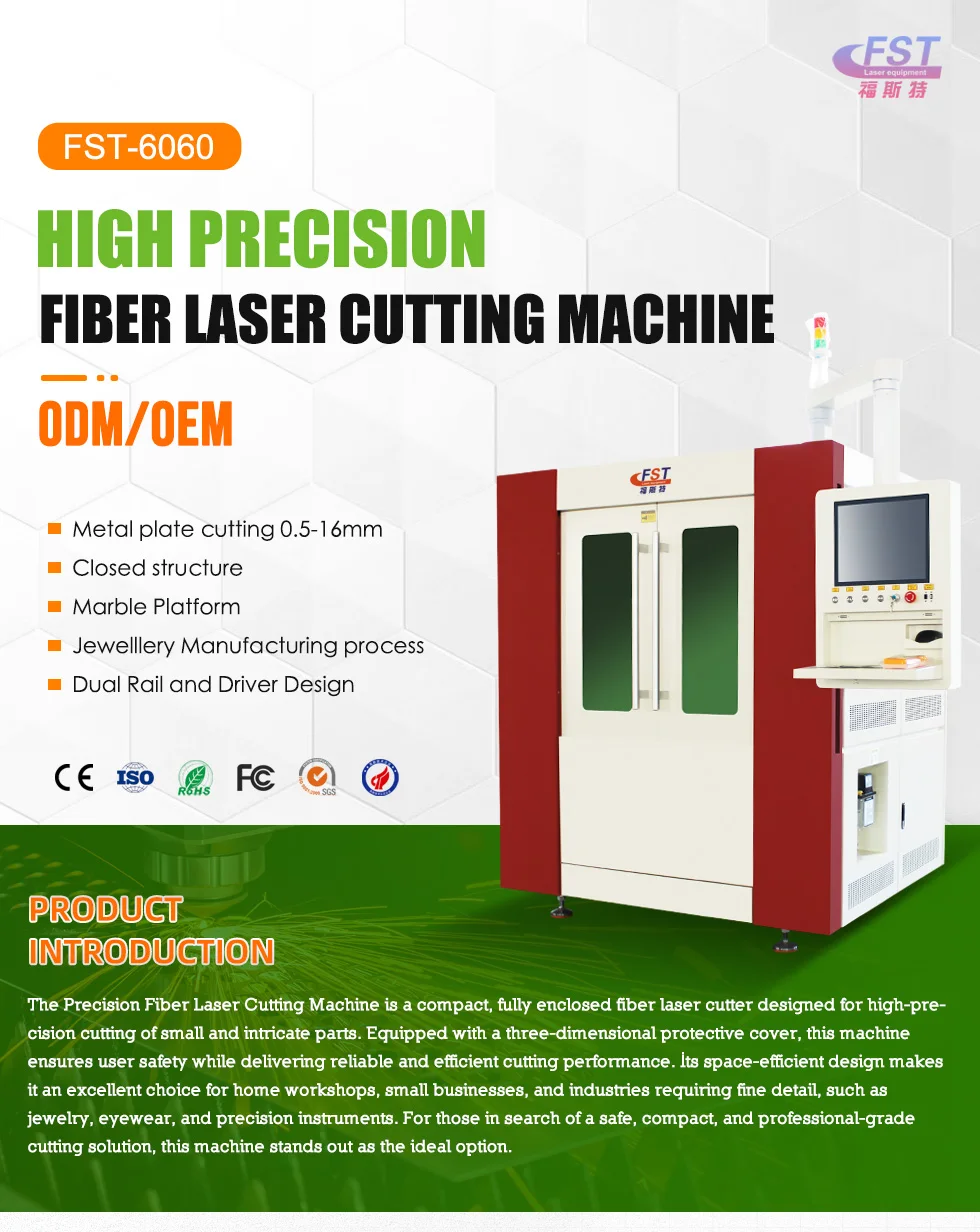

PRODUCT INTRODUCTION
Product Paramenters
Model
FST-6060 Precision Fiber Laser Cutting Machine
Working Area
600mm*600mm
Laser Power
1000W/1500W/2000W/3000w(Optional)
Laser Wavelength
1080nm
Cooling Method
Water cooling protection
Positioning Accuracy
±0.01mm
Maximum Acceleration
1G
Cutting head
Raytools/Au3tech/Ospri/Precitec
Water chiller
S&A/Hanli brand

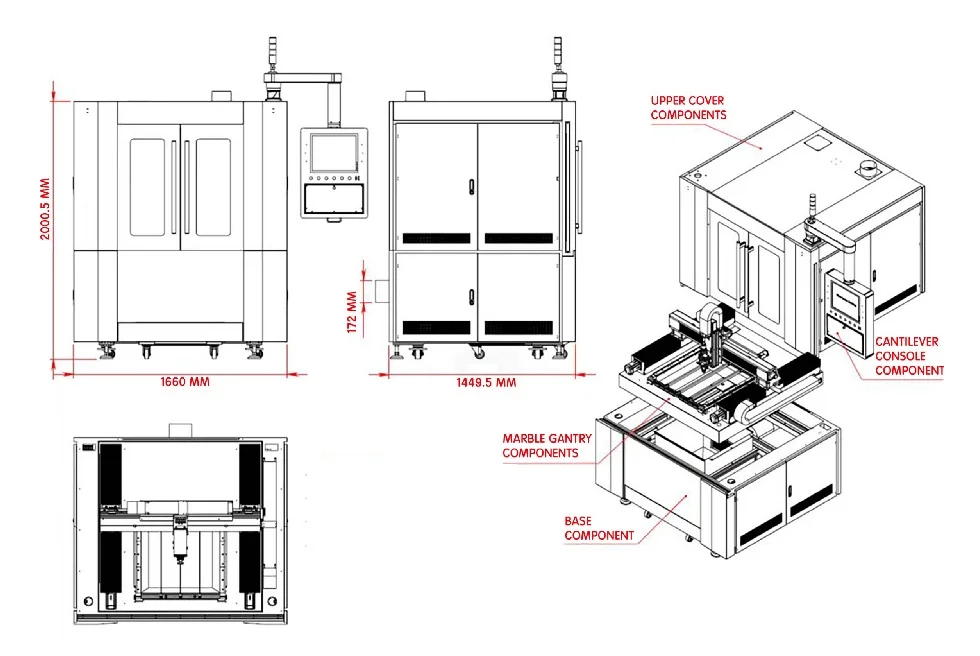

Machine Size
1660*1449*2000(mm)
Laser Source
RayCUS/MAX/IPG/RECI(optional)
Transmission
Ball screw transmission
Working Voltage
220V/380V

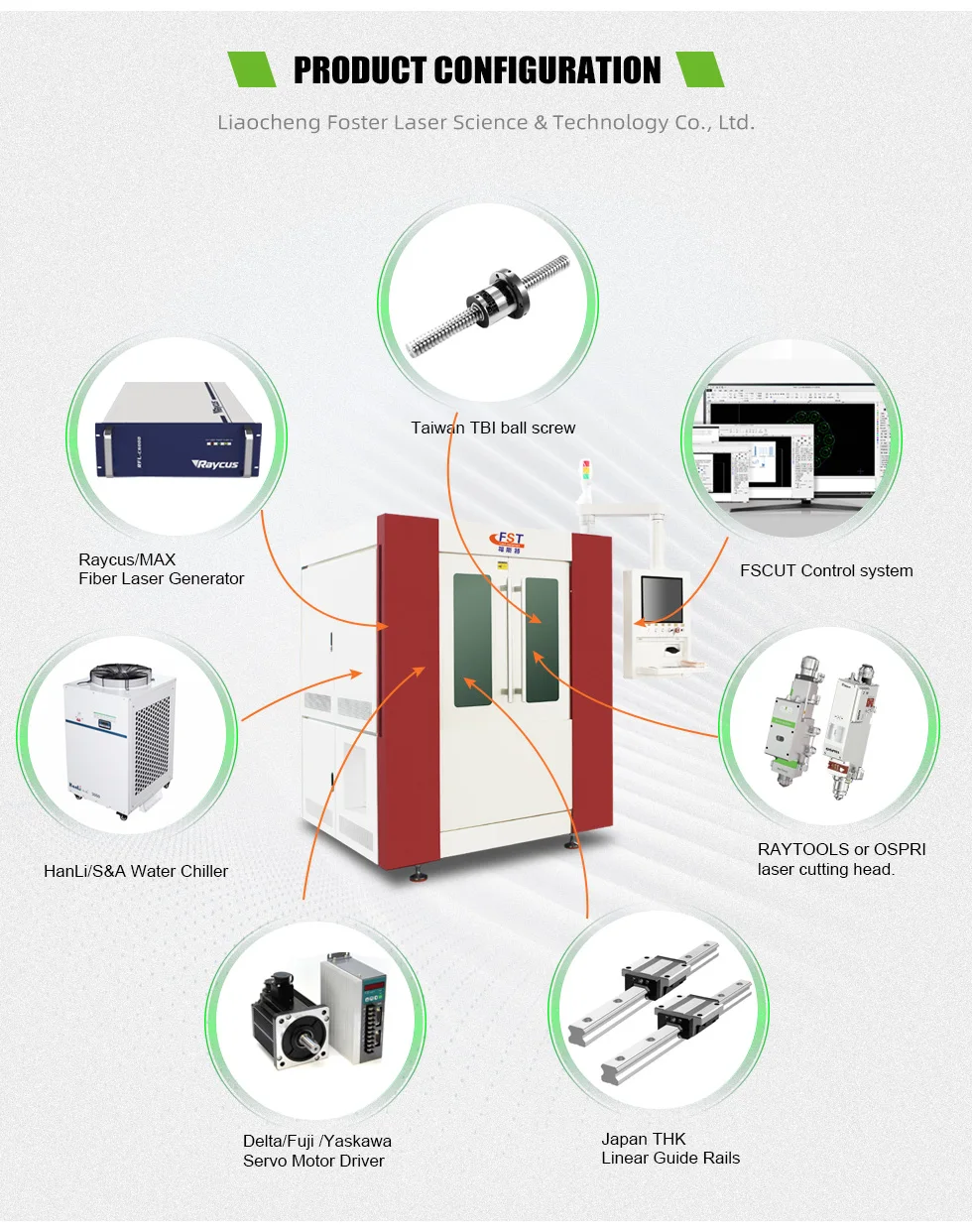

Main Configuration
Detail display

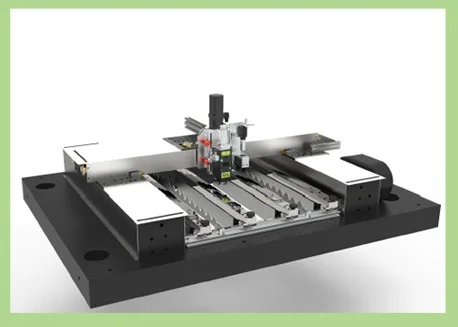

1、MARBLE COUNTERTOP

>>The main body of the equipment has good overall rigidity and high strength. >>The base is made of marble,and the beam is made of extruded aluminum profiles, which have good acceleration performance and effectively prevent structural deformation.

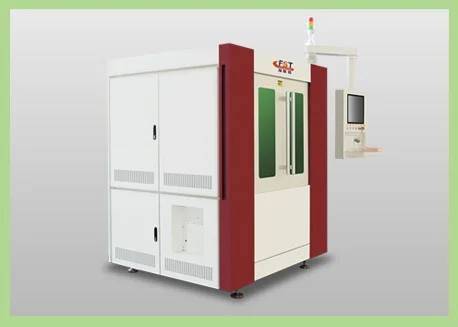

2、FULLY ENCLOSED STRUCTURE

>>With a fully enclosed design. dust-proof and moisture-proof, small footprint. >>The observation window adopts an European CE Standard laser protective glass. >>The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly


3、SPECIAL FIXTURE (OPTIONAL)

>>Customized fixtures, suitable for various industries.
>>The clamp has a strong clamping force and the metal plate is not easy to
loosen,High precision cutting of thin plates.

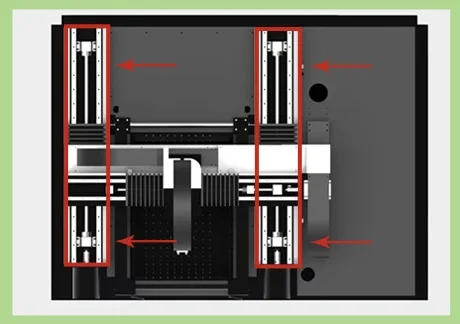

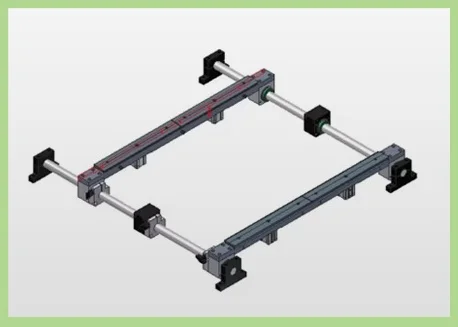

4、DUAL RAIL AND DRIVER DESIGN

>>To prevent the cutting line deformation caused by the y-axis screw bending,the y-axis on both sides have been equipped two rails guide and double ball drive screw design to ensure the straightness and arc degree when with high-speed cutting is in operation

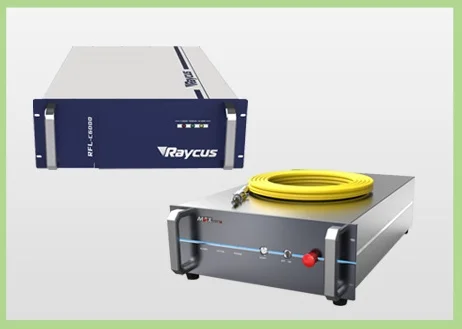

5、LASER SOURCE

>>Professional cutting laser source.With high-quality beam quality.high light conversion efficiency,the light emitting mode is more conducive to achieving a good and stable cutting effect with high quality.

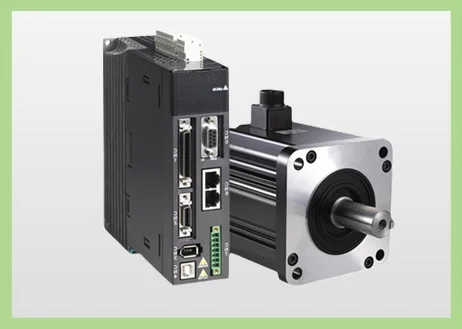

6、SERVO MOTOR


>>Servo motors stabilise and drive the beam to control the movement of the XYZ axis according to the programmed instructions to complete the cutting operations with complex precision, and the user can adjust the parameters according to their needs.

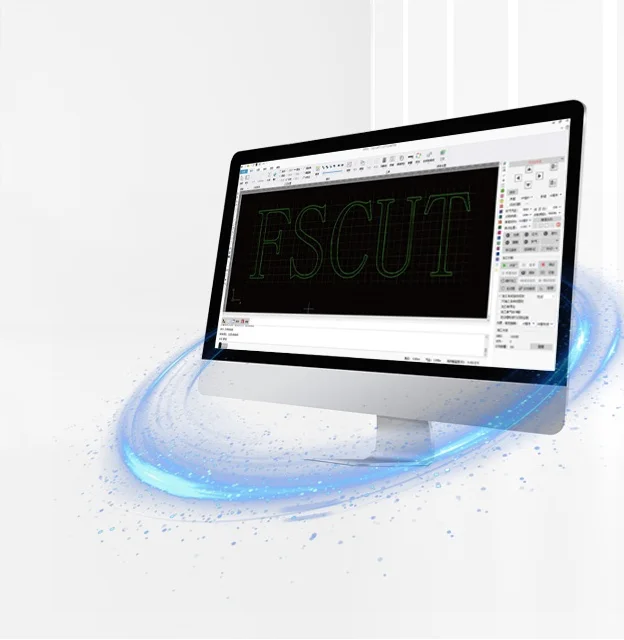

cypcut
Sheet Cutting Software

CypCut sheet cutting software is an in-depth design for fiber laser cutting industry. it simplifies complex CNC machine operation and integrates CAD, Nest and CAM modules in one. From drawing, nesting to workpiece cutting all can be finished by a few clicks.
1.Auto Optimize imported Drawing
2.Graphical Cutting Technique Setting
3.Flexible Production Mode
4.Statistic of Production
5.Precise Edge Finding
6.Dual-Drive Error Offset
Application Industry

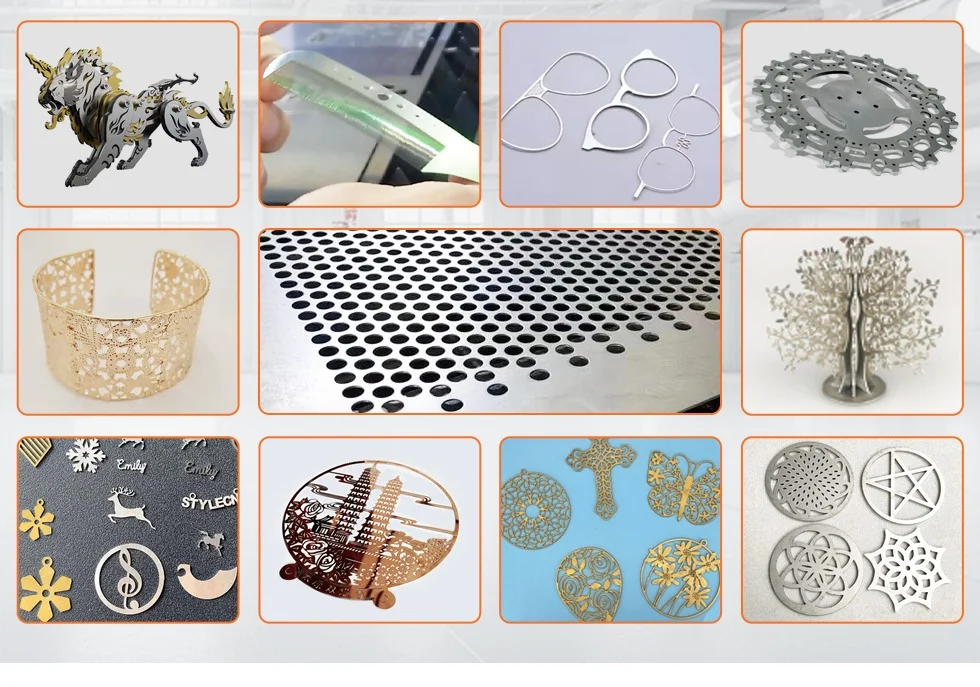

Application Materials:
This machine is optimized for high-precision cutting on all types of metals, including: Gold, sliver,stainless Steel & Carbon Steel Aluminum and Aluminum Alloys, Titanium & Titanium Alloys, Galvanized & Zinc-coated Steel, Copper and Brass

Application industries:
This precision laser metal cutting machine is specially designed for industries that demand fine detail
and high accuracy. It's ideal for:

Optics & Eyewear: Accurate cutting of delicate metal components used in eyewear frames. Electronics & Microelectronics: Suitable
for small, intricate parts required in microelectronics and semiconductor production. Appliances & Hardware: Ideal for decorative
and functional small metal components. jewelry & Accessories: Perfect for creating detailed jewelry designs, logos, metal letters,
and other small personalized items. Precision Machinery: ideal for intricate, small parts needed in fine mechanical and industrial
applications. DlY & small Workshops: Compact size makes it a top choice for small factories, workshops, and home-based businesses.

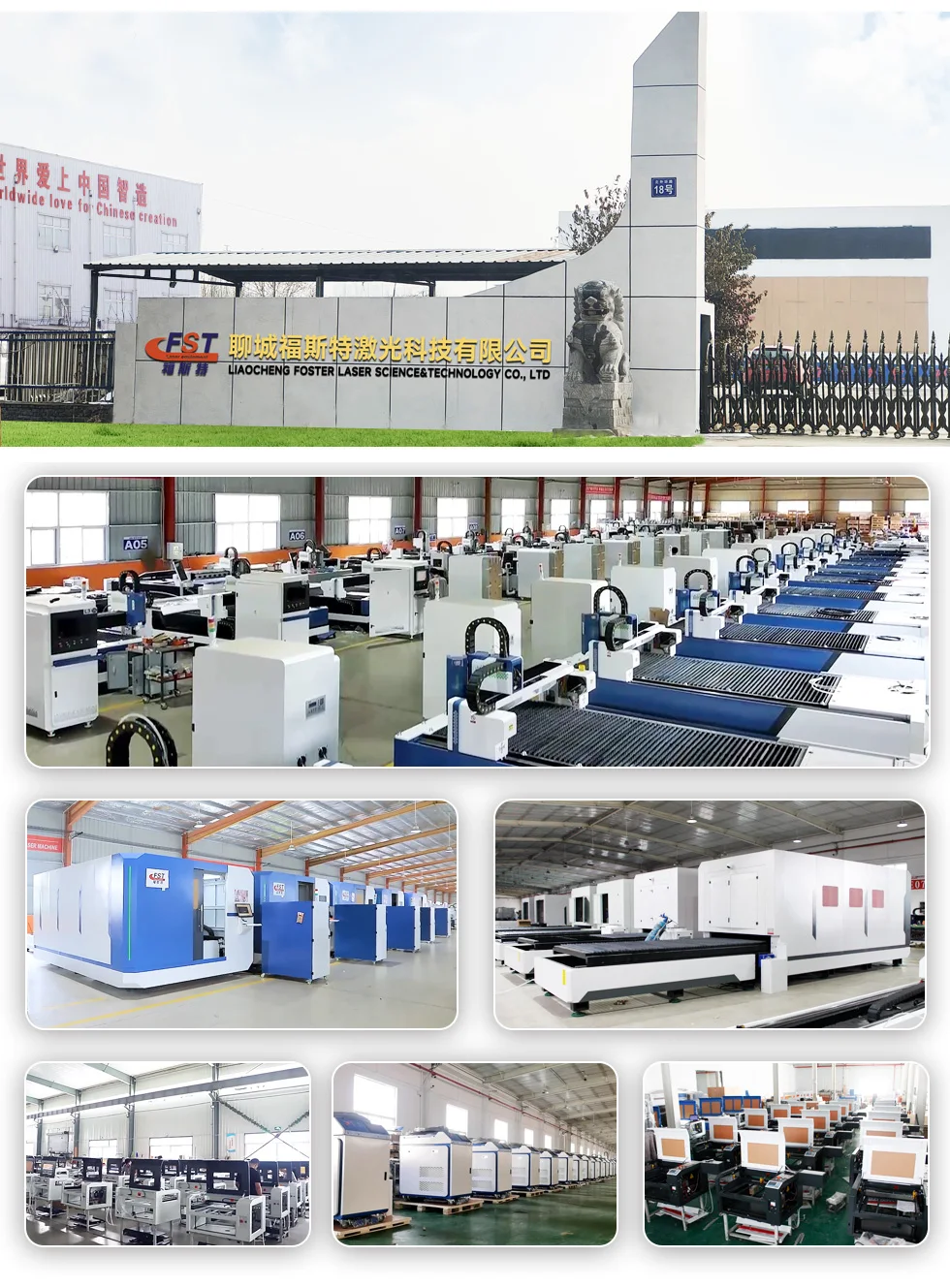

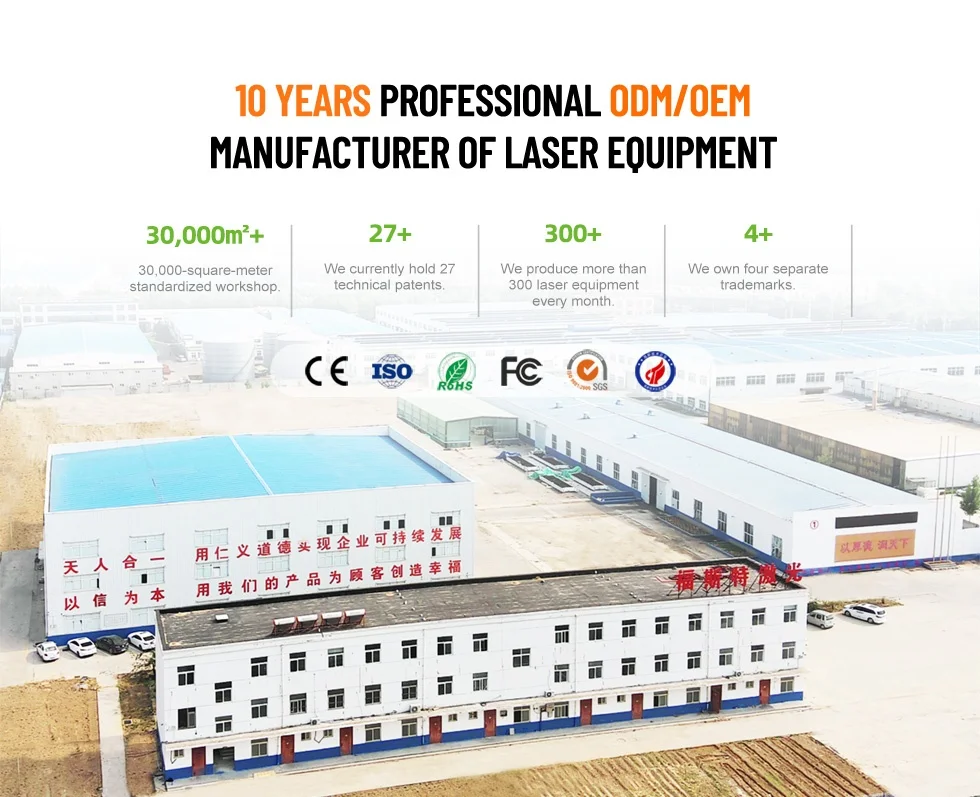

Company Profile

Liaocheng Foster Laser Science & Technology Co., Ltd

Liaocheng Foster Laser Science & Technology Co., Ltd. A professional manufacturer dedicated to there search and production of laser equipment, covers an area of over 10000 square meters. We mainly produce laser engraving machines, laser marking machines, laser cutting machines, laser welding machines, laser cleaning machines.

Since its establishment in 2004, Foster Laser has always adhered to the Customer centric . By 2023.Foster laser equipment has been exported to more than 100 countries and regions, including the United States, Brazil, Mexico, Australia, Turkey, and South Korea, winning the trust and support of customers. The company's products have CE, ROHS and other test certificates, a number of application technology patents, and provides OEM services for many manufacturers

Foster Laser is equipped with a professional R&D team, sales team, and after-sales team, which can provide you with a perfect purchasing and usage experience. The company can customize products,logos, exterior colors, etc. according to demand. Meet your customization needs.
Foster Laser, looking forward to your visit.
OUR CERTIFICATE
FAQ
1.How can l choose the most suitable machine? In order to recommend you the most suitable machine model, please let us know the following details:
1.What is your material? 2.The size of material? 3.The thickness of material?

2.When l get this machine, how do l use it? We will send operation video and manual for the machine. Our engineer will do training online.If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.

3.If some problems happen to this machine, what should l do? We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage).After the warranty, we still provide whole lifetime service. So any doubts, just let us know,we will give you solutions.

4.What is the payment terms? The payment terms we accept include:Western Union,T/T,VISA,Online Bank Payment.

5.How about the shipping ways? Transport by sea is the normal way,If special requirement,need to be final confirmed on both sides.
