1500W Metal 3015 3000W CNC Plate Metal Sheet Fiber Laser Cutting Machine for Carbon Stainless Steel

(18 Lượt)

Công ty TNHH Khoa học và Công nghệ Laser Liêu Thành Foster

Nhà sản xuất, chế tạo • 1 năm

Giá

275,000,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

1500W Metal 3015 3000W CNC Plate Metal Sheet Fiber Laser Cutting Machine for Carbon Stainless Steel

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

1500W Metal 3015 3000W CNC Plate Metal Sheet Fiber Laser Cutting Machine for Carbon Stainless Steel

Nhà cung cấp

Công ty TNHH Khoa học và Công nghệ Laser Liêu Thành Foster

Thông tin nha cung cấp của bạn

Công ty TNHH Khoa học và Công nghệ Laser Liêu Thành Foster

1 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

PRODUCT INTRODUCTION

NEW UPGRADE

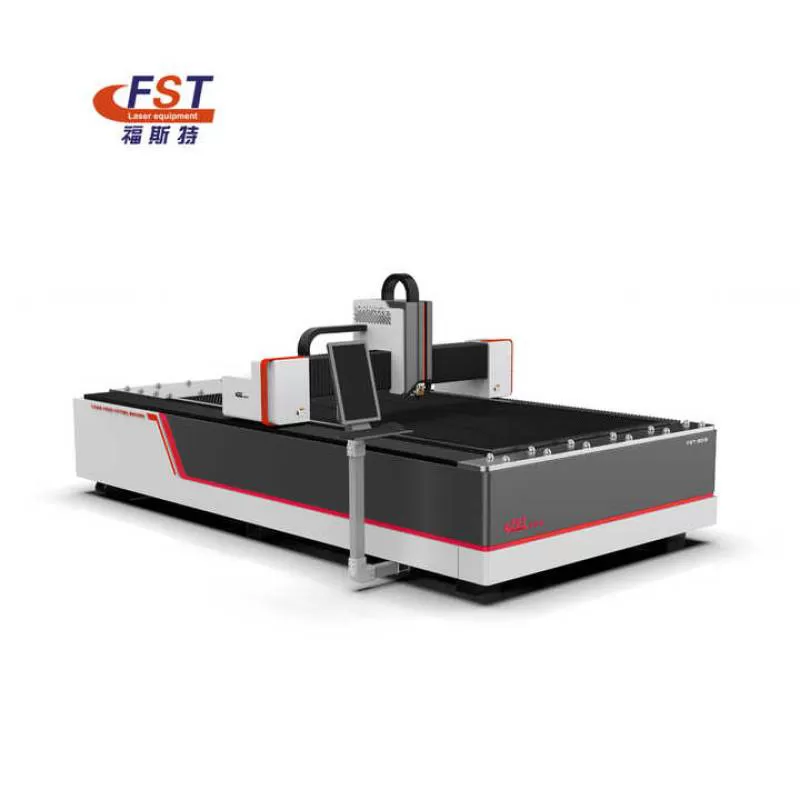

3015 FIBER LASER CUTTING MACHINE

This fiber laser cutting machine optimized structure design, reduce the space proportion, minimize transportation costs, single platform open structure, multi-direction loading, high stability, fast speed Long-term cutting without deformation, ensure stable operation of the equipment. Large diameter duct design. independent control, subsection dust removal, improve smoke and heat exhaust effect, energy saving and environmental protection.

Product Features

1.SIZE UPGRADE Under the premise of not affecting the performance of the machine, the product structure is optimized and the space proportion is reduced, The container can accommodate six machines at the same time, saving transportation costs.

2.HIGH EFFICIENCY PRODUCTION Utilizes advanced fiber laser technology for rapid cutting speeds and efficient production capabilities.

3.FLEXIBLE PROCESSING Equipped with an automatic exchange table system for continuous processing, enhancing productivity and supporting rapid cutting of multiple materials.

4.ASSEMBLED DELIVERY Without disassembly, it can be directly loaded into the container. it greatly shortens the installation and debugging time of customers, and facilitates the use experience of customers.

5.INTELLIGENT OPERATION User-friendly interface and intelligent control system make operation simple and easy to master.

6.ENERGY-SAVING AND ENVIRONMENTALLY FRIENDLY Fiber laser technology eliminates the need for chemical agents, resulting in no emissions of exhaust gases or wastewater, meeting environmental requirements.

7.DURABLE AND STABLE Robust structure and high stability ensure long-term continuous operation with minimal risk of failure, extending the equipment's lifespan and reliability.

8.WIDE APPLICATION Ideal for cutting metal materials such as steel, aluminum, and copper, widely used in industries including mechanical manufacturing,automotive parts,and electronics.

PRODUCT PARAMETER

Model	FST-Newly designed laser cutting machine
Control System	CypOne/CypCut-Friendess
Drives and Motors	Japan Fuji Servo Motor System
Fiber Laser Head	Raytools Laser Head
Fiber Source	Raycus or Max or IPG
Lubrication System	Electrical Motored
Guide Rails	Taiwan HIWIN Rails
Rack and Gear	Taiwan YYC Rack
Driver system power	X-0.75/1.3KW,4-0.75/1.3KW,Z-400W
Reducer	Japan SHIMPO
Electron Component	DELIXI ELECTRIC
Chiller	HanLi /S&A
Machine Size	450021801340mm
Machine Size Voltage	220V 1Ph or 380V 3Ph,50/60Hz

Product Details

Application Industry

Company and Factory

Liaocheng Foster Laser Science & Technology Co.,Ltd.

Liaocheng foster Laser Science & Technology Co., Ltd. A professional manufacturer dedicated to the research and production of laser equipment, covers an area of over 10000 square meters. We mainly produce laser engraving machines, laser marking machines, laser cutting machines, laser welding machines, laser cleaning machines.

Since its establishment in 2004, foster Laser has always adhered to the Customer centric . By 2023,Foster laser equipment has been exported to more than 100 countries and regions, including the United States, Brazil, Mexico, Australia, Turkey, and South Korea, winning the trust and support of customers. The company's products have CE, ROHS and other test certificates, a number of application technology patents, and provides OEM services for many manufacturers.

Foster Laser is equipped with a professional R&D team, sales team, and after-sales team, which can provide you with a perfect purchasing and usage experience. The company can customize products logos, exterior colors, etc. according to demand. Meet your customization needs.

Foster Laser, looking forward to your visit.

Product Packaging

FAQ

Q/How can lchoose the most suitable machine? A/In order to recommend you the most suitable machine model, please let us know the following details: 1.What is your material? 2.The size of material? 3.The thickness of material?

Q/When l get this machine, how do l use it? A/W'e will send operation video and manual for the machine. Our engineer will do training online.if needed, we can send our engineer to your site for training or you can send the operator to our factory for training.

Q/If some problems happen to this machine, what should l do? A/We provide two year's machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage).After the warranty, we still provide whole lifetime service. So any doubts, just let us know,we will give you solutions.

Q/What is the payment terms? A/The payment terms we accept include:Western Union,T/T,VlSA,Online Bank Payment.

Q/How about the shipping ways? A/Transport by sea is the normal way;lf special requirement,need to be final confirmed on both sides.
