PRODUCT INTRODUCTION

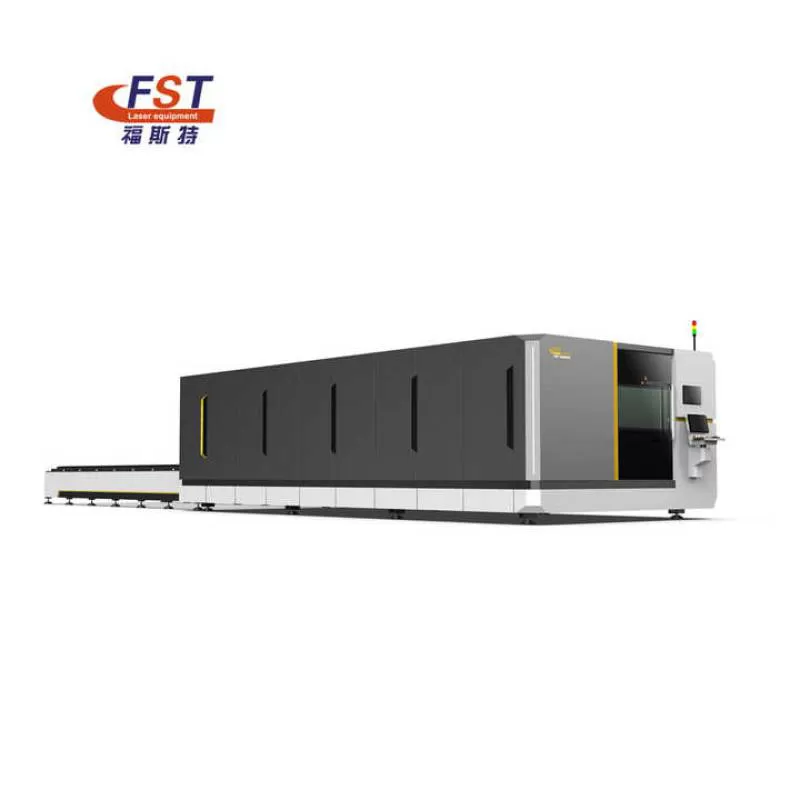

3015 Full Enclosed laser Cutting Machine

is a fully enclosed metal sheet fiber laser cutting machine with exchange platform, Equipped with fiber laser source of power from 1.5kw to 30kw, it is able to cut up to 25mm metal sheet And the working area is from 3000mm*1500mm to 6000mmx2500mm.

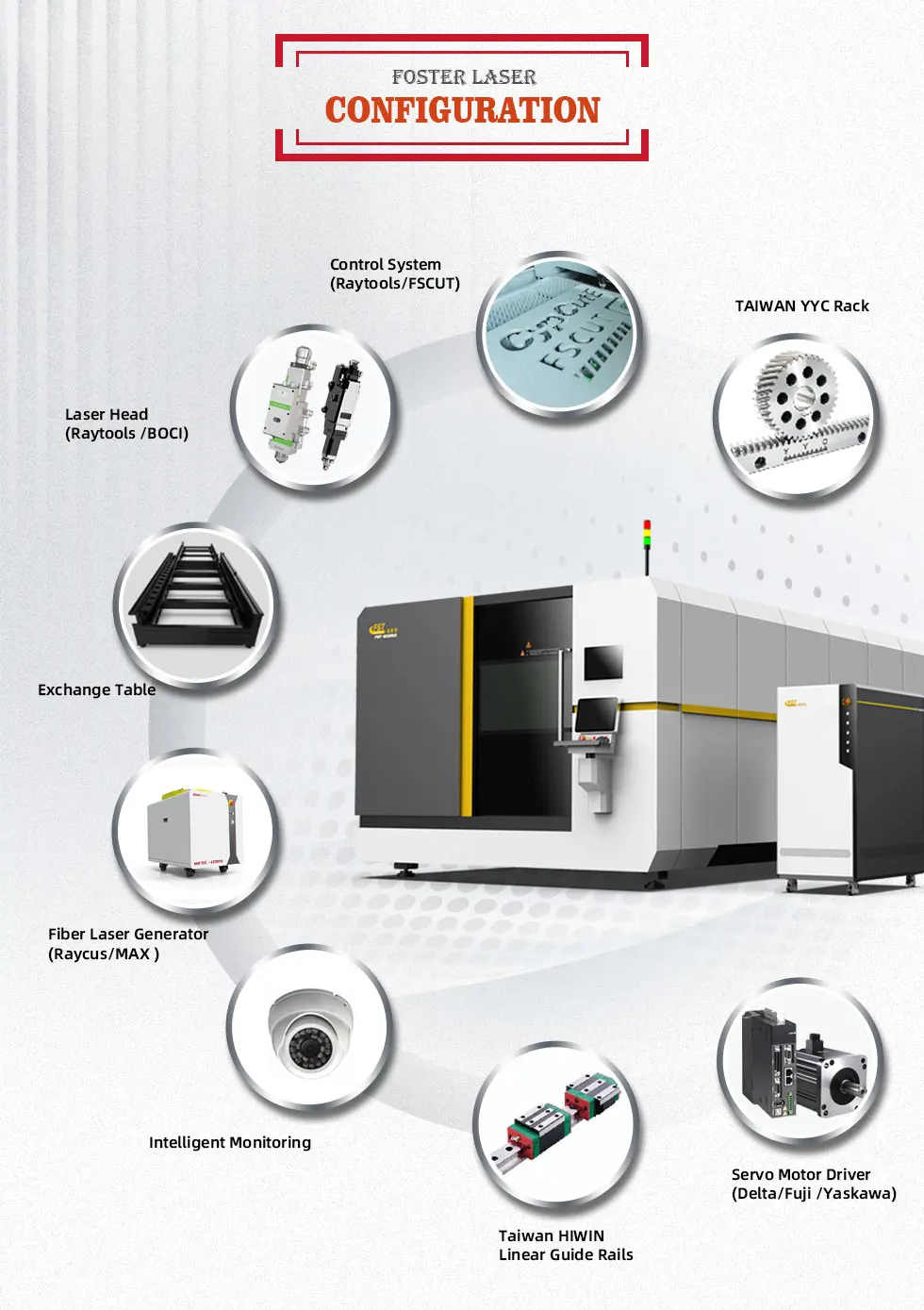

The fully-protected closed design ensures the safety of processing.It has the advantages of fast cutting speed, good cutting effect,low operating cost, and good stable processing ability.This cnc laser cutter is equipped with an international mainstream transmission drive system, new generation of welding machine bed and aluminum beams, new designed air circuit control module,new optimized control system and etc.. The laser cutting machine is equipped with a new advanced fiber laser and laser cutting head,with superior comprehensive performance.

Product Features

1/UPGRADED MECHANICAL STRUCTURE Ultra light aluminum crossbeam, produced using 10000 ton extrusion technology to create aluminum crossbeams, Fire resistant, high temperature resistant, and excellent operational stability.

2/HIGH-PRECISION TRANSMISSION SYSTEM The machine adopts a servo double-drive gantry structure, rack guide rail transmission, and the machine tool transmission system parts are imported brands to ensure the equipment's long-term high-speed cutting accuracy

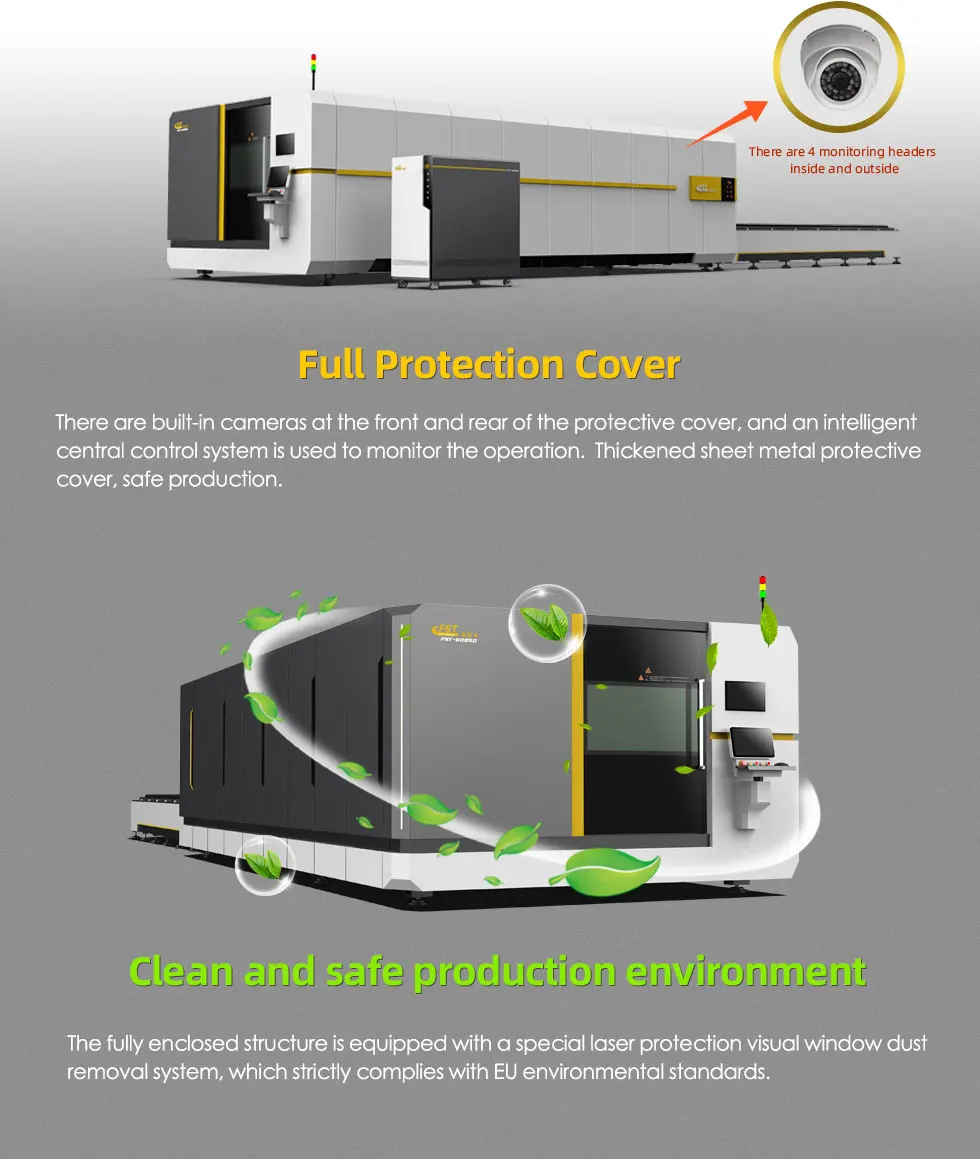

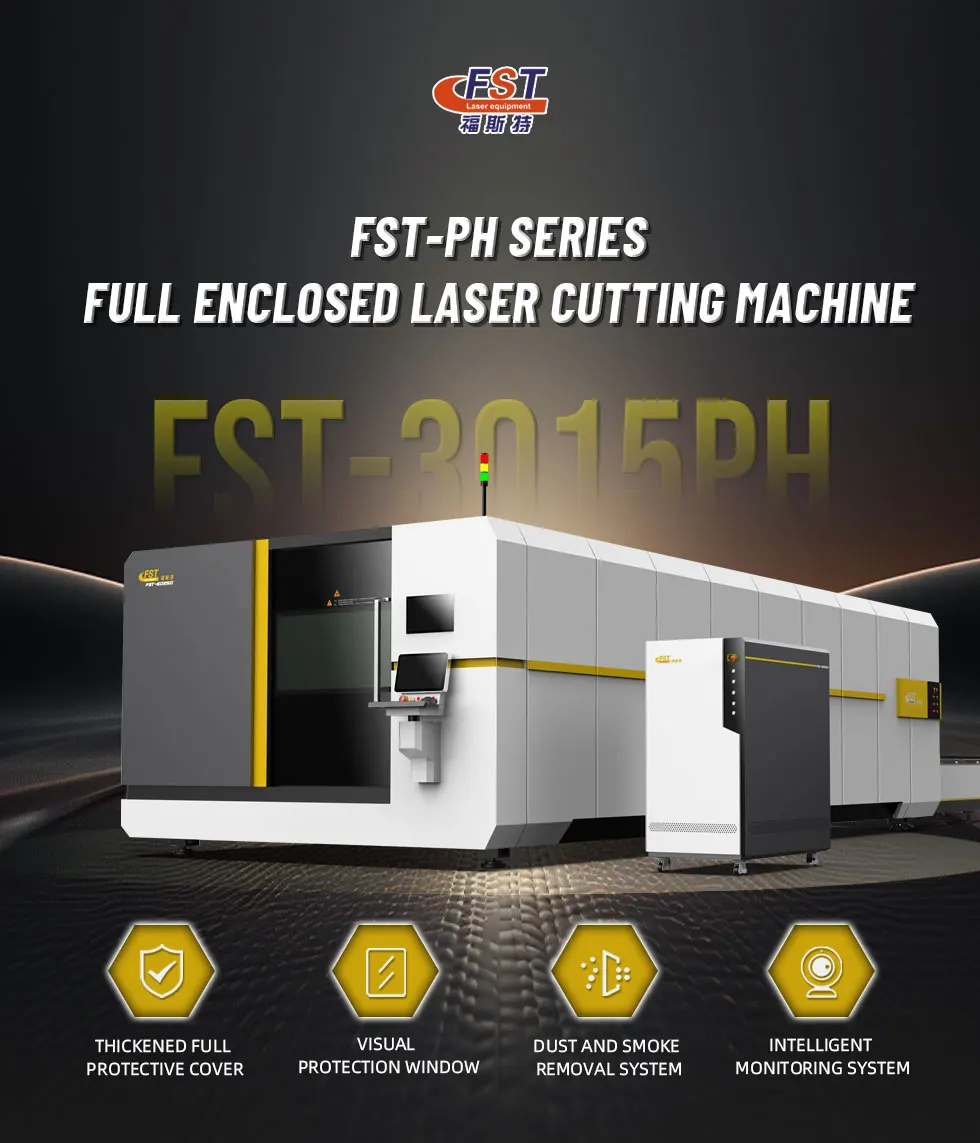

3/SAFETY AND NO POLLUTION Fully enclosed structure with special laser protection visual window, the smoke generated by cutting can be quickly eliminated,environmentally friendly and pollution-free

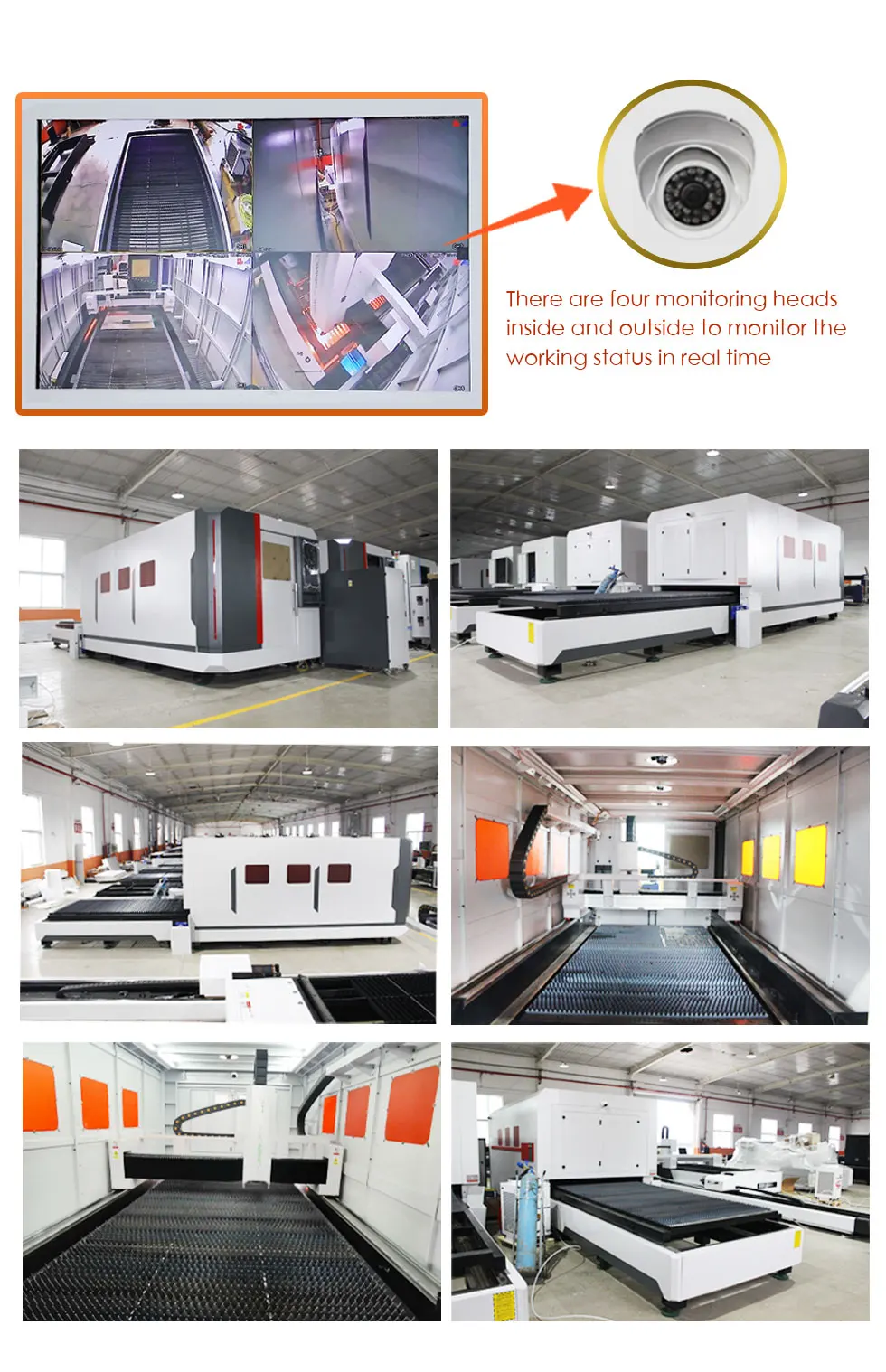

4/MONITORED CONTROL SYSTEM During the processing, each area can be monitored at any time and the process can be controlled

5/AUTOMATIC FOCUSING CUTTING HEAD Automatic focus adjustment, suitable for planting focal length: Non sensory perforation, flexible cutting High cutting efficiency, real-time monitoring of status, and only early warning of faults

6/EFFICIENT CUTTING The dual exchange platform adopts a heavy-duty plate welded bed body to meet the load-bearing requirements of thick plates, realizing synchronous cutting operations for loading and unloading, greatly improving cutting efficiency

Product Paramenters

Model	FST-3015PH(1560/2060/2560)

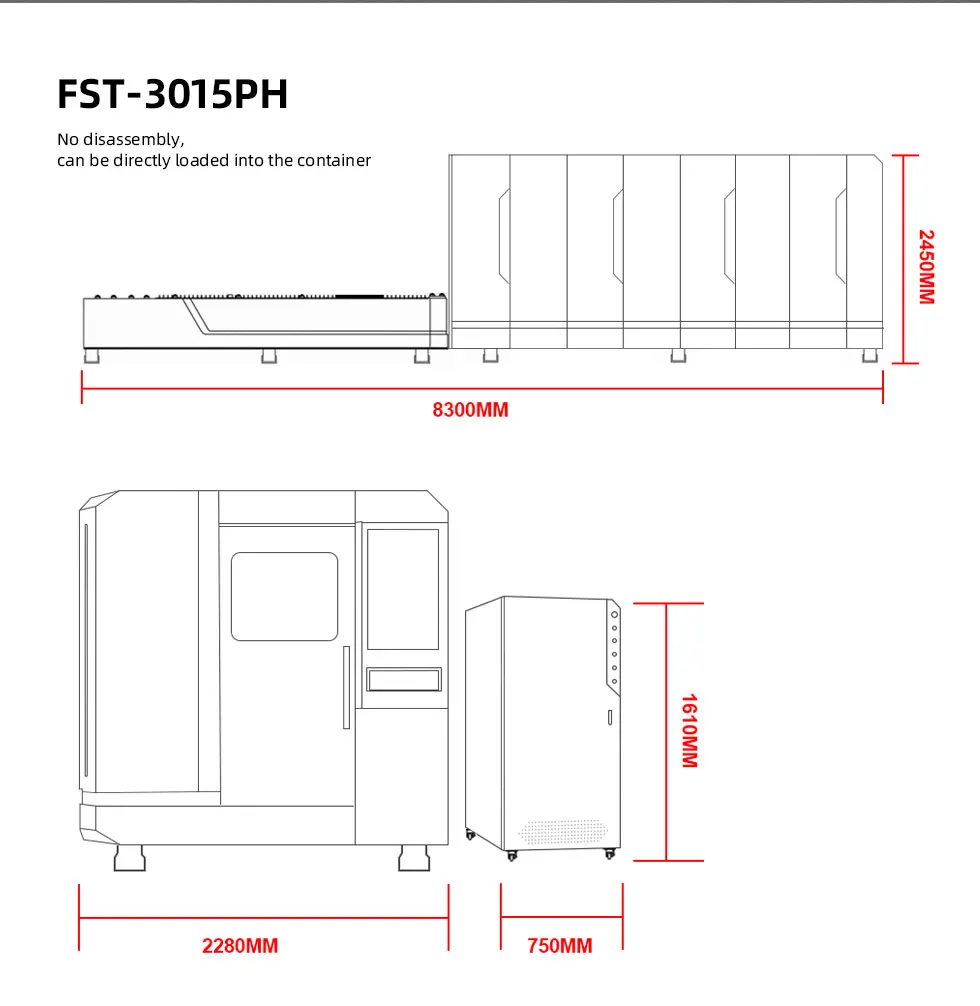

Working Area	15003000/15006000/20006000/25006000(mm)
Laser Power	1500W/2000W/3000W/6000W/12000W/15000W/20000w etc.
Cooling Method	Water cooling protection
Positioning Accuracy	±0.01mm
Maximum Acceleration	1G-2G
Compatible Software	CorelDraw/AutoCAD/Photoshop/Al etc.
Working Voltage	220V/380V
Laser source	RayCuS/MAX/IPG/RECI
Transmission System	Dual Rack & Pinion Type
Ambient Temperature	0-45℃
Maximum Empty Line speed	110m/min

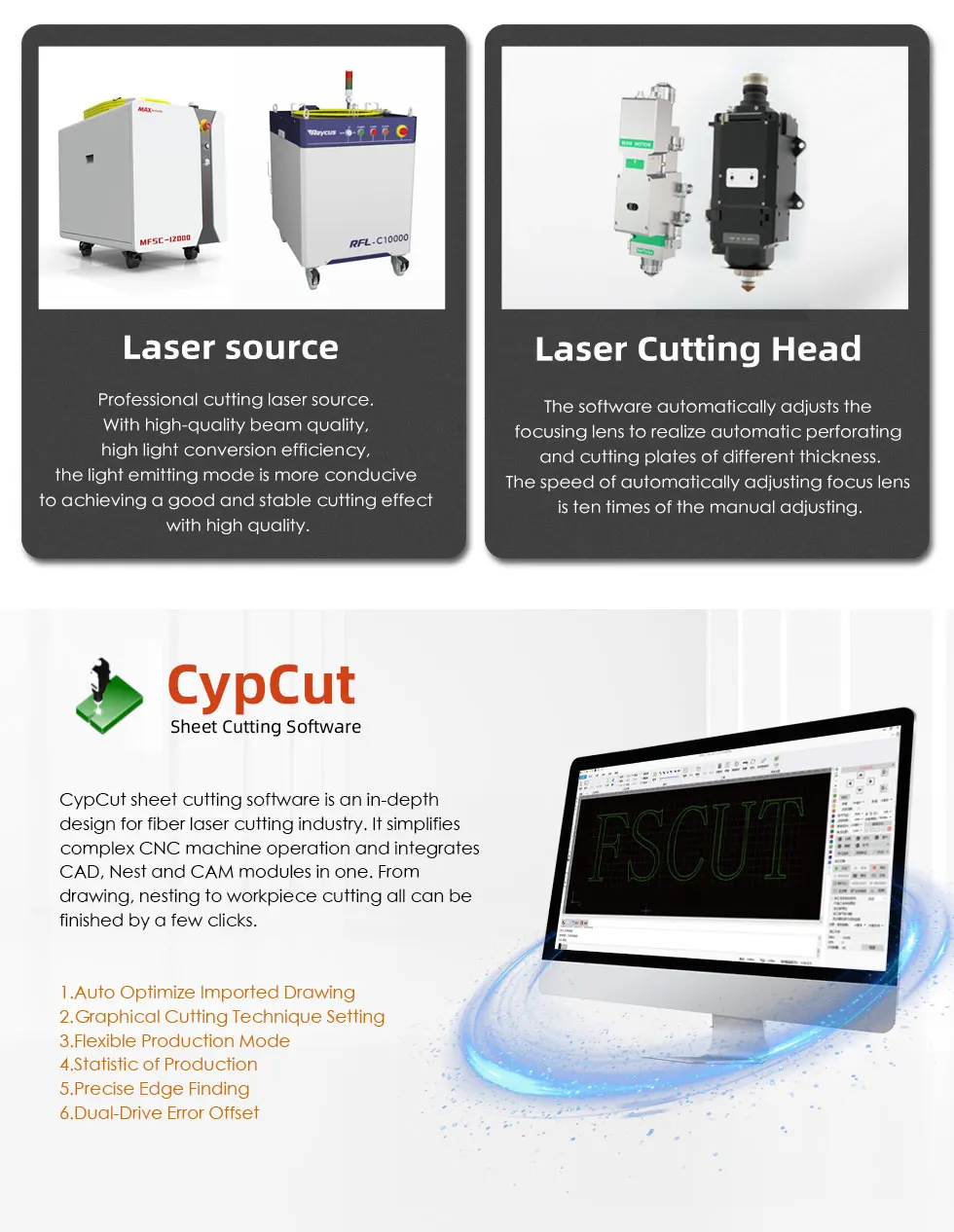

Cutting system	Cypcut/Raytools

PRODUCT DETAILS

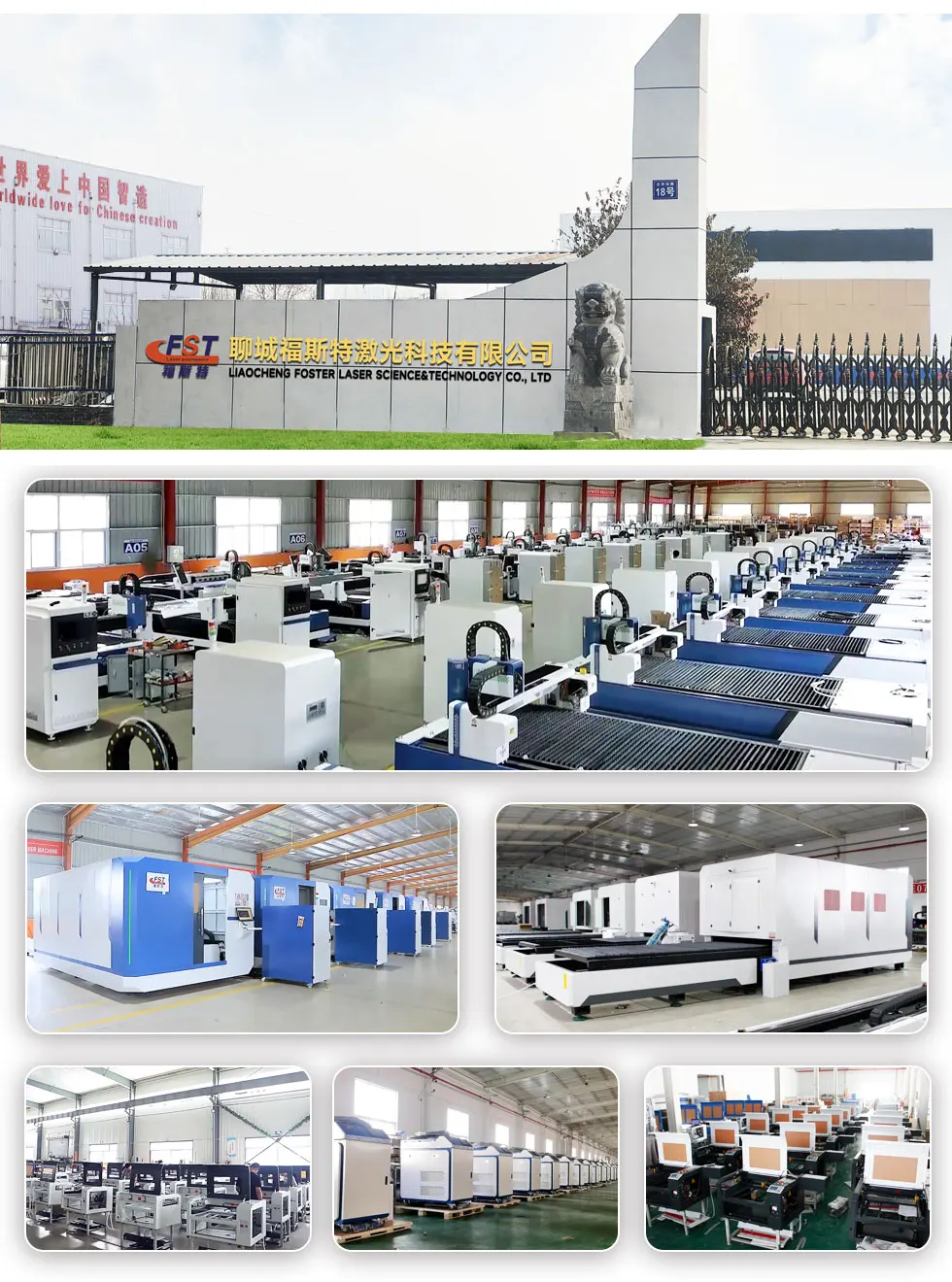

Company and Factory

Liaocheng Foster Laser Science & Technology Co., Ltd.

Liaocheng foster Laser Science & Technology Co., Ltd. A professional manufacturer dedicated to there search and production of laser equipment, covers an area of over 10000 square meters. We mainly produce laser engraving machines, laser marking machines, laser cutting machines, laser welding machines, laser cleaning machines

Since its establishment in 2004, Foster Laser has always adhered to the Customer centric . By 2023.Foster laser equipment has been exported to more than 100 countries and regions, including the United States, Brazil, Mexico, Australia, Turkey, and South Korea, winning the trust and support of customers. The company's products have CE, ROHS and other test certificates, a number of application technology patents, and provides OEM services for many manufacturers.

Foster Laser is equipped with a professional R&D team, sales team, and after-sales team, which can provide you with a perfect purchasing and usage experience. The company can customize products logos, exterior colors, etc. according to demand. Meet your customization needs.

Foster Laser, looking forward to your visit.

Product Packaging

FAQ

How can l choose the most suitable machine?

In order to recommend you the most suitable machine model, please let us know the following

details: 1.What is your material? 2.The size of material? 3.The thickness of material?

When l get this machine, how do l use it?

We will send operation video and manual for the machine. Our engineer will do training online lf needed, we can send our engineer to your site for training or you can send the operator to our factory for training.

If some problems happen to this machine, what should l do?

We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage).After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.

What is the payment terms?

The payment terms we accept include:Western Union,T/T,VISA,Online Bank Payment.

How about the shipping ways?

Transport by sea is the normal way;lf special requirement,need to be final confirmed on both sides.
