Constant Airflow EC Fans Heat Recovery Ventilator EPP Casing Home Use Hrv Ventilation Vent

(15 Lượt)

Guangzhou Airwoods Environment Technology Co., Ltd.

Nhà sản xuất, chế tạo • 1 năm

Giá

27,700,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

Constant Airflow EC Fans Heat Recovery Ventilator EPP Casing Home Use Hrv Ventilation Vent

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

Constant Airflow EC Fans Heat Recovery Ventilator EPP Casing Home Use Hrv Ventilation Vent

Nhà cung cấp

Guangzhou Airwoods Environment Technology Co., Ltd.

Thông tin nha cung cấp của bạn

Guangzhou Airwoods Environment Technology Co., Ltd.

1 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

High-Efficiency Counterflow Exchangers Pm2.5 Purification Ventilation Price Energy Heat Recovery Air Exchanger Ventilator

Product Description

Top port, compact unit. Ideally suited for tight installations.

Top Ported, compact design
Control included with 4-mode operation
Top air outlets/outlets
EPP inner struction
Counterflow heat exchanger
Heat recovery efficiency up to 95%
EC fan
Bypass function
Machine body control + remote control
Left or right type optnal for installation

Product SpecificationsforTop Port Vertical Heat Recovery Ventilator

Model		CFA 250T	CFA 350T	CFA 500T
HRV	Housing material	sprayed sheet metal
	Internal structure	EPP
	Heat exchanger	Polystyrene
	Fan motor	EC
	Filter grade	G4 or optional F7
	Control Panel	Two screen control, buttons + indica tor light/digital tube
	Bypass	100% auto bypass
Working condition	Standard	-10~40°C
	Equipped with pipeline heater	-20 to 40°C
Pipe connection	pipe diameter	Φ160mm		Φ200mm
Electrical	Power supply	230V 50Hz 1Ph
	Max. power	170W	320W	480W
	Max. current	1.5A	2.4A	3.2A

Product SizeforTop Port Vertical Heat Recovery Ventilator

Heat exchanger forTop Port Vertical Heat Recovery Ventilator

ControllerforTop Port Vertical Heat Recovery Ventilator

WIFI control function is coming soon!

Installation Guide of Comfort Fresh Air HRV

Certification of Comfort Fresh Air HRV

HoltopproductsstandforTOPqualityinheatrecoveryventilationfiledinChina,certificatedbyCE, LVD, EMD,RoHs, UKCA, ERP, etc.

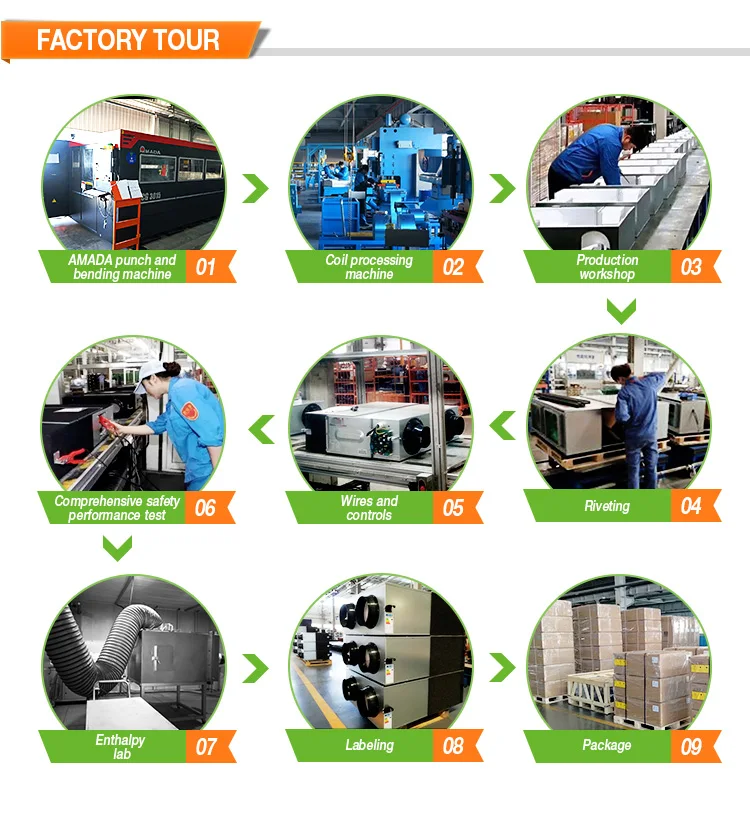

Holtop Factory

Holtop is the leading manufacturer in China specializing in the production of air to air heat recovery equipments.It is dedicated to theresearch and technology development in the field of heat recovery ventilation and energy saving air handling equipmentssince 2002.The main productsincludesenergy recovery ventilator ERV/HRV, air heat exchanger,air handling unit AHU, air purification system. Besides, Holtopprofessional project solution team canalso offercustomizedhvac solutions for different industry.

Holtop headquarters is located at the foot of Beijing Baiwangshan Mountain, covering area of30,000 square meters.The manufacturing base is inBeijing's Badaling Economic Development Zone, covering an area of60 acres,with anannual production capacity of 200,000 unitsof air heat recoveryequipments.
Holtop builds a sound certificate system ofISO9001, ISO14001 and OHSAS18001as well as product certification systems. Moreover, it hasalaboratory certified by national authority.As a well-known manufacturer in the field of heat recovery, Holtop has astrong R&D teamand possessesdozens of national invention patents, and participated in the compilation work of several national standards, Holtop was also elected as ZhongguancunHigh-Tech Enterprise.
