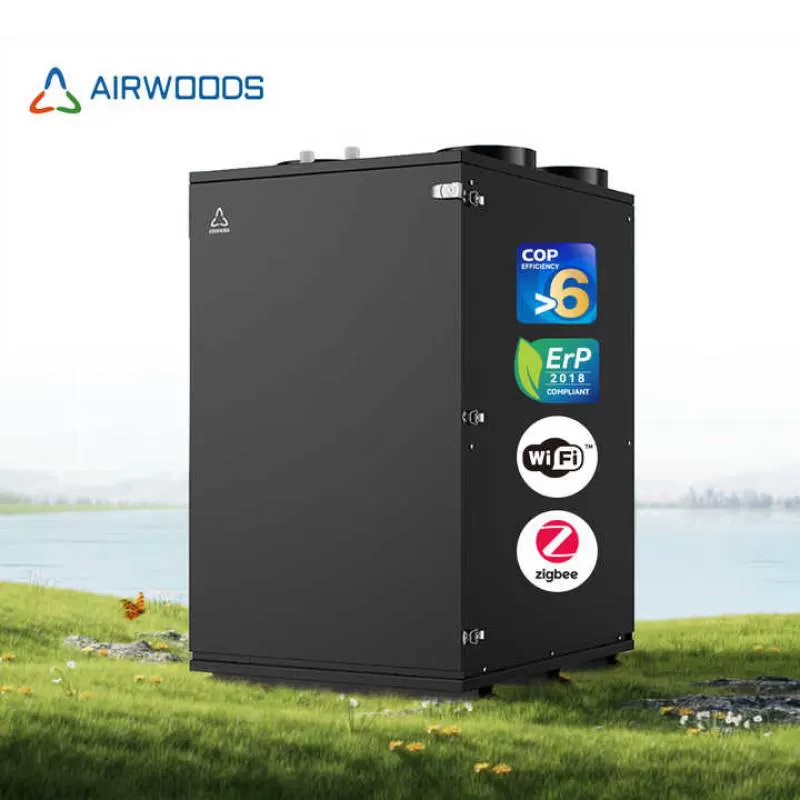

85% Heat Exchange Efficiency Ventilation System for House Air Heat Exchanger System

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

85% Heat Exchange Efficiency Ventilation System for House Air Heat Exchanger System

Nhà cung cấp

Guangzhou Airwoods Environment Technology Co., Ltd.

Thông tin nha cung cấp của bạn

Guangzhou Airwoods Environment Technology Co., Ltd.

1 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Product Description

A constant supply of fresh air in the indoor spaces in which we spend more than 70% of our time is vital to our health. Airwoods heat pump energy recovery ventilator (HPERV) is an innovative product that combines fresh air purification, heating/cooling, heat recovery, and dehumidification in one machine. It can provide you with comfortable and healthy indoor air while saving energy and money. It provides the ideal
solution for air tight buildings in which the windows often remain closed due to noise, dust particles and energy loss.

With a heatexchanger and heat pump system inside, Airwoods HPERV delivers clean and fresh air in a double energy recovery system. For example, 35˚C fresh air in summer time can be cooled to 23.5˚C, while
2˚C fresh air in the winter time can be heated to 35.5˚C. It can work as air conditioner in Autumn/ Spring or at night, when outdoor is 10-28˚C.
Besides, it can remove the excess humidity, prevent furniture mold build up and keep the indoor air at comfortable temperature and humidity.

Specification

Model			AV-HTPF35/EI32
Rated airflow			350CMH
Exhaust airflow (ventilation mode)			350CMH
Exhaust airflow (heating/cooling mode)			350CMH
External static pressure			100Pa
Noise			37/42
Power			220V 1P 50/60Hz
Dimension (L×W×H)			760×600×1000mm
Air inlet/outlet diameter			188mm
Air inlet/outlet height			60mm
Machine base height			61.5mm
Drainage pipe			1/2" inch
Refrigerant			R32
Operation temperature			-15~50℃
Ventilation mode	Temperature Effi. (heating)	76.5%
		Temperature Effi. (cooling)	72%
		Enthalpy Effi. (heating)	72.6%
		Enthalpy Effi. (cooling)	69.4%
		Input power	185W
		Input current	1.08A
Cooling/Heatin	Norminal cooling capacity	3798W
		Max cooling capacity	4173W
		Input power (cooling)	847W
		Operation current (cooling)	4.42A
		Norminal heating capacity	4604W
		Max heating capacity	4981W
		Input power (heating)	790W
		Operation current (heating)	3.82A

Product Details

Advantages Compared with Standard ERV
SUMMER CONDITIONS
No	Description	Temperature	Relative Humidity
1	Outside Temperature OA	35˚C	59.10%
2	Inside Temperature RA	27˚C	49.80%
3	Fresh Air (Standard Heat Recovery Units) SA	29.24˚C	55.48%
4	Fresh Air (Heat Pump Heat Recovery Units) SA	23.5˚C	72.11%
WINTER CONDITIONS
No	Description	Temperature	Relative Humidity
1	Outside Temperature OA	2˚C	83.84%
2	Inside Temperature RA	21˚C	39.16%
3	Fresh Air (Standard Heat Recovery Units) SA	15.68˚C 73.57%	73.57%
4	Fresh Air (Heat Pump Heat Recovery Units) SA	35.56˚C	17.87%

LCD Remote Control Panel

Optional C-POLAR Disinfection Filter

Factory

Certifications

Why Choose Us

Since 2007, Airwoods dedicated to provide comprehensive building air quality solutions for various applications. Its a brand for better air quality and better life products. AIRWOODS brand mainly focus on the marketing, sales and product development to meet different market demand. The main products include air purifier, air disinfection system, fresh air ventilator, energy recovery ventilator, heat pump type heat recovery ventilator, air heat exchanger, air handling unit, water chiller, heat pump, etc. Our products have exported to more than 100 countries, certified by SGS CE, CB, EPCS, etc. and earned a worldwide reputation for providing reliable products, knowledgeable application expertise and responsive support and services. We aim to deliver good building air quality to the world with energy efficient products, optimized solutions, cost-effective prices and great services to our customers.
