64 M3/h Airflow Two Ways Single Room Heat Recovery Ventilators

(10 Lượt)

Guangzhou Airwoods Environment Technology Co., Ltd.

Nhà sản xuất, chế tạo • 1 năm

Giá

2,875,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

64 M3/h Airflow Two Ways Single Room Heat Recovery Ventilators

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

64 M3/h Airflow Two Ways Single Room Heat Recovery Ventilators

Nhà cung cấp

Guangzhou Airwoods Environment Technology Co., Ltd.

Thông tin nha cung cấp của bạn

Guangzhou Airwoods Environment Technology Co., Ltd.

1 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Product Description

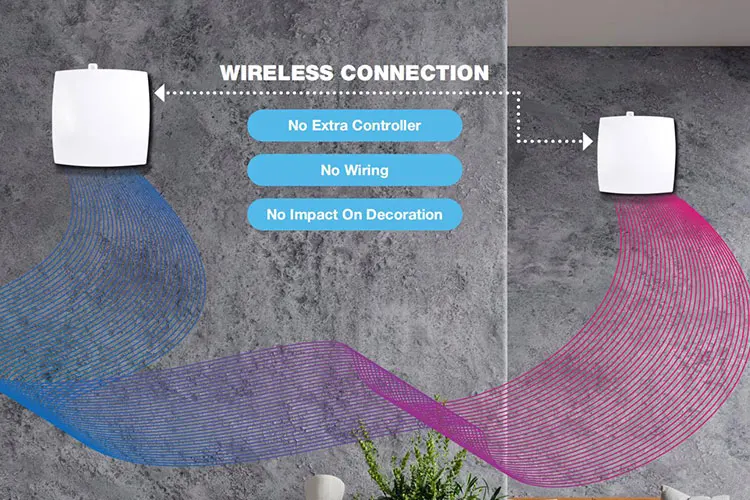

WIRELESS OPERATION INPAIR TO ENSURE BALANCED VENTILATION
Wireless connection of master and slave unit, no wiring or dialing needed, 30 meters ultra long distance transmission.
* 30 meters was tested without barrier and interference. In practical application, it is recommended to install within 8-15 meters. Please avoid the strong interference sources and shielding objects (e.g. iron frames, aluminum ceiling).

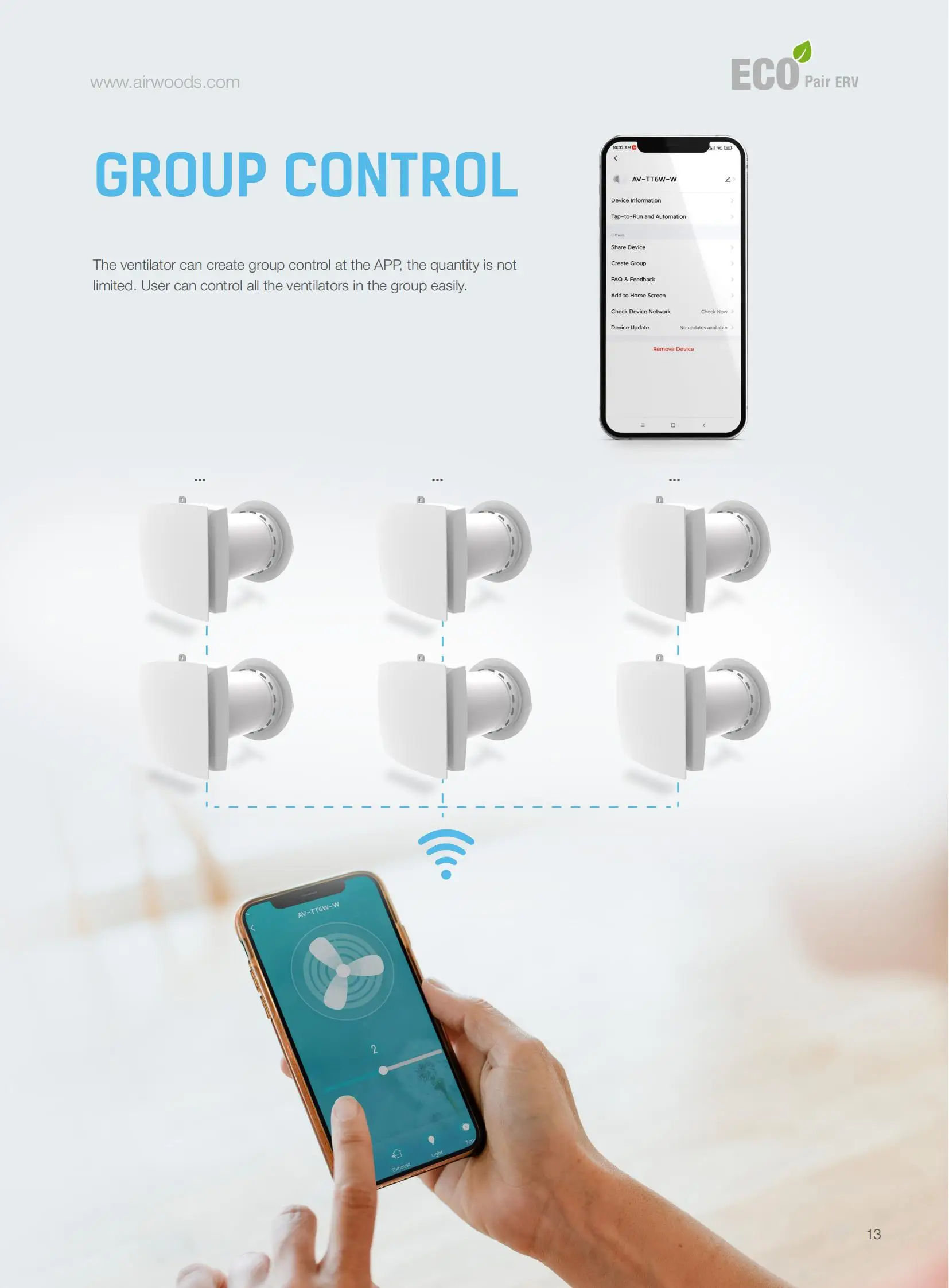

GROUP CONTROL
The ventilator can create group control at the APP, the quantity is not limited. User can control all the ventilators in the group easily.

WIFI FUNCTION
•On/off setting
• Fan speed control

• Working mode selection

• LED lights on/off

• 7*24 hours timer setting

• Error display

• Online/offline display

• Linkage status display

• Smart control according to local weather

• Linkage control with other appliances with Tuya IoT

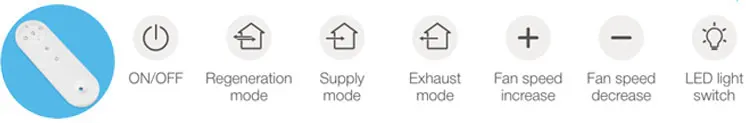

New Contorl Panel
•Using radio signal for communication.
•Longer distances communication up to 15m without barrier.
•Wider control area, multiple devices can be controlled at the same time.
•Accurate control to avoid controlling the wrong device.

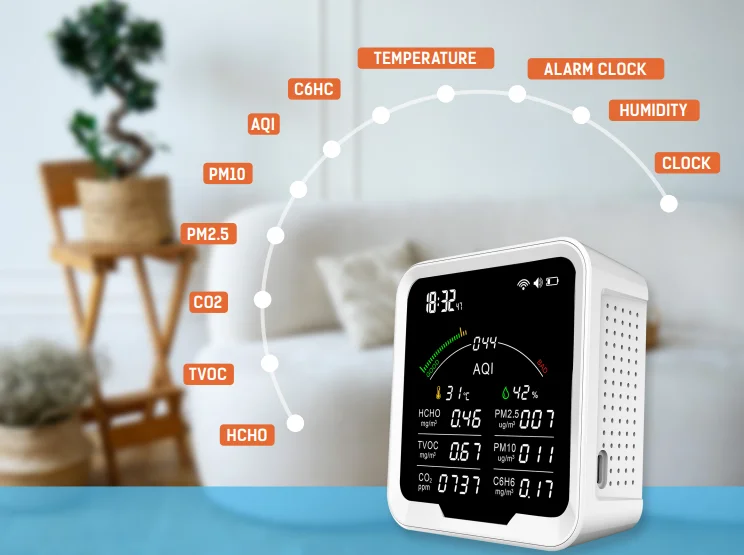

SMART AIR QUALITY DETECTOR

Track 6 air quality factors. Accurately detect the current CO2 concentration, temperature, humidity and PM2.5 in the air. Wifi function available, connect device with Tuya App and view the data in realtime. It can connect with Eco Pair ERV without wire, and control them according to the detected data to ensure air quality at any time. The operation functions can be designed according to the preference of users.

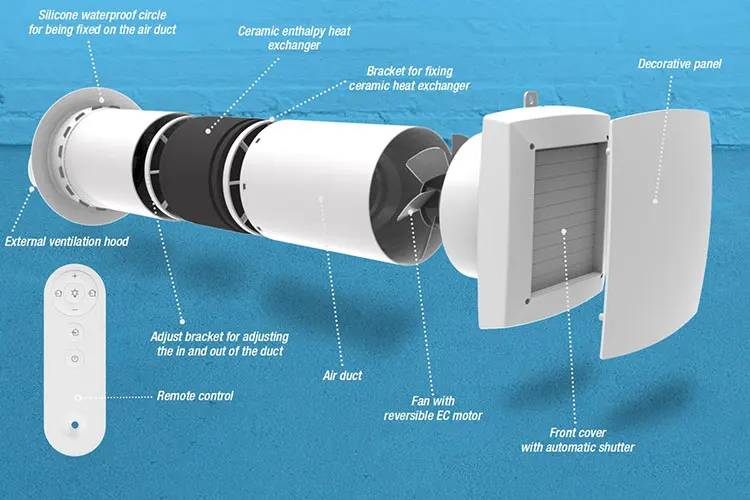

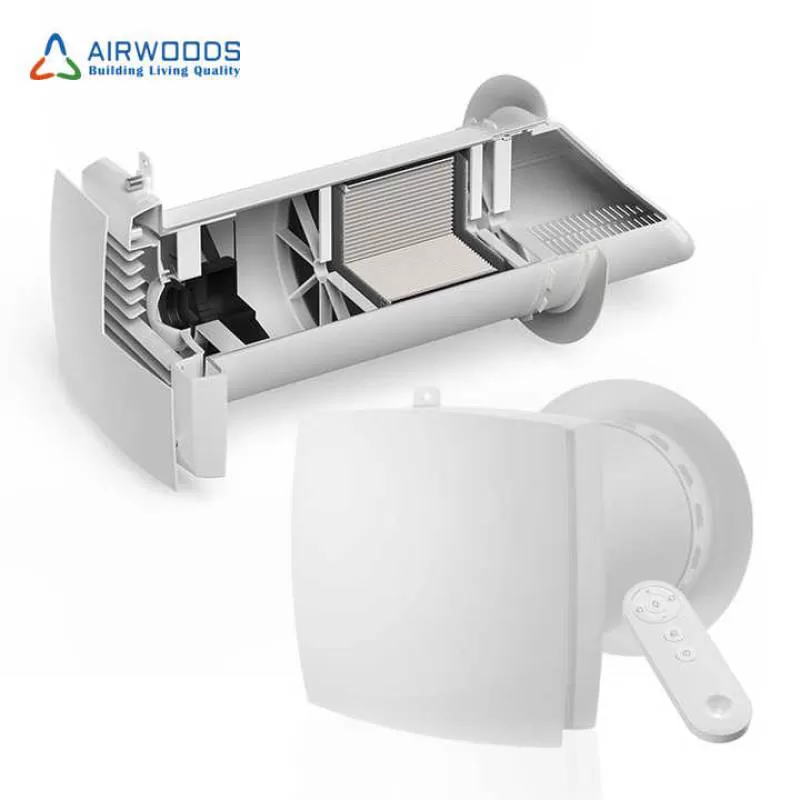

Product Structure

CERAMIC ENERGY REGENERATOR
The high-tech ceramic energy accumulator with regeneration efficiency up to 97 % ensures extract air heat recovery for warming of supply air flow. Due to the cellular structure the unique regenerator has a large air contact surface and high heat-conducting and heat-accumulating properties.
The ceramic regenerator is treated with an antibacterial composition which prevents bacteria growth inside of the energy regenerator. The antibacterial properties last for 10 years.

AIR FILTERS
The two integrated air filters with total filtration rate G3 provide supply and extract air filtration. The filters prevent ingress of dust and insects into the supply air and contamination of the ventilator parts. The filters also have antibacterial treatment.
The filter cleaning is done with a vacuum cleaner or water flushing. The antibacterial solution is not removed. F8 filter is available as a specially ordered accessory, but when installed, it reduces the air flow down to 40 m 3 /h.

REVERSIBLE EC-Fan
The reversible axial fan with a EC motor. Due to the applied EC technology the fan is featured with low power consumption and silen operation. The fan motor has integrated thermal overheating protection and ball bearings for long service life

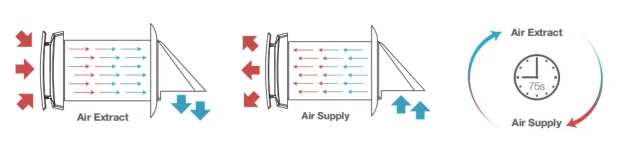

Operation In Different Mode

Regeneration Mode

Under regeneration model, the ventilators work in pair, one will extract air and the other will supply air. The fans rotate in different direction.

Supply Mode

Under supply mode, two ventilators will run simultaneously to supply air to the room

Exhaust Mode

Under exhaust mode, two ventilators will exhaust air simultaneously

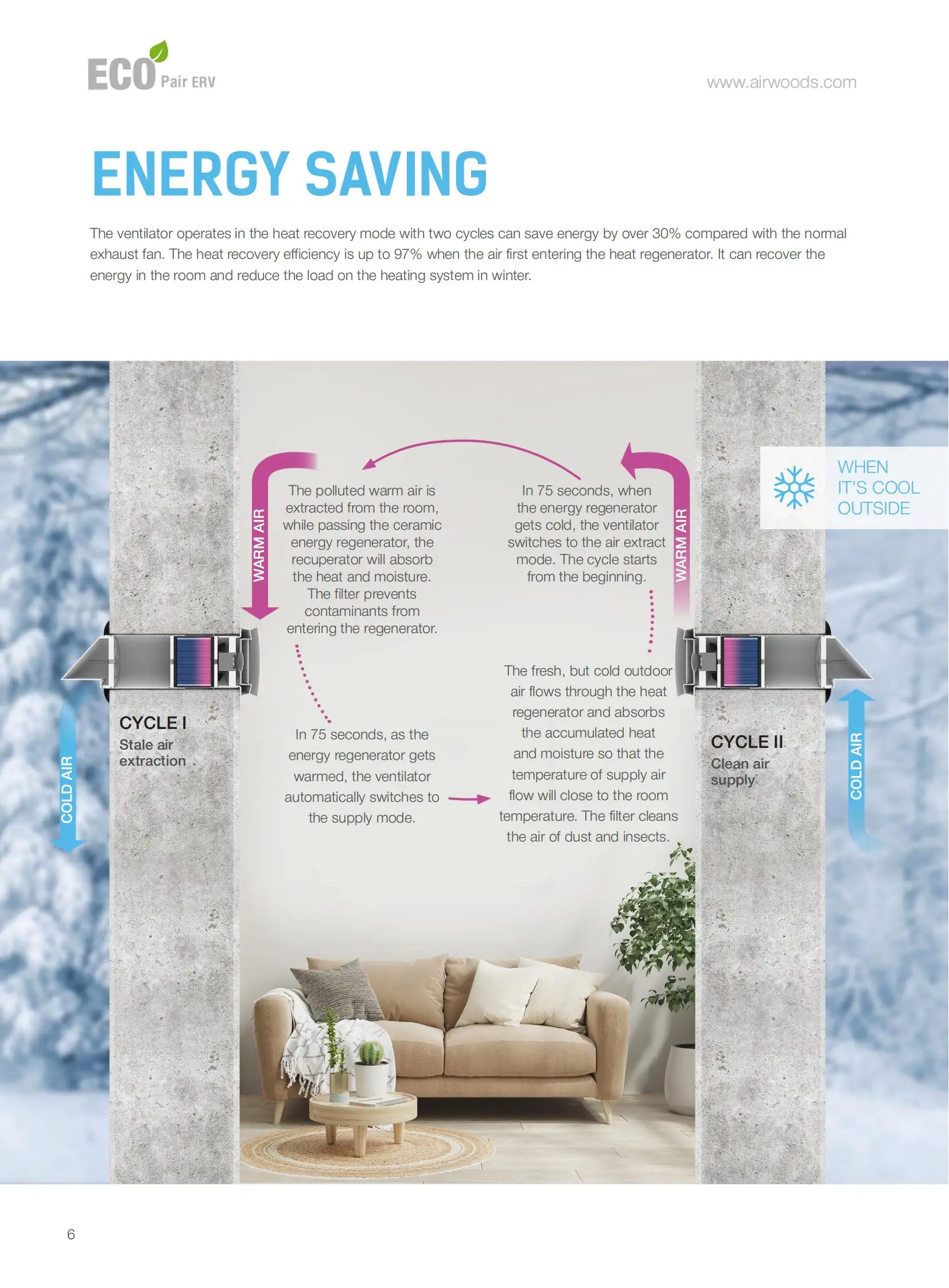

ENERGY SAVING
The ventilator operates in the heat recovery mode with two cycles can save energy by over 30% compared with the normal exhaust fan. The heat recovery efficiency is up to 97% when the air first entering the heat regenerator. It can recover the energy in the room and reduce the load on the heating system in winter.

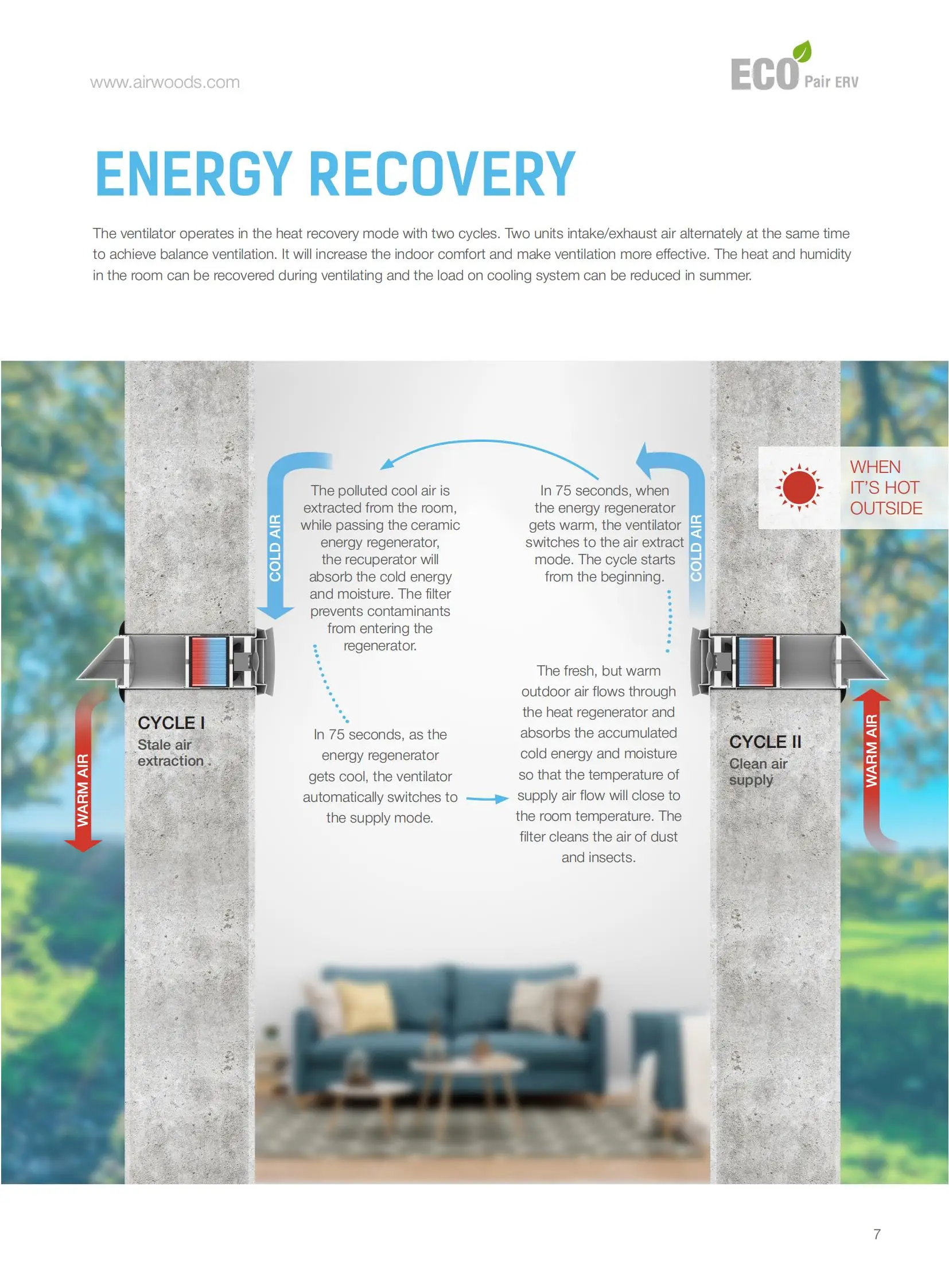

The ventilator operates in the heat recovery mode with two cycles. Two units intake/exhaust air alternately at the same time to achieve balance ventilation. It will increase the indoor comfort and make ventilation more effective. The heat and humidity in the room can be recovered during ventilating and the load on cooling system can be reduced in summer.

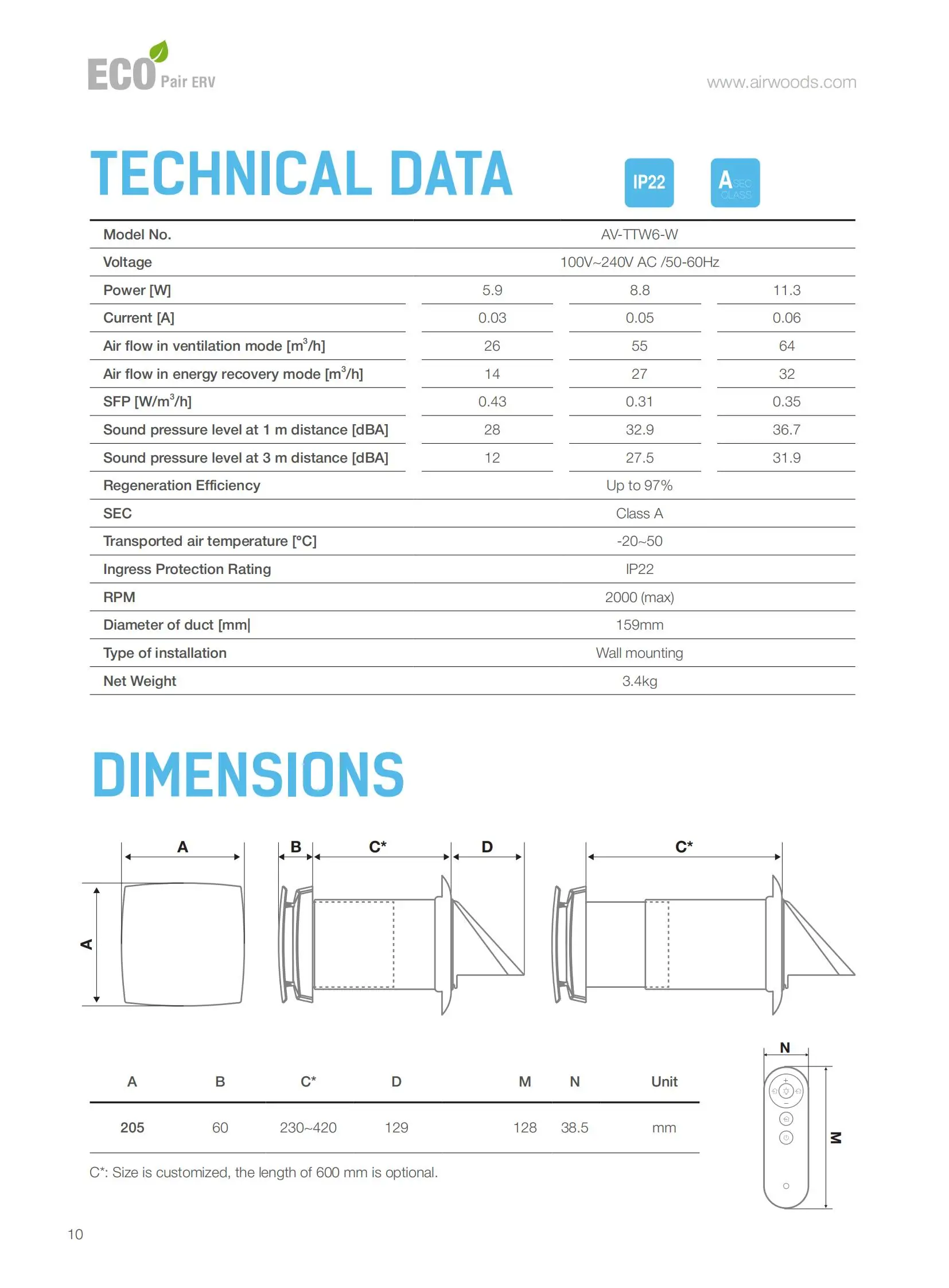

Model No.	AV-TTW6-W
Voltage	100V~240V AC /50-60Hz
Power [W]	5.9	8.8	11.3
Current [A]	0.03	0.05	0.06
Air flow in regeneration mode [m3/h]	26	55	64
Air flow in energy recovery mode [m3/h]	14	27	32
SFP [W/m3/h]	0.43	0.31	0.35
Sound pressure level at 1 m distance [dBA]	28	32.9	36.7
Sound pressure level at 3 m distance [dBA]	12	27.5	31.9
Regeneration Efficiency	Up to 97%
SEC	Class A
Transported air temperature [°C]	-20~50
Ingress Protection Rating	IP22
RPM	2000 (max)
Diameter of duct [mm\|	159mm
Type of installation	Wall mounting
Net Weight	3.4kg

Company Profile

Since 2007, Airwoods dedicated to provide comprehensive building air quality solutions for various applications. Its a brand for better air quality and better life products. AIRWOODS brand mainly focus on the marketing, sales and product development to meet different market demand. The main products include air purifier, air disinfection system, fresh air ventilator, energy recovery ventilator, heat pump type heat recovery ventilator, air heat exchanger, air handling unit, water chiller, heat pump, etc. Our products have exported to more than 100 countries, certified by SGS CE, CB, EPCS, etc. and earned a worldwide reputation for providing reliable products, knowledgeable application expertise and responsive support and services. We aim to deliver good building air quality to the world with energy efficient products, optimized solutions, cost-effective prices and great services to our customers.

Certifications

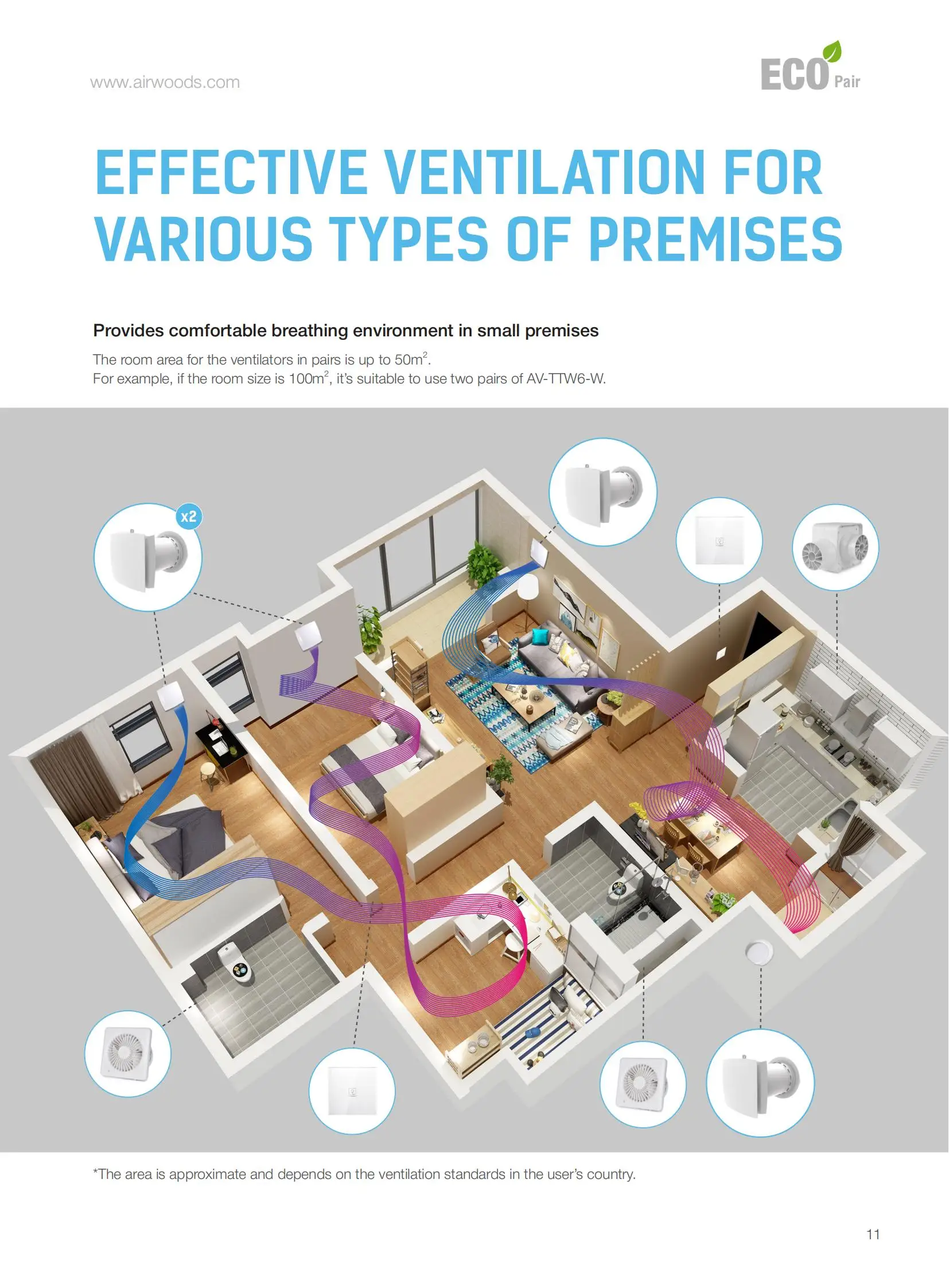

The ventilator is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls and other residential and public premises. The ventilator is equipped with a ceramic regenerator that enables supply of fresh filtered air heated by means of extract air heat regeneration. The ventilator is designed for through-the-wall mounting and is rated for non-stop operation. Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials, coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust, pathogenic germs).
