100 130 Micron 2''*2 Unit Agricultural Irrigation Automatic Water Backwash Disc Filter System

(8 Lượt)

Tập đoàn thiết bị thanh lọc Tân Hương Lvda

Nhà sản xuất, chế tạo • 1 năm

Giá

37,500,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

100 130 Micron 2''*2 Unit Agricultural Irrigation Automatic Water Backwash Disc Filter System

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

100 130 Micron 2''*2 Unit Agricultural Irrigation Automatic Water Backwash Disc Filter System

Nhà cung cấp

Tập đoàn thiết bị thanh lọc Tân Hương Lvda

Thông tin nha cung cấp của bạn

Tập đoàn thiết bị thanh lọc Tân Hương Lvda

1 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

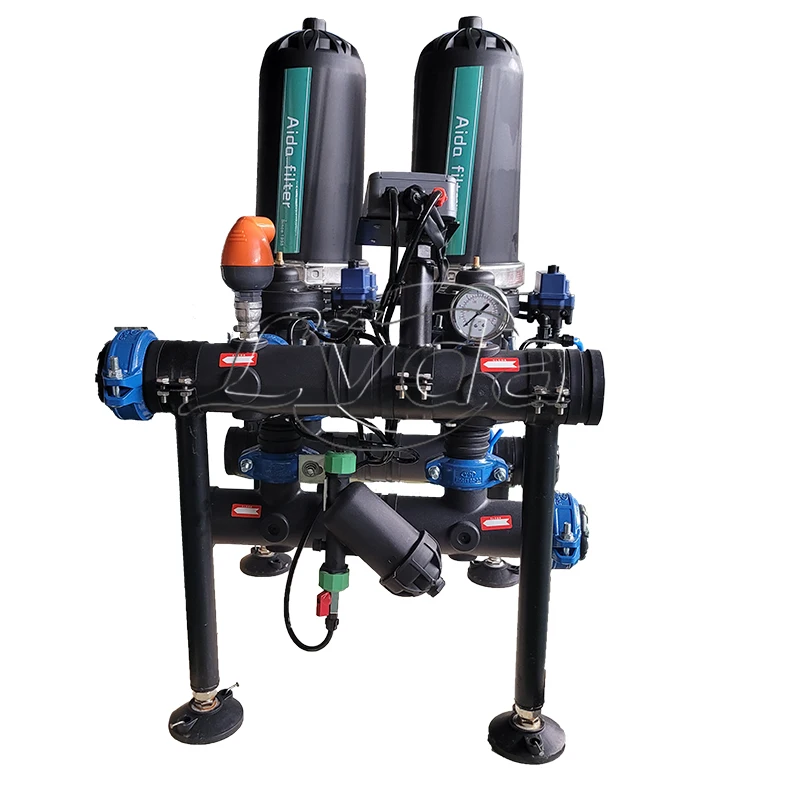

100 130 micron 2''*2 unit agricultural irrigation automatic water backwash disc filter system

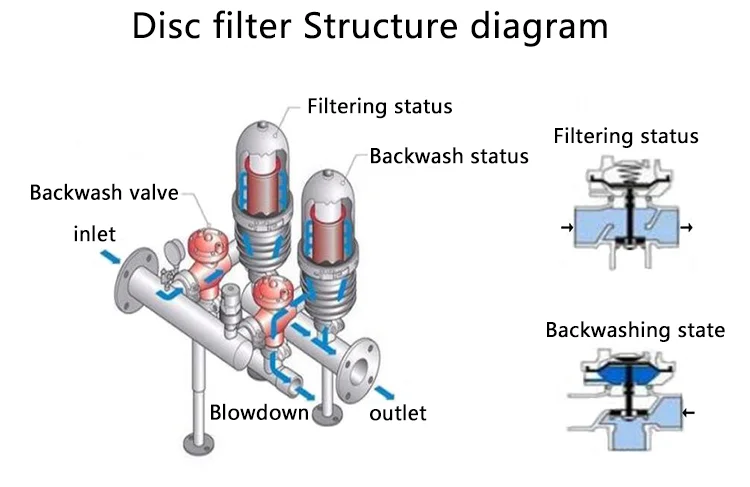

LVDA automatic backwash self-cleaning disc filter is composed of a group of plates with grooves on two sides. The intersection points formed by the edges of the grooves can intercept the solid matter in the water，then effectively remove organic and inorganic matter from the raw water. The intersection points also can highly catch soft impurities and fiber soft impurities. The filtration effect is greatly improved because of the functions of surface interception and deep condensation. At the same time, the disc filter has the characteristics of efficient backwash effect, automatic continuous operation, low water consumption, small covering and reliable operation, the backwash process of the filter system can alternately run in turn. It can automatically shift between working and
backwash. In this way, it ensures continuous effluent, decreases system pressure loss. It’s very obvious that our disc filter owns
so many technology advantages.

Disc connection size	Disc Filter element type	Customer required micron rate	Pipeline material	water inlet/outlet
2 inch	T type	130 micron 100 micron	Carbon steel (or HPDE can be chosen)	customized
Drainage port size	Main components	Packing	Production time
customized	automatic controller box,Three-way valve，pressure gauge, disc filter elements, pipeline, Y-type filter etc.	Wooden case/set	10-15 working days

1.Disc filtration, maximum safety
Its design and the materials guarantee a long life and high resistance.
2.HELIX system
Optimization of the performance and minimum frequency and intensity of maintenance
labors.
3.Self-cleaning filtering element
Maximum saving of water and efficiency in back flushing.
4.Wide range of filtering rate.
Filtration grades go from 20 to 400 micron.
5.Low maintenance
Without tooling. Maximum resistance, with movable parts not susceptible to wearing due to
a continuous operation.
6. Water and energy saving

Note
1: The disc head can be manually cleaned;
2: The automatic draining time of the controller can be set in 10-600 seconds, the interval time can be
set from 4 minutes to 20 days, the differential pressure can be set to 10KPa-350KPa,and The time and
pressure difference which set the condition first will control the automatic blow down.
3: The pressure during back washing must be guaranteed >: 180 Kpa. If there is no guarantee that the
Back washing pressure pump needs to be added, then the water supply needs to be interrupted during
Back washing .

Xinxiang Lvda Purification Equipment Corporation is a high-tech enterprise with technical and economic strength, mainly producing filtration, separation and purification products, and providing filtration solutions for customers in various industries all over the world. Engaged in this industry for more than 20 years, the company has a lot of staffs with many years experiences and a number of senior technical personnel. At the same time, the company constantly absorbs the advanced technology at home and abroad, and now has a integrated operation system including design, RD, production, installation, service and detection means.

Our company always regards product quality as life, attaches great importance to scientific and technological progress. Our quality has reached the international advanced level, and our products are exported to more than 20 countries and regions such as Southeast Asia, Europe and the Middle East. Advanced manufacturing technology: the company not only independently develops more than 1000 kinds of filter products with various filter materials by virtue of its strong technical strength, but also ensures the high standard of each product through standardized and refined quality management system. Excellent team and efficient management: we provide you with fast, efficient and reliable technical support and product services to spare you more time to focus on your core business.
