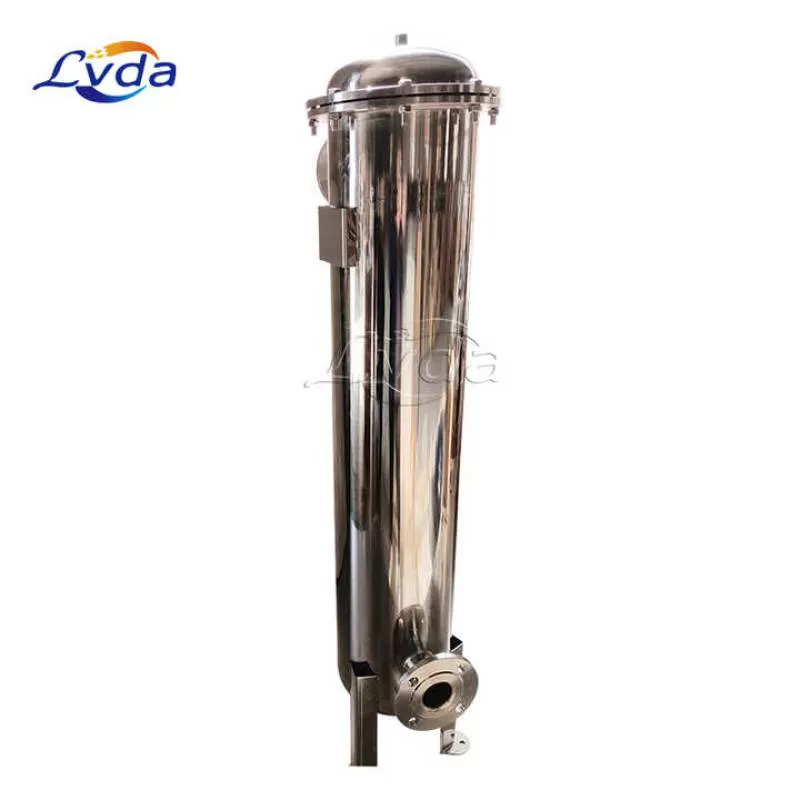

7 Core 20 Inch 304 316 Stainless Steel Water Cartridge Filter Housing in Biopharmaceutical Wax Printing Syrup Filtration

(18 Lượt)

Tập đoàn thiết bị thanh lọc Tân Hương Lvda

Nhà sản xuất, chế tạo • 1 năm

Giá

4,500,000 đ

Giá sỉ

0986258282

Giá số lượng lớn

0986258282

7 Core 20 Inch 304 316 Stainless Steel Water Cartridge Filter Housing in Biopharmaceutical Wax Printing Syrup Filtration

Liên hệ nhà cung cấp Chat now

Những điểm chính về sản phẩm

Thuộc tính cụ thể của ngành

Các thuộc tính khác

Khu vực

Thương hiệu

Mã sản phẩm

Tên sản phẩm

7 Core 20 Inch 304 316 Stainless Steel Water Cartridge Filter Housing in Biopharmaceutical Wax Printing Syrup Filtration

Nhà cung cấp

Tập đoàn thiết bị thanh lọc Tân Hương Lvda

Thông tin nha cung cấp của bạn

Tập đoàn thiết bị thanh lọc Tân Hương Lvda

1 yrs

Vị trí tại VN

Thời gian đáp ứng

≤2h

Tỷ lệ giao hàng đúng hẹn

95%

Sản phẩm Cửa hàng

Mô tả sản phẩm từ nhà cung cấp

Mô tả sản phẩm

Product Description

Bag filter for water filtration

Bag filter is a kind of novel structure reasonable, good sealing, circulation ability, easy operation and many other advantages, wide range of applications, adaptable multi-purpose filter equipment.

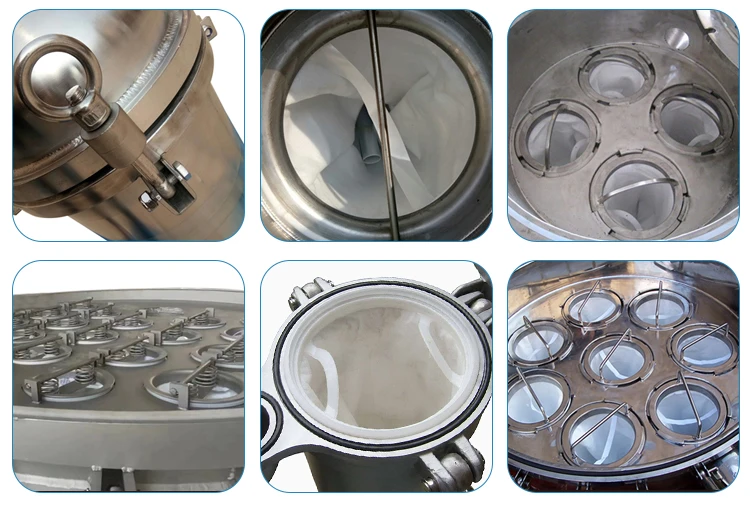

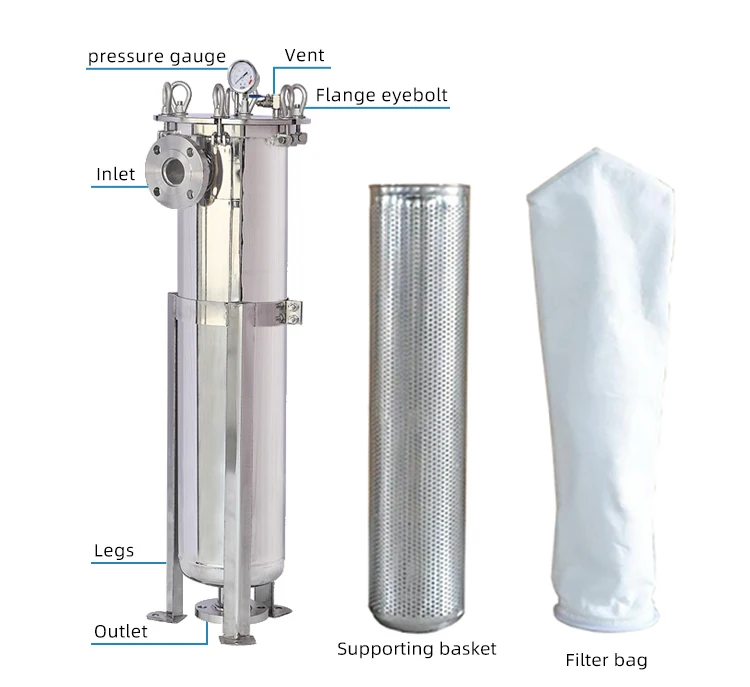

Bag filter is a pressure filter device, mainly filter tube, filter cover and quick opening mechanism, stainless steel filter bag
reinforced mesh and other major components, the filtrate from the filter shell side of the entrance Tube into the filter bag, the filter bag itself is the device in the strengthening of the basket, the liquid penetration of the required level of the filter bag that can get a qualified filtrate, impurity particles blocked by the filter bag. The machine is easy to replace the filter bag, the basic filter without material consumption.

Key advantages

♦ Filter bag side leakage rate is small, effectively guarantee the quality of filtration. In the case of
♦ Bag filter can carry more work pressure, low pressure loss, low operating cost and energy saving effect. In the case of
♦ Filter bag filtration accuracy continues to improve, has reached 0.5μm. In the case of
♦ Bag filter processing capacity, small size, large capacity of sewage. In the case of
♦ Based on the working principle and structure of the bag filter system, it is convenient to replace the filter bag, and the
filter is free from cleaning and saving time. In the case of
♦ Filter filter bag can be used repeatedly after cleaning, cost savings.
♦ Wide range of bag filter applications, flexible use, and diverse installation.

Application

Paint, beer, vegetable oil, medicine, chemicals, petroleum products, textile chemicals, photographic chemicals, electroplating solution, milk, mineral water, hot solvent, latex, industrial water, syrup, resin, ink, industrial wastewater, Oil, wax and so on.
Bag filter applications:
Food and beverage: sugar filter, spice filter, tea beverage filter, alcohol, mineral water, beer and so on;
Water treatment: system cooling in the cooling unit, oilfield water injection and no well fluid filtration, power plant condensate purification and ion exchange resin recovery;
Chemicals: catalyst recovery in addition to carbon ink and filter aid;
Adhesive: In addition to acrylic adhesive gel, in addition to PVC coagulation block hot melt polymer filter;
Lubricant: Lubricant before packaging filter, lubricating oil filter in addition to filter;

Product Paramenters

	Single Bag filter			Multi Bag filter
	Side entry Bag filter	Stainless steel Bag filter	Push in Bag filter
Max flow rate	10.45m³ /h	10-45m³/h	20-50m³ /h	90-1000m3/h
Filter area	0.1-0.5㎡	0.1-0.25 ㎡		13-27 litres
Filter micron	03-600 um	0.3-600 um
Shell material	SS304/SS 316/SS 316
Inlet & Qutlet size	DN25-DN80		DN25 Flange connection	ψ50-450mm Flange connection
Max pressure	0.6-2.0Mpa	0.1Mpa	0.3-0.8Mpa

Company Profile

Certifications

Product packaging

Feedback

FAQ

1. Do you accept OEM?
A: Yes. we can produce according to your requirement.

2. Can you print my company logo and package?How long does it take to produce?
A: Yes, of course we can print your company loge and package, you just show your logo to me, and then we will
do it for you.
Normally, we produce it need 4-6 working days.

3. What is your MOQ?
A: We can accept 1pcs sample. If more quantities, more favorable price.

4. Payments accepted
A: Bank-transfer, Creditcard, Paypal, Telegraphic Transfer Remittance (TT).

5. What is our shipping ways?
a. By sea and by air.
b. If you always import goods from different city in China, we suggest you to cooperate with a shipping agency to
collect goods for you from different location. If it's necessary, we can recommend someone for you.

6. How long is your Delivery Time?
A:If there has stock, the delivery time is about 5 working days after receiving your payment.

Order Tips
If you are not sure about the filter needed exactly,please advise its exact working environment and usage.We help you choose certain suitable filter.
